Kiloview G1/G2
Kiloview

Kiloview G1/G2 Wireless NDI Encoder

G Series H.264 Wireless Video Encoder - Streaming with WiFi/USB Extended 4G/Ethernet
Product Highlights
  • Built-In IEEE 802.11 a/b/g/n Wi-Fi
  • HD/3G-SDI Input/Output (G1) - HDMI Input/Output (G2)
  • 3.5mm Analog Audio Input & Output
  • RJ45 Ethernet Port
  • Micro SD/TF Card Slot
  • USB Type-A & Mini-USB Ports for Storage
  • Two Wi-Fi Antennas
  • 12 VDC Power Adapter
  • ONVIF Compliant
  • Overview
  • Tech Specs

Professional Wireless H.264 Video Encoder
Kiloview G series wireless video encoders can encode SDI/HDMI video sources into network streams through WIFI/Ethernet/USB expand 4G, and realize long-distance high-definition transmission/live video transmission on Internet WAN or local area network LAN. G series fully support SRT, RTMP, RTMPS, HLS, UDP, RTP, RTSP, Onvif and other protocols.

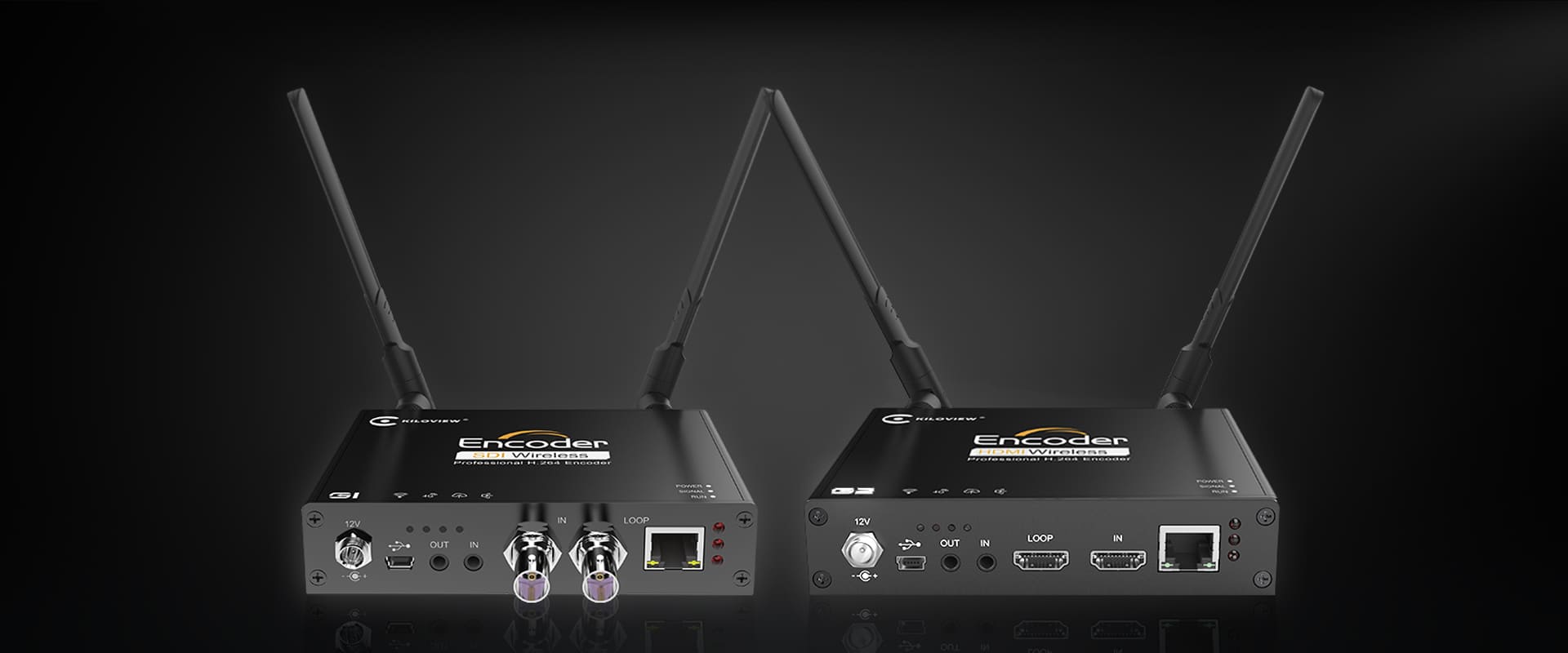

G1: SDI input/loop out; G2: HDMI input/loop out.

Stable Wireless Connection
The G series has a built-in dual-band (2.4G/5GHz) WiFi module, which achieves more stable wireless transmission. It also supports 4G-Lte USB dongle for mobile application.

Real HD 1080P60 Video supported
It supports real HD video input with resolution up to 1920*1080P@60FPS to ensure that the image quality is perfect.

Faster While Better
G series adopt standard H.264 coding algorithm, so they ensure high-quality image and smooth live streaming. They provide you superior video with low-latency, low bitrate and low bandwidth.

Live Broadcast on Multiple Platforms
Dual stream output (main stream and sub stream), each stream can be used to up to 8 platforms with same or different protocols, altogether it can simultaneously live stream to up to 16 platforms (with main stream resolution up to 1080p60Hz, sub stream resolution up to 720p 60Hz).

More Protocols Compatible
G series supports full range of protocols including RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time. It also supports ONVIF 1.1/2.0 for easy Access To Security Protection System / NVR System

Analog and intercom supported - More than video
G1 G2 supports embedded and 3.5mm analog audio encoding, so you can use KILOVIEW voice intercom software to realize real-time calls.

Model G1: SDI; G2: HDMI
Video Input G1:1*BNC SDI; G2: 1*HDMI
Analog video input 2*3.5mm
USB 2*USB 2.0 Type-A
Micro SD 1*Micro SD/TF Card storage interface
Network support WIFI (2.4G/5G Hz)/USB expand 4G/Ethernet/Satellite
Video loop 1*BNC SDI or 1*HDMI
Video resolution Up to 1080P60Hz:
SDI model:1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz;
1080i50/59.94/60Hz; 720P23.98/24/25/29.97/30Hz; 720P50/59.94/60Hz
HDMI model: 1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz;
1080i50/59.94/60Hz; 720P/30/50/59.94/60Hz; below 1920x1200
Video encoding H264/AVC, Motion-JPEG
Audio encoding AAC/G.711
Encoding latency <67ms
Media transmission protocols SRT/RTMP/RTP/RTMPS/HLS/TS over UDP/RTSP /Onvif, customize for SIP
Image and text overlay Support custom text and picture overlay function, which can be superimposed to any position on the screen
Record storage Micro SD/TF card local recording, and NAS network storage
Management APP/ Web
Power supply/Consumption DC 12V 1A / 4W
Operating temperature -20°~45°

Dimension
  • 125*89*28mm (4.92”*3.50”*1.10”)

Weight
  • 380g(13.4oz)
