D300 4K HDMI HEVC Hardware Decoder
Kiloview's Powerful Hardware Video Decoder with Dual Outputs
Product Highlights
- NDI HX, H.265 & H.264 Decoding
- 4 x UHD 4K or 16 x 1080p30 or Channels
- 2 x 100M/1000M RJ45 Ethernet Inputs
- 1 x 3G-SDI & 1 x HDMI 2.0 Output
- Image Scaling/Frame Rate Conversion
- Overview
- Tech Specs

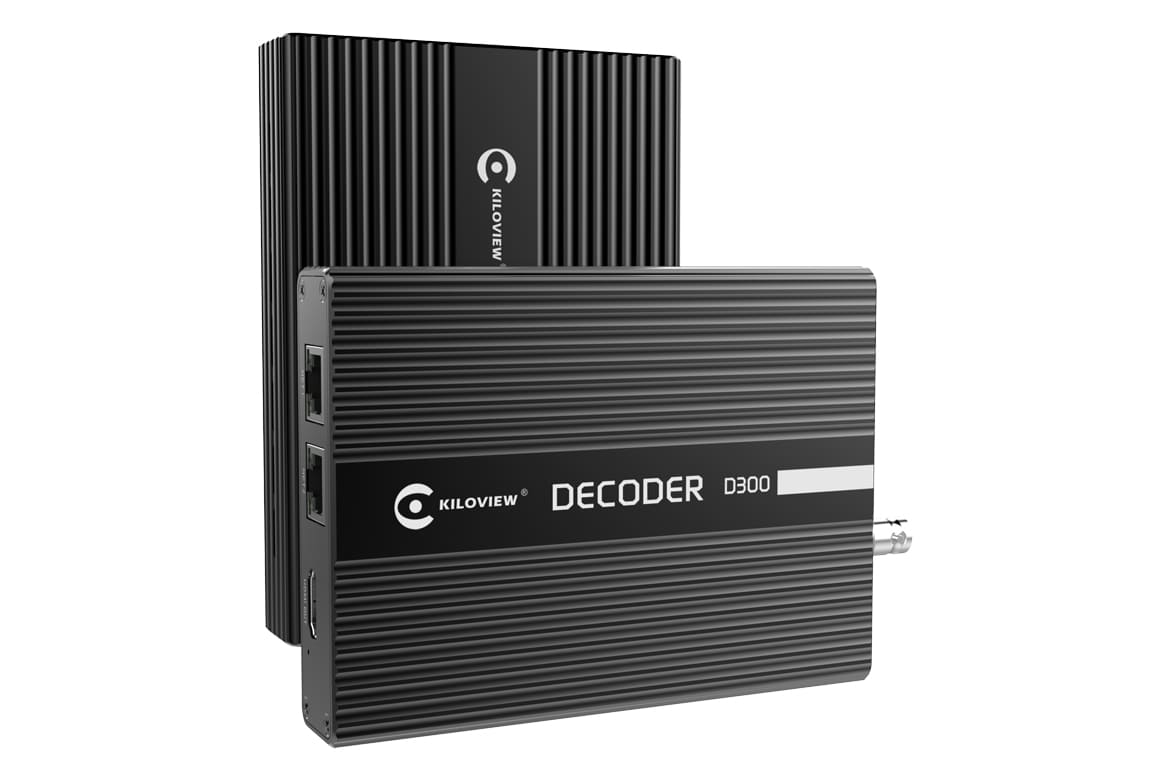

Kiloview D300 decoder is a professional 4K H.265 (HEVC) hardware decoder that brings multiple video streams to both SDI and 4K HDMI. Without relying on a computer, it decodes any IP streams including NDI®|HX2/SRT/RTSP/RTMP/TS-UDP/HLS etc and output the video to display wall in up to 9 grids or free layout, and dynamic switching is supported. It also supports RTMP server for direct connection with encoders, and up to 16 sources for preview on its web page.
Superior IP Video Decoding Performance

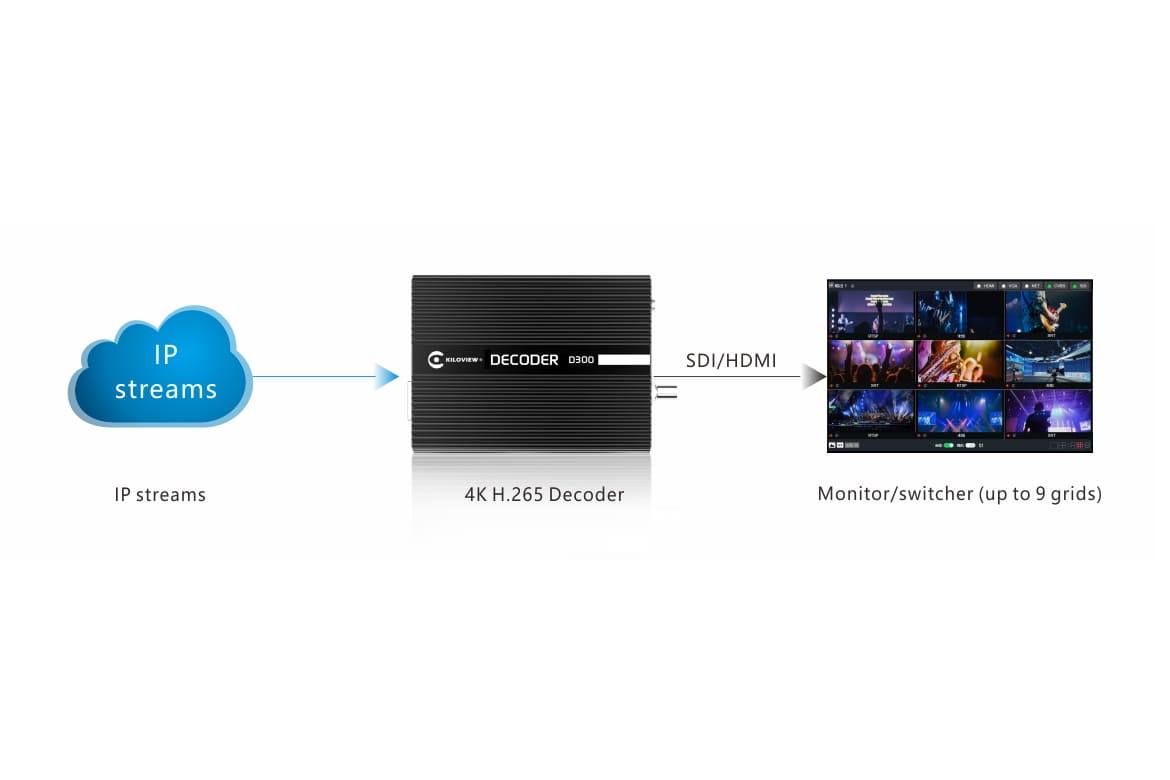

It supports decoding up to 4K H.264/ H.265 IP streams and decode the streams to output 3G-SDI and 4k HDMI. It supports decoding up to 9 channels of videos simultaneous.
All Protocols Supported
It’s compatible with NDI®|HX (2.0) , SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc. Decoding with the same or different protocol is available.
Low latency and high quality
Intelligent delay control technology to achieve a less than 200ms decoding delay in network environment.
Image enhancement and fault-tolerant technology for low code-encoded video, 10% of network packet loss video, etc., clear and distortion-free decoding output
RTMP Server Supported
With RMTP server, the encoder can directly transmit the video to Kiloview decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.

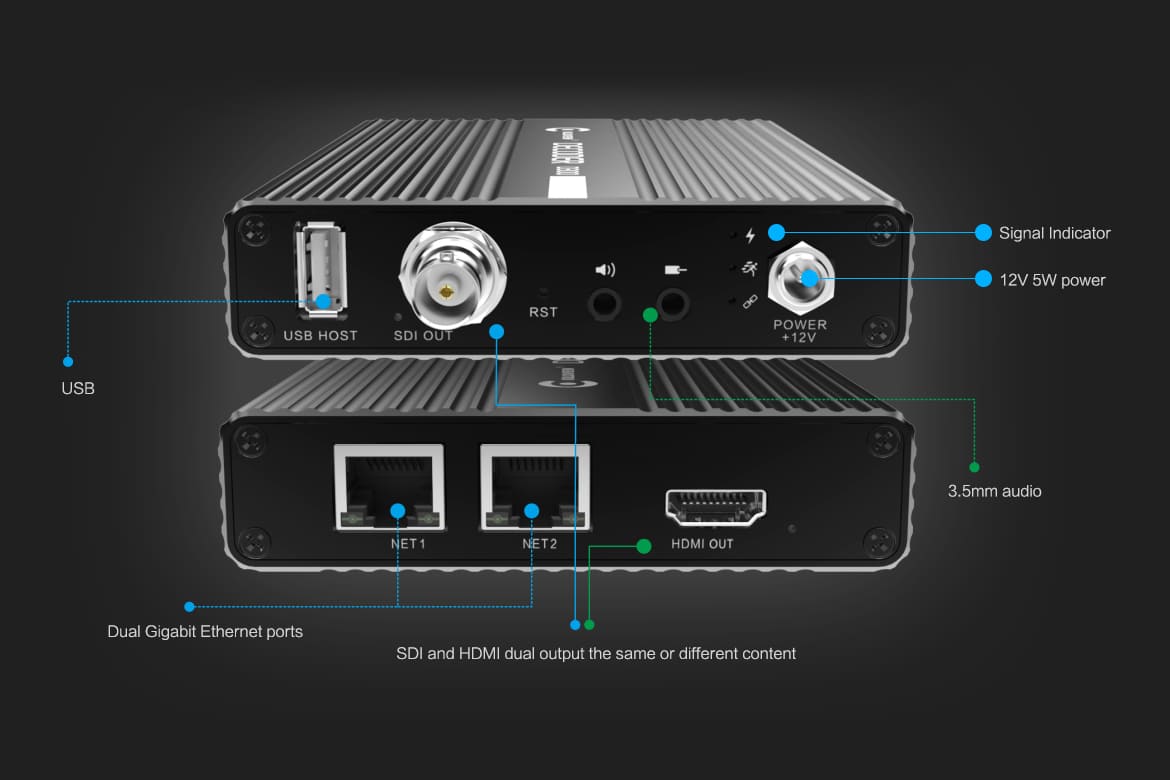

Dual Output, Same or Different
3G-SDI and 4K HDMI dual interface for outputting, output content can be either the same or different.
Customize Your Output Display
Free Layout: The output display can be either in grids or a free layout with customized design, PIP, PBP, POP, all as you wish.
Free Resolution: The output resolution is adjustable, it also supports de-interlace and frame rate is adjustable
16 Preview + 9 Output with Dynamic Switching
With updated feature, 16 streams of real-time video streams or images can be previewed on its web page, from which you can choose 9 of the streams for output on displaying screen.
Unlimited video sources can be added and freely choose any video source to be decoded, the switching is dynamic and seamless.
Real-time Intercom
Both embedded and analog audio encoding are supported. What’s more, with Kiloview voice intercom software (optional), it can realize multi-party voice intercom function.
Free output background and OSD
D300 can be customized to set a background subject, which supports LOGO, frame, graphic overlay. At the same time, you can preview the customized information.
Model | D300 |
Input | 2*100M/1000M RJ-45 adaptive Ethernet ports |
Video output | 1 SD/HD/3G-SDI, up to 1080P60,1 HDMI, up to 3840*2160@60Hz |
Output formats | SDI up to 1080P60Hz; HDMI up to 4k, as follows: SDI:1080P60/59.94/50,1080P30/29.97/25/24/23.98 1080i60/59.94/50, 720P60/59.94/50, 576i/50, 480i/60; HDMI:4K 3840x2160@60/50/30/25,1080p60/50,1080p24/25/30, 1080i60/50,720p60/50, compatible with VESA standard format. |
Audio output | SDI/HDMI embedded or analog audio output |
Media protocols | NDI|HX/SRT/RTMP/HLS/TS over UDP/RTSP/RTP (Note: NDI|HX means NDI|HX Version 2.0) |
SDI Transmission Distance | Belden 1694A: SD SDI ≤ 350m; HD SDI ≤ 180m; 3D SDI ≤ 100m |
Video decoding | H.265 /H.264 |
Audio decoding | AAC/G.711 |
Decoding latency | <200ms (adjustable) |
Decoding capability | 4K 30Hz: up to 4 channels; 1080P 50Hz/60Hz: up to 8 channels simultaneously; 1080P 30Hz or 1080i 50/60Hz or 720P and below: up to 9 CH simultaneously. |
Split screen display | Support 1/2/3/4/5/6/7/8/9 split screen |
Management | Web UI and remote management with KILOVIEW KiloLink Server |
Power/Consumption | 12V, 1A /6W |
Operating temperature | -20~60°C |
Dimension
- 140*105*28mm (5.51”*4.13”*1.10”)
Weight
- 380g(13.4oz)
