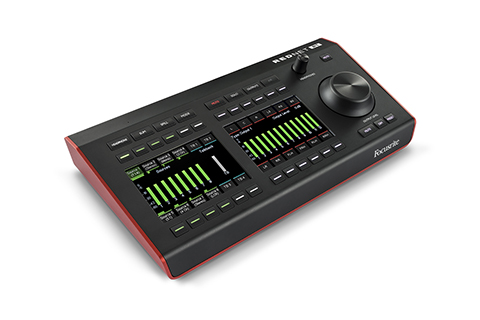

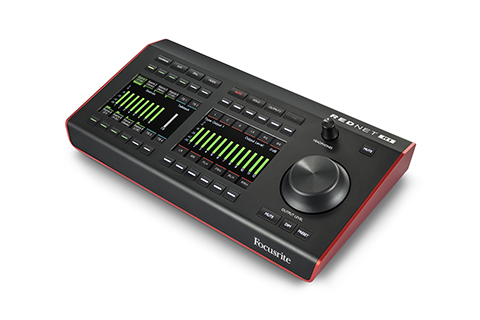

Focusrite RedNet R1
Focusrite

RedNet R1

58-In, 64-Out Thunderbolt 3 Audio Interface With Two Red Evolution Mic Pres, Analogue Line-Level, DigiLink, Dante®, ADAT & S/PDIF Connectivity
Product Highlights
  • Desktop remote controller for Red audio interfaces
    The first Dante®, Pro Tools | HD™ and Thunderbolt™ interface system with a monitor controller.
  • Switch and sum
    Supports a maximum of eight channels, each of up to 12 sources per channel, from 32 available audio sources.
  • Flexible monitor control
    Controls include level, reference level, preset selection, cut, dim, mute, A/B switch, and a variety of solo modes.
  • Monitor fold-downs
    Up to four fold-down presets allow fast switching for checking downmixes.
  • Talkback & headphones functionality
    Four destination groups when used with a Red interface, or a single talkback group when used with other Dante devices. High-fidelity output can take its source from a multitude of sources.
  • Built-in Microphone
    RedNet R1 has an internal talkback microphone, or users can connect their own, via the rear-panel XLR.
  • Precision metering and display
    Two LCD displays for highly accurate level metering of the outputs, sources and headphone outputs, and for giving visual cues for navigating around menus.
  • Software setup with hardware-focussed workflow
    RedNet Control is designed for quickly setting up simple or complex configurations.
  • Footswitch input
    Quarter-inch jack socket accepts a footswitch, for talkback management, LFE muting and more.
  • Power-over-Ethernet (PoE) support
    Powered via Ethernet (using the PoE standard), or using a DC power supply.

  • Overview
  • Tech Specs

RedNet R1 enables users to interact with their audio system like never before. It provides the flexibility to control a range of different monitor output setups, ranging from mono through to 7.1.4 surround, including Dolby Atmos® and other immersive audio workflows. Alternatively, completely custom setups of up to 12 outputs can be configured for bespoke speaker configurations. RedNet R1 can be used to control groups of outputs from a Red interface’s multitude of sources and destinations, including from Pro Tools | HD and other DAWs, analogue inputs and outputs, ADAT and S/PDIF connections, and from entire Dante audio ecosystems, simultaneously and interchangeably.

RedNet R1 supports a maximum of eight input sources from 32 available audio channels, across analogue, digital, DAW and Dante connections, and mixes and routes signals to up to 12 monitor output channels. Top-panel control includes level, reference level preset selection, cut, dim, mute and a variety of solo modes. There’s an A/B switch for switching between numerous monitoring presets, and up to four fold-down presets allow fast switching for checking downmixes. Custom cue mixes can be sent to talent from any of the 32 available inputs.

RedNet R1 also features a Dante-enabled talkback section, internal mic-pre and a high-powered headphones output, so you can interact with your Dante system like never before. Up to four talkback destination groups are available when used with a Red interface. (When used with other Dante devices, a single talkback group is available.) RedNet R1 has an internal microphone, or users can connect their own microphone via the rear-panel XLR. The high-fidelity headphone output is powerful enough to deliver high-SPL audio to high-impedance headphones.

RedNet R1 features two LCD displays for highly accurate level metering of the outputs, sources and headphone outputs, and for giving visual cues for navigating around menus. The unit is configured using RedNet Control 2, the software manager designed primarily for ease of use in quickly setting up both simple and complex monitoring and routing configurations. Other features of the RedNet R1 include a quarter-inch jack socket, which accepts a footswitch for talkback management, LFE muting and more. It can be powered via Ethernet to reduce cabling complexity (using the PoE standard), or by a DC power supply.

INTERNAL TALKBACK
Note All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω
Gain Range 0dB to 55dB
Type Electronically Balanced, Zin = 3kΩ
Max. Input Level +10dBu ± 0.5dB
EXTERNAL TALKBACK
Note All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω
Gain Range 0dB to 55dB
Max. Input Level +10dBu ± 0.5dB
Frequency Response 20Hz - 20kHz ± 2dB
THD + N Less than -98dB (0.0012%) @ -1dBFS
EIN Less than -128dBu 'A'-Weighted (typical)
Signal-To-Noise Ratio -111dB 'A'-Weighted (typical), min gain
Common-Mode Rejection Ratio 50/60Hz CMRR: <-77dB
Type Electronically Balanced, Zin = 3kΩ
HEADPHONE OUTPUT
Note All measurements taken at +19dBm reference level, maximum gain, RL = 600Ω
0 DBFS Reference Levels +11dBm
Frequency Response 20Hz to 20kHz ±0.5dB
THD + N -100dB (0.001%) @ -1dBFS, Rs = 150R
Dynamic Range 108dB 'A'-weighted (typical), 20Hz - 20kHz
Noise In Presence Of Signal (NiPoS) Greater than -97 dBu 'A-Weighted'
Output Impedance
Headphone Impedance 32Ω - 600Ω
MICROPHONE/ LINE CROSSTALK
Mic Input To Headphone Output Less than -122dB; 20Hz - 20kHz (all other channels at 0dBFS)
Headphone Output To Mic Input Less than -84dB; 20Hz - 20kHz (all other channels at 0dBFS)
HEADPHONE CROSSTALK
Left To Right Less than -85dB; 20Hz - 20kHz (all other channels at 0dBFS)
Right To Left Less than -85dB; 20Hz - 20kHz (all other channels at 0dBFS)
DIGITAL PERFORMANCE
Supported Sample Rates 44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
Clock Sources Internal or from Dante Network Master
POWER
Power Over Ethernet (PoE) Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
DC Power Supply 1 x 12V 1.2A DC Power Supply
Power Consumption PoE: 10.3W - DC: 9W (When using supplied DC PSU)
HEAT PERFORMANCE
Operating Temperature Operates at up to an ambient temperature of 40 degrees Celsius

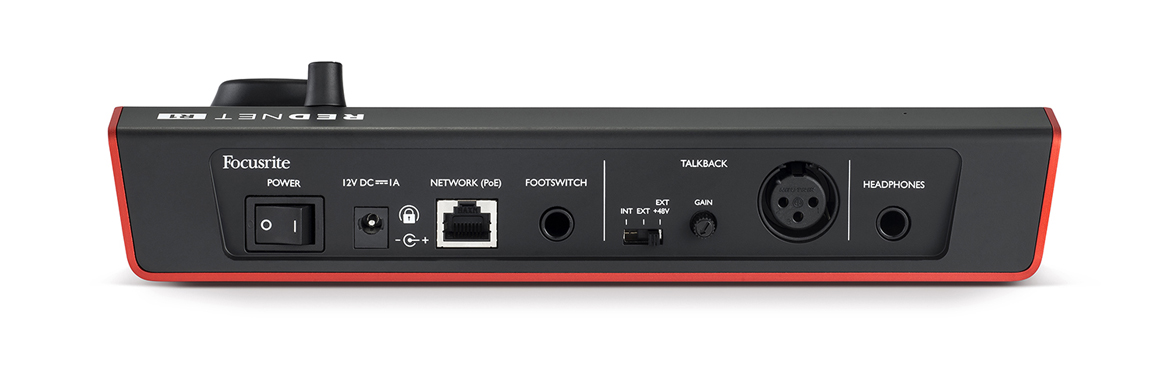

REAR PANEL CONNECTIVITY, POTS & SWITCHES
  • External Talkback Mic Input: 1 x XLR (F)
  • Foot Switch: 1 x 1/4" stereo jack

OUTPUTS
  • Headphone Outputs: 1 x 1/4" stereo jack

POTS & SWITCHES
  • Power Switch: 1 x Switch
  • Talkback Gain Pot: 1 x Pot
  • Talkback Switch: 1 x Tri-State Switch (External Talkback + 48V, External Talkback and Internal Talkback)

PSU & NETWORK CONNECTIONS
  • PSU (PoE And DC): 1 x PoE Input and 1 x DC 12V Locking Barrel Input Connector
  • Network: 1 x Standard RJ45 connector

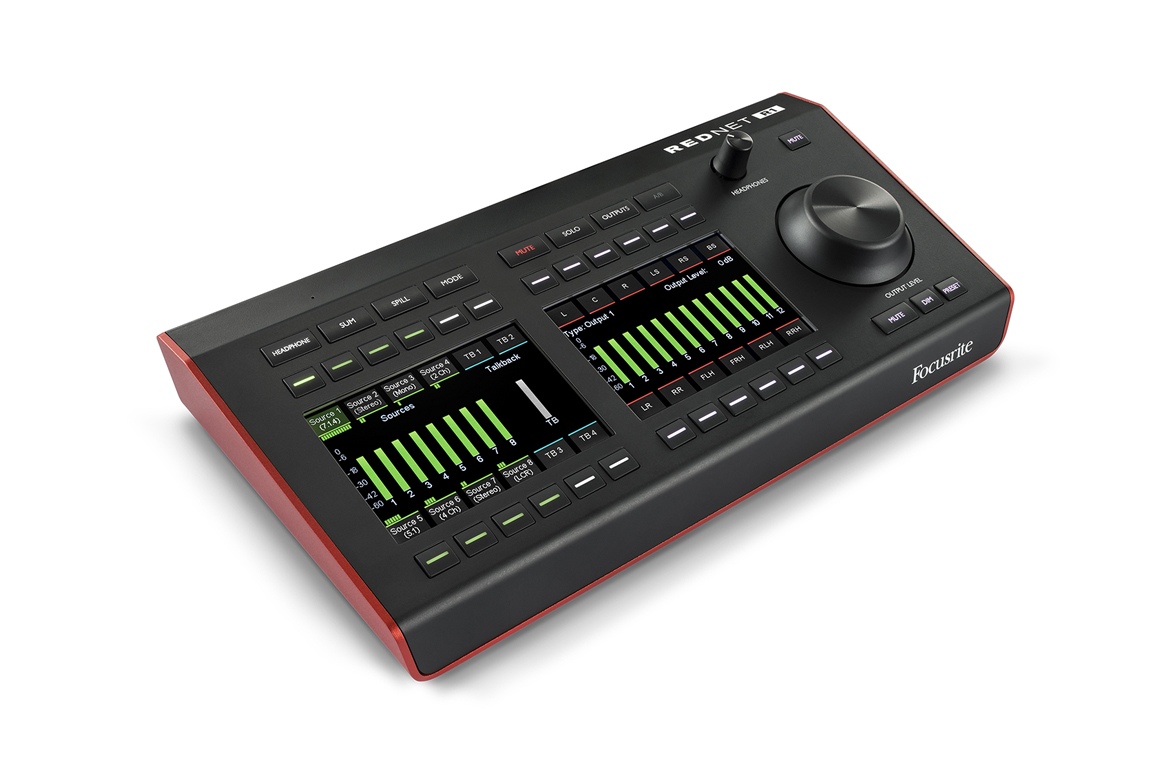

TOP PANEL INDICATORS
  • LCD Screens: 2 x Screens (Control, Status, Metering & Menus)
  • Control Functions: 2 x Continuous Pot (Level & Dim). 1 x Pot (Headphone Output). 24 x Multi-Function Switches (Sources, Talkback, Monitor Outputs & Menu Items). 12 x Single-Function Switches (Headphones, Sum, Spill, Mode, Mute, Solo, Outputs, A/B, Cut x 2, Dim & Output Lock)
