Focusrite X2P
Focusrite

REDNET X2P

2x2 Analogue I/O With 2x Mic Pres, Headphone And Line Output, PoE Supplied
Product Highlights
  • Two Red Evolution mic preamps for mic, line or instrument level inputs
  • Power-over-Ethernet supplied: IEEE 802.3af compliant
  • Up to 24-bit, 96kHz sampling rates
  • Robust steel and aluminium chassis
  • Local input mix to allow more-me style monitoring for easy foldback control
  • Powerful headphone output even with high-impedance headphones
  • Local control lockout of mic pre settings, output settings or both
  • Up to 24dBu line output levels
  • Independent level control of headphone and line outputs
  • Mute switch for line output
  • Mic stand mount
  • Kensington security slot
  • Integrated network switch allowing daisy-chaining of network devices

  • Overview
  • Tech Specs

RedNet X2P is a compact, portable and robust 2x2 Dante™ audio interface featuring two Red Evolution mic pres, stereo line out and a stereo headphone amplifier. RedNet X2P allows you to effortless add a high quality Dante audio interface by integrating power, audio, clock and remote control over a single Ethernet cable simply use a power over Ethernet switch or PoE injector. A local input mixer allows 'more me' monitoring control, while a control lockout mode ensures settings can not be changed when used remotely.

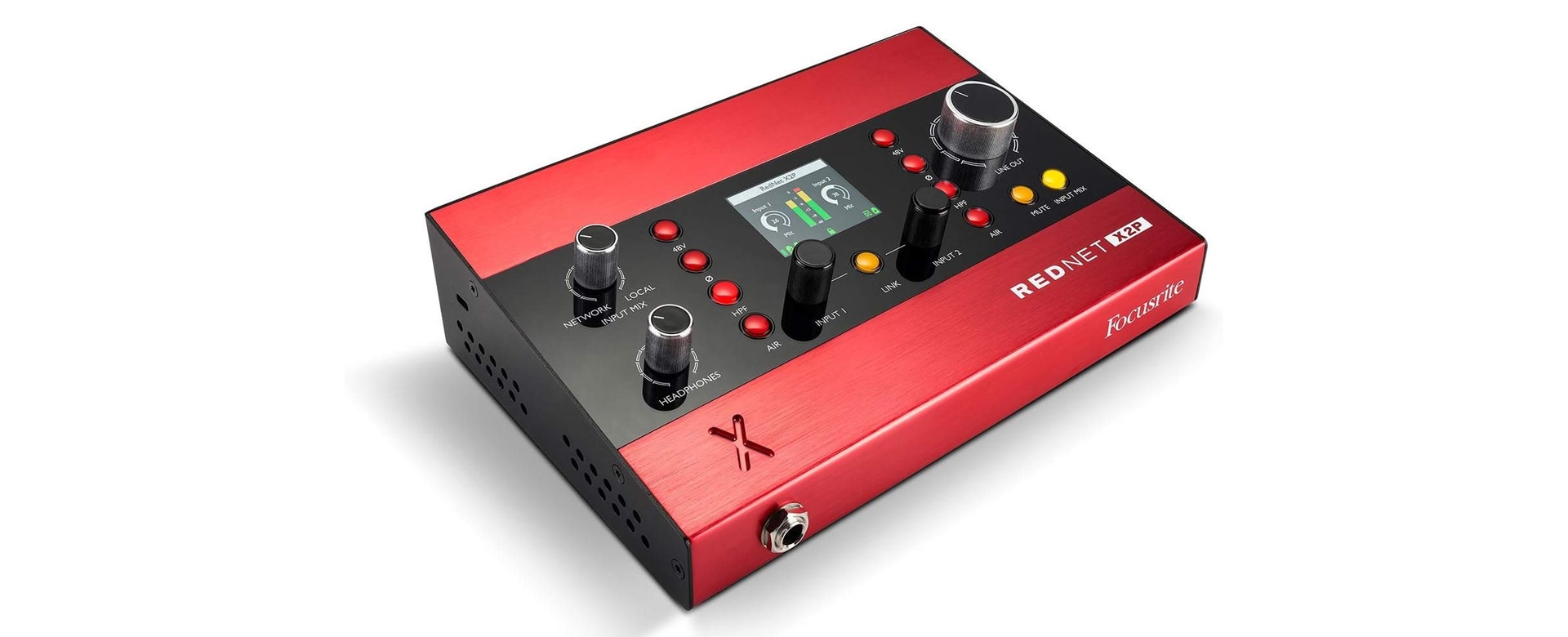

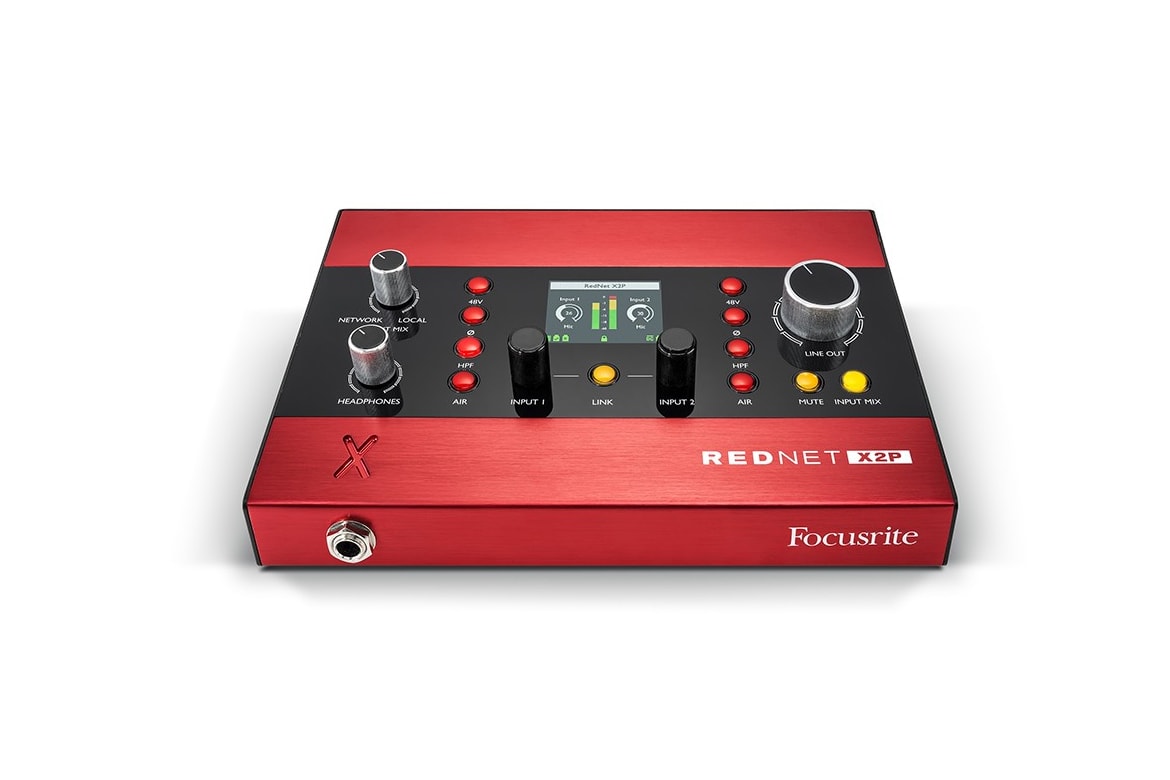

Rear panel XLR outputs offer level-controlled analogue outputs of up to 24dBu, while a front panel 1/4" connector provides a high-powered headphone output capable of driving both high and low impedance headphones. A pair of combination XLR/1/4" inputs allow the connection of mic, line or instrument level signals to the mic pres, which include Focusrite's acclaimed Air mode which emulates the sound of our classic input transformers. The top panel features an array of controls: output level for headphone and line outputs, mic pre controls of gain, high-pass filter, Air, phase invert, phantom power and stereo linking; as well as the crossfader for controlling the balance of mic pre inputs and network receiver channels which to be sent to the headphone or line outputs.

Microphone/ Line Inputs
Gain Range 0dB to 68dB in 1dB steps
Type Electronically Balanced, Zin = 6.2kO
Max. Input Level +24dBu, min gain
Frequency Response 20Hz - 35kHz ±0.1dB
THD+N -103dB (0.0007%) @ -1dBFS (@ 24dB Gain)
EIN -130dBu 'A'-Weighted (typical)
Signal to Noise Ratio -120dB 'A'-Weighted (typical), min gain
Common-Mode Rejection Ratio 50/60Hz CMRR: -80dB
Phantom Power +48V, independently switchable per channel.
HPF High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel
Air Mode 2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz). Input impedance drop to 2.2kO
Instrument Inputs
Instrument Inputs Gain Range 0dB to 68dB in 1dB steps
Instrument Inputs Type Electronically Balanced, Zin = 2MO
Instrument Inputs Max. Input Level +15dBu, min gain
Instrument Inputs Frequency Response 20Hz - 35kHz ±0.1dB
Instrument Inputs THD + N -100dB (0.001%) @ -1dBFS (@ 16dB Gain)
Instrument Inputs Signal-to-Noise Ratio -118dB 'A'-Weighted (typical), min gain
Instrument Inputs HPF High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel
Line Level Outputs
Line Level Outputs 0 dBFS Reference Levels +18 or +24dBu (switchable)
Line Level Outputs Frequency Response 20Hz - 35kHz ±0.1dB
Line Level Outputs THD + N -104dB (0.0006%) @ -1dBFS
Line Level Outputs Dynamic Range -120dB 'A'-Weighted (typical), 20Hz - 20kHz
Headphone Output
Headphone Output 0 dBFS Reference Levels +19dBm
Headphone Output Frequency Response 20Hz - 20kHz ±0.2dB
Headphone Output THD + N -103dB (0.0007%) @ -1dBFS
Headphone Output Dynamic Range 117dB 'A'-weighted (typical), 20Hz - 20kHz
Headphone Output Impedance 5O
Headphone Impedance 32O - 600O
Microphone/ Line Crosstalk
Mic/Line Input to Input -72dB; 20Hz - 20kHz (driven channel at -20dBFS)
Mic/Line Input to Output -126dB; 20Hz - 20kHz (driven channel at -20dBFS)
Output to Mic/Line Input -159dB; 20Hz - 20kHz (driven channel at -20dBFS)
Output Crosstalk
Output to Output -101dB; 20Hz - 20kHz (driven channel at -20dBFS)
Headphone Crosstalk
Right to Left -85dB; 20Hz - 20kHz (driven channel at -20dBFS)
Digital Performance
Supported Sample Rates 44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
Clock Sources Internal or from Dante Network Master.
PSU & Network Connections
PSU (PoE and DC) 1 x PoE (Port 1) Input and 1 x DC 12V Locking Barrel Input Connector.
Network 2 x etherCON connectors, also compatible with standard RJ45 connectors.
Power
Power over Ethernet (PoE) Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
DC Power Supply 1 x 12V 1.2A DC Power Supply.
Power Consumption PoE: 11.0W - DC: 13.32W (When using supplied DC PSU)
Heat Performance
Operating Temperature Operates at up to an ambient temperature of 45 degrees Celcius

Front Panel Connectivity
  • Outputs Headphone Outputs: 1 x 1/4" stereo jack

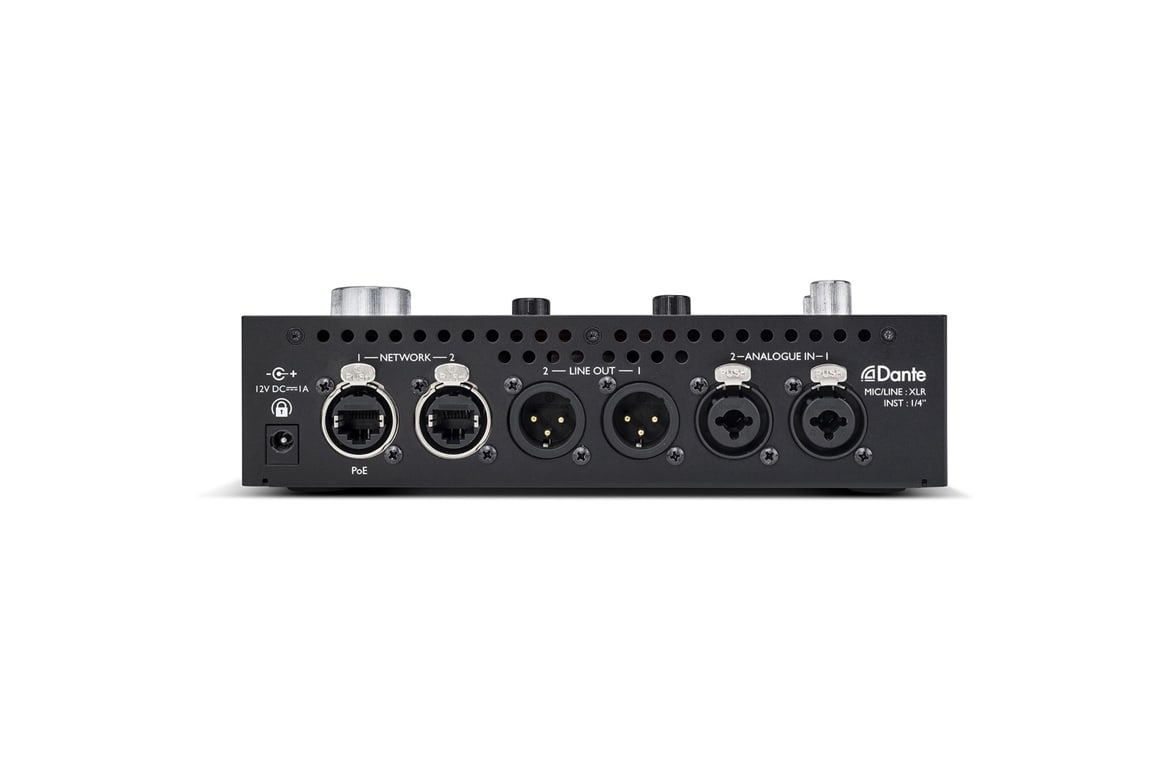

Rear Panel Connectivity
  • Inputs Mic/Line/Inst Inputs: 2 x Locking Combi XLR
  • Outputs Line Outputs: 2 x Male XLR

Top Panel Indicators
  • LCD Screen: 1 x Screen (Status & Metering)

Dimensions
  • Height (Chassis Only): 47.5mm/ 1.87"
  • Width: 140mm/ 5.51"
  • Depth (Chassis Only): 104mm/ 4.09"

Weight
  • Weight: 1.04kg
