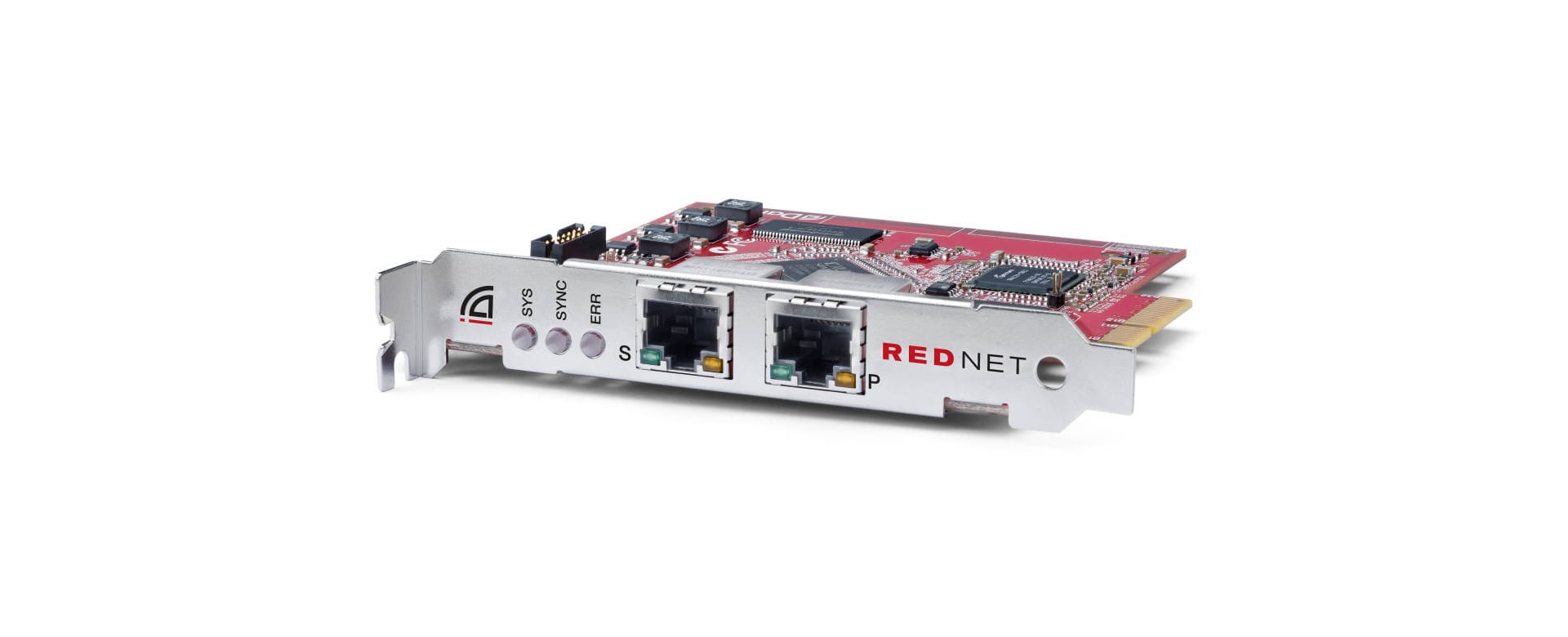

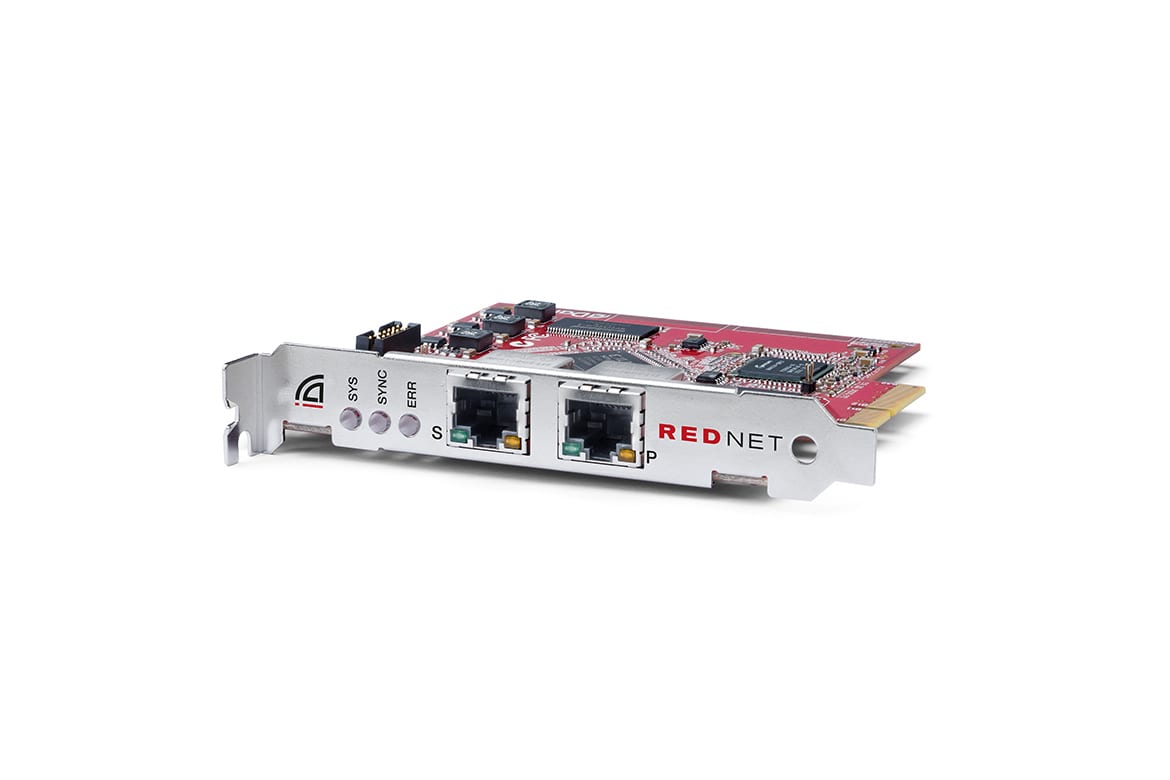

Focusrite RedNet PCIeR
Focusrite

RedNet PCIeR

128x128 PC And Mac I/O
Product Highlights
  • 128x128 Dante audio interface at up to 96kHz
  • 64x64 performance at 176.4kHz and 192kHz
  • ASIO and Core Audio drivers
  • Very low latency (approximately 1.6ms round trip with RedNet analogue I/O at 96kHz)
  • Primary and Secondary Ethernet ports provide seamless network redundancy
  • Compatible with Thunderbolt expansion chassis
  • Remote signal metering through RedNet Control

  • Overview
  • Tech Specs

RedNet PCIeR is a dedicated 128x128 Dante audio interface for Mac and Windows PCs. Featuring a primary and secondary Ethernet port, RedNet PCIeR delivers high channel counts at very low latency with the utmost reliability. The 4x PCIe card operates with ASIO or Core Audio applications

RedNet PCIeR combines extremely low latency with network redundancy, offering the best possible system performance coupled with exceptional reliability. The card requires a standard 4x PCIe slot in a Windows or Mac computer and delivers up to 128 channels I/O with very low latency. Dual RJ45 Gigabit Ethernet connectors switch automatically according to network availability and link the audio computer to the rest of the Dante audio-over-IP network.

Computer Connectivity Dante Network
Simultaneous I/O 128 x 128 (up to 96kHz), 64 x 64 (192kHz)
I/O Location PCIe RedNet card
Digital Inputs RJ45 Gigabit Ethernet
Digital Outputs RJ45 Gigabit Ethernet

COMPUTER CONNECTIVITY
  • Dante Network

SIMULTANEOUS I/O
  • 128 x 128 (up to 96kHz), 64 x 64 (192kHz)

I/O LOCATION
  • PCIe RedNet card

DIGITAL INPUTS
  • RJ45 Gigabit Ethernet

DIGITAL OUTPUTS
  • RJ45 Gigabit Ethernet
