Focusrite Pro RedNet D64R

64x64 MADI I/O With Dual PSUs

Product Highlights

64x64 MADI I/O for Dante audio-over-IP networks
Up to 24-bit, 192kHz sampling rates
Input and output sample rate converters
AES10 and AES67 compliant
Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
Multi-mode optical MADI transceiver with Single-mode available on request
Simultaneous optical and coaxial output
Word Clock I/O for increased flexibility
Auto MADI input switching mode: when selected, input will favour optical, and quickly switch to coaxial if optical input is lost
Comprehensive remote control and remote signal metering through RedNet Control

Overview
Tech Specs

RedNet D64R is a 1U, 64x64 MADI interface for any Dante^™ audio-over-IP network. Featuring network and power supply redundancy, RedNet D64R is the ideal choice for providing MADI I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.

MADI connectivity is provided in the form of coax through two rear-panel BNC connectors, as well as optical through an SC-Duplex connector. Word Clock I/O allows RedNet D64R to provide clock to external equipment, or alternatively to sync the Dante network to an external clock. The word clock input can additionally be used as the sync source for the unit's sample rate converters, allowing asynchronous operation between the network and the MADI domains. Front panel status LEDs provide visual feedback of signal presence, SRC status, PSU status and more.

SAMPLE RATE CONVERTORS
Sample Rate Range	41 to 216kHz (MADI)
Gain Error	-0.01dB
Dynamic Range	> 139dB (-60 dBFS method)
THD N	< -130dB (0.00003); 0 dBFS input
Latency	43 to 196 samples (Network and MADI sample rate dependent)
MADI Clock Sources	RedNet, MADI Input and Word Clock
DIGITAL PERFORMANCE
Supported Sample Rates	44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
Clock Sources	Internal, MADI or from Dante Network Master
External Word Clock Range	Nominal sample rate ±7.5
NETWORK MODES
Redundant	Allows unit to connect two independent networks
Switched	Connects both ports to integrated network switch allowing daisy-chaining of device
DIMENSIONS
Height	44.5mm/ 1.75"
Width	482.6mm/ 19"
Depth	308mm/ 12.13"
WEIGHT
Weight	4.32kg
POWER
Power PSU	2 x Internal, 100-240V, 50/60Hz, consumption 30VA
HEAT PERFORMANCE
Operating Temperature	Operates at up to an ambient temperature of 50 degrees Celcius

Learn more

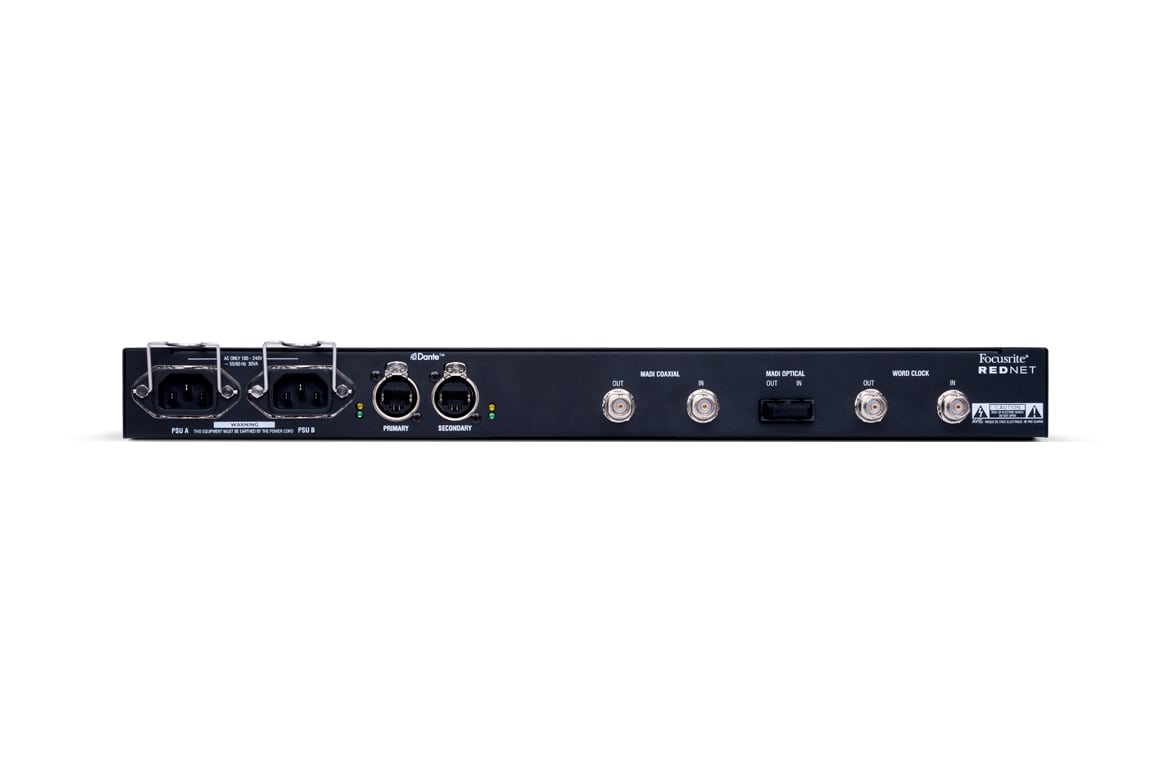

REAR PANEL CONNECTIVITY

Electrical Standard: as per AES10:2008
Recommended Cable: OM1 adheres to AES10:2008 RedNet 6/ D64R supports OM2 if 3rd Party Device also supports OM2
Connector: Duplex-SC
Optical Standard: as per AES10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166)
Word Clock Input: 1 x BNC 75O port
Word Clock Output: 1 x BNC 75O port
PSU: 2 x IEC Inputs with retaining clips
Network: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors

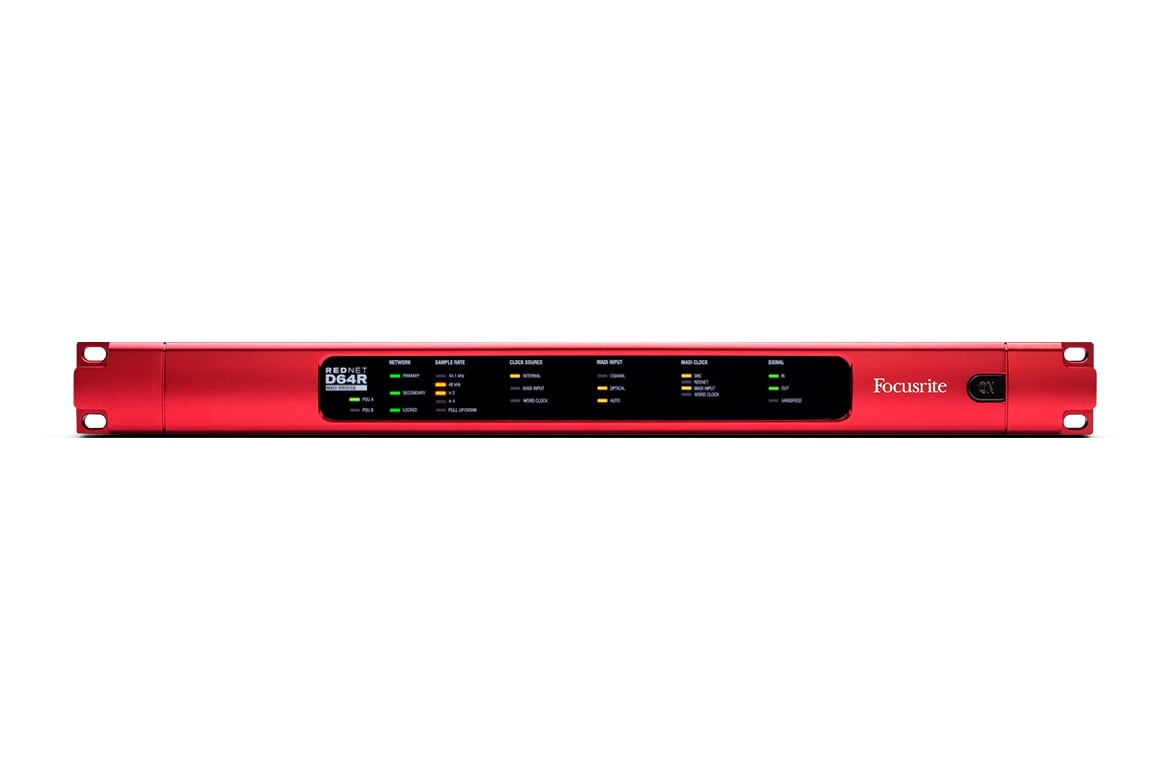

FRONT PANEL INDICATORS

Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present.
Secondary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present
Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode
Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode
Network Locked: Green LED. When unit is network slave, shows valid network lock. When unit is network master
Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
Pull Up/Down: Orange LED. Indicates unit is set to operate on a Dante pull up/down domain
Clock Source: Orange LED for each: Internal, MADI Input and Word Clock.
MADI Input: Orange LED for each: Coaxial, Optical and Auto
MADI Clock: Orange LED for each: SRC, RedNet, MADI Input and Word Clock
Signal Indicators: 2 Green LEDs, 1 input/1 output indicator. Illuminate @ -126dBFS
Status: Orange LED for each: SRC
