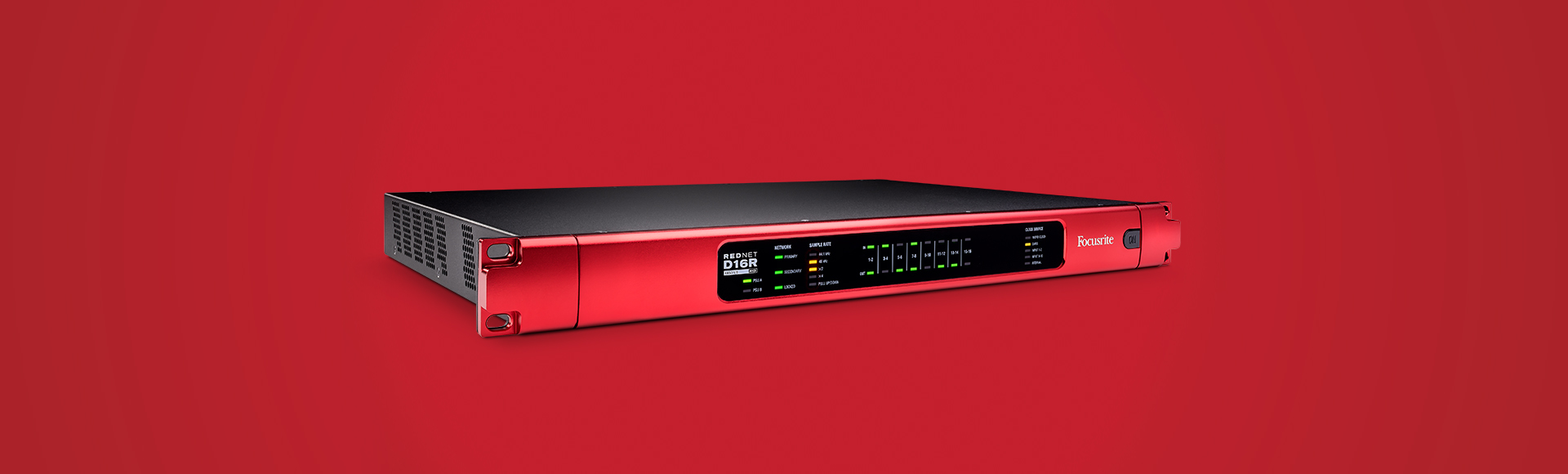

RedNet D16R MkII
16x16 digital interface for Dante networks, with channel level control for individual inputs and outputs.Product Highlights
- 16-channel bi-directional digital interface for Dante networks.
- Individual input and output channel level control using RedNet Control software.
- Dual PSUs with locking IEC inlets.
- Dual locking etherCON connectors for Primary and Secondary network connections.
- Power supply and ethernet redundancy with auto switchover in case of failure.
- Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status.
- Sample rate conversion on all input channels.
- Two DB25 connectors with AES59 standard configuration; each carries eight channels of AES3 I/O.
- RCA connectors for two-channel S/PDIF input and output.
- XLR connections for alternate AES3 I/O and DARS input.
- BNC connectors for Word Clock input and output.
- Compact 1U chassis allows maximum functionality in minimum rack space.
- Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers.
- Remote routing and control using RedNet Control and Dante Controller.
- Overview
- Tech Specs
RedNet D16R MkII is a 16-channel bi-directional digital interface for Dante networks. The 1U rackmount device features individual input and output channel level controls, allowing for precise calibration and control of all input and output levels using RedNet Control. RedNet D16R MkII features power supply and Ethernet redundancy with auto switchover in case of failure.
Various connection options make RedNet D16R MkII a flexible addition to any Audio-over-IP system. A pair of DB25 multipin connectors each connect eight channels of AES3 I/O into and out of the interface, while XLR and RCA ports enable two-channel AES3 and S/PDIF connections, respectively, to be made. Sample rate conversion on every input enables external equipment to operate at different sample rates, and DARS signals are accepted on the XLR connector. Word Clock I/O on BNC connectors allows synchronisation to house clock, or syncing external equipment to the Dante network.
| INPUT SAMPLE RATE CONVERTORS |
|
| Sample Rate Range | 32 to 216 kHz |
| Gain Error | -0.3dB |
| Dynamic Range | > 138dB (-60 dBFS method) |
| THD N | < -130dB (0.00003); 0 dBFS input |
| Latency | 11 to 45 samples (network and input sample rate dependent). |
| DIGITAL PERFORMANCE |
|
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit |
| Clock Sources | Internal, Word Clock, DARS, AES input 1-2, AES input 9-10 or from Dante Network Master |
| NETWORK MODES |
|
| Redundant | Allows unit to connect to two independent networks |
| Switched | Connects both ports to integrated network switch allowing daisy-chaining |
| DIMENSIONS |
|
| Height | 44.5mm/ 1.75" |
| Width | 482.6mm/ 19" |
| Depth | 263mm/ 10.35" |
| WEIGHT |
|
| Weight | 3.84kg |
| POWER |
|
| Power PSU | 2 x Internal, 100-240V, 50/60Hz, consumption 30VA |
| HEAT PERFORMANCE |
|
| Operating Temperature | Operates at up to an ambient temperature of 50 degrees Celcius |

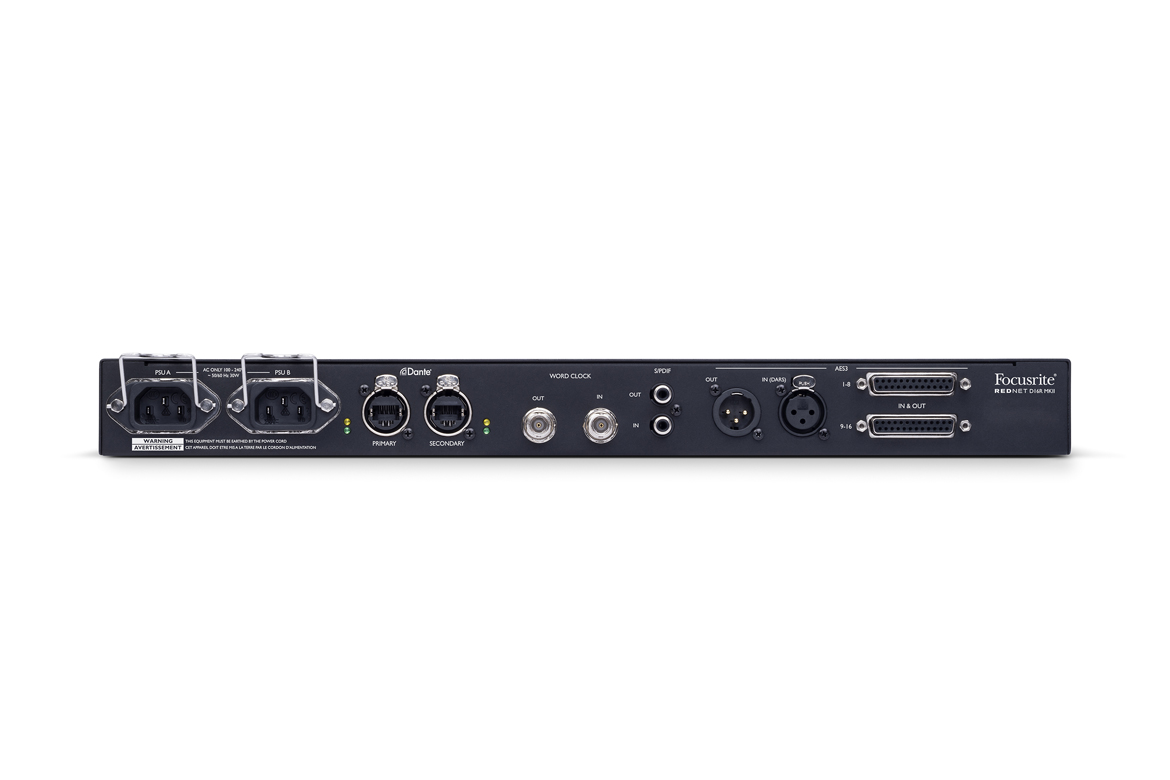

REAR PANEL CONNECTIVITY
- Channel Count: 2 x 2 S/PDIF Channels (reduces AES/EBU input channels)
- Input And Output: 2 x DB-25 connectors (AES59 Combined I/O / Tascam Digital)
- Alternate Input (Optional DARS): 1 x Female XLR (replaces DB-25 channels 1-2)
- Alternate Output: 1 x Male XLR (duplicates DB-25 channels 1-2)
- Input: 1 x RCA phono socket (replaces DB-25 channels 3-4)
- Output: 1 x RCA phono socket (switchable, duplicates any DB-25 channel pair)
- PSU: 2 x IEC Inputs with retaining clips
- Network: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors
- AES/EBU Channel Count: 16 x 16 AES/EBU channels

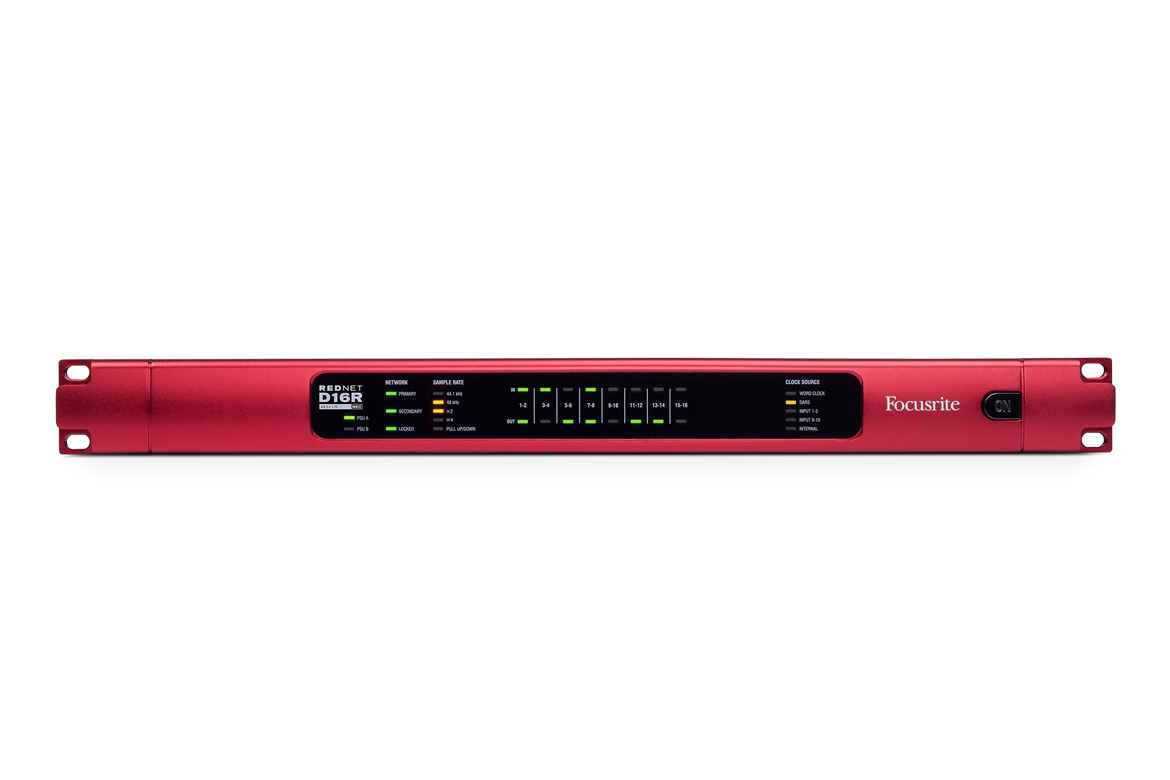

FRONT PANEL INDICATORS
- Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present.
- Secondary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present.
- Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4.
- Pull Up/Down: Orange LED. Indicates unit is set to operate on a Dante pull up/down domain.
- Signal Indicators: 16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS.
- Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode
- Network Locked: Green LED. When unit is network slave, shows valid network lock
- Clock Source: Orange LED for each: Internal, Word Clock, DARS, Input 1–2 and Input 9–10
