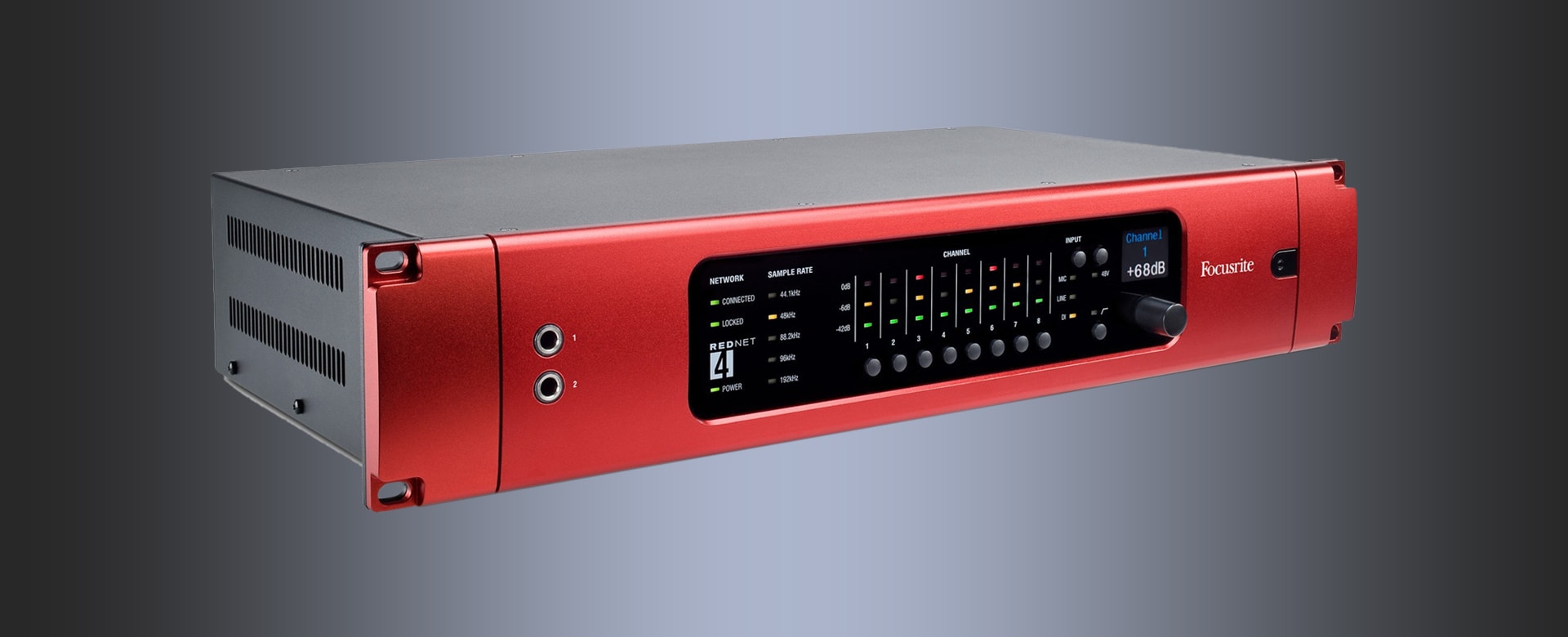

Focusrite Pro RedNet 4
8 Channel Remote Mic PreProduct Highlights
- Eight high-quality Focusrite remote-controlled mic preamps and A-D for Dante audio-over-IP networks
- DC-coupled signal path for characteristically open and transparent sound
- 24-bit precision conversion up to 192kHz
- 119dB dynamic range
- AES67 compliant; may require hardware update. Please contact us for further information
- Remote-controllable Gain, Phantom Power and High-Pass Filter from Yamaha CL and QL Series Consoles

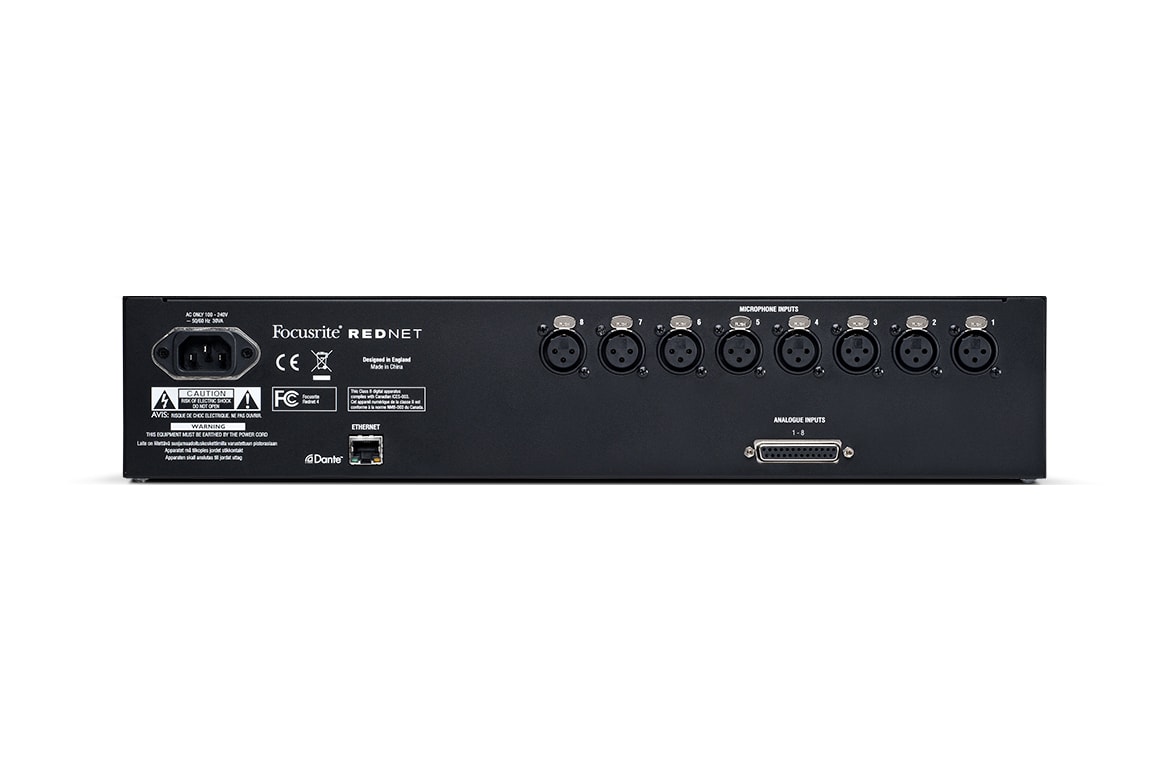

- Line inputs wired to AES59 standard on DB25 connector
- Comprehensive front-panel metering and indicators
- Remote monitoring software with powerful graphic user interface
- Overview
- Tech Specs
RedNet 4 adds eight of the Focusrite's premium remote-controlled mic preamps / line inputs to your Dante™ audio-over-IP system through a single Ethernet cable. With two selectable instrument inputs, RedNet 4 provides an effective range of analogue inputs for your system. The unit includes Focusrite's world-class precision A-D conversion. Mic/Line/Instrument selection, gain, phantom power, HPF and metering are also accessible from the front panel. The benefit of remote control microphone preamp gain is that you can keep the mic pre close to the source (so the analogue cable run is minimal) while still setting gain from the control room.
| MICROPHONE INPUTS | |
| Phantom Power | 48 V, independently switchable per-channel |
| Type | Electronically balanced, Zin = 2.4 kohms |
| Max. Input Level | 24 ±0.5 dB; min. gain for 0 dBFS |
| Min. Input Level | -30 ±0.5 dB; max. gain for 0 dBFS |
| Frequency Response | 20 Hz – 55 kHz ±0.1 dB (-3 dB @ 80 kHz, fs = 192 kHz); Rs = 150 ohms |
| THD N Inputs | 0.003 @ -1 dBFS; 23 dBu input, min.gain, 20 Hz – 22 kHz |
| Noise | EIN -128 dB; 60 dB gain, Rs = 150 ohms, 20 Hz – 22 kHz |
| Signal-To-Noise Ratio | 119 dB ‘A’-weighted; Rs = 150 ohms |
| Gain Range | 0 dB; 8 to 63 dB in 1 dB steps |
| LINE INPUTS | |
| Gain Range Inputs | -12 to 42 dB in 1 dB steps |
| Frequency Response Inputs | 20 Hz – 20 kHz ±0.1 dB |
| Signal-To-Noise Ratio Inputs | 117 dB ‘A’-weighted |
| ANALOGUE HIGH-PASS FILTERS | |
| Selection | Independently switchable per-channel |
| Frequency/Slope | -6 dB @ 65 ±3 Hz, 12 dB/octave |
| CROSSTALK | |
| Input To Input | ?-80 dB (all other channels at 0 dBFS) |
| DIGITAL PERFORMANCE | |
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 / 192 kHz |
| Clock Sources | Internal or from network master device |
| POWER | |
| PSU | Internal, Universal type, consumption 30 VA |
| FRONT PANEL INDICATORS | |
| Power | Green |
| Network Connected | Green |
| Sync Lock | Green |
| Sample Rate | Yellow x 5 |
| Channel 1/2 Source | Yellow x 3 (mic/line/inst) |
| Signal Level | Green x 8 (-42 dBFS); Yellow x 8 (-6 dBFS); Red x 8 (overload) |
| Channel Select Buttons | 8 |
| Channel Function Controls | Input source, HPF, phantom power, Gain encoder |
| Channel Display | Colour OLED; channel number, input source, gain |

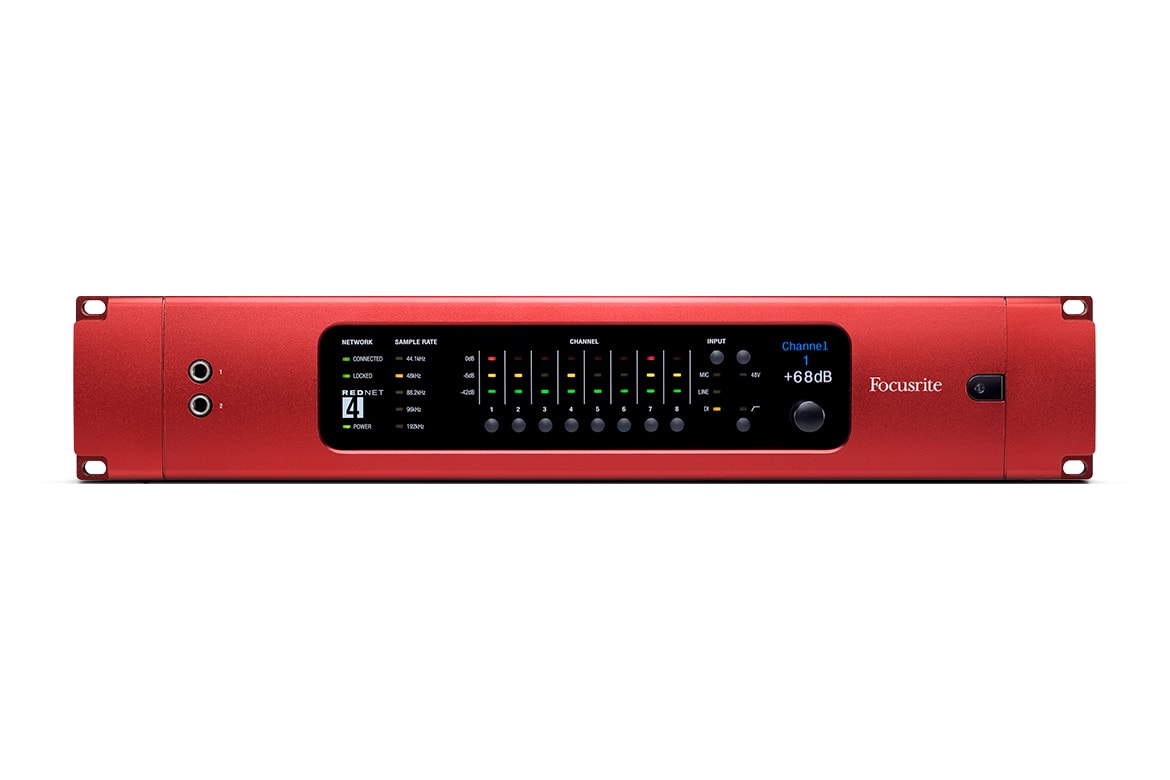

FRONT PANEL INDICATORS
- Power: Green
- Network Connected: Green
- Sync Lock: Green
- Sample Rate: Yellow x 5
- Channel 1/2 Source: Yellow x 3 (mic/line/inst)
- Signal Level: Green x 8 (-42 dBFS); Yellow x 8 (-6 dBFS); Red x 8 (overload)
- Channel Select Buttons: 8
- Channel Function Controls: Input source, HPF, phantom power, Gain encoder
- Channel Display: Colour OLED; channel number, input source, gain
