Videohub Master Control Pro
Spin knob and direct entry control panel with LCD status. Supports ethernet
Product Highlights
- Perfect for Digital Cinema, Live Recording and Monitoring
- Modern Design with 12G‑SDI and Bright HDR Screen
- Upgrade to Better Recording for Digital Cameras
- Large HDR Monitor with Easy Touch Controls
- Dual Media Recorders for Uninterrupted Recording
- Record Direct to External USB‑C Media Disks
- Advanced 12G‑SDI and HDMI 2.0 Inputs and Outputs
- HDR Support with Bright Wide Gamut LCD
- Built In Scopes Ensure Compliance to Standards
- Latest Multi Rate 12G‑SDI for SD, HD and Ultra HD
- Load Custom 3D LUTs to Recreate Film Looks
- Professional Multi Channel SDI and Analog Audio
- Overview
- Tech Specs

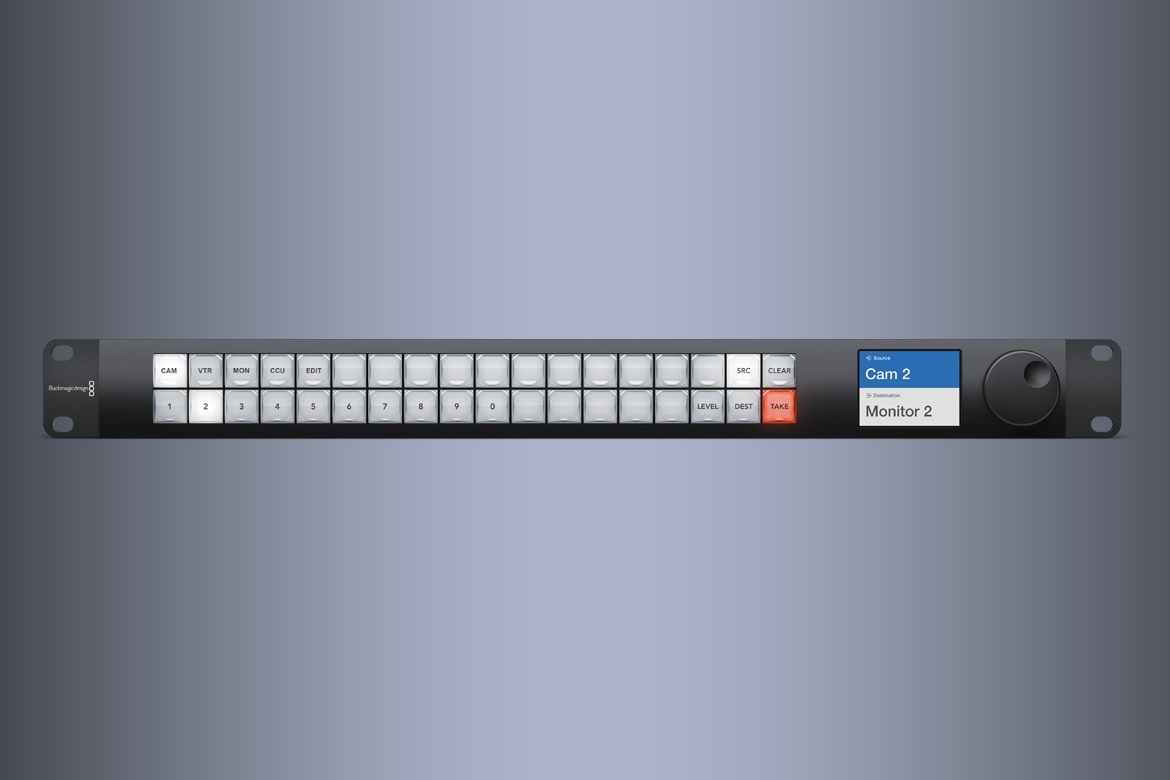

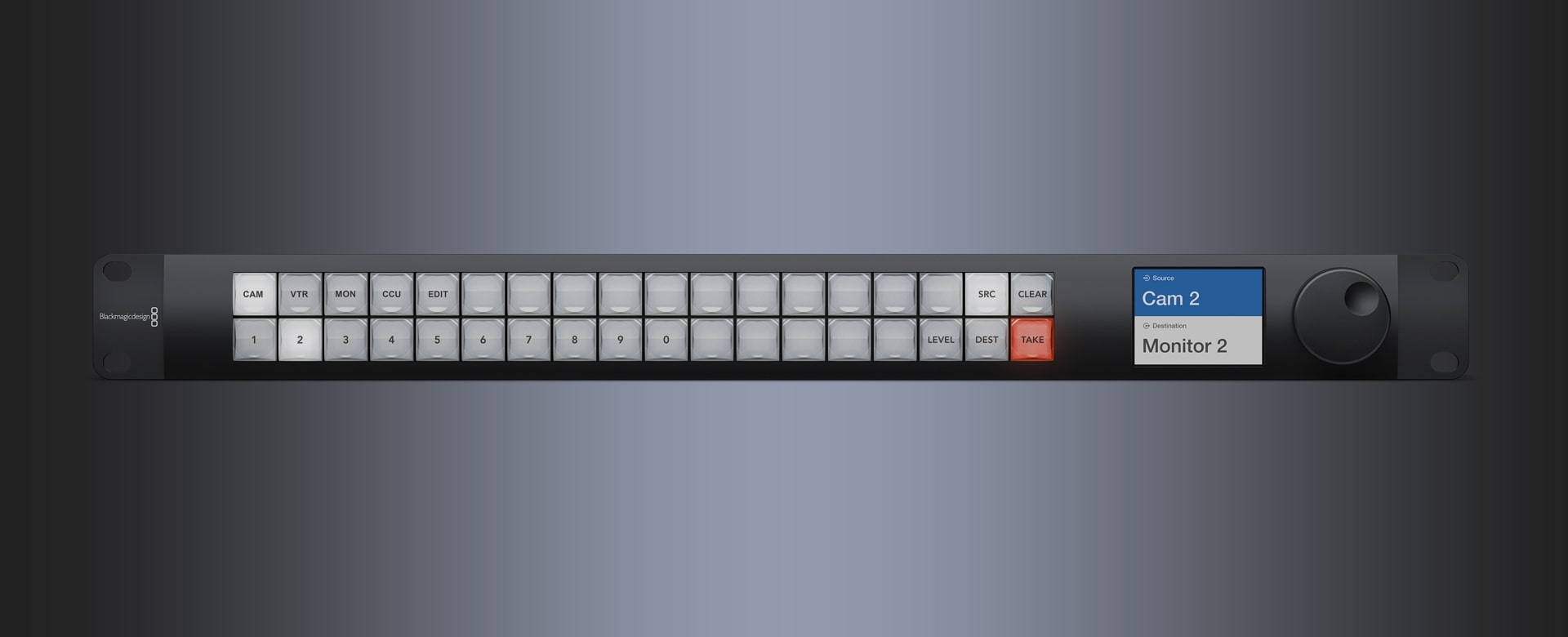

When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Powers via DC or the Ethernet connection!

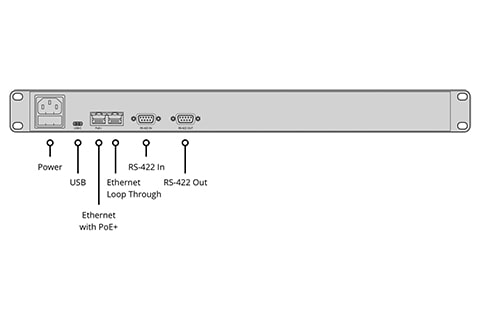

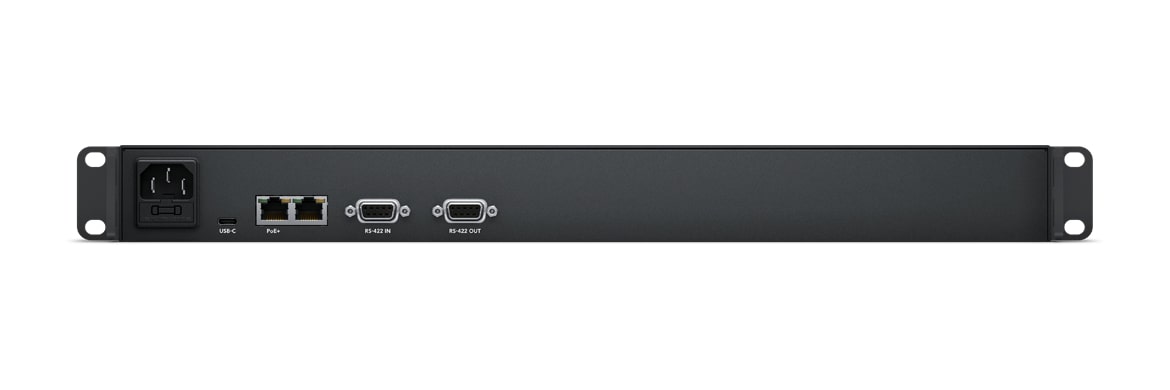

| Connections | |
| Ethernet | RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out. |
| RS-422 | In and Out (for future implementation) |
| Computer Interface | USB-C for configuration and software updates. |
| Power | 100 - 240 AC |

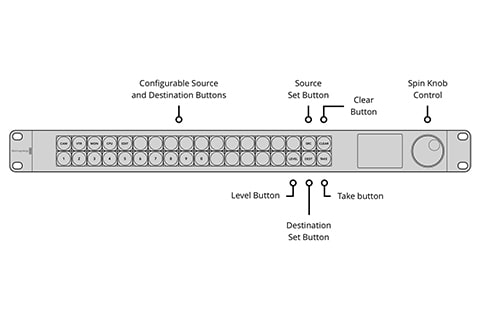

| Hardware Control | |
| 21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen. | |
| Internal Software | |
| Internal Software upgrade via included firmware updater application via USB or ethernet. | |
| Physical Installation | |
| 1 rack unit size. Less than 3 inches deep. | |
| Button Configuration | |
| Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface. | |
| Physical Specifications | |
| Width | 18.97 in |
| Depth | 4.64 in |
| Height | 1.74 in |
| Weight | 2.2 lb |
| Environmental Specifications | |
| Operating temperature | 0° to 40° C (32° to 104° F) |
| Storage temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac
Mac 10.14 Mojave,
Mac 10.15 Catalina or later. - Windows
Windows 10.
Power Requirements
- Power Fail Protection
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall. - Power Supply
Internal 100 - 240 V AC
