Ultimatte 12 HD Mini
Unique Ultimatte 12 with HDMI connections so you get the world's most advanced keyer with consumer cameras! Get full Ultimatte 12 processing and frame stores to create virtual sets at no extra cost!
Product Highlights
- Up to 1080p60 via HDMI
- 1-Touch Keying, Advanced Compositing
- SD/HD/3G-SDI Monitor In for Cascade
- 2 x HDMI Inputs
- SDI & HDMI Program & Monitor Outputs
- Realistic Augmented Reality with Tinting
- Advanced Algorithms and Color Science
- Better Color Fidelity/Edges/Transitions
- Works with Ultimatte Smart Remote 4
- 1 RU Height, 1/3 Rack Width
- Overview
- Tech Specs

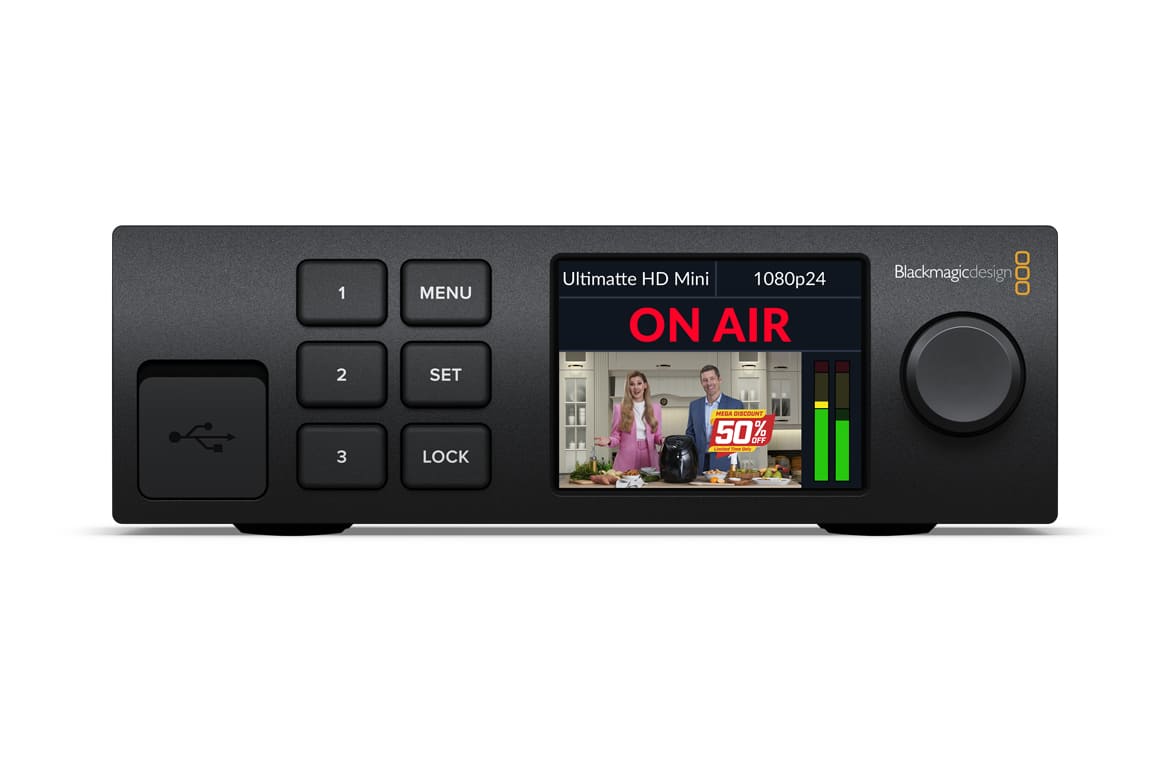

Ultimatte 12 HD Mini is an advanced real time keyer designed for creating next generation virtual sets and more with consumer cameras. The HDMI connections are perfect for use with Blackmagic Studio Cameras, Pocket Cinema Cameras and ATEM Mini live production switchers. Plus there’s a massive 6 GB frame store for realistic fixed camera virtual sets from pre rendered still frames. Ultimatte 12 HD Mini features broadcast quality algorithms and color science to deliver photorealistic composites.

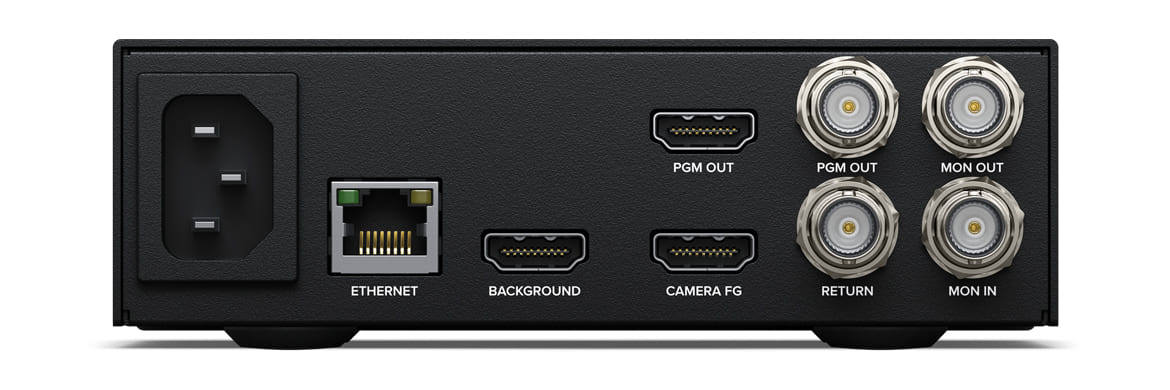

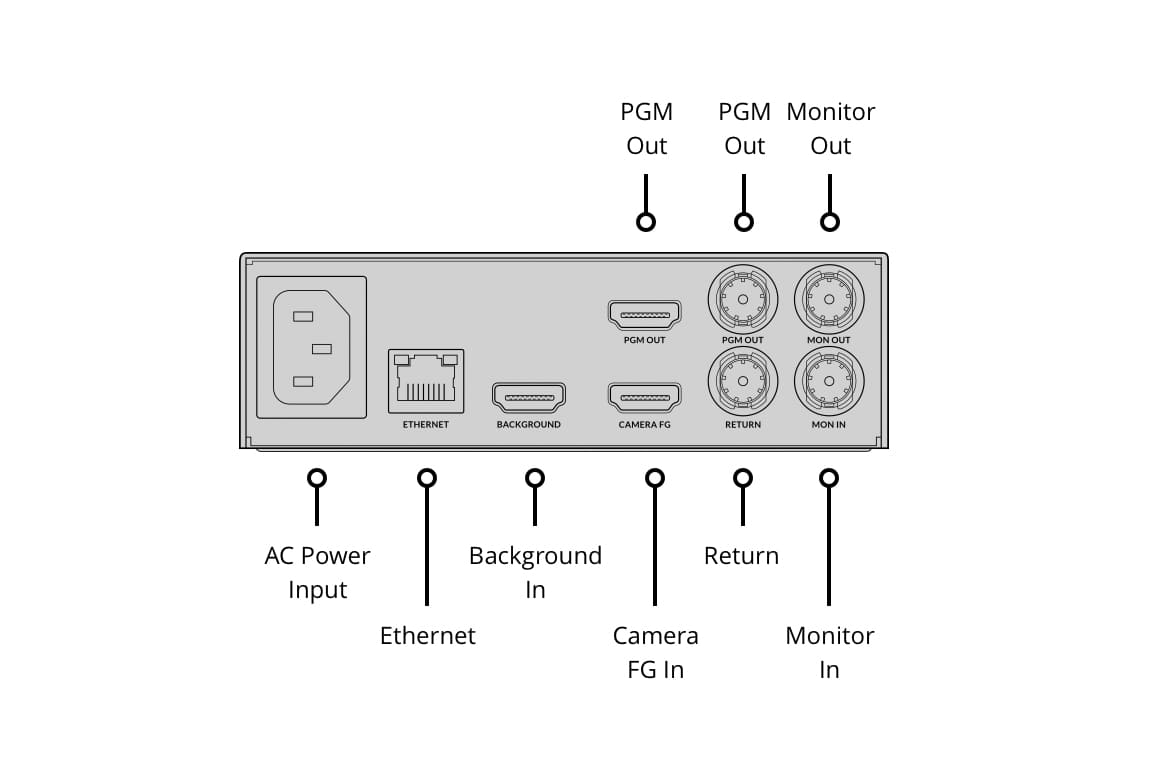

| Connections | |
| SDI Video Inputs | 2 Monitor In for monitor cascade plus Return In for camera control. |
| SDI Video Outputs | 2 |
| HDMI Video Inputs | 2 |
| HDMI Video Outputs | 1 |
| Video Input Re-Sync | On all inputs. |
| SDI Rates | 270Mb, 1.5G, 3G. |
| Ethernet | Up to 1Gb/s for device control and loading stills into Media Pool. |
| Computer Interface | 1 x USB-C 3.0 for device configuration and software updates. |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| Multiple Rate Support | Auto detection of SD and HD. |
| Composite Sources | |
| Foreground | 1 x HDMI In |
| Background | 1 x HDMI In Still from Media Pool |
| Background Matte | Internal Window Still from Media Pool |
| Garbage Matte | Internal Window Still from Media Pool |
| Holdout Matte | Internal Window Still from Media Pool |
| Layer | Still from Media Pool |
| Layer Matte | Internal Window Still from Media Pool |
| Composite Outputs | |
| Program | 1 x HDMI 1 x 3G-SDI |
| Monitor | |
| Monitor In | 1 x 3G-SDI for monitor cascade |
| Monitor Out | 1 x 3G-SDI For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction. |
| Media Pool | |
| Background Still Image Formats | TGA, TIFF, BMP, PNG, JPG. |
| Background with Alpha Still Image Formats | TGA, TIFF, BMP. |
| Layer Image Still Image Formats | TGA, TIFF, BMP, PNG, JPG. |
| Layer with Alpha Still Image Formats | TGA, TIFF, BMP. |
| Garbage Matte Still Image Formats | TIFF, BMP, PNG, JPG. |
| Holdout Matte Still Image Formats | TIFF, BMP, PNG, JPG. |
| Media Pool Memory | 6GB non-volatile internal storage. |
| Displays | |
| Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus. | |
| Control | |

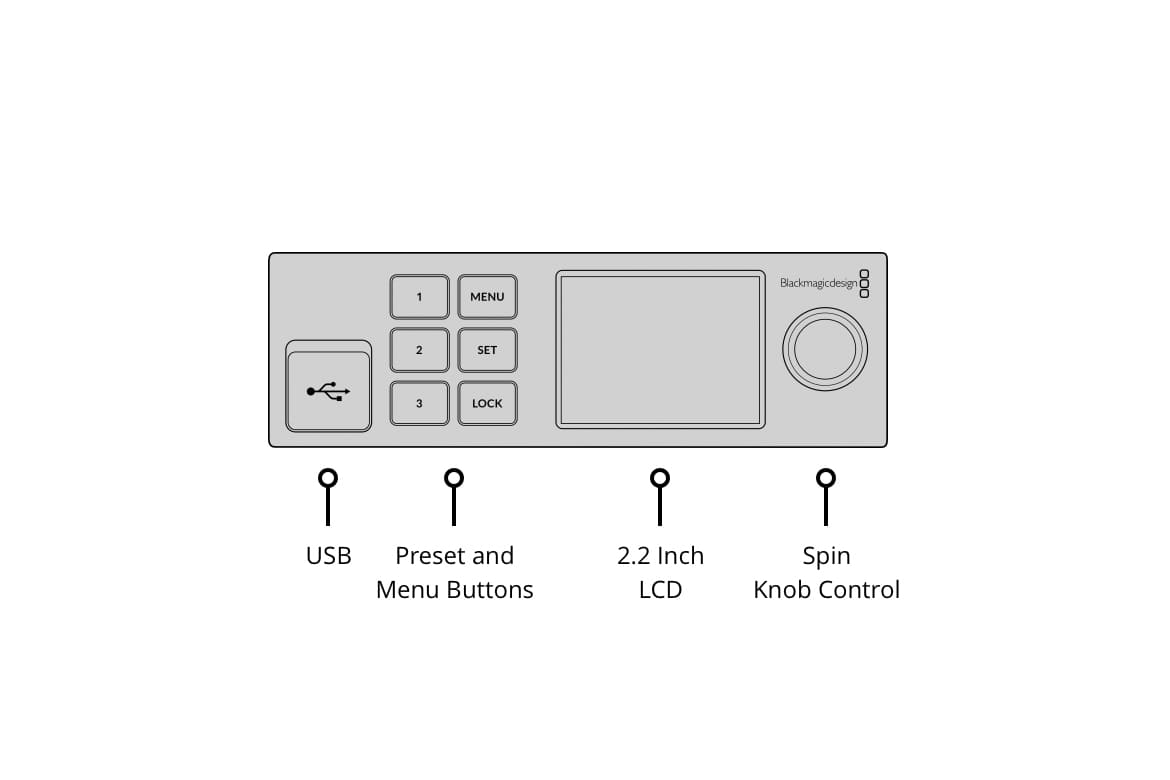

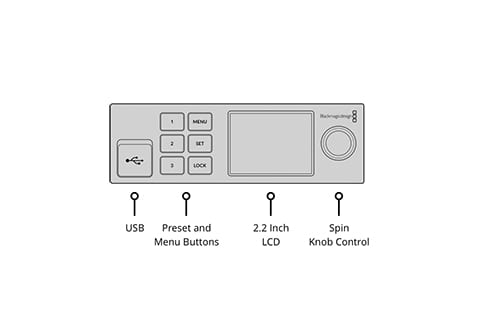

| Front Panel | 2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob. |
| Control Connection | Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4. |
| Software Control | Ultimatte Software Control supported on Mac™ or Windows™ computers. |
| Hardware Control Panel | Ultimatte Smart Remote 4 |
| Camera Control | Blackmagic camera control and tally supported when used with compatible cameras and ATEM switchers. |
| Software | |
| Software Updates | Using USB‑C or Ethernet connection to Mac™ or Windows™ computers. |
| Configuration | Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB. |
| Operating Systems | |
| Mac 11.0 Big Sur, Mac 12.0 Monterey or later. |
|
| Windows 10, 64-bit. Windows 11. |
|
| Power Requirements | |
| Power Supply | 1 x Internal 100-240V AC, 50/60Hz |
| Power Usage | 12W |
| Accessories | |
| Optional Accessories | Ultimatte Smart Remote 4 |
| Physical Installation | |
| Physical Installation | One third rack unit width, 1 rack unit height. |
| Environmental Specifications | |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | -20° to 60°C (-4° to 140°F) |
| Relative Humidity | 0% to 90% non-condensing. |
| What's Included | |
| Ultimatte 12 HD Mini Welcome wallet with QR code for software download |
|
Physical Specifications
- Width: 140 mm
- Depth: 177 mm
- Height: 44.2 mm
- Weight: 760 grams
