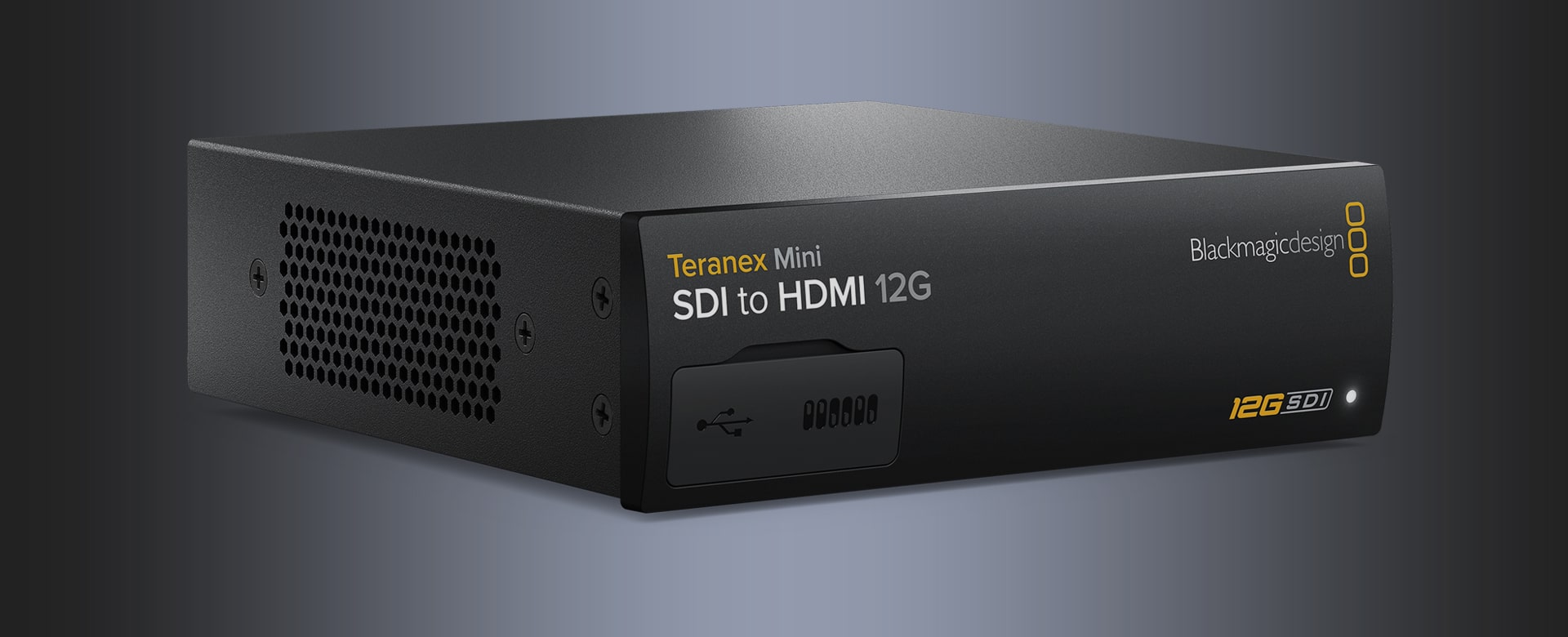

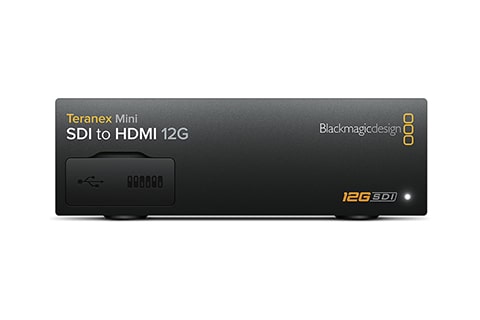

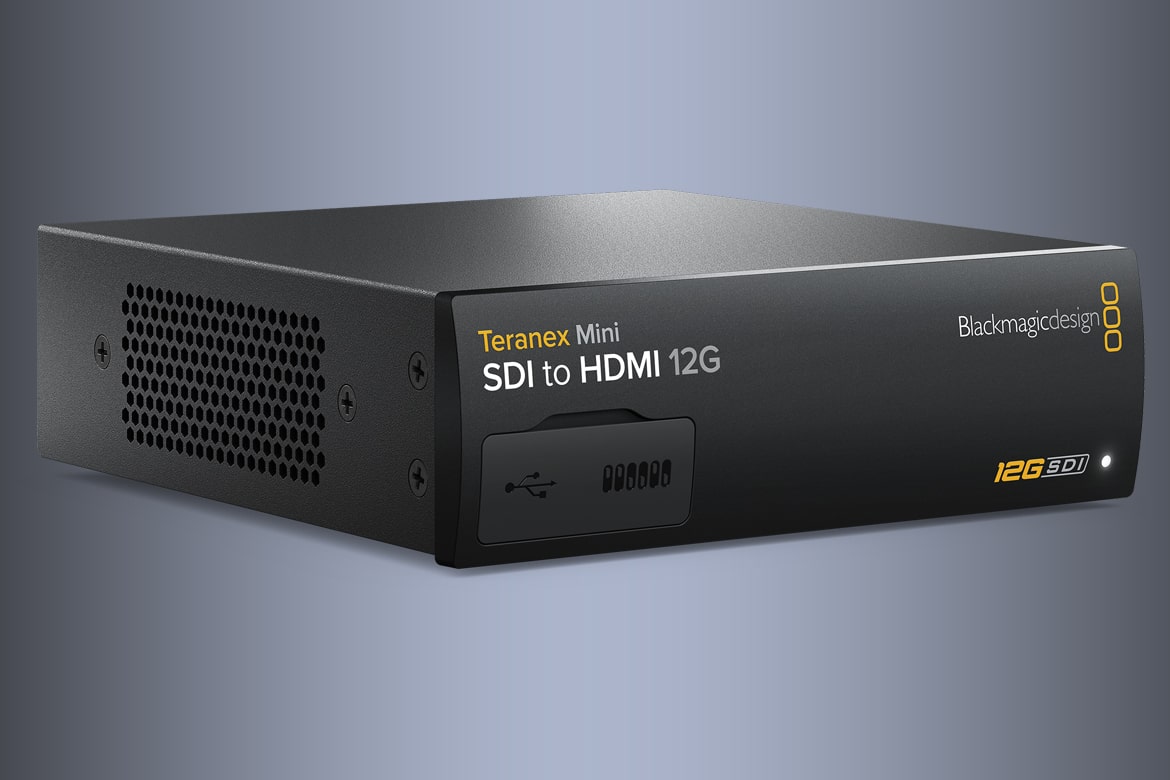

Teranex Mini SDI to HDMI 12G

Teranex Mini SDI to HDMI 12G

Blackmagic Design
Product Highlights
  • Advanced High-Data Rate Signal Converter
  • Supports Up to 4K DCI 4096x2160p Signals
  • 12G-SDI Input and Loopout
  • XLR Connections Switchable to AES/EBU
  • Ethernet Port for Remote Control or PoE
  • Supports Optional LCD Smart Front Panel
  • Intelligent Thermal Heat Dissipation
  • 3 Units 1U Rack-Mountable in 19" Rack
  • Manage Numerous Units from a Mac or PC

  • Overview
  • Tech Specs

Add front panel controls to your Teranex Mini models to adjust settings and to turn features on and off.

Convert from 12G-SDI to HDMI. Supports all video formats including SD, HD, 6G and 12G-SDI rates and includes down converter when working with a HDMI monitor, which will select the best format it can support. De-embed audio to balanced analog or AES/EBU formats and timecode output. Also includes Instant Lock on HDMI output as well as 33 point LUT. Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.

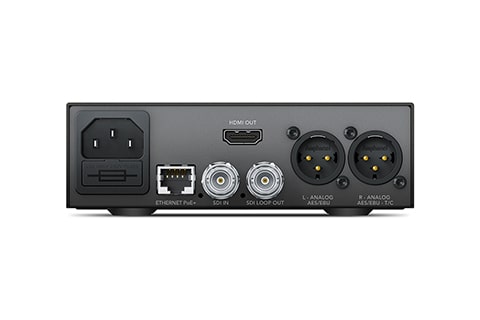

Connections
SDI Video Input 1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Output 1 x 12G-SDI loop output.
HDMI Video Outputs 1 x HDMI 2.0 type A connector with support for 2160p60.
Analog Audio Output 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.
AES/EBU Audio Output 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.
Embedded Audio Support 8 channels.
Multi Rate Support 270MB, 1.5G, 3G, 6G and 12G.
Updates and Configuration USB or Ethernet.
Re-Clocking Yes
SDI Input Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
SDI Video Rates SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling 4:2:2 and 4:4:4
SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision 4:2:2 and 4:4:4
SDI Color Space YUV and RGB. 33 point LUT's can be loaded via Teranex Utility.
HDMI Output Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p
HDMI Color Space REC 601, REC 709
HDMI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Software Control Mac and Windows software upgrade via USB and Ethernet.
Internal Software Upgrade Via included updater application.
Setting Control
Basic Settings Control Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Physical Specifications
Width 5.51 in
Height 1.75 in
Depth 6.69 in
Weight 1.28 lb
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non-condensing

Operating Systems
  • Mac 10.12 Sierra,
    Mac 10.13 High Sierra or later.
  • Windows 8.1 or Windows 10.

Power Requirements
  • Power Supply
    1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
  • Power Over Ethernet
    Can be powered via 48V DC using PoE+ (power over ethernet).
  • Power Consumption
    16 Watts
  • Operational Voltage Range
    90 - 240V AC
