Product Highlights
- Advanced High-Data Rate Signal Converter
- Down-Convert 12G-SDI 4K Signal to Analog
- Supports Up to 4K DCI 4096x2160p Signals
- 12G-SDI Input and Loopout
- XLR Connections Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- 3 Units 1U Rack-Mountable in 19" Rack
- Manage Numerous Units from a Mac or PC
- Overview
- Tech Specs

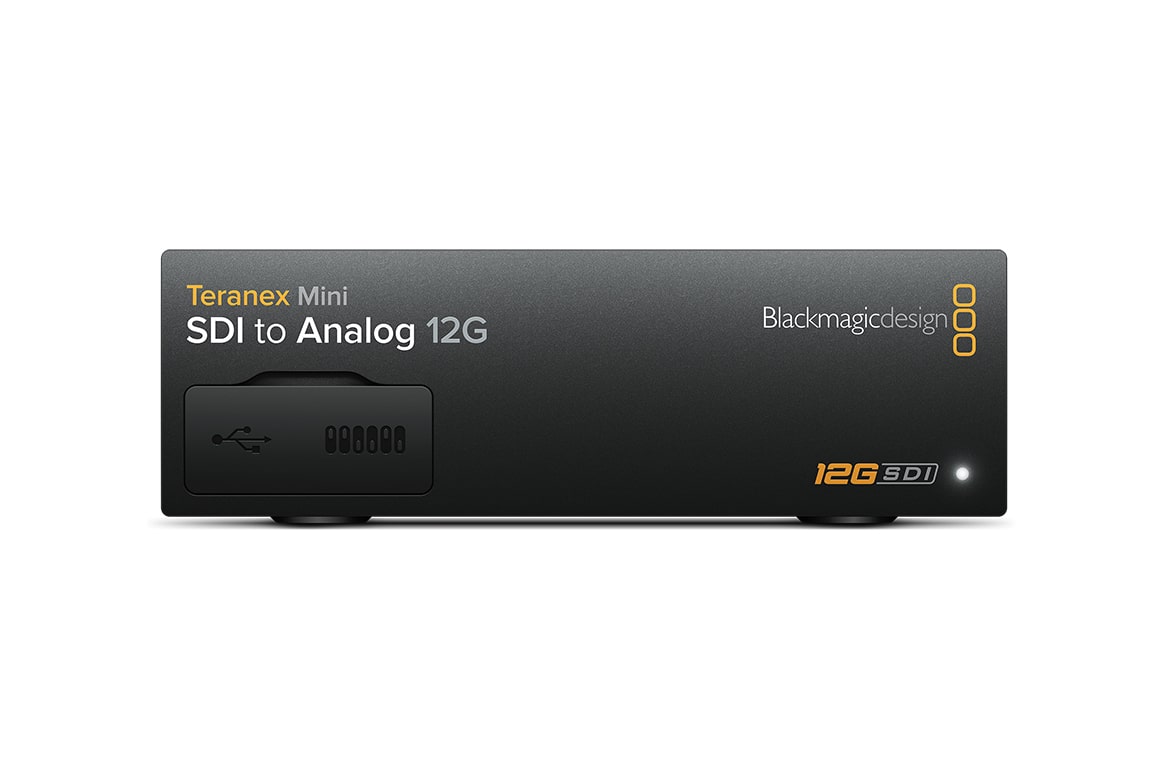

Add front panel controls to your Teranex Mini models to adjust settings and to turn features on and off.

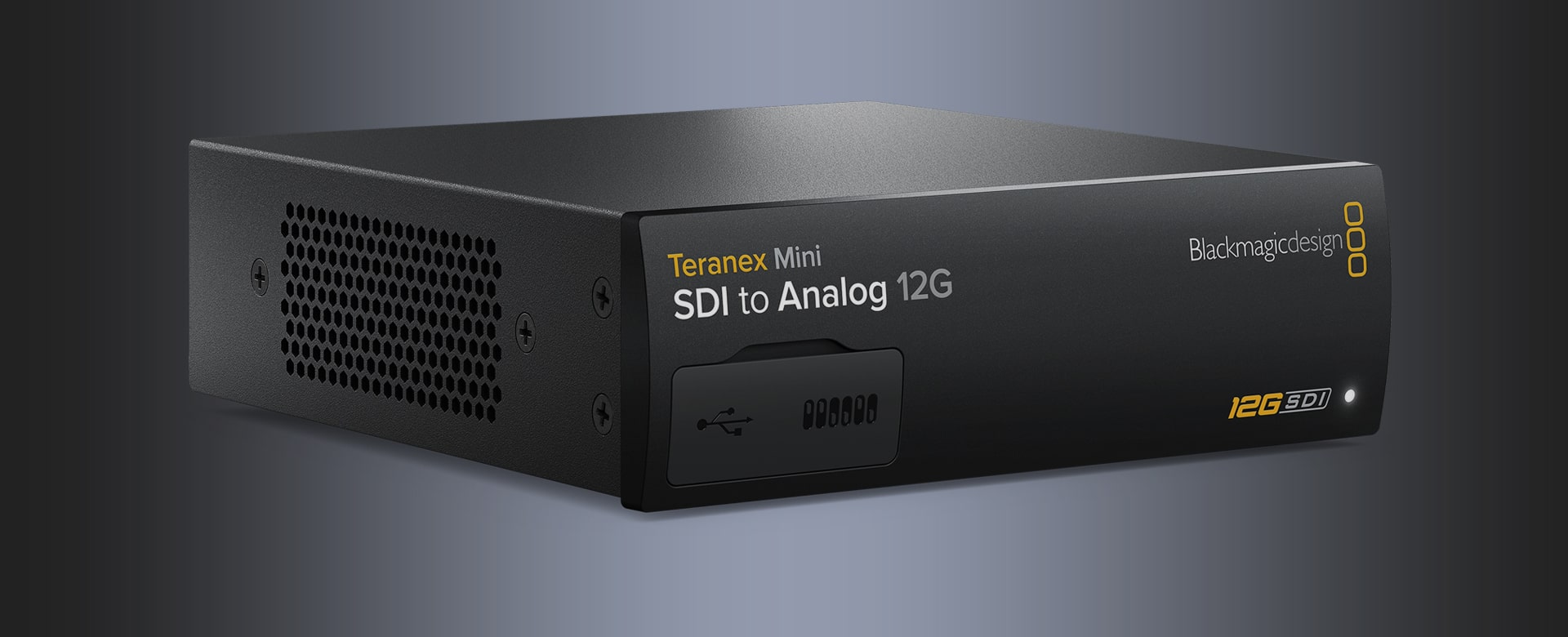

Convert from 12G-SDI to Analog. Use SD, HD, 6G and 12G-SDI rates and convert to analog video output. Built in down converter lets you connect Ultra HD sources to component video equipment in SD or HD. Allows you to connect analog equipment including Betacam SP, VHS, and video monitors.

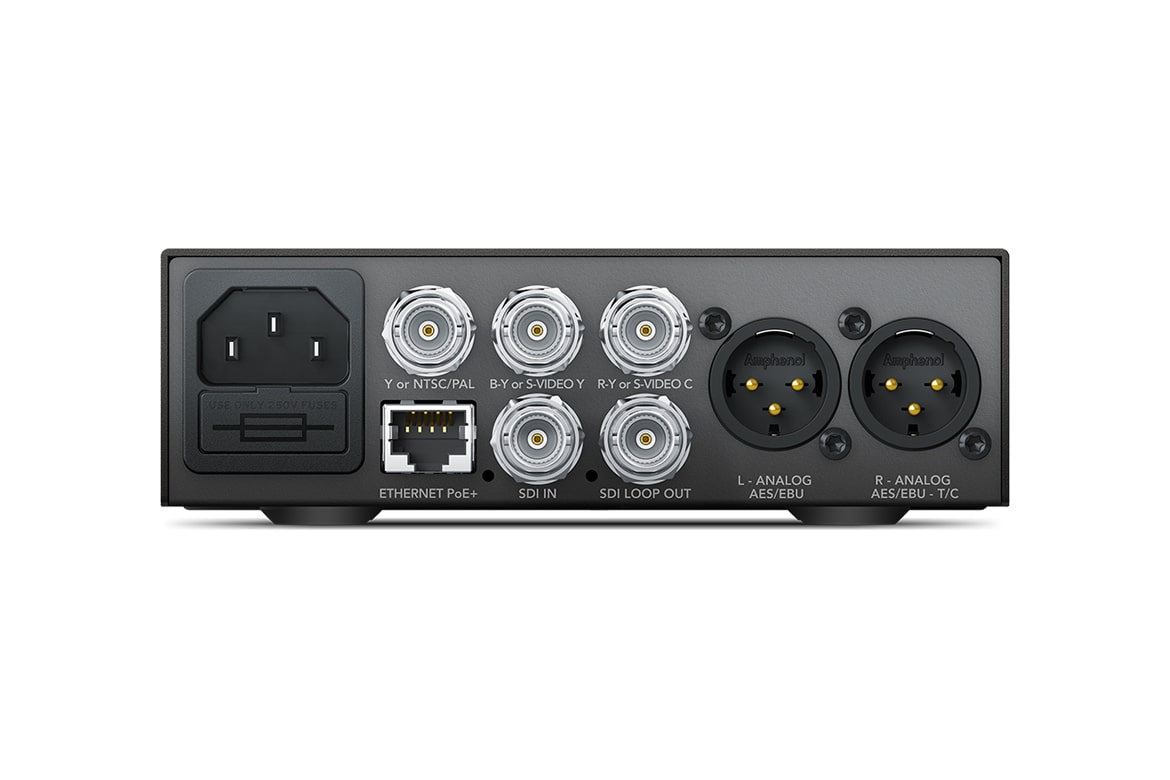

Connections | |
SDI Video Input | 1 x 12G-SDI SD/HD/2K/4K auto switching. |
SDI Video Output | 1 x 12G-SDI loop output. |
Analog Audio Output | 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode output. |
AES/EBU Audio Output | 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output. |
Embedded Audio Support | 16 channels. |
Multi Rate Support | Automatic switching between SD/HD/2K and 4K. |
Updates and Configuration | USB or Ethernet. |
Re-Clocking | Yes |
Standards | |
SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10 |
SDI Video Rates | SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI. |
SDI Video Sampling | 4:2:2 and 4:4:4 |
SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
SDI Color Precision | 4:2:2 and 4:4:4 |
SDI Color Space | YUV |
Analog Video Standards | 525i59.94 NTSC, 625i50 PAL |
Analog Color Space | REC 601, REC 709 |
Analog Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K. |
Format Conversion | |
Format Conversion | HD down conversion |
Software Control | Mac™ and Windows™ software upgrade via USB and Ethernet. |
Internal Software Upgrade | Via included updater application. |
Setting Control | |
Basic Settings Control | Mini Switches, USB and Ethernet via free software utility |
Optional Front Panel Control | Front mounted Smart Panel with LCD, rotary knob and six settings buttons |
Physical Specifications | |
Width | 5.51 in |
Height | 1.75 in |
Depth | 6.69 in |
Weight | 1.46 lb |
Environmental Specifications | |
Operating Temperature | 0° to 40° C (32° to 104° F) |
Storage Temperature | -20° to 60° C (-4° to 140° F) |
Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input. - Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet). - Power Consumption
16 Watts - Operational Voltage Range
90 - 240V AC
