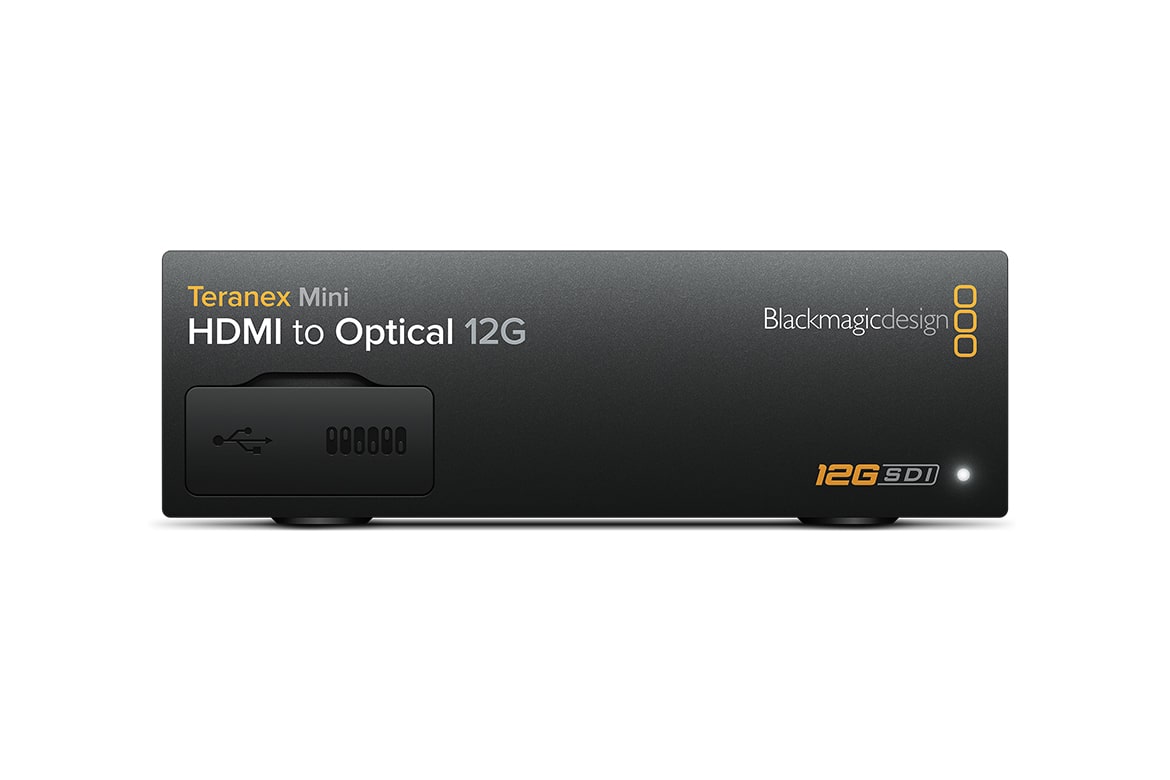

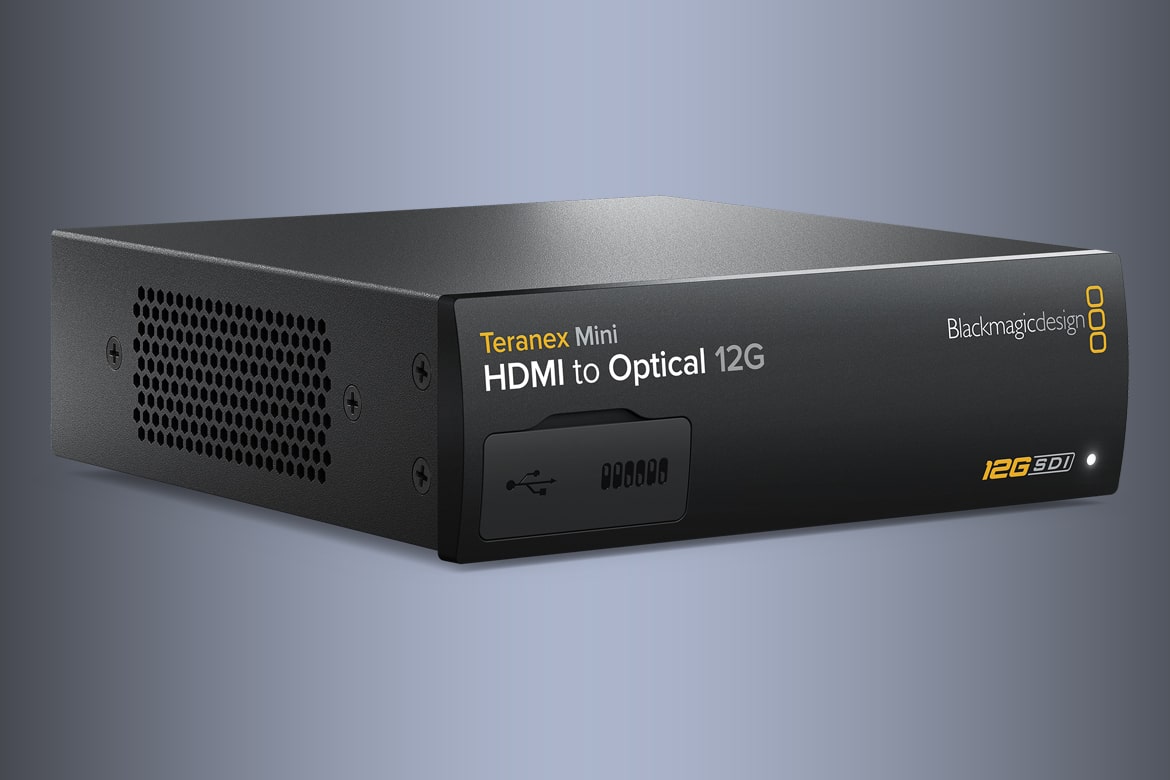

Teranex Mini HDMI to Optical 12G

Teranex Mini HDMI to Optical 12G

Blackmagic Design
Product Highlights
  • Convert an HDMI Signal to 12G-SDI
  • Convert HDMI to Optical Fiber (Optional)
  • Up to DCI 4K/60p Support on Input/Output
  • XLR Inputs Switchable to AES/EBU
  • Ethernet Port for Remote Control or PoE
  • Built-In 90-240V Power Supply
  • Rack-Mount, Duct or Desktop Installation
  • Install up to 3 Units in Single 19" Rack
  • Supports Optional LCD Smart Front Panel
  • Intelligent Thermal Heat Dissipation

  • Overview
  • Tech Specs

Add front panel controls to your Teranex Mini models to adjust settings and to turn features on and off.

Now you can convert from HDMI to SDI and SMPTE optical fiber! Simply insert the SMPTE optical fiber module of your choice to send video and embedded audio over massive distances using 3G, 6G, or 12G-SDI optical fiber! You get professional 12G-SDI and XLR connections, an up converter for viewing SD and HD sources on Ultra HD displays plus ethernet for remote admin control. Optical fiber SFP module sold separately so you can purchase the SMPTE compatible 3G-SDI, 6G-SDI or 12G-SDI SFP to suit your workflow. You can even add an optional Smart Panel to add LCD monitoring and push button controls to your Teranex Mini!

Price: AED 1,969*
*Prices are excluding VAT

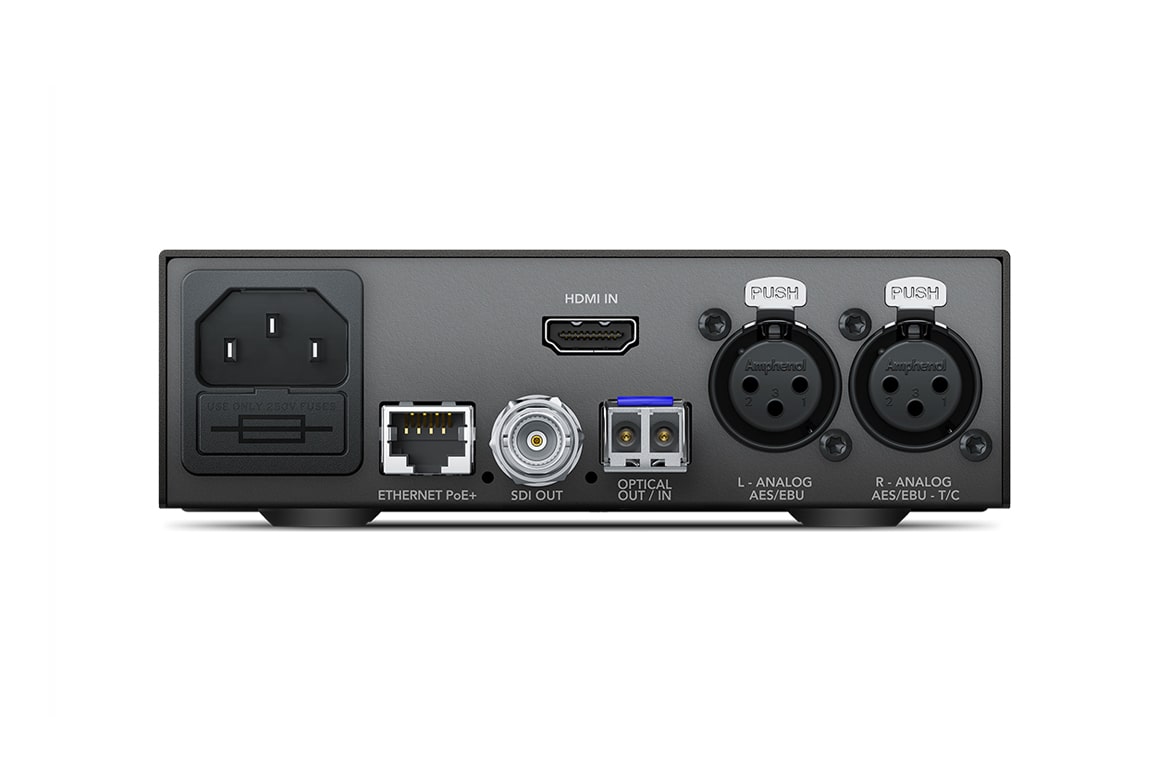

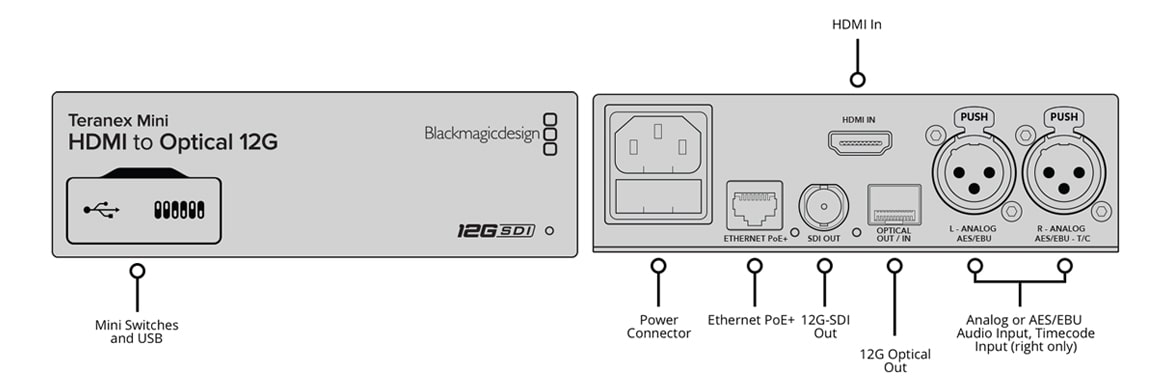

Connections
SDI Video Inputs Optional 3G/6G/12G Optical SFP input.
SDI Video Outputs 1 x 12G‑SDI.
HDMI Video Inputs 1 x HDMI 2.0 type A connector with support for 2160p60.
Optical Fiber Connection (optional) Optional 3G/6G/12G optical SFP output.
Optical Fiber Video Outputs Automatically matches the SD, HD and 12G-SDI HDMI video input.
Analog Audio Inputs 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
Digital Audio Inputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
Embedded Audio Support 16 channels.
Multi Rate Support Automatic switching between SD/HD/2K and 4K.
Updates and Configuration USB and Ethernet.
Reclocking Yes.
Optical Output Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 297M for Optical Fiber SDI, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
SDI Video Rates SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling 4:2:2 4:4:4
SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit.
SDI Color Space REC 601, REC 709
SDI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
HDMI Input Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p
HDMI Color Space REC 601, REC 709
HDMI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Software
Software Control Mac and Windows software upgrade via USB or Ethernet.
Internal Software Upgrade Via included updater application.
Setting Control
Basic Settings Control Mini Switches, USB and Ethernet via free software utility
Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Physical Specifications
Width 5.51 in
Height 1.75 in
Depth 6.69 in
Weight 1.28 lb
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non-condensing


Price: AED 1,969*
*Prices are excluding VAT

Operating Systems
  • Mac 10.12 Sierra,
    Mac 10.13 High Sierra or later.
  • Windows 8.1 or Windows 10.

Power Requirements
  • Power Supply
    1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
  • Power Over Ethernet
    Can be powered via 48V DC using PoE+ (power over ethernet).
  • Power Consumption
    16 Watts
  • Operational Voltage Range
    90 - 240V AC
