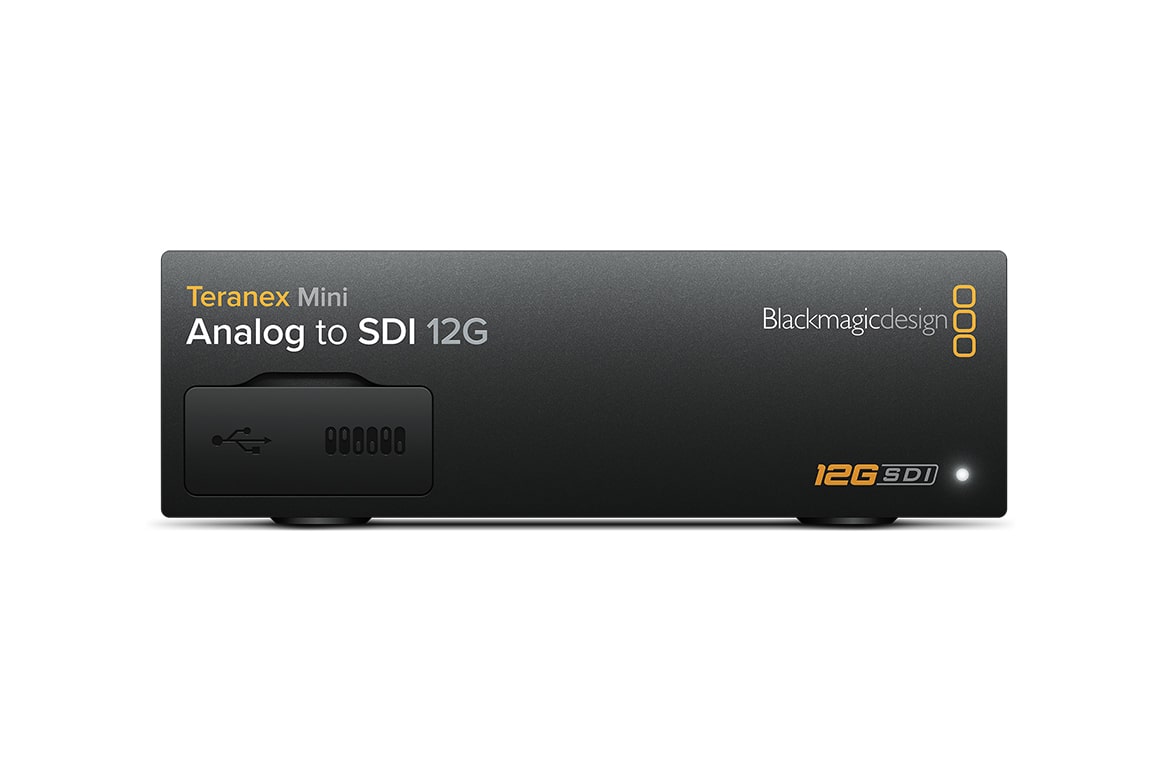

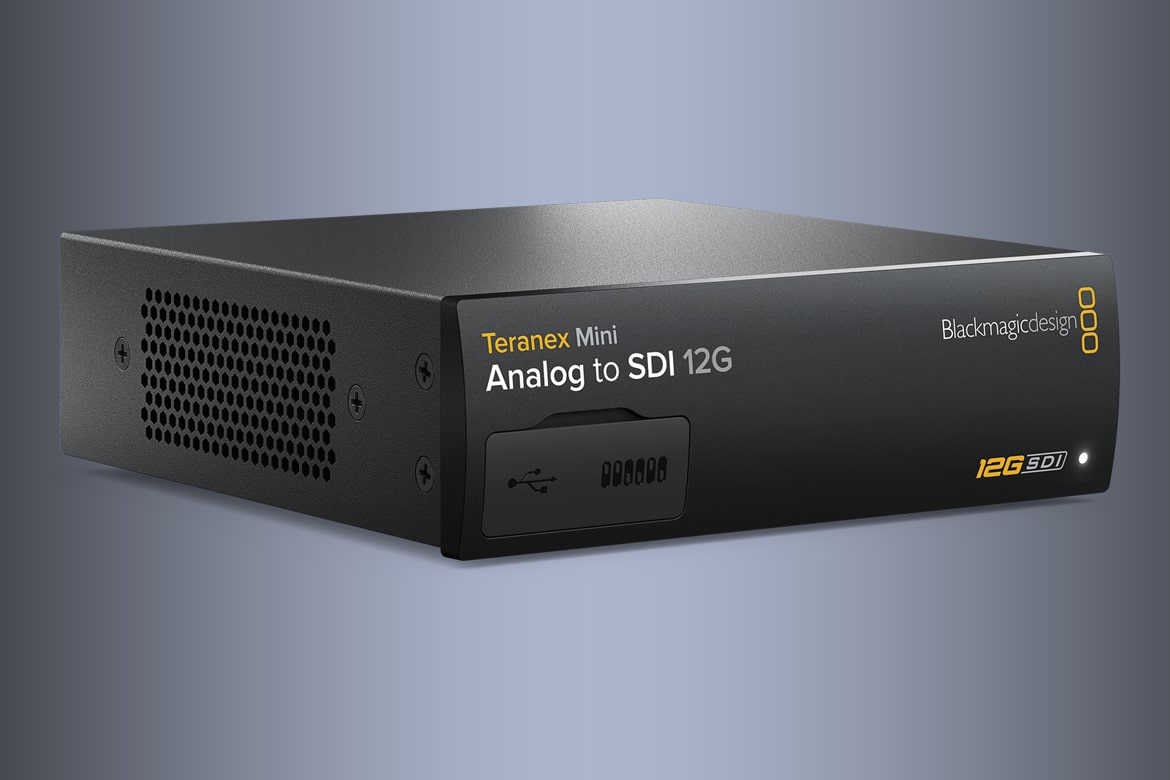

Product Highlights
- Advanced High-Data Rate Signal Converter
- Upconvert Analog to 4K DCI 4096x2160p
- Two Independent 12G-SDI Outputs
- Run 4096x2160p 70 ft Using 6G-SDI Cables
- XLR Inputs Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- 3 Units 1U Rack-Mountable in 19" Rack
- Manage Numerous Units from a Mac or PC
- Overview
- Tech Specs
Add front panel controls to your Teranex Mini models to adjust settings and to turn features on and off.
Convert from analog video to 12G-SDI. Convert incoming analog video signals to SD, HD, 6G and 12G-SDI. Ideal for converting your analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD/Ultra HD SDI video up to 2160p60.

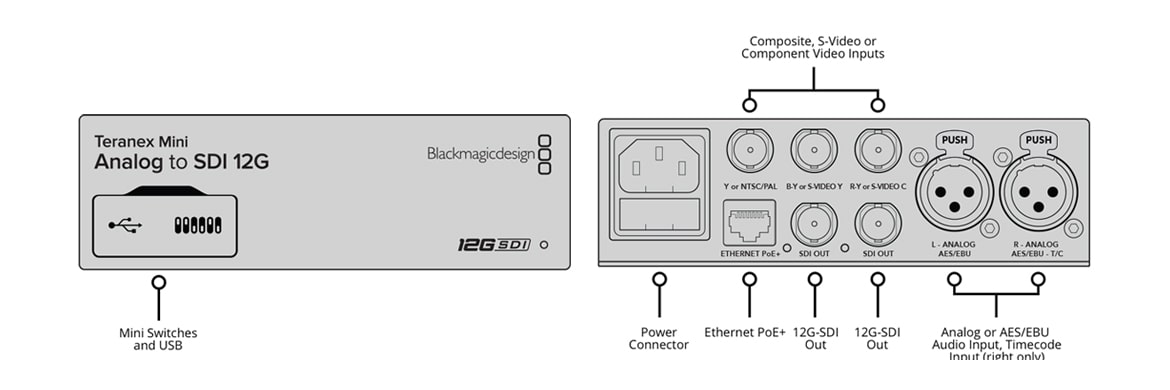

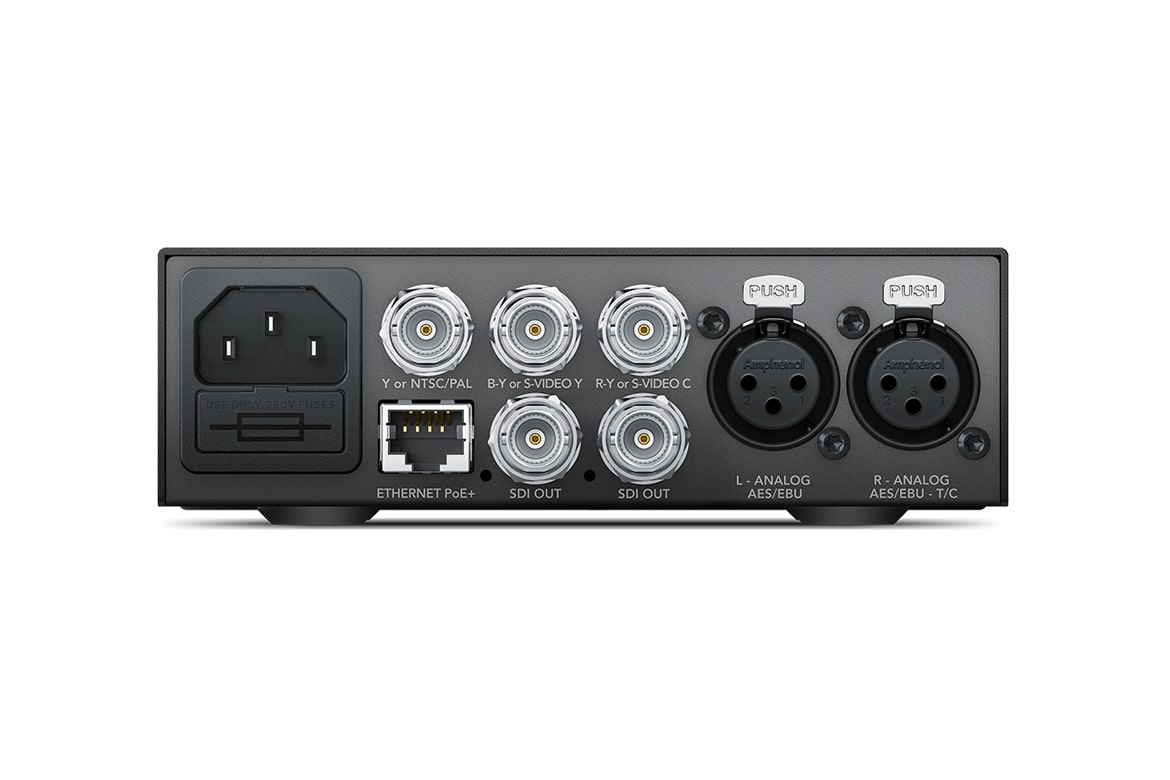

| Connections | |
| SDI Video Outputs | 2 x 12G-SDI outputs |
| Analog Video Inputs | Composite, Y/C or Component. |
| Analog Audio Inputs | 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input. |
| Digital Audio Inputs | 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input. |
| Multi Rate Support | SDI output switchable between HD for composite and S-Video and Ultra HD for component HD. |
| Updates and Configuration | USB or Ethernet. |
| Re-Clocking | Yes |
| Standards | |
| SDI Video Standards | 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 2160p25, 2160p29.97, 2160p50, 2160p59.94 1080i50, 1080i59.94, 1080i60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10 |
| SDI Video Rates | SDI video connections are switchable between standard definition and high definition. |
| SDI Video Sampling | 4:2:2 and 4:4:4. |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K. |
| SDI Color Space | REC 601, REC 709 |
| Analog Video Standards | 525i59.94 NTSC, 625i50 PAL |
| Analog Color Space | REC 601, REC 709 |
| Analog Color Precision | 4:2:2 |
| Software | |
| Software Control | Mac™ and Windows™ software upgrade via USB and Ethernet |
| Windows | Windows 8.1 or Windows 10. |
| Setting Control | |
| Basic Settings Control | Mini Switches, USB and Ethernet via free software utility |
| Optional Front Panel Control | Front mounted Smart Panel with LCD, rotary knob and six settings buttons |
| Physical Specifications | |
| Width | 5.51 in |
| Height | 1.75 in |
| Depth | 6.69 in |
| Weight | 1.41 lb |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input. - Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet). - Power Consumption
16 Watts - Operational Voltage Range
90 - 240V AC
