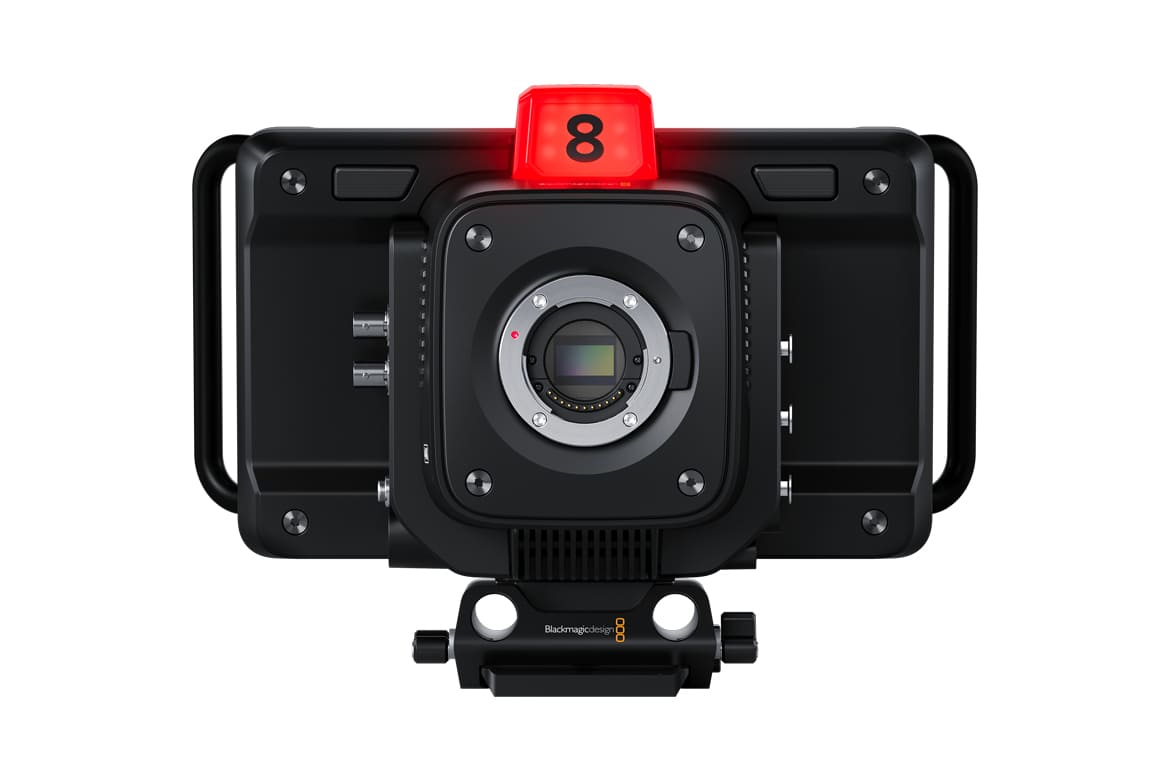

Blackmagic Studio Camera 4K Pro
Blackmagic Design

Blackmagic Studio Camera 4K Pro

Designed for professional SDI or HDMI switchers, you get all the features of the Plus model, as well as 12G-SDI, professional XLR audio, brighter HDR LCD, 5 pin talkback and 10G Ethernet IP link.
Product Highlights
  • Micro Four Thirds Lens Mount
  • Capture up to UHD 4K 3840 x 2160p60
  • 7" High-Brightness HDR Touchscreen LCD
  • Record to External USB Type-C Disks
  • Records Blackmagic RAW, Up to 25,600 ISO
  • 12G-SDI, HDMI & 10G Ethernet Video I/O
  • XLR & 3.5mm Audio Input, Built-In Mics
  • Built-In DaVinci Resolve Color Corrector
  • Large Tally Light, 5-Pin Headset Plug
  • Light Carbon Fiber Polycarbonate Body
  • Overview
  • Tech Specs

Designed for powerful SDI switchers, Blackmagic Studio Camera 4K Pro adds professional 12G-SDI and 10G Ethernet connections. That's perfect when the camera is located a long distance from a switcher. There's a 12G-SDI output and a 12G-SDI program return input that includes camera control, talkback and tally. You also get the same powerful HDMI output with control features. Plus the 10G Ethernet connection allows all connections on a single cable for a SMPTE style workflow that's much lower cost.


Price: AED 7,136*
*Prices are excluding VAT

Camera Features
Effective Sensor Size 17.78mm x 10mm (Four Thirds)
Lens Mount Active MFT mount
Lens Control Iris, focus, zoom on supported lenses.
Dynamic Range 13 Stops
Dual Native ISO 0dB and 18dB gain.
Sensitivity at 0dB Gain f11 with 2160p59.94.
f12 with 2160p50.
at 2,000 lux with 89.9% reflectance.
Signal to Noise Ratio 63dB for 2160p.
Shooting Resolutions 3840 x 2160 (Ultra HD) up to 60 fps.
Frame Rates 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.
Off-speed frame rates up to 60 fps in Ultra HD.
Focus Auto focus available using compatible lenses.
Screen Dimensions 7 inch 1920 x 1200
Screen Type LCD capacitive touchscreen.
Screen Brightness 2000 nits

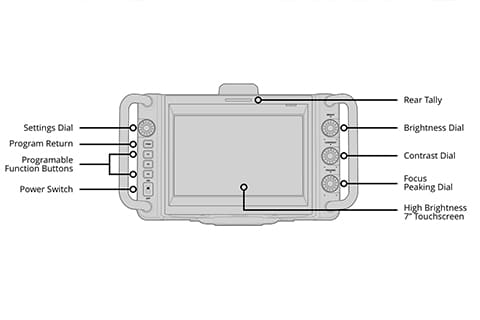

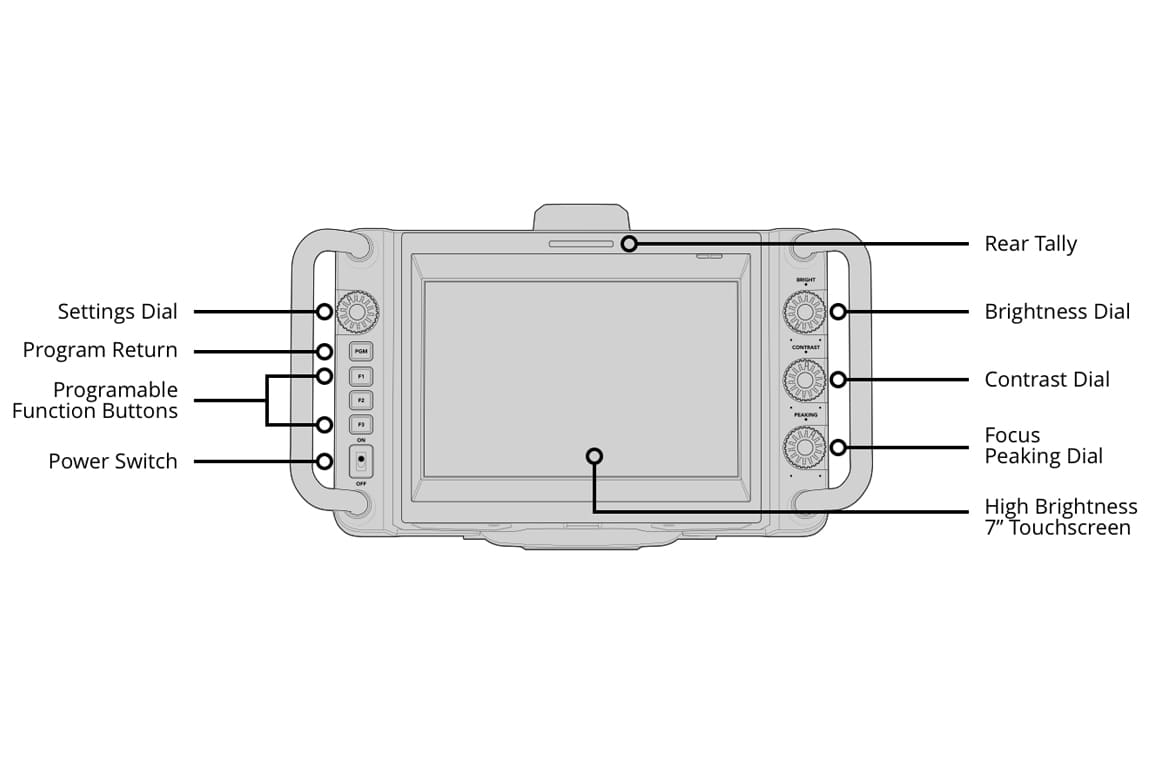

Controls Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.

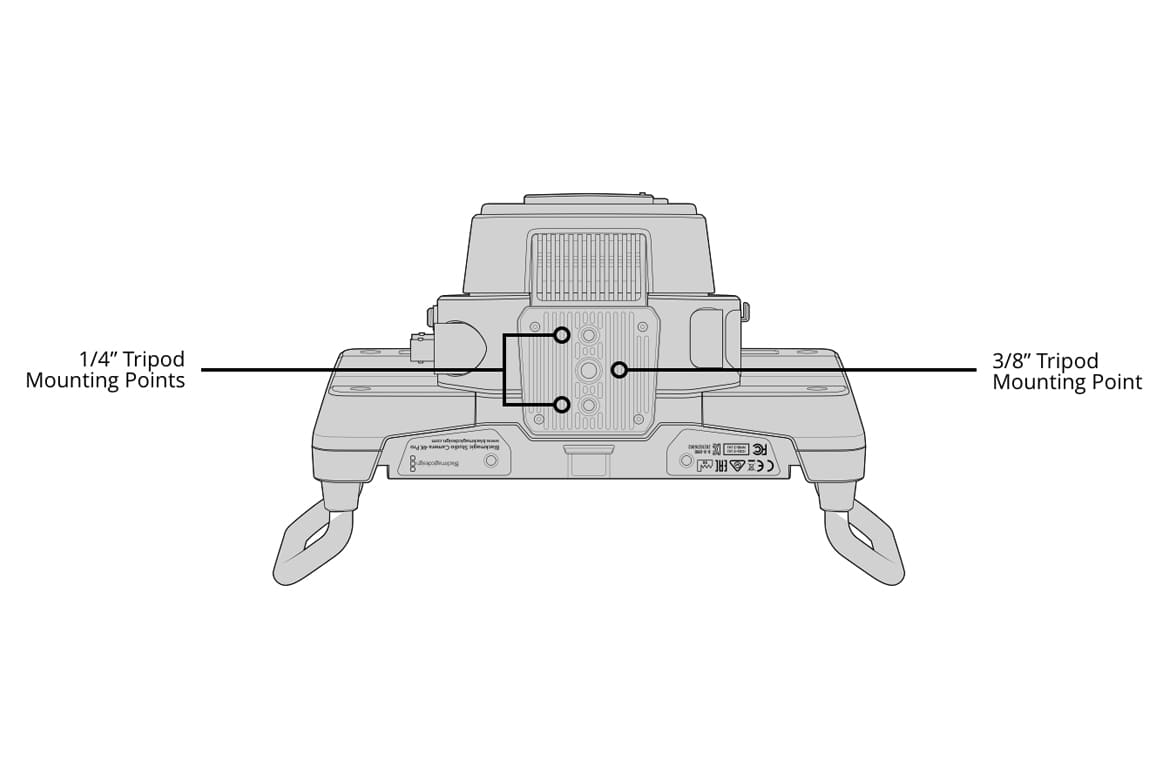

Mounting Options 2 x 1/4 inch tripod mount.
1 x 3/8 inch tripod mount.

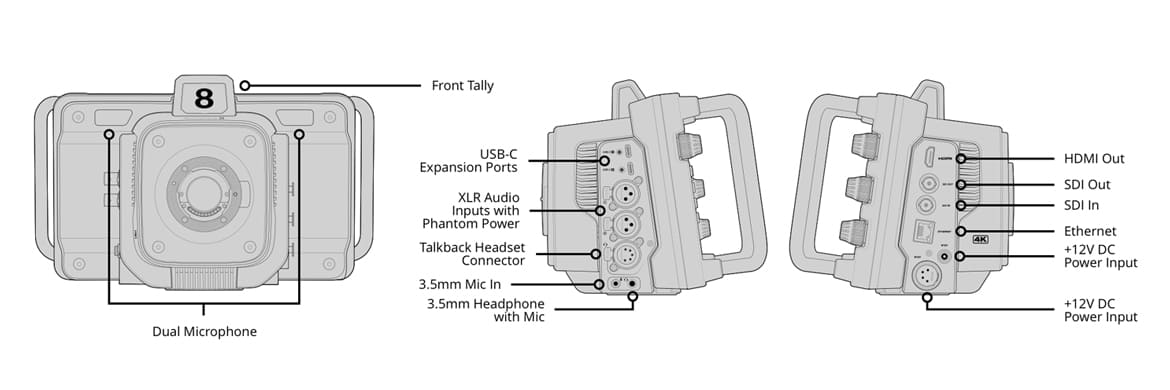

Connections
SDI Video Inputs 1
SDI Video Outputs 1
SDI Rates 1.5G, 3G, 6G, 12G.
HDMI 2.0 Video Outputs 1
Analog Audio Input 2 x XLR analog switchable between mic and line levels. Phantom power support.
1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Analog Audio Output 1 x 5-pin XLR for talkback headset.
1 x 3.5mm TRRS mini jack for headphones with mic.
Reference Inputs Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter.
SDI Audio Output 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16
Remote Control Remote camera control over SDI, HDMI or Ethernet.
Ethernet 10Gb/s
Computer Interface 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
Audio
Microphone Integrated stereo microphone
Built in Speaker 1 x mono speaker
Standards
SD Video Standards None
HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
SDI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit.
Media
Media 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW.
Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Codecs
Codecs Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5
Control
External Control Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Blackmagic Control Protocol over SDI and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.
Color Corrector
Color Corrector DaVinci YRGB.
Storage Features
Storage Type 2 x USB‑C 3.1 Gen 1 expansion ports for external media.
Recording Formats Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
Storage Rates Storage rates based on 30 frames per second.
3840 x 2160 (Ultra HD)
Blackmagic RAW 3:1 - 127 MB/s
Blackmagic RAW 5:1 - 77 MB/s
Blackmagic RAW 8:1 - 48 MB/s
Blackmagic RAW 12:1 - 32 MB/s
Blackmagic RAW Q0 - 96 to 190 MB/s
Blackmagic RAW Q1 - 64 to 153 MB/s
Blackmagic RAW Q3 - 43 to 109 MB/s
Blackmagic RAW Q5 - 26 to 64 MB/s
Software
Software Included Blackmagic Camera Setup for Mac and Windows.
Power Requirements
Power Supply 1 x External 12V DC 60W power supply.
Power Inputs 1 x 12V DC locking 5.5 mm barrel connector.
1 x 12V DC 4 pin XLR input for external power supply or battery use.
1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies.
Power Usage 26 ‑ 40 W using DC input.
30 ‑ 46 W using PoE input.
Accessories
Optional Accessories Blackmagic Focus Demand
Blackmagic Zoom Demand
Blackmagic Studio Converter
ATEM Mini switchers
ATEM Television Studio Pro switchers
Blackmagic 3G‑SDI Shield for Arduino
Environmental Specifications
Operating Temperature 0°to 40°C (32° to 104°F)
Storage Temperature -20°to 45°C (-4° to 113°F)
Relative Humidity 0% to 90% non-condensing



Price: AED 7,136*
*Prices are excluding VAT

Operating Systems
  • Mac
    Mac 10.15 Catalina,
    Mac 11.1 Big Sur or later.
  • Windows
    Windows 10, 64-bit.

Physical Specifications
  • Width
    10.77 in
  • Depth
    6.68 in
  • Height
    6.59 in
  • Weight
    3.71 lb
