SmartView Duo 2
Dual 8 inch 3 RU SDI/HD-SDI/3G-SDI monitoring with central software control!
Product Highlights
- 3G/HD/SD-SDI Inputs, Both with Loop-Out
- Integrated Tally for Live Broadcast
- Ethernet Input for Adjustments
- Upgradeable Firmware via USB
- 2K, 1080i/p, 720p & 50/60 Hz SD Support
- 10-Bit Color & 4:2:2 / 4:4:4 Sampling
- 800 x 480 Resolution
- Overview
- Tech Specs

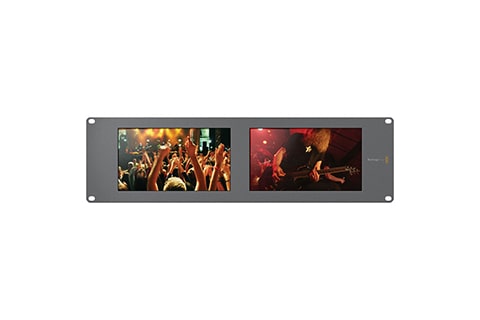

Featuring two large independent 8 inch LCD screens in a compact rack mount design, SmartView Duo 2 handles SD, HD and 3Gb/s SDI video standards. SmartView Duo 2 is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo 2 you can install SDI monitoring everywhere you need!

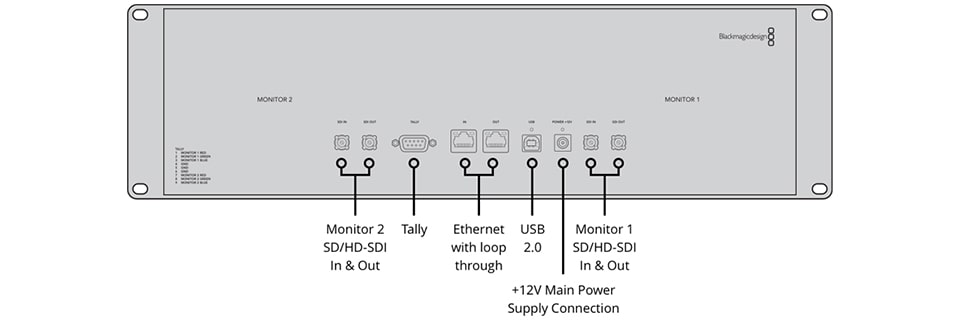

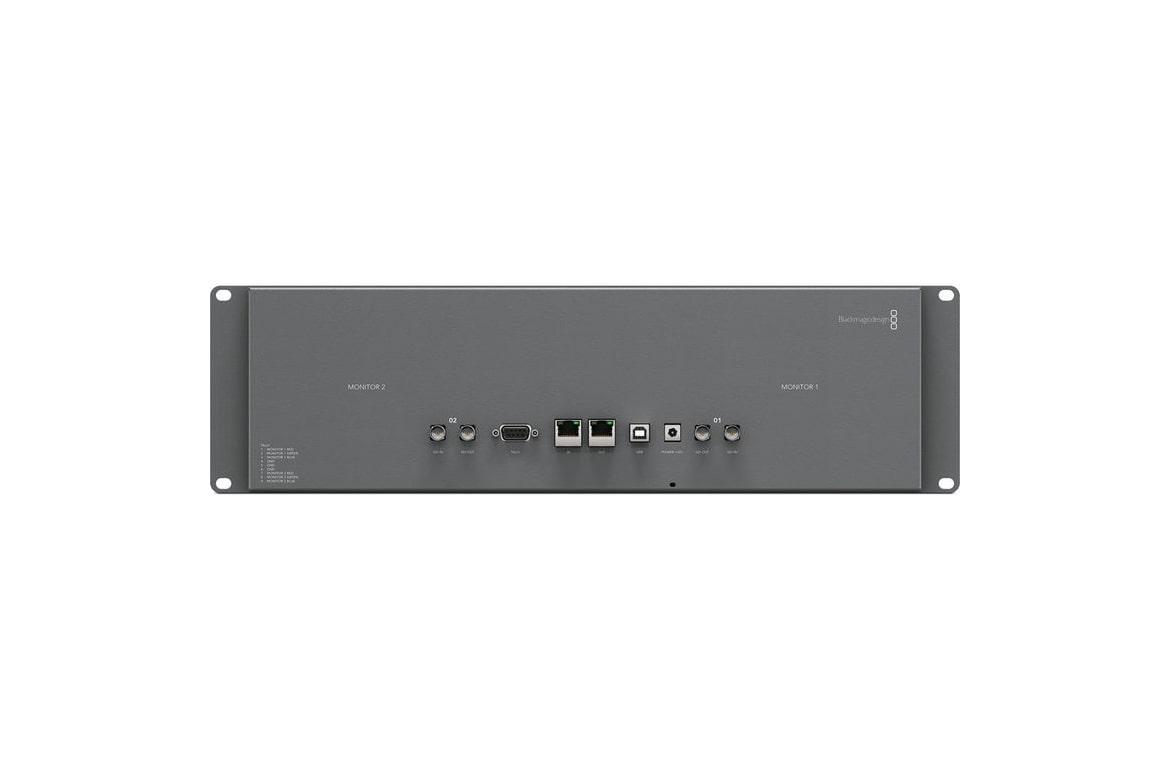

| Connections | |
| SDI Video Input | Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output. |
| Multi Rate Support | Auto detection of 2K, HD or standard definition inputs. |
| Updates and Configuration | Via USB 2.0 high speed (480 Mb/s) |
| Ethernet | 10/100 BaseT with loop through. |
| Tally | 9-pin D connector |
| Standards | |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M. |
| SDI Color Space | REC 601, REC 709 |
| SDI Auto Switching | Automatically selects between SD, HD and 3 Gb/s SDI. |
| Video Sampling | 4:2:2 and 4:4:4 |
| SDI Format Support | 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Format Support | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Software | |
| Internal Software Upgrade | Via included firmware updater software. |
| SmartView Utility Software | Via USB or Ethernet. |
| Operating Systems | |
| Mac | Mac 10.12 Sierra, Mac 10.13 High Sierra or later. |
| Windows | Windows 8.1 or Windows 10. |
| Display | |
| Display Element | TFT Active Matrix LCD. |
| Display Resolution | 800 x 480 pixels. |
| Response | < 15 ms |
| Contrast Ratio | Typically 500:1 |
| Color Depth | 16.7 Million Colors. |
| Display Orientation | Displays can rotate upside down for optimum viewing angle. |
| Power Requirements | |
| Power Supply | 12V universal power supply included with international socket adapters for all countries. |
| Power Consumption | < 20 Watts |
| Operational Voltage Range | 12V - 15V |
| Physical Specifications | |
| Width | 19 in |
| Depth | 1.38 in |
| Height | 5.24 in |
| Weight | 3.15 lb |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Display
- Display Element
TFT Active Matrix LCD. - Display Resolution
800 x 480 pixels - Response
< 15 ms - Contrast Ratio
Typically 500:1 - Color Depth
16.7 Million Colors. - Display Orientation
Displays can rotate upside down for optimum viewing angle.
Power Requirements
- Power Supply
12V universal power supply included with international socket adapters for all countries. - Power Consumption
< 20 Watts - Operational Voltage Range
12V - 15V
