Smart Videohub CleanSwitch 12x12
Compact 6G-SDI 12 x 12 video router with built in re-synchronizer in each input!
Product Highlights
- Routing Switcher with Frame Syncing
- 12 x 6G-SDI Inputs / 12 x 6G-SDI Outputs
- Supports SD, HD, Ultra HD 4K, DCI 4K
- 4:2:2 and 4:4:4 Sampling
- 10-Bit Processing
- SDI Reclocking
- Built-In LCD with Spin Knob Control
- Push Buttons on Front Panel
- Ethernet for Remote Control
- Videohub Control Software Included
- Overview
- Tech Specs
Compact 6G-SDI router with built in re-synchronizers on all inputs allows clean switching between all video sources of the same video standard, and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats. Supports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when the switching is between the same video standard. Includes front panel button and spin knob routing, elegant machined metal front panel with LCD for routing display and video monitoring and remote Ethernet control.

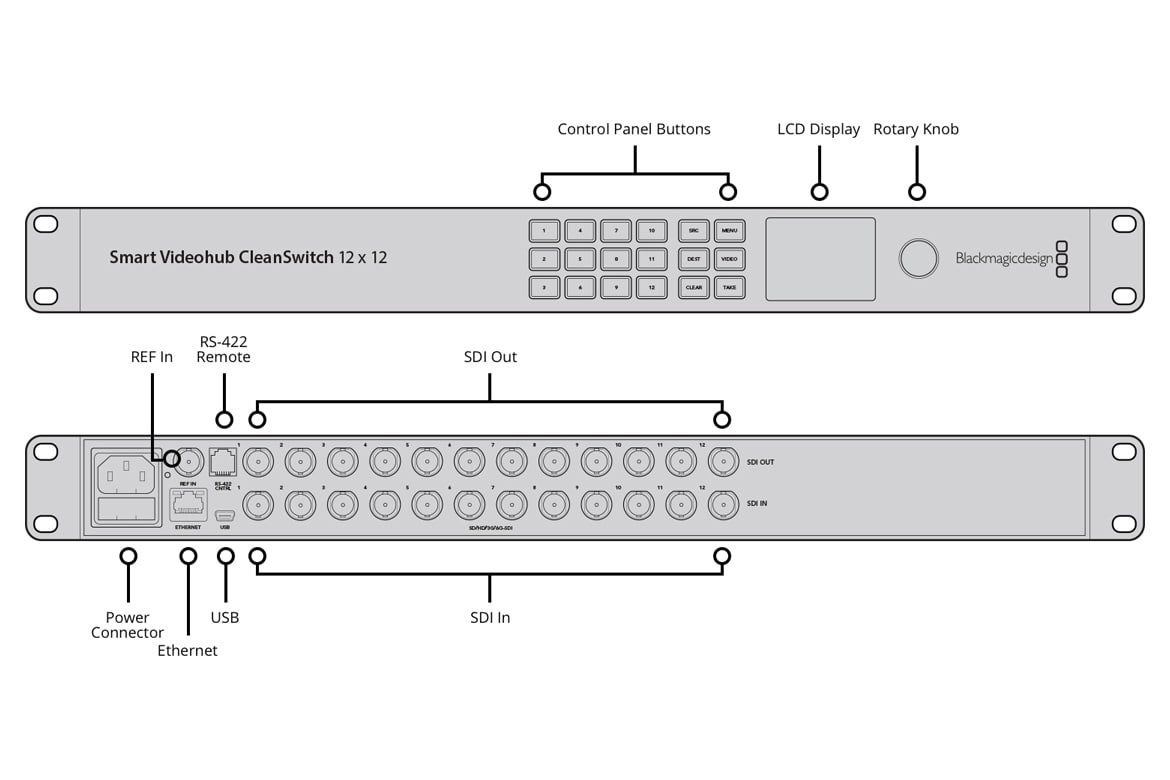

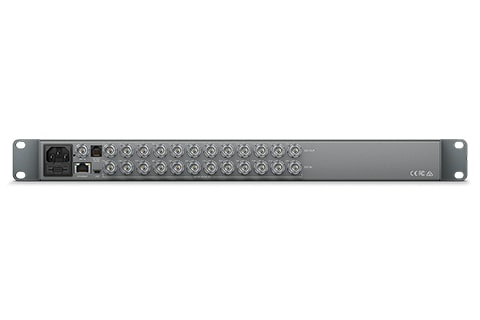

| Connections | |
| SDI Video Input | 12 x 10-bit SD-SDI, HD-SDI and 6G-SDI. |
| SDI Video Output | 12 x 10-bit SD-SDI, HD-SDI and 6G-SDI. |
| SDI Rates | 270Mb, 1.5G, 3G, 6G. |
| Video Input Re-Sync | On all 12 inputs for clean switch. |
| SDI Reclocking | On all SDI outputs. |
| Reference Input | Tri-Sync or Black Burst. |
| Control Panel Connection | Ethernet. |
| Serial Control Connection | RJ-6 RS-422. |
| Multi-Rate Support | Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video. |
| Updates | USB. |
| Front Panel Router Control | 12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet. |
| Router Configuration | Via front panel LCD or RJ45 Ethernet. |
| RS-422 Router Control | 1 x input for controlling router crosspoint switching. |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL. |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B , ITU-R BT.656 and ITU-R BT.601. |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48kHz and 24 bit. |
| SDI Color Precision | 10-bit 4:2:2 and 4:4:4 |
| SDI Color Space | YUV or RGB |
| SDI Auto Switching | Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input. |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M. |
| Control | |
| Built in Control Panel | 12 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display. |
| External Control Panel | Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. |
| Software | |
| Software Control | Router control included free for Windows™ and Mac™. |
| Internal Software Upgrade | Via included updater application. |
| Operating Systems | |
| Mac | Mac 10.12 Sierra, Mac 10.13 High Sierra or later. |
| Windows | Windows 8.1 or Windows 10. |
| Display | |
| Display | Built in LCD for video and menu settings. |
| Power Requirements | |
| Power Fail Protection | Router connections preserved and restored instantly at power on. |
| Power Supply | IEC power cable required. 90 - 240V AC input. |
| Physical Specifications | |
| Width | 19 in |
| Height | 1.75 in |
| Depth | 6.30 in |
| Weight | 4.14 lb |
| Physical Installation | |
| Physical Installation | 1 rack unit size. Less than 6 inches deep. |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0 to 90% non-condensing |
