Blackmagic Pocket Cinema Camera 6K Pro
Blackmagic Design

Blackmagic Pocket Cinema Camera 6K Pro

Most advanced digital film camera features 6K sensor with EF lens mount, built in motorized ND filters at 0, 2, 4 and 6 stops, tilt adjustable 1500 nit LCD and a larger battery. Supports optional EVF.
Product Highlights
  • Bright 1500 cd/m² Tilting HDR LCD
  • Super35 HDR Sensor, Gen 5 Color Science
  • Dual XLR Inputs, Canon Active EF Mount
  • NP-F570 Battery, Built-In ND Filters
  • Record 6K 6144 x 3456 up to 50 fps
  • Dual Native 400 & 3200 ISO to 25,600
  • CFast 2.0 & SD/UHS-II Card Slots
  • Record up to 120 fps Windowed HD
  • USB Type-C Recording, 3D LUT Support
  • 13-Stop Dynamic Range, Autofocus Support
  • Overview
  • Tech Specs

To top their previous achievement with the Pocket Cinema Camera 6K, Blackmagic Design adds an even more full-featured, compact Super35 camera to their cine-style line with the Pocket Cinema Camera 6K Pro. The 6K Pro features all the recording features, sensor, dynamic range, buttons, and ports as its predecessor, and adds a variety of important new features such as a 5" tilting HDR capacitive touchscreen LCD with 1500 cd/m² brightness, a Pro EVF option, built-in clear/2/4/6-stop ND filters, dual mini-XLR inputs, an accurate timecode clock, an NP-F570 L-series battery slot, and updated Gen 5 color science.

With only a slightly larger form factor than the 6L, the 6K Pro records the same resolutions up to 50 fps 6144 x 3456 video, and it retains the valuable active Canon EF mount, letting users take advantage of the expansive array of EF/EF-S mount lenses available. The EF mount supports iris, autofocus, and zoom functions using electronic communication when using compatible lenses.

The 6K Pro can turn one frame into two by cropping a second shot from one frame, upscaling to 8K, or simply capturing rich, detailed footage with your favorite EF/EF-S-mount lens. The updated Gen 5 internal color processing makes it easy to intercut 6K Pro, 6K, and BMPCC 4K footage. Record using the internal CFast 2.0 and SD/UHS-II card slots or via the full-size HDMI port to an optional ATEM Mini switcher for live streaming, or output via the USB Type-C port to capture longer clips to an external drive. The 6K Pro includes a DaVinci Resolve Studio license and supports Blackmagic Raw capture from the sensor. Using the Raw format with the sensor's metadata simplifies editing to suit any project and makes editing easier with DaVinci Resolve.

The compact 6K Pro retains the familiar controls and menu layout of the 6K model, such as ISO support up to 25,600, 13 stops of dynamic range, and 1920 x 1080 HDR monitor output. Professional audio support now includes two mini XLR inputs with phantom +48V power, a 3.5mm stereo input, a mono speaker, a headphone output, and a built-in stereo mic system.

Additional pro features include lens metadata support, 3D LUT application for both monitoring and recording, up to 21.2MP still image capture, and a multifunction grip that enables single-handed operation. Sync multiple cameras for a concert, event, or other multicamera shoots by linking an external timecode generator to the 6K Pro internal timecode generator (accessed via the 3.5mm audio port). Then save valuable time by using Resolve to automatically sync your multicamera shots in post.

In addition to the DaVinci Resolve Studio activation key, the 6K Pro comes with a 30W power supply offering simultaneous battery charging, an MP-F570 battery, a lens port cap, and a camera strap. Optional accessories designed specifically for the 6K Pro include the BMPCC Pro EVF and BMPCC Pro Battery Grip, available separately.

Camera Features
Effective Sensor Size 23.10mm x 12.99mm (Super 35)
Lens Mount Active EF mount
Lens Control Iris, focus and zoom on supported lenses
Dynamic Range 13 Stops
Dual Native ISO 400 and 3200
Shooting Resolutions 6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5744 x 3024 (5.7K 17:9) up to 60 fps
4096 x 2160 (4K DCI) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
2868 x 1512 (2.8K 17:9) up to 120 fps
1920 x 1080 (HD) up to 120 fps
Frame Rates Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
Off-speed frame rates up to 60 fps in 6K 2.4:1, 120 fps in 2.8K 17:9 and 1080HD.
Built in ND Filters Four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters.
Focus Auto focus available using compatible lenses
Iris Control Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
Screen Dimensions 5" 1920 x 1080.
Screen Brightness 1500nits
Screen Type LCD capacitive touchscreen.
Metadata Support Automatically populated lens data from electronic EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.

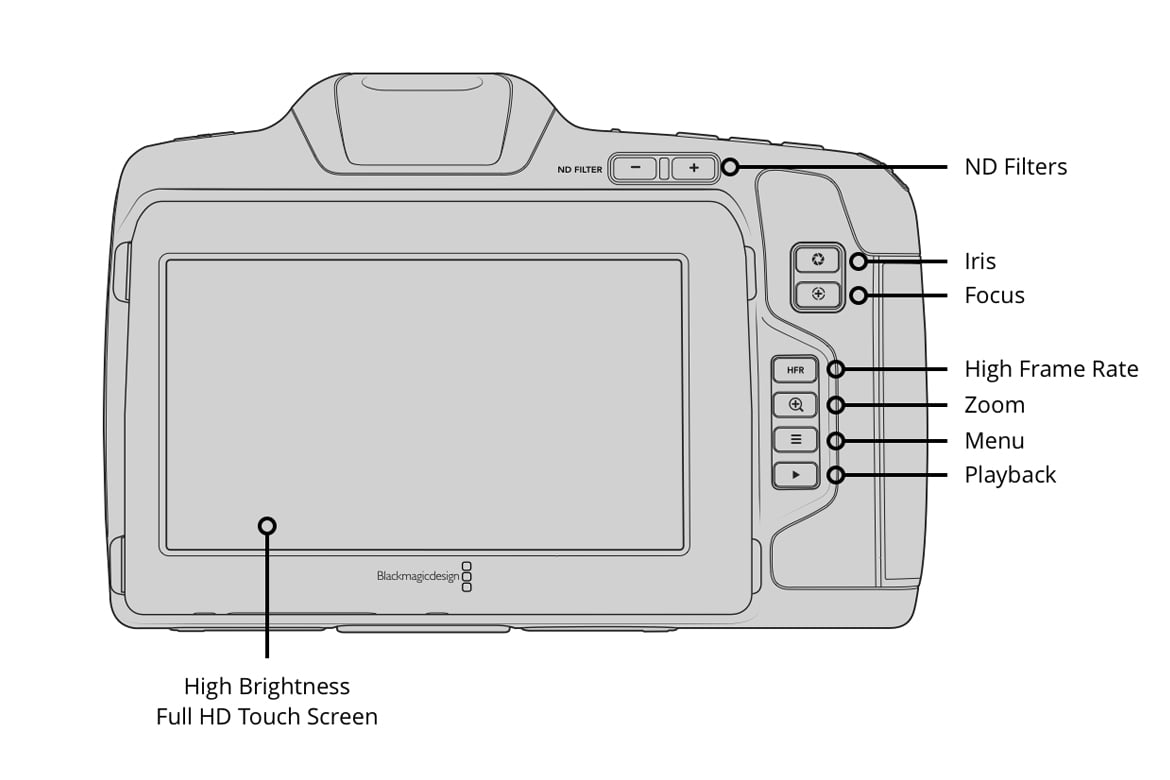

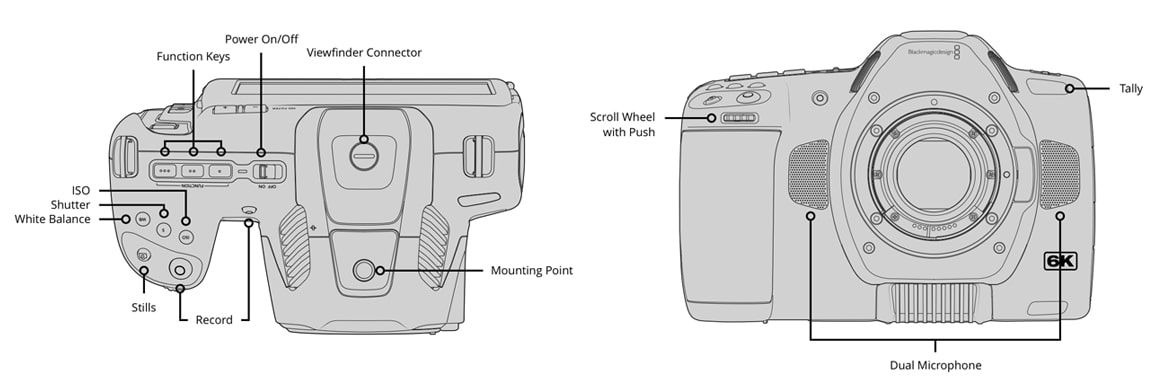

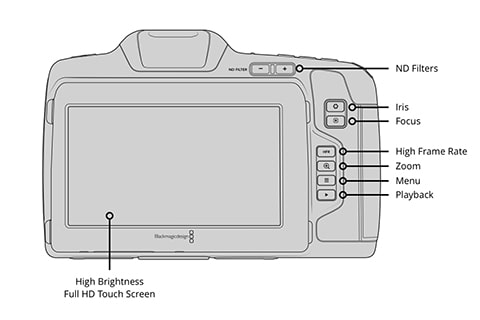

Controls Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 2 x ND filter button, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
Timecode Clock Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

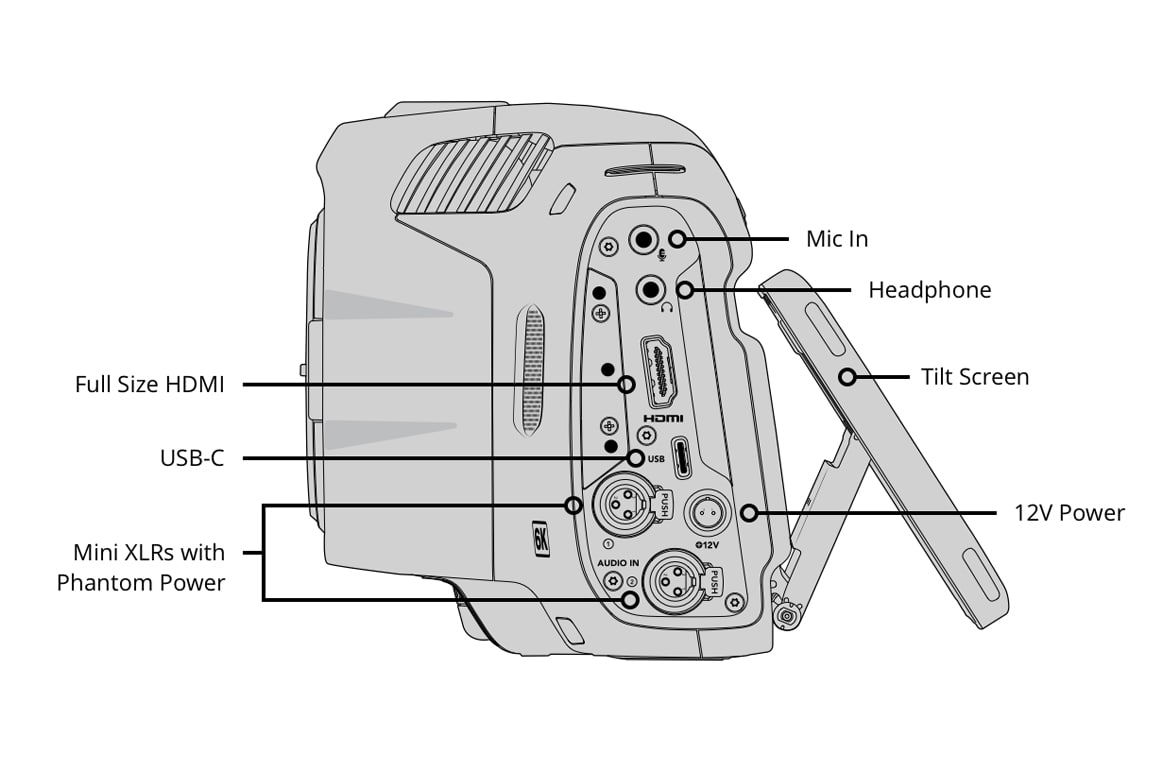

Connections
Total Video Inputs None
Total Video Outputs 1 x HDMI up to 1080p60
Analog Audio Inputs 2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Analog Audio Outputs 1 x 3.5mm headphone jack
Computer Interface USB Type-C for external drive recording, PTP camera control and software updates.
Audio
Microphone Integrated stereo microphone
Built in Speaker 1 x mono speaker
Standards
SD Video Standards None
HD Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI Standards 4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60
Media
Media 1 x CFast card slot, 1 x SD UHS‑II card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes Recording.
Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Codecs
Codecs Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5,
ProRes 422 HQ QuickTime,
ProRes 422 QuickTime,
ProRes 422 LT QuickTime,
ProRes 422 Proxy QuickTime.
Control
External Control iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and internal record start and stop when used with a compatible ATEM and ATEM Software Control.
Color Corrector
Color Corrector DaVinci YRGB.
Storage Features
Storage Type 1 x CFast 2.0.
1 x SD UHS-II card.
1 x high speed USB-C expansion port for external media
Storage Rates Storage rates based on 30 frames per second.

6144 x 3456 (6K)
Blackmagic RAW 3:1 - 323 MB/s
Blackmagic RAW 5:1 - 194 MB/s
Blackmagic RAW 8:1 - 121 MB/s
Blackmagic RAW 12:1 - 81 MB/s
Blackmagic RAW Q0 - 242 to 483 MB/s
Blackmagic RAW Q1 - 162 to 387 MB/s
Blackmagic RAW Q3 - 108 to 277 MB/s
Blackmagic RAW Q5 - 65 to 162 MB/s

6144 x 2560 (6K 2.4:1)
Blackmagic RAW 3:1 - 240 MB/s
Blackmagic RAW 5:1 - 144 MB/s
Blackmagic RAW 8:1 - 90 MB/s
Blackmagic RAW 12:1 - 60 MB/s
Blackmagic RAW Q0 - 180 to 359 MB/s
Blackmagic RAW Q1 - 120 to 287 MB/s
Blackmagic RAW Q3 - 80 to 205 MB/s
Blackmagic RAW Q5 - 49 to 120 MB/s

5744 x 3024 (5.7K 17:9)
Blackmagic RAW 3:1 - 264 MB/s
Blackmagic RAW 5:1 - 159 MB/s
Blackmagic RAW 8:1 - 100 MB/s
Blackmagic RAW 12:1 - 67 MB/s
Blackmagic RAW Q0 - 198 to 396 MB/s
Blackmagic RAW Q1 - 133 to 317 MB/s
Blackmagic RAW Q3 - 89 to 227 MB/s
Blackmagic RAW Q5 - 54 to 133 MB/s

4096 x 2160 (4K DCI)
Blackmagic RAW 3:1 - 136 MB/s
Blackmagic RAW 5:1 - 82 MB/s
Blackmagic RAW 8:1 - 51 MB/s
Blackmagic RAW 12:1 - 35 MB/s
Blackmagic RAW Q0 - 102 to 203 MB/s
Blackmagic RAW Q1 - 68 to 163 MB/s
Blackmagic RAW Q3 - 46 to 116 MB/s
Blackmagic RAW Q5 - 28 to 68 MB/s
Apple ProRes 422 HQ - 117.88 MB/s
Apple ProRes 422 - 78.63 MB/s
Apple ProRes 422 LT - 54.63 MB/s
Apple ProRes Proxy - 24.25 MB/s

3728 x 3104 (3.7K 6:5 anamorphic)
Blackmagic RAW 3:1 - 177 MB/s
Blackmagic RAW 5:1 - 106 MB/s
Blackmagic RAW 8:1 - 67 MB/s
Blackmagic RAW 12:1 - 45 MB/s
Blackmagic RAW Q0 - 133 to 265 MB/s
Blackmagic RAW Q1 - 89 to 212 MB/s
Blackmagic RAW Q3 - 60 to 152 MB/s
Blackmagic RAW Q5 - 36 to 89 MB/s

2868 x 1512 (2.8K 17:9)
Blackmagic RAW 3:1 - 67 MB/s
Blackmagic RAW 5:1 - 41 MB/s
Blackmagic RAW 8:1 - 26 MB/s
Blackmagic RAW 12:1 - 17 MB/s
Blackmagic RAW Q0 - 51 to 101 MB/s
Blackmagic RAW Q1 - 34 to 81 MB/s
Blackmagic RAW Q3 - 23 to 58 MB/s
Blackmagic RAW Q5 - 14 to 34 MB/s

1920 x 1080
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s
Recording Formats Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6144 x 3456, 6144 x 2560, 5744 x 3024, 4096 x 2160, 3728 x 3104 and 2868 x 1512 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata.
ProRes at 4096 x 2160, 3840 x 2160 and 1920 x 1080 with film, extended video or video dynamic range or custom 3D LUT.
Software
Software Included Blackmagic OS
DaVinci Resolve Studio for Mac and Windows including activation key
Blackmagic Camera Setup
Blackmagic RAW Player
Blackmagic RAW QuickLook Plugin
Blackmagic RAW SDK
Blackmagic RAW Speed Test
Power Requirements
Power Supply 1 x External 12V power supply.
External Power Input 1 x 2-pin locking connector.
Battery Type NP-F570
Battery Life Approximately 60 minutes (recording 6K RAW at 24 fps to CFast 2.0 with screen brightness at 50%)
Power 12V-20V
Accessories
Optional Accessories Blackmagic Pocket Cinema Camera Pro EVF
Blackmagic Pocket Camera Battery Pro Grip
Environmental Specifications
Operating Temperature 0°to 40°C (32° to 104°F)
Storage Temperature -20°to 45°C (-4° to 113°F)
Relative Humidity 0% to 90% non-condensing

Operating Systems
  • Mac
    Mac 10.15 Catalina,
    Mac 11.1 Big Sur or later.
  • Windows
    Windows 10

Physical Specifications
  • Width
    7.08 in
  • Depth
    4.41 in
  • Height
    4.84 in
  • Weight
    2.73 lb
