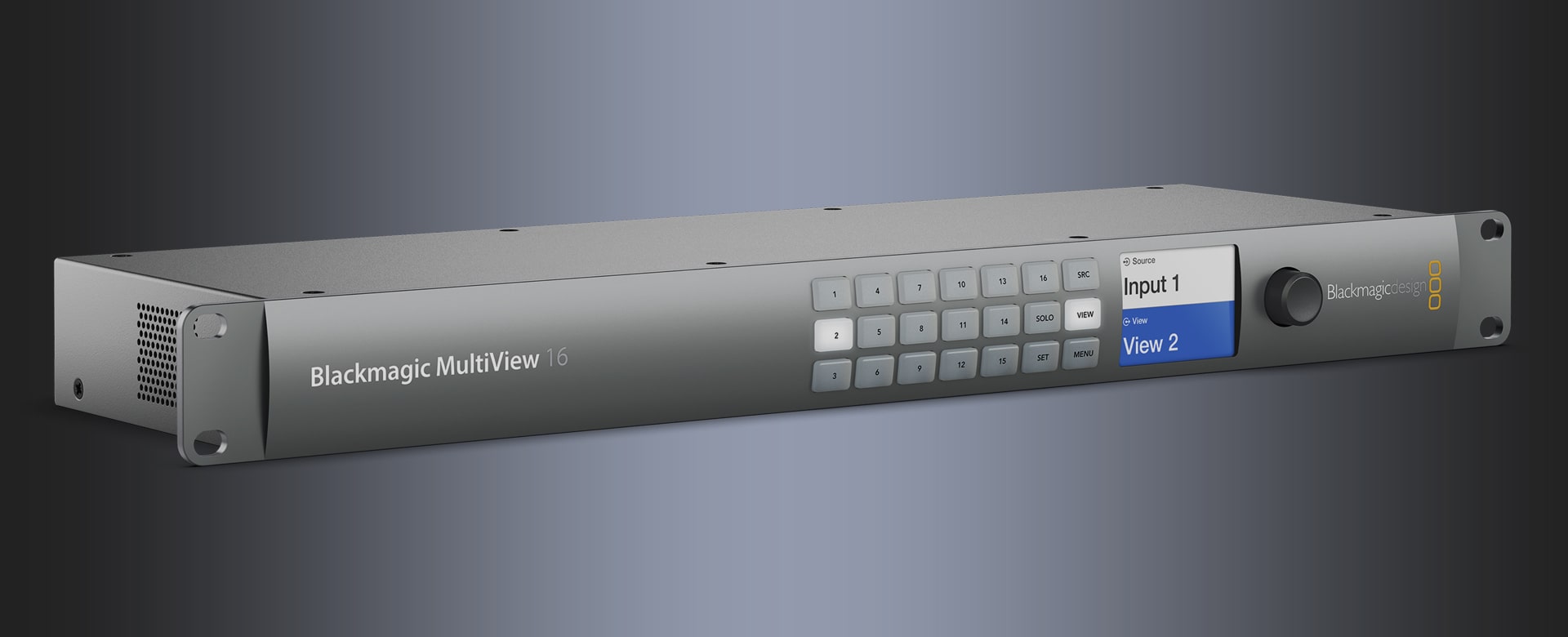

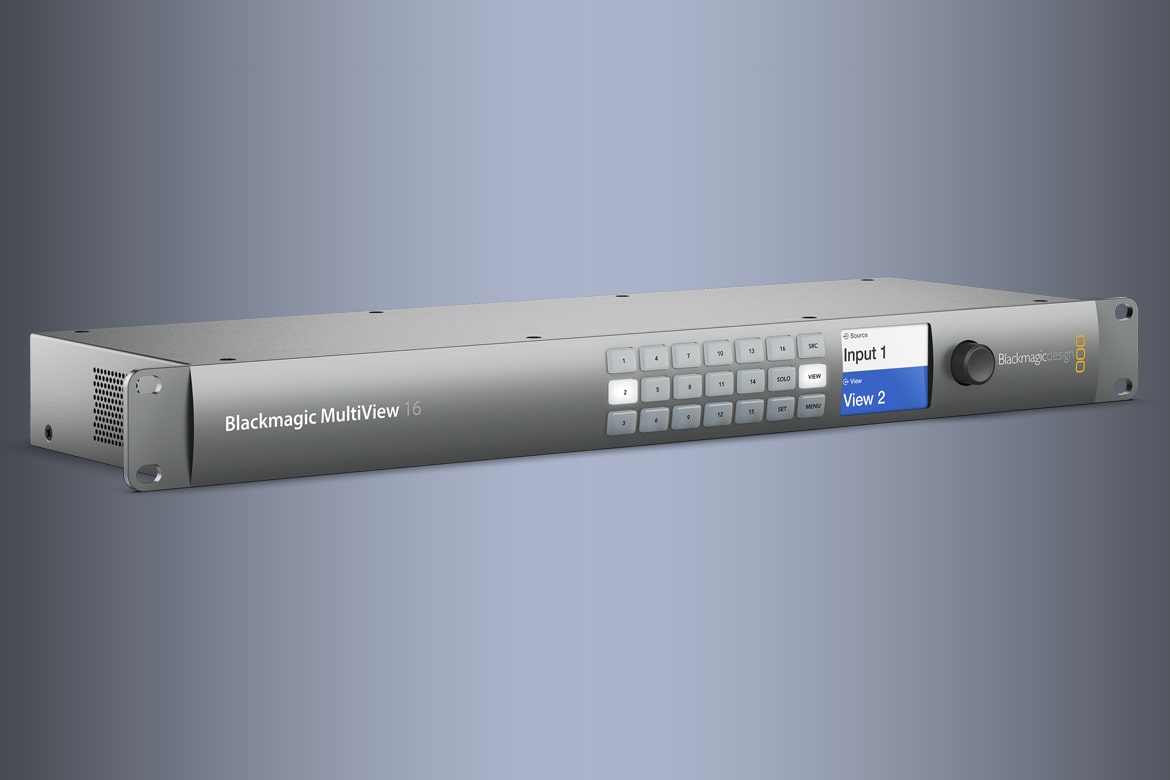

Blackmagic MultiView 16
Monitor up to 16 different SD, HD or Ultra HD sources on a single Ultra HD display at twice the resolution per view!
Product Highlights
- 16x 6G-SDI Inputs with Loop Outputs
- 4x SDI & 1x HDMI MultiView Outputs
- Supports SD, HD, Ultra HD 4K, DCI 4K
- 2x2, 3x3, 4x4 Multi-View Configurations

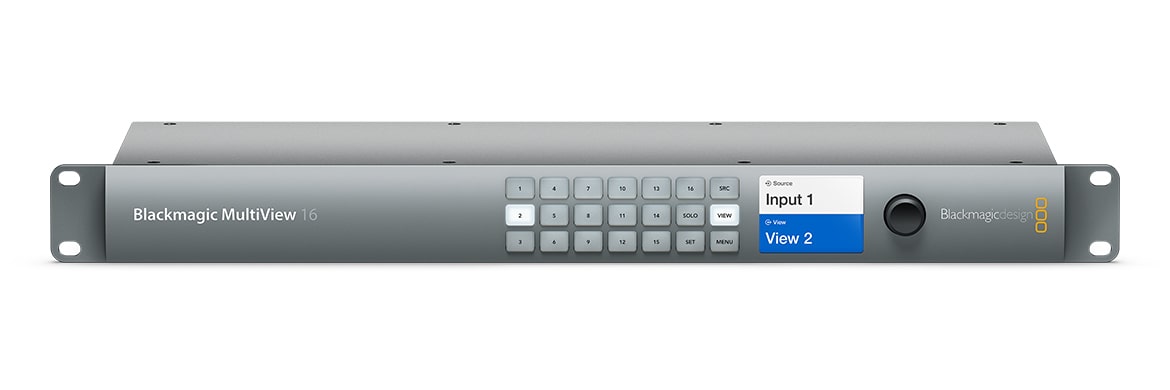

- Built-In LCD with Spin Knob Control
- Push Buttons on Front Panel
- Ethernet for Remote Control
- 1RU Machined Aluminum Chassis
- Built-In Multi-Voltage Power Supply
- Overview
- Tech Specs
Monitor up to 16 SDI sources using an Ultra HD monitor or television so you get twice the resolution per view! Monitor from SD, HD or Ultra HD-SDI sources in any combination, in any order! Features full frame re-sync on each input.

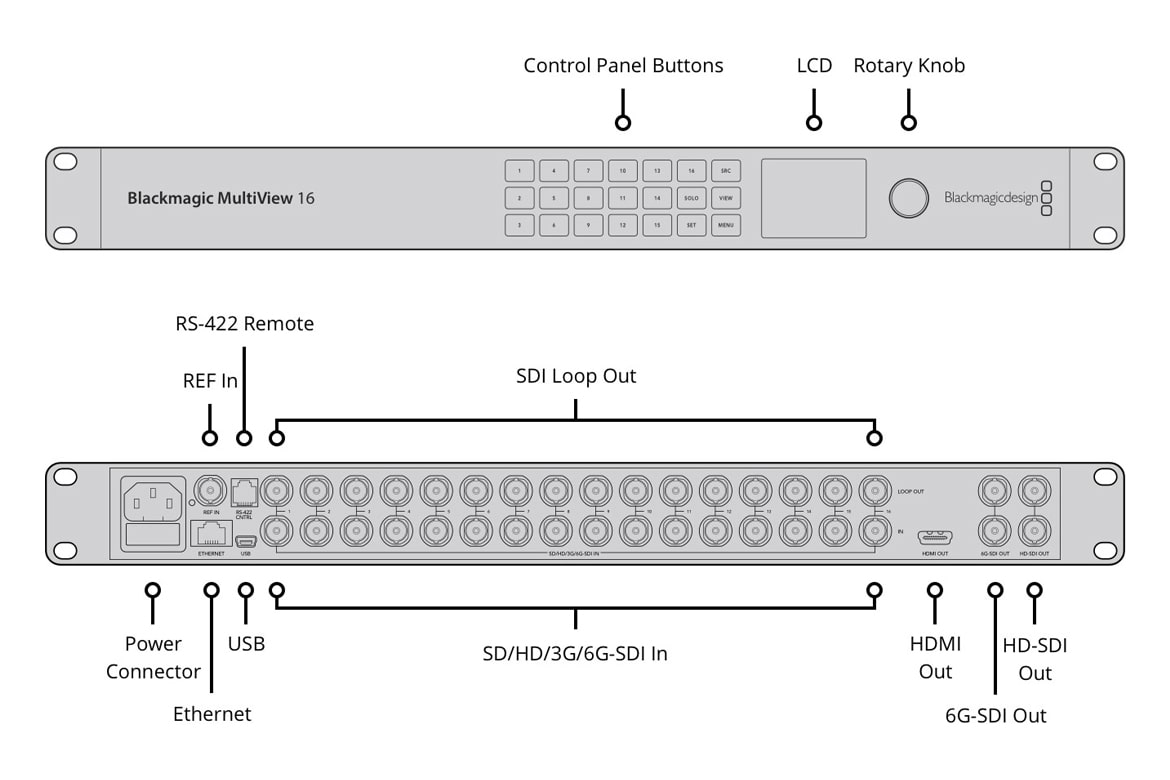

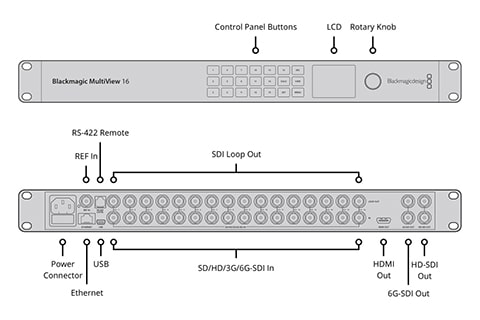

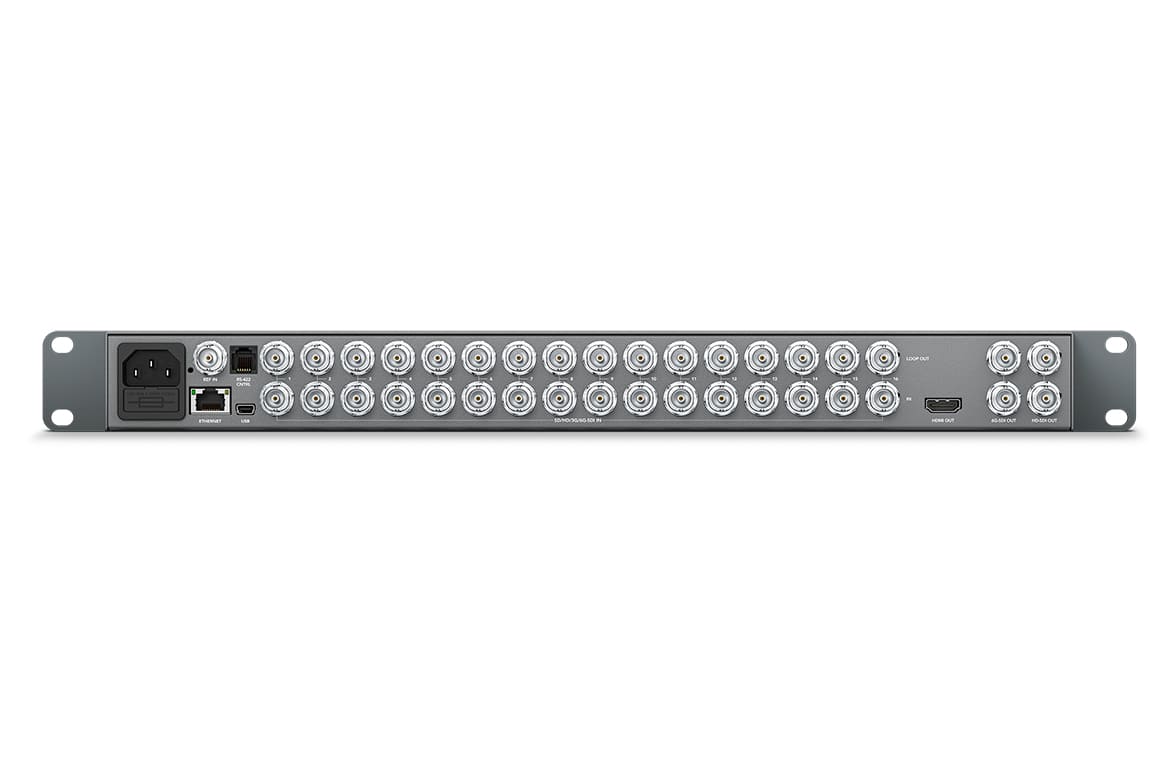

| Connections | |
| SDI Video Input | 16 x 10-bit SD-SDI, HD-SDI and 6G-SDI |
| SDI Video Loop Output | 16 x 10-bit SD-SDI, HD-SDI and 6G-SDI |
| Multi View Outputs | 4 x SDI plus 1 x HDMI (2 x HD, 2 x 6G-SDI, 1 x HDMI), able to be used concurrently |
| SDI Video Multi View Outputs | 2 x 10-bit HD-SDI, 2 x 10 bit 6G-SDI |
| HDMI Video Multi View Outputs | 1 x HDMI type A connector. Output supports EDID of the monitor |
| Reference Input | Black burst and Tri-level Sync for SD, HD and 4K |
| Muti Rate Support | Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video. |
| Updates | USB 2.0 high speed (480Mb/s) interface or via Ethernet |
| Control | 16 buttons for local control of MultiView 16. 5 buttons and scroll wheel for control of LCD display or RJ45 Ethernet. |
| Configuration | Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting |
| RS-422 Control | 1 x input for configuring layouts |
| Reclocking | On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video. |
| Standards | |
| SD Format Support | 625/25 PAL, 525/29.97 NTSC |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| 2K Format Support | 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25 |
| 4K Format Support | 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Rates | SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48kHz and 24-bit |
| SDI Color Precision | 10-bit 4:2:2 and 4:4:4. |
| SDI Color Space | YUV or RGB for inputs, YUV for outputs |
| SDI Auto Switching | Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M |
| Displays | |
| Display | Built-in 1.5” LCD for menu settings |
| Softwares | |
| Software Control | Multi view software included free for Windows™ and Mac OS X™ |
| Internal Software Upgrade | Via included updater application |
| Physical Specifications | |
| Width | 18.97 in |
| Depth | 6.03 in |
| Height | 1.74 in |
| Weight | 4.62 lb |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.11 El Capitan,
Mac 10.12 Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
IEC power cable required.,90 - 240V AC input. - Power Fail Protection
MultiView 16 settings preserved and restored instantly at power on. - Power Consumption
45 Watts
