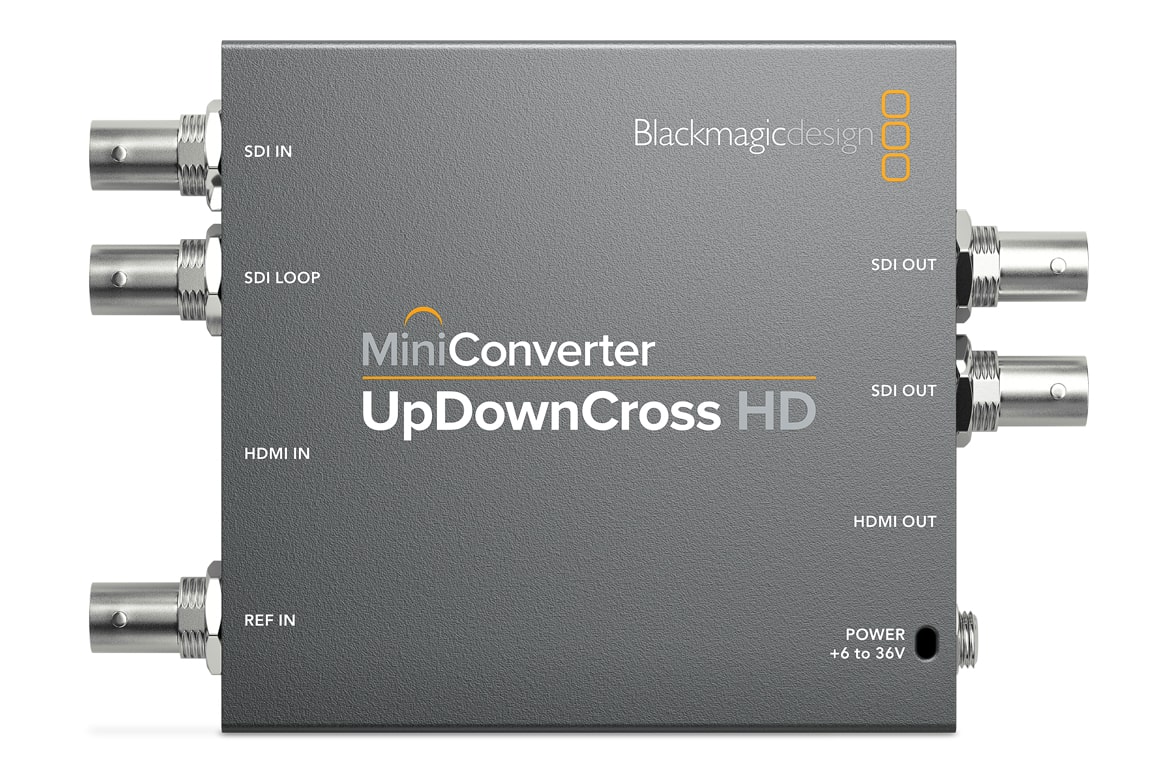

Mini Converter UpDownCross HD

Mini Converter UpDownCross HD

Blackmagic Design
Product Highlights
  • 3G/HD/SD-SDI Up/Down/Cross Conversion
  • 1 x 3G/HD/SD-SDI Input
  • 2 x 3G/HD/SD-SDI Outputs & 1 x Loopout
  • 1 x HDMI Input & 1 x HDMI Output
  • Support Signals up to 1080p60
  • Automatic Input Signal Detection
  • Automatic, Multirate Support
  • Reference Input & Reclocking

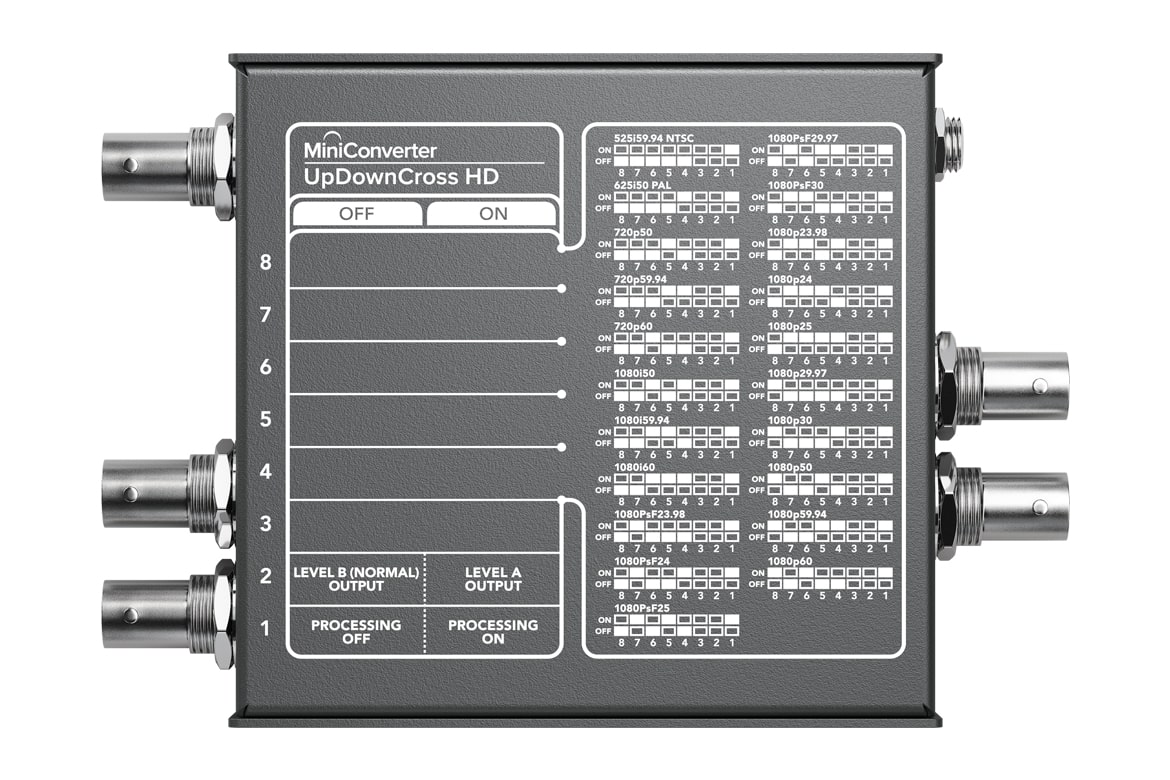

  • Control via DIP Switches or Software
  • 12V Universal Power Supply Included

  • Overview
  • Tech Specs

Up, down and cross converter, includes full NTSC/PAL standards converter.

Mini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format! You get both SDI and HDMI inputs and outputs, along with reference input for built in re‑sync, high quality Teranex conversion algorithms, automatic audio delay for perfect AV sync, international power supply and more!

Price: AED 622*

*Prices are excluding VAT

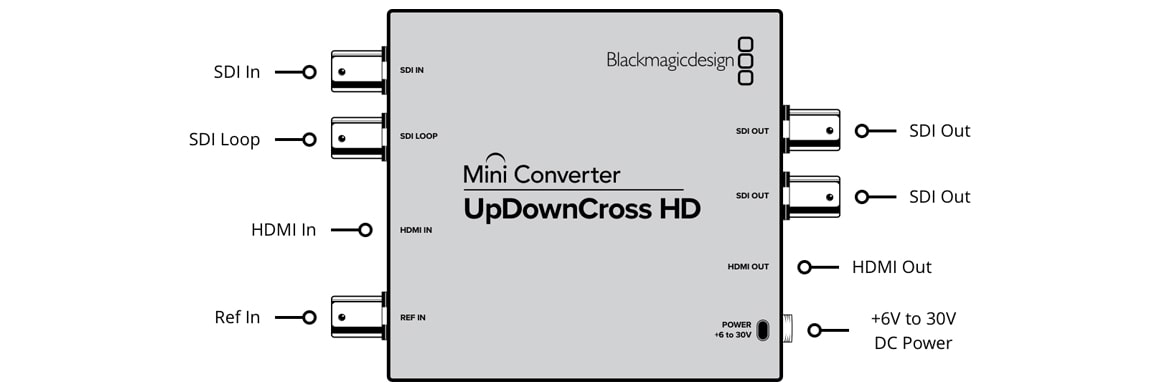

Connections
SDI Video Inputs 1 x SD, HD or 3G-SDI Video Input and 1 x External Reference Input.
HDMI Video Input 1 x HDMI type A connector.
SDI Video Outputs 1 x loop out and 2 x outputs
HDMI Video Output HDMI type A out. Output supports EDID of the monitor.
SDI Rates 270Mb, 1.5G, 3G.
Reference Input Black burst and Tri-Sync for SD & HD.
Multi Rate Support Auto detection of HD or standard definition SDI inputs.
Updates and Configuration USB
Updates and Configuration Yes
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
HDMI Input Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support Timecode and closed captioning.
SDI Video Rates SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling 4:2:2
SDI Color Space Television standard sample rate of 48 kHz and 24 bit.
SDI Color Space 4:2:2
SDI Color Space YUV
SDI Auto Switching Automatically detects SD, HD or 3G‑SDI.
Format Conversion
Video Conversion Scale DVI resolutions 640x480, 800x600, 1024x768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Computer Scaling Scale DVI resolutions 640x480, 800x600, 1024x768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Software
Internal Software Upgrade Via included updater application.
Physical Specifications
Width 5.32 in
Depth 3.63 in
Height 0.90 in
Weight 8.7 oz
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing


Price: AED 622*

*Prices are excluding VAT

Operating Systems
  • Mac 10.12 Sierra,
    Mac 10.13 High Sierra or later.
  • Windows 8.1 or Windows 10.

Power Requirements
  • Power Supply
    +12V universal power supply included with international socket adapters for all countries.
  • Power Consumption
    5W
  • Operational Voltage Range
    6 to 36 Vdc.
