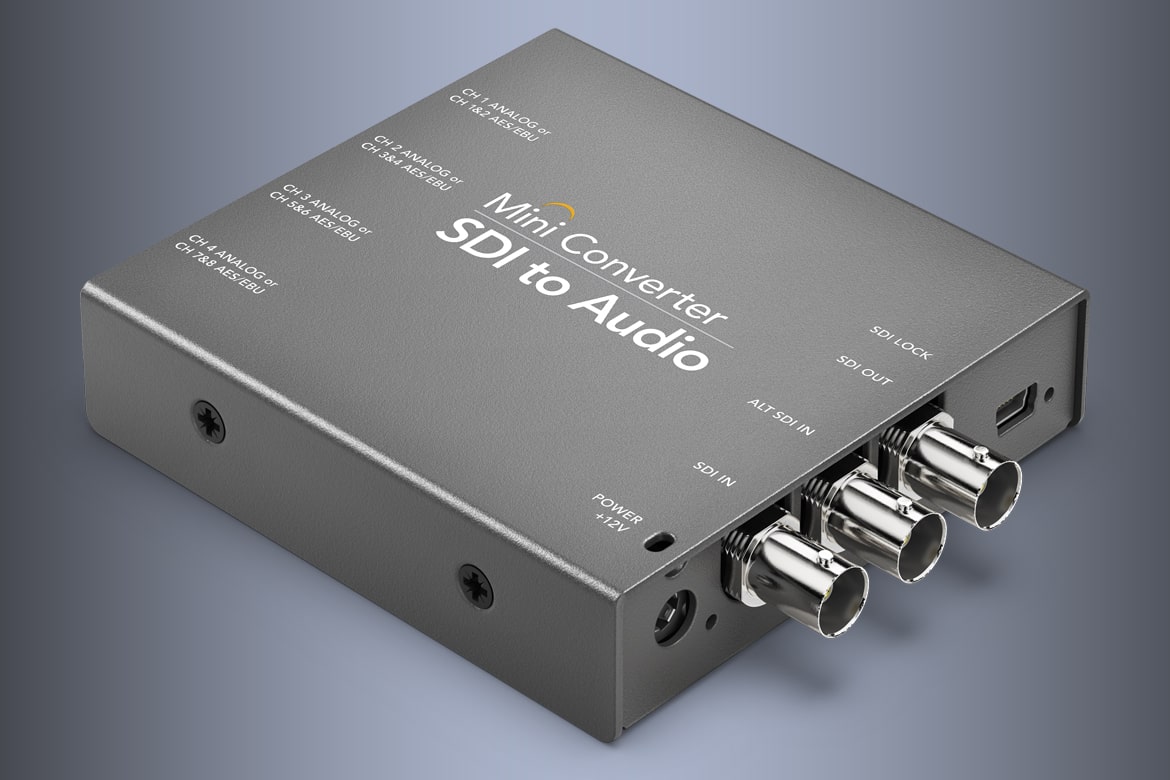

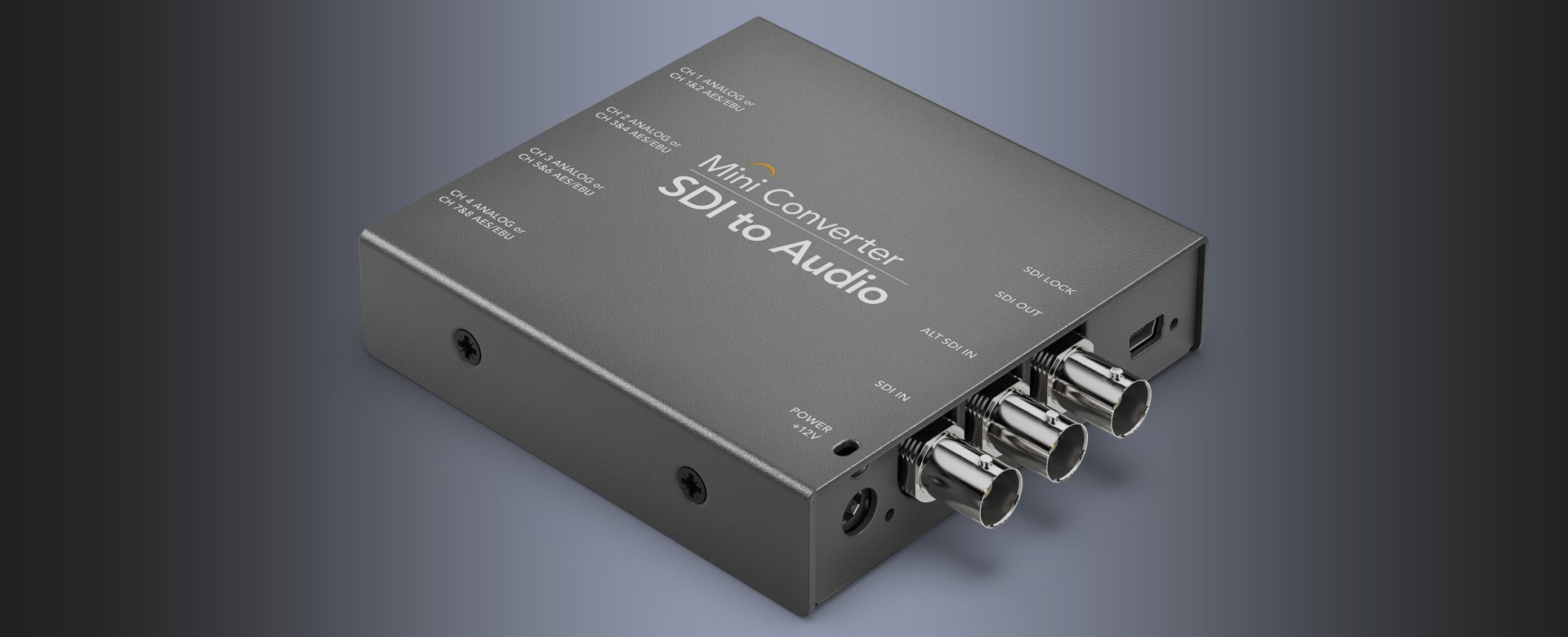

Mini Converter SDI to Audio
SDI/HD-SDI/3G-SDI audio de-embedder to 8 ch AES/EBU or 4 ch analog audio!
Product Highlights
- Auto SD/HD Switching
- 3GB/s Technology
- With Power Supply
- Overview
- Tech Specs
The perfect way to de-embed audio from any SDI source in SD and HD formats up to 1080p60! Audio is output on ¼" connectors for balanced analog and AES/EBU audio output to equipment such as mixers, analog decks, audio monitors and more. Mini Converter SDI to Audio is the ideal SD/HD SDI audio de‑embedder for when you don’t need the cost of the Ultra HD model!

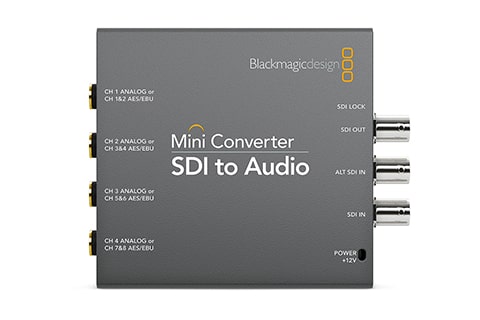

| Connections | |
| SDI Video Input | 1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. |
| SDI Video Output | 1 x SDI Loop Output. |
| Analog Audio Outputs | 4 channels of professional balanced analog audio. |
| Digital Audio Outputs | 8 channels of professional balanced AES/EBU audio. |
| SDI Redundant Input | Automatically switches over if main SDI input is lost. |
| Multi Rate Support | Auto detection of SD, HD or 3G‑SDI. |
| Updates and Configuration | Via USB 2.0 high speed. (480 Mb/s) |
| Reclocking | Yes |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, ITU‑R BT.656, ITU‑R BT.601 |
| SDI Video Rates | SDI video connections are switchable between standard definition and high definition. |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision | 4:2:2, 4:4:4 |
| SDI Color Space | YUV, RGB |
| SDI Auto Switching | Automatically selects between SD, HD, and 3G-SDI. |
| Software | |
| Software Control | Mac™ and Windows™ software upgrade via USB. |
| Internal Software Upgrade | Via included updater application. |
| Settings Control | |

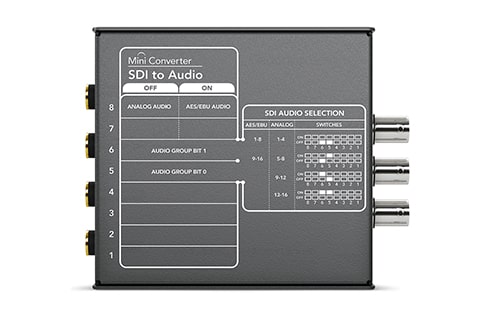

| Settings Control | Mini Switches or USB software. |
| Physical Specifications | |
| Width | 4.52 in |
| Height | 0.90 in |
| Depth | 3.63 in |
| Preview Transition | 7.58 oz |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point. - Power Consumption
5.52 Watts - Operational Voltage Range
12 ‑ 15V DC
