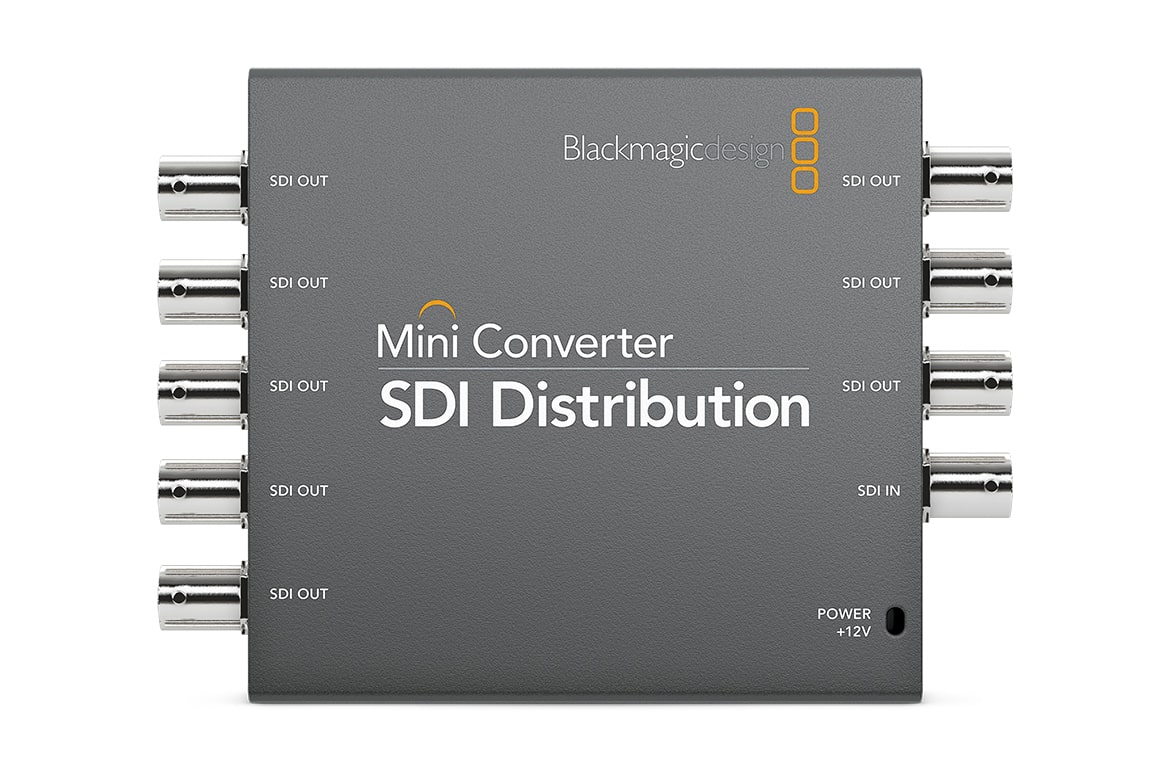

Mini Converter SDI Distribution
Distribute to 8 x 3G-SDI outputs in all SD and HD formats up to 1080p60!
Product Highlights
- (1) SDI Input, (8) SDI Outputs
- 3G/HD/SD-SDI Auto-Switching Input
- Re-Clocked Outputs
- Ancillary Data & Embedded Audio
- 1080p & 2K Distribution
- Supports ASI Signals
- Overview
- Tech Specs
Now you can distribute a single SD or HD-SDI connection to up to 8 different SDI outputs at the same time! You get a true 3G-SDI design with fully re-clocked outputs and automatic switching between all SD and HD formats up to 1080p60. You also get support for all ASI, ancillary and embedded audio formats. Mini Converter SDI Distribution is the perfect SD/HD SDI distribution converter for when you don’t need the cost of the Ultra HD model!

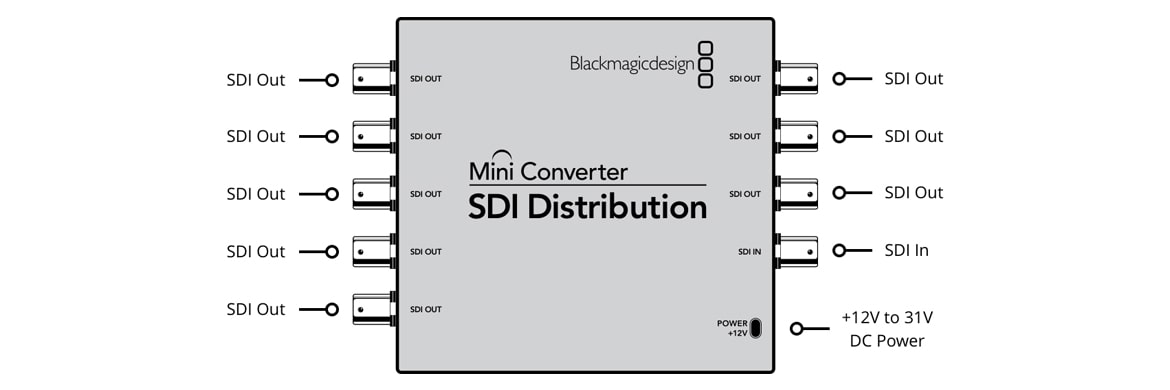

Connections | |
SDI Video Input | Switchable between SD, HD and 3G-SDI |
SDI Video Output | 8 outputs automatically match the SDI video input. |
Multi Rate Support | Auto detection of SD, HD, 2K, or 3G-SDI. |
Reclocking | Yes |
Standards | |
SD Format Support | 525/23.98 NTSC, 525/29.97 NTSC. 625/25 PAL. |
HD Format Support | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60. |
2K Format Support | 2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25. |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B and SMPTE 425M |
SDI Video Rates | SDI video connections are switchable between SD, HD, and DCI 2K. |
SDI Video Sampling | 4:2:2 and 4:4:4 |
SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
SDI Color Precision | 4:2:2 and 4:4:4 |
SDI Color Space | YUV and RGB |
SDI Auto Switching | Automatically detects SD, HD or 3G-SDI. |
ASI Support | Yes |
Physical Specifications | |
Width | 4.80 in |
Height | 0.90 in |
Depth | 3.63 in |
Preview Transition | 8.47 oz |
Environmental Specifications | |
Operating Temperature | 0° to 40° C (32° to 104° F) |
Storage Temperature | -20° to 45° C (-4° to 113° F) |
Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point. - Power Consumption
4.80 Watts - Operational Voltage Range
12 ‑ 31V DC
