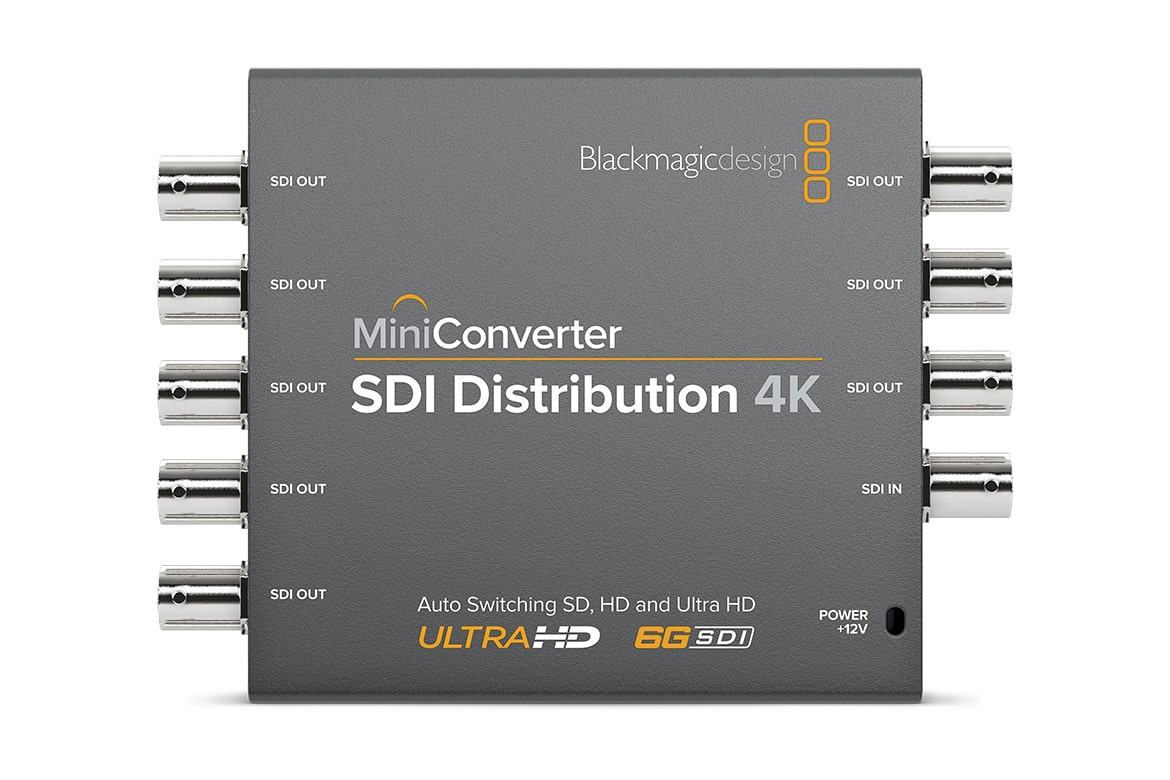

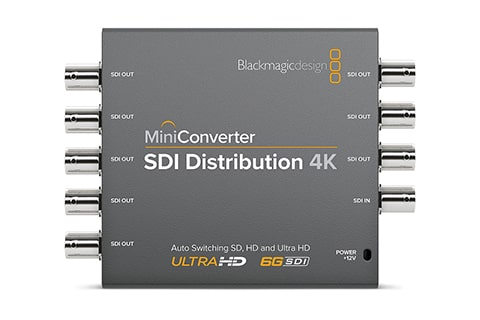

Mini Converter SDI Distribution 4K
Distribute to 8 x SDI outputs in all formats including SDI, HD-SDI, 3G-SDI and 6G-SDI!
Product Highlights
- Single Link SD/HD/3G/6G-SDI Input
- 8x Single Link SD/HD/3G/6G-SDI Outputs
- Re-Clocked Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- Ancillary Data & Embedded Audio
- Supports ASI Signals
- Control via DIP Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
- Overview
- Tech Specs
When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re-clocked SDI outputs with automatic switching between all SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats, plus all ASI, ancillary and embedded audio formats.

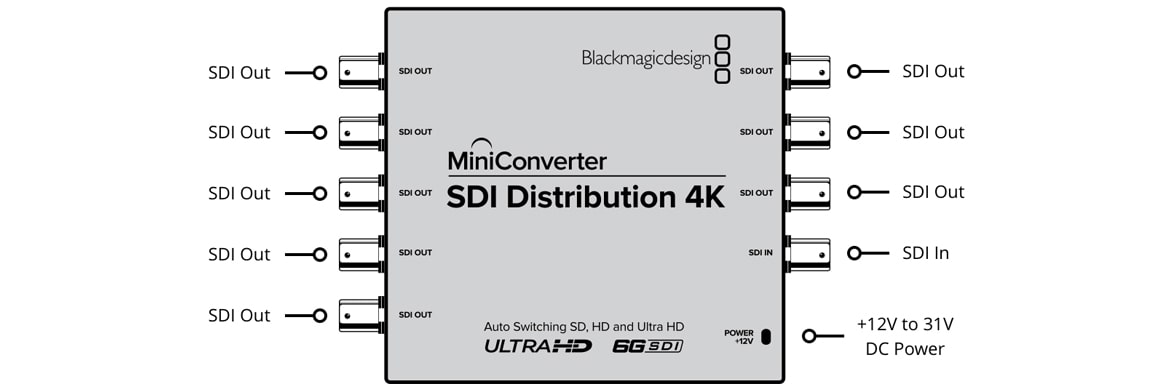

| Connections | |
| SDI Video Input | Switchable between SD, HD and 6G-SDI. |
| SDI Video Output | 8 outputs automatically match the SDI video input. |
| Multi Rate Support | Auto detection of SD, HD or 6G-SDI. |
| Reclocking | Yes |
| Standards | |
| SD Format Support | 525/23.98 NTSC, 525/29.97 NTSC. 625/25 PAL. |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60 |
| 2K Format Support | 2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25 |
| 4K Format Support | 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p24 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081 |
| SDI Video Rates | SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K. |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit.. |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically detects SD, HD or 6G�-SDI. |
| ASI Support | Yes |
| Physical Specifications | |
| Width | 4.80 in |
| Height | 0.90 in |
| Depth | 3.63 in |
| Preview Transition | 11.88 oz |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point. - Power Consumption
4.80 Watts - Operational Voltage Range
12 ‑ 31V DC
