Mini Converter Audio to SDI
Blackmagic Design

Mini Converter Audio to SDI 2

SDI/HD-SDI/3G-SDI audio embedder from 8 ch AES/EBU or 4 ch analog audio!
Product Highlights
  • Embed Audio into up to 1080p SDI Signals
  • Four 1/4" Audio Input Jacks
  • Supports 4 Channels of Analog Audio
  • Supports 8 Channels of AES/EBU Audio
  • Redundant SDI Backup Input

  • Overview
  • Tech Specs

Embed audio into any SDI source in SD and HD formats up to 1080p60! Audio is input as balanced analog or AES/EBU using ¼ inch connectors from equipment such as mixers and analog decks. Mini Converter Audio to SDI is the ideal SD/HD SDI audio embedder for when you don’t need the cost of the Ultra HD model!

Price: AED 791*
*Prices are excluding VAT

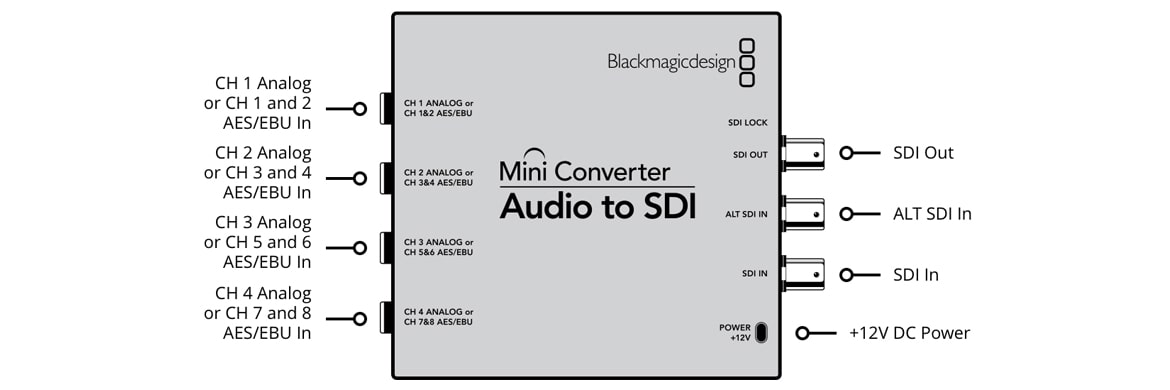

Connections
SDI Video Input Switchable between SD, HD, and 3G-SDI.
SDI Video Output Automatically matches the SD, HD, and 3G-SDI video input.
Analog Audio 4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio 8 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input Automatically switches over if main SDI input is lost.
Multi Rate Support
Auto detection of SD, HD, 2K or 3G-SDI.
Updates and Configuration
Via USB 2.0 high speed. (480 Mb/s)
Reclocking Yes
Standards
SDI Compliance SMPTE 292M, SMPTE 259M,
SMPTE 296M, SMPTE 372M,
SMPTE 424M‐B, SMPTE 425M,
ITU‐R BT.656, ITU-R BT.601
SDI Video Rates SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling 4:2:2, 4:4:4
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision 4:2:2, 4:4:4
SDI Color Space YUV, RGB
SDI Auto Switching Automatically selects between SD, HD, and 3G-SDI.
SDI Format Support 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.
Software
Software Control Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade Via included updater application.
Physical Specifications
Width 4.52 in
Height 0.90 in
Depth 3.63 in
Weight 7.58 oz
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing


Price: AED 791*
*Prices are excluding VAT

Operating Systems
  • Mac 10.12 Sierra,
    Mac 10.13 High Sierra or later.
  • Windows 8.1 or Windows 10.

Power Requirements
  • Power Supply
    +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption
    8.40 Watts
  • Operational Voltage Range
    12V DC
