Mini Converter Audio to SDI 4K
Blackmagic Design

Mini Converter Audio to SDI 4K

SD/HD/3G-SDI audio embedder from 8 ch AES/EBU or 4 ch analog audio!
Product Highlights
  • Embeds Audio into SDI Signal
  • Single Link 6G-SDI Input
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • Redundant SDI Input
  • 4x 1/4" Audio Jacks
  • 4 Analog or 8 AES/EBU Audio Channels
  • 24-Bit, 48 kHz Audio

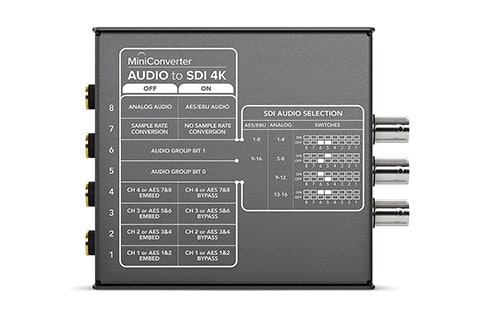

  • Control via DIP Switches or Software
  • 12V Universal Power Supply Included

  • Overview
  • Tech Specs

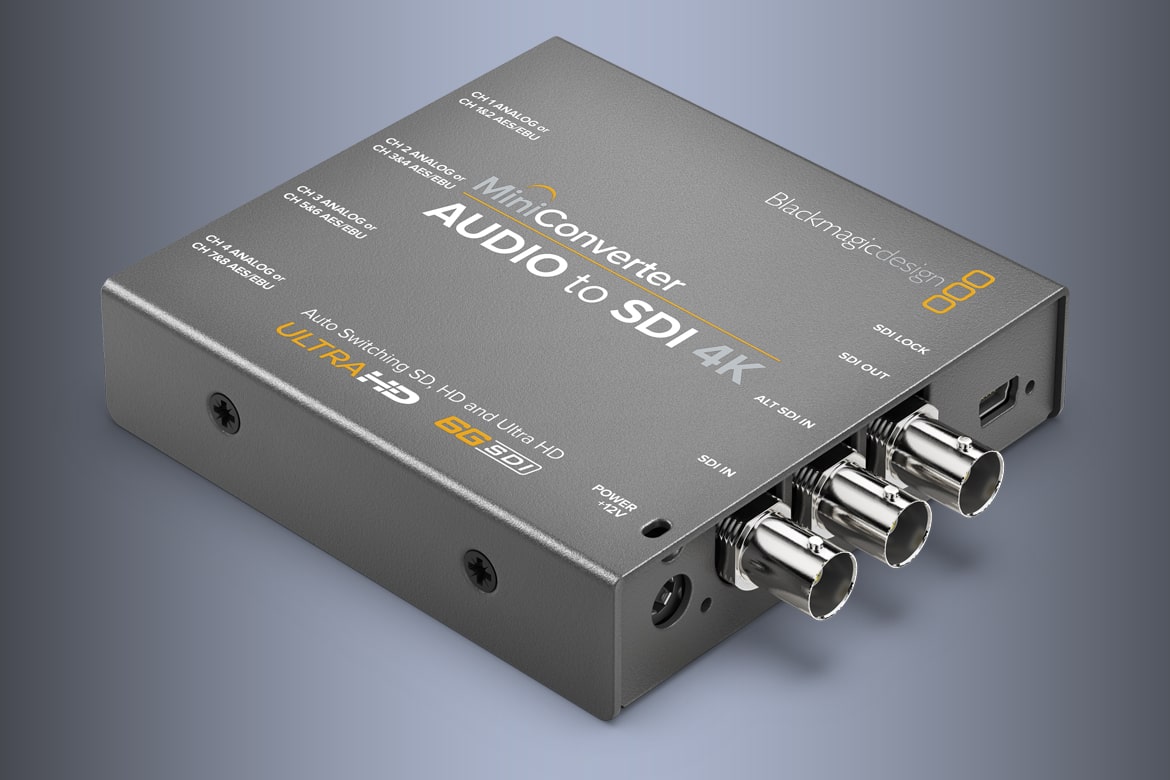

Mini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. Now you can embed professional audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters!

Price: AED 1,174*
*Prices are excluding VAT

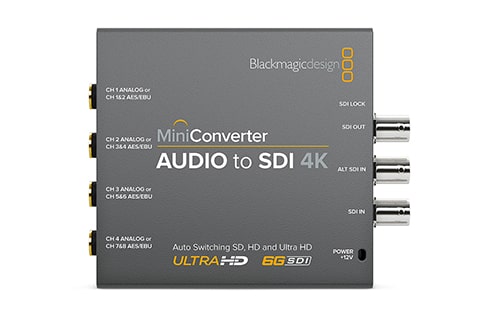

Connections
SDI Video Input Switchable between SD, HD, 3G and 6G-SDI.
SDI Video Output Automatically matches the SD, HD, 3G and 6G-SDI video input.
Analog Audio 4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio 8 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input Automatically switches over if main SDI input is lost.
Multi Rate Support Auto detection of 4K, UHD, 2K, HD or SD SDI inputs.
Updates and Configuration Via USB 2.0 high speed. (480 Mb/s)
Reclocking Yes
Standards
SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601, SMPTE ST-2036
SDI Video Rates SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling 4:2:2, 4:4:4
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision 4:2:2, 4:4:4
SDI Color Space YUV, RGB
SDI Auto Switching Automatically selects between SD, HD, 3G and 6G-SDI.
SDI Format Support 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096x2160p30.
Software
Software Control Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade Via included updater application.
Settings Control
Mini Switches or USB software.
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
Physical Specifications
Width 4.52 in
Depth 3.63 in
Height 0.90 in
Weight 7.61 oz


Price: AED 1,174*
*Prices are excluding VAT

Operating Systems
  • Mac 10.12 Sierra,
    Mac 10.13 High Sierra or later.
  • Windows 8.1 or Windows 10.

Power Requirements
  • Power Supply
    +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption
    8.40 Watts
  • Operational Voltage Range
    12 ‑ 31V DC
