Micro Converter HDMI to SDI 3G wPSU
Blackmagic Design

Micro Converter SDI to HDMI 3G wPSU

The world’s smallest USB powered broadcast converters!
Product Highlights
  • SD/HD/3G-SDI Input
  • HDMI and SDI Loop Outputs
  • Supports SD and HD Signals
  • Automatic Input Signal Detection
  • Software Control
  • Power & Firmware Updates via USB 2.0
  • International USB Power Supply Included

  • Overview
  • Tech Specs

This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.

Price: AED 239*
*Prices are excluding VAT

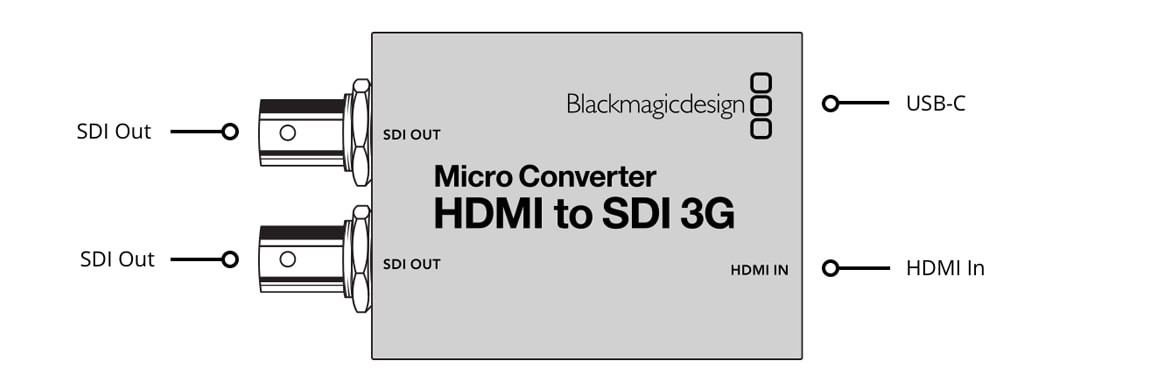

Connections
SDI Video Outputs 2 x SD, HD or 3G‑SDI.
Automatically matches the HDMI input.
HDMI Video Inputs HDMI Type A in.
Multi Rate Support Auto detection of SD or HD.
Updates, Configurations and Power USB Type‑C.
Standards
SDI Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI Video Rates SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility.
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Auto Switching Automatically detects SD, HD and 3G-SDI
HDMI Format Support 525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision 4:2:2.
HDMI Color Space YUV
Software
Software Control Mac and Windows software via USB.
Internal Software Upgrade Via USB.
Environmental Specifications
Operating Temperature 5° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non-condensing


Price: AED 239*
*Prices are excluding VAT

Operating Systems
  • Mac 10.14 Mojave,
    Mac 10.15 Catalina or later.
  • Windows 10.

Power Requirements
  • Power Supply
    +5V universal power supply included with international socket adapters for most countries.
  • Power Consumption
    1.6 Watts
  • Operational Voltage Range
    4.4V to 5.25V DC
