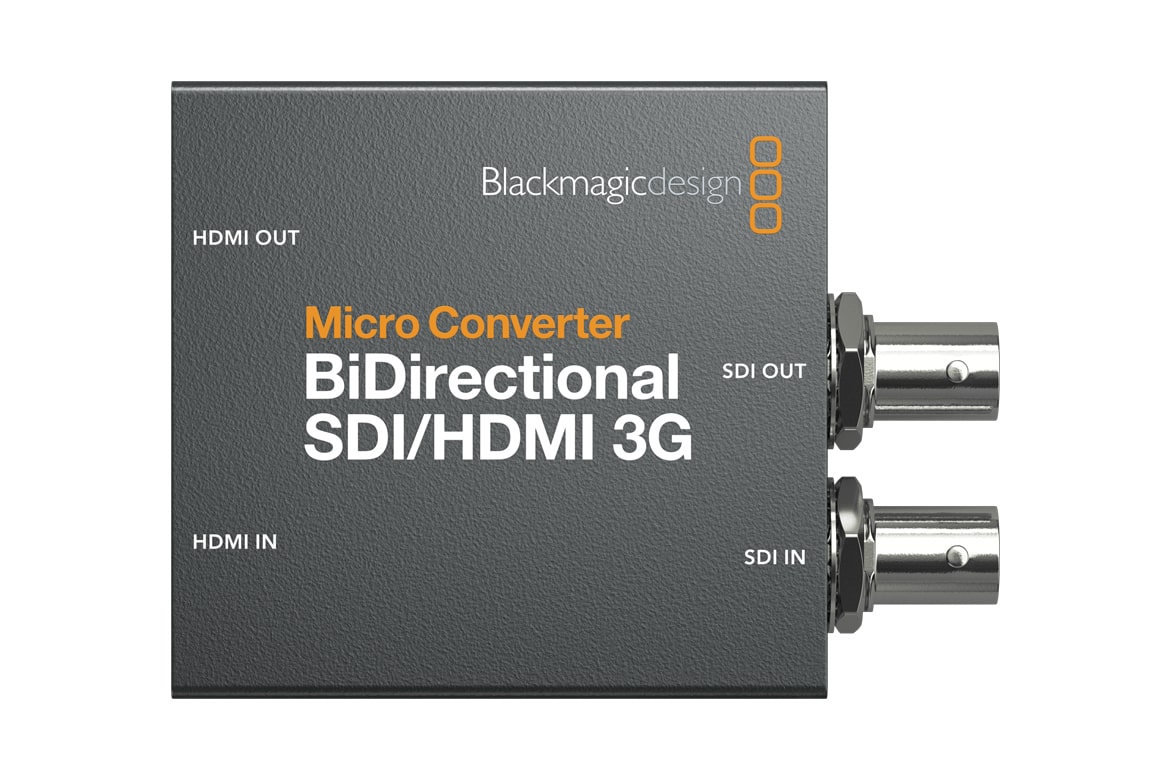

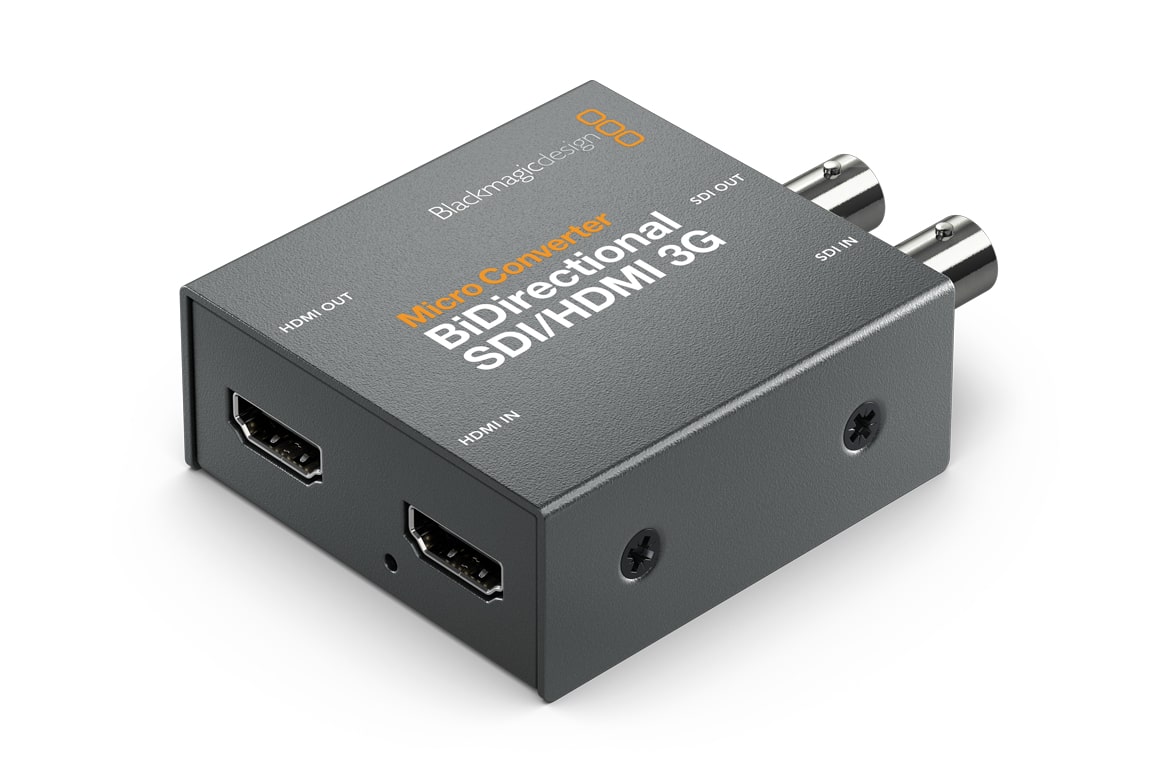

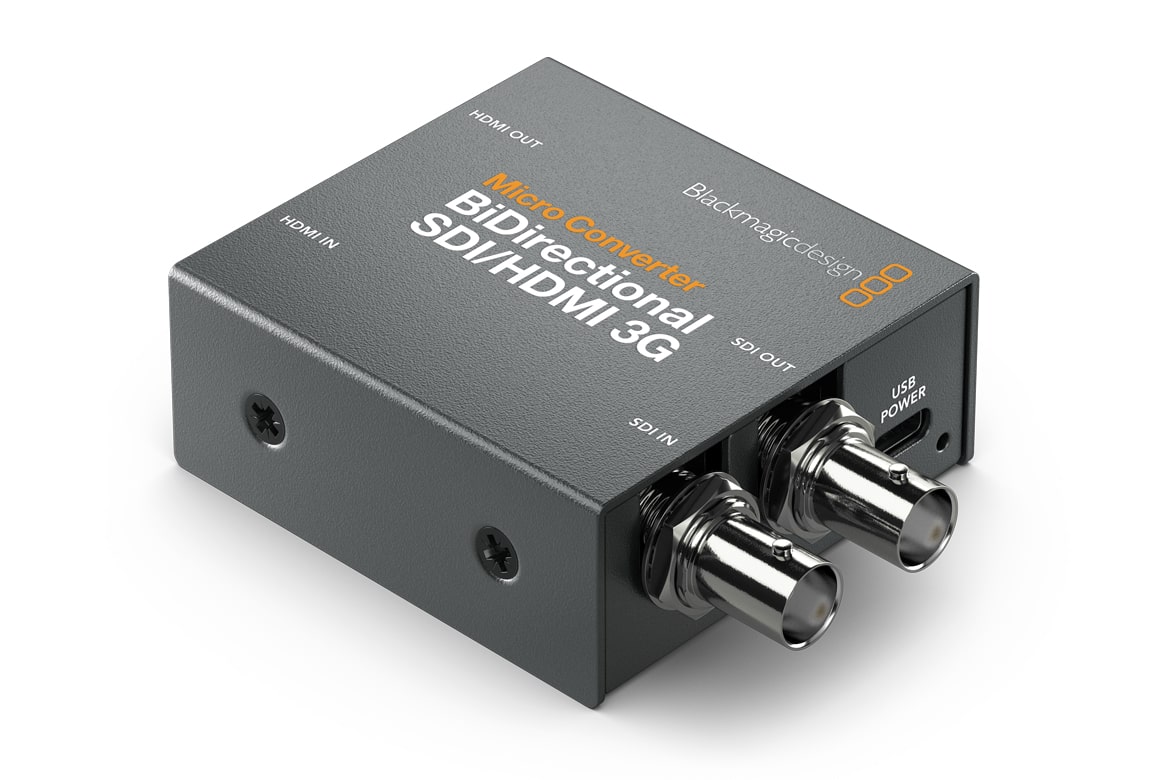

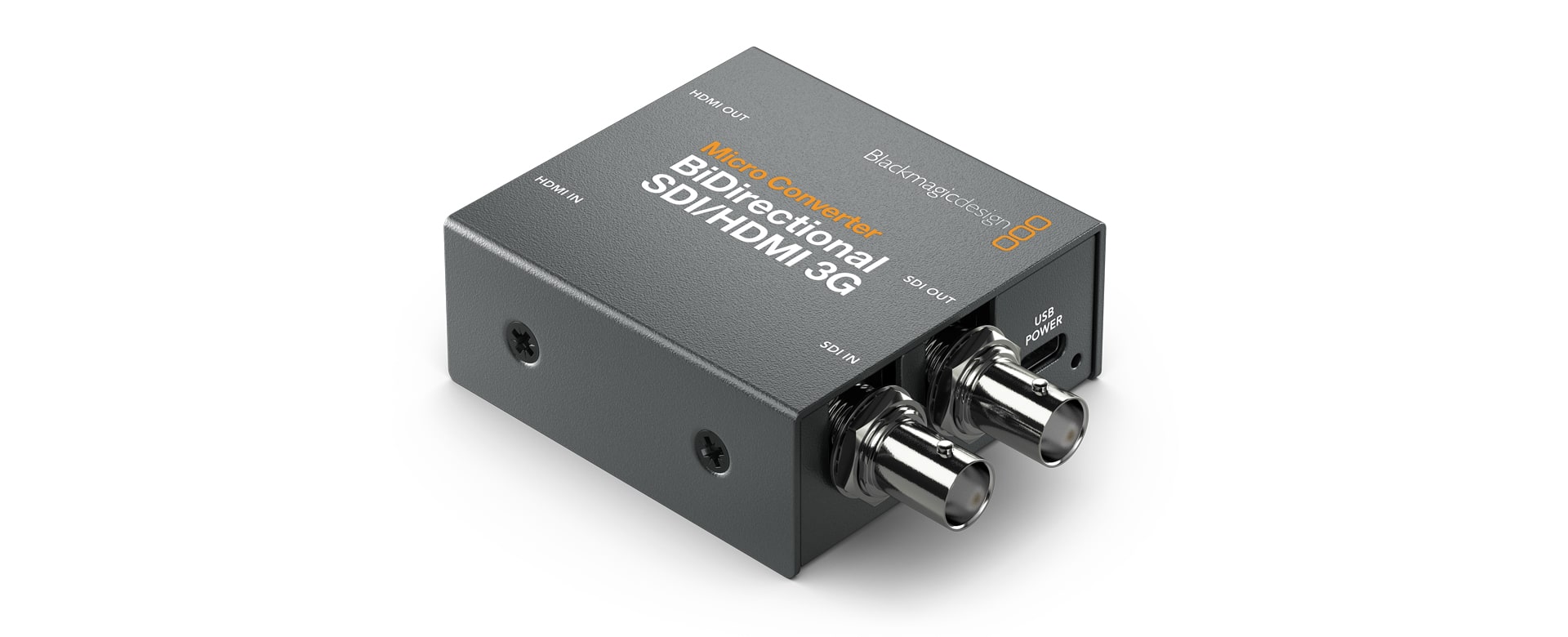

Micro Converter BiDirectional SDI/HDMI 3G wPSU
Blackmagic Design

Micro Converter SDI to HDMI 3G wPSU

The world’s smallest USB powered broadcast converters!
Product Highlights
  • SD/HD/3G-SDI Input
  • HDMI and SDI Loop Outputs
  • Supports SD and HD Signals
  • Automatic Input Signal Detection
  • Software Control
  • Power & Firmware Updates via USB 2.0
  • International USB Power Supply Included

  • Overview
  • Tech Specs

Get the world’s smallest bidirectional broadcast quality converter! Convert SDI to HDMI and at the same time HDMI to SDI, even in different formats! Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers! Includes 100 to 240V AC power supply with international socket adapters.

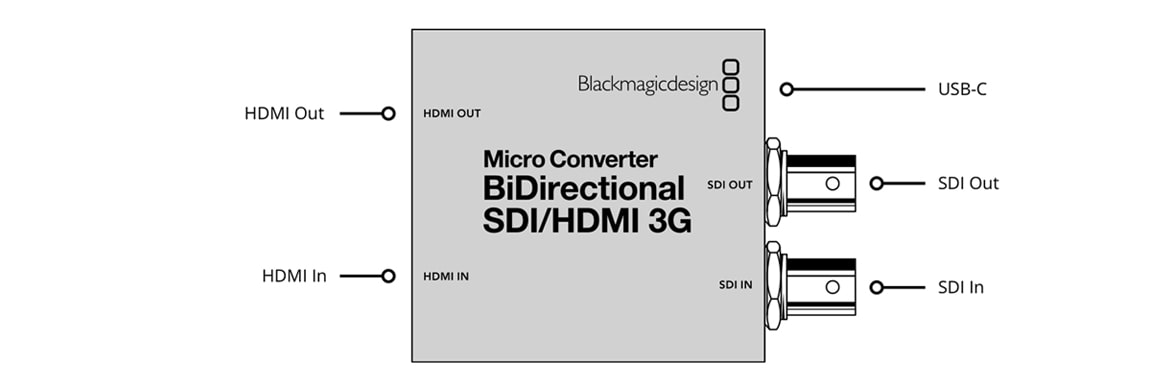

Connections
SDI Video Inputs 1 x SD, HD or 3G-SDI.
SDI Video Outputs Automatically matches the HDMI video input.
HDMI Video Inputs HDMI Type A in.
HDMI Outputs HDMI Type A out.
Multi Rate Support Auto detection of SD or HD.
Updates, Configurations and Power USB Type‑C.
Reclocking Yes
Standards
SDI Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI Video Rates SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Auto Switching Automatically detects SD, HD and 3G-SDI
HDMI Format Support 525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision 4:2:2
HDMI Color Space YUV
Software
Software Control Mac and Windows software via USB.
Internal Software Upgrade Via USB.
Camera Control
Camera Control Bidirectional signal conversion supports Blackmagic Camera Control and Tally.
Environmental Specifications
Operating Temperature 5° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non-condensing

Operating Systems
  • Mac 10.14 Mojave,
    Mac 10.15 Catalina or later.
  • Windows 10.

Power Requirements
  • Power Supply
    +5V universal power supply included with international socket adapters for most countries.
  • Power Consumption
    1.6 Watts
  • Operational Voltage Range
    4.4V to 5.25V DC
