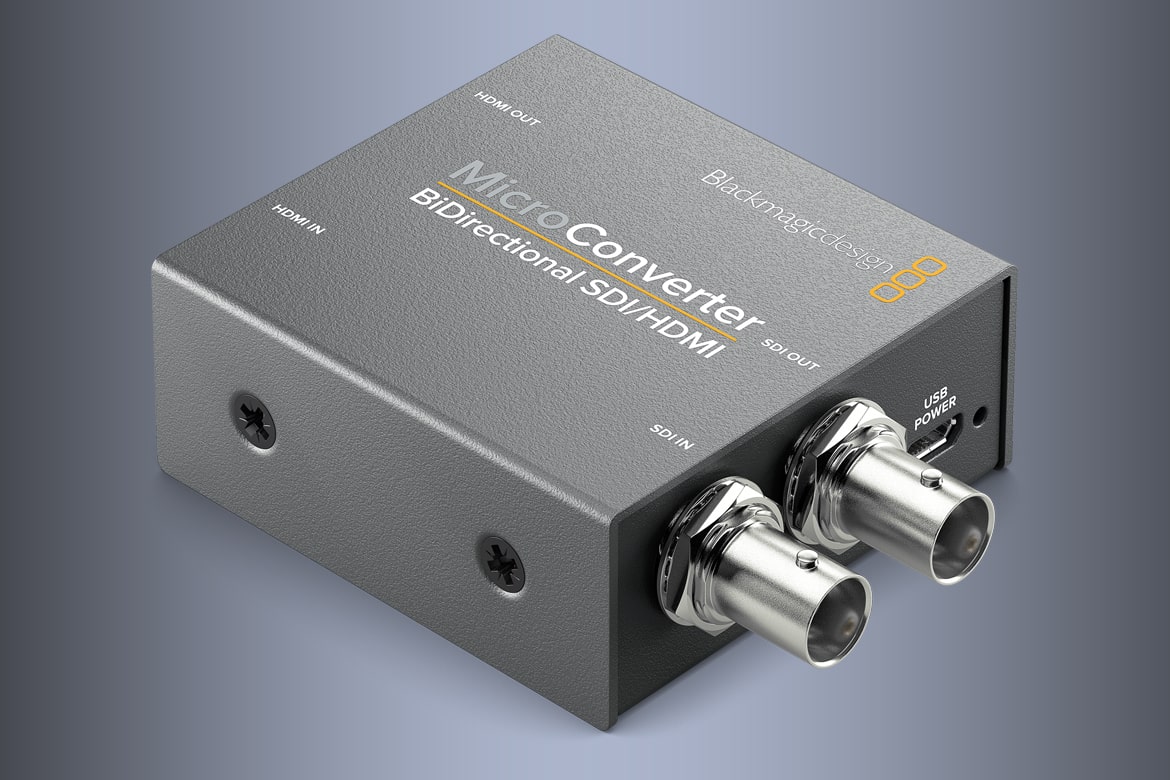

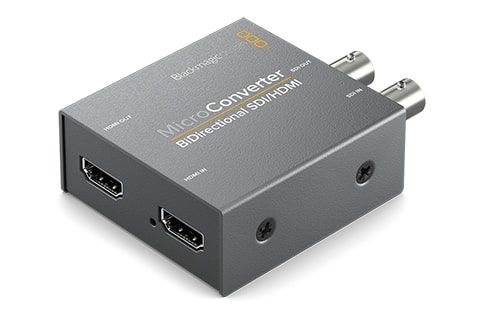

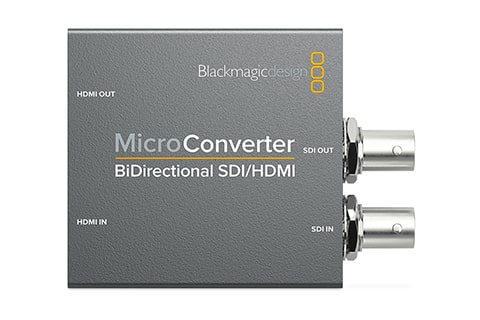

Micro Converter BiDirectional SDI/HDMI (20 Pack)
Blackmagic Design

Micro Converter BiDirectional SDI/HDMI (20 Pack)

Miniaturized USB powered broadcast quality SD and HD video converter that converts SDI from professional equipment into HDMI for use with consumer TVs, projectors and more!
Product Highlights
  • Converts SDI to HDMI & HDMI to SDI
  • Simultaneous Conversions
  • 1 x Input & 1 x Output SD/HD/3G-SDI
  • 1 x Input & 1 x Output HDMI
  • Converts up to 1080p60
  • Automatic Input Signal Detection
  • SDI Reclocking
  • Micro-USB Power

  • Overview
  • Tech Specs

Now you can simultaneously convert SDI to HDMI and HDMI to SDI in any combination of SD and HD formats up to 1080p60 at the same time! Each conversion direction can be a different SD or HD video standard, so it’s like getting two converters in one! The multi‑rate 3G‑SDI input and output connections are compatible with virtually all professional broadcast equipment, including Level A and B devices. It even automatically detects all SD and HD formats.

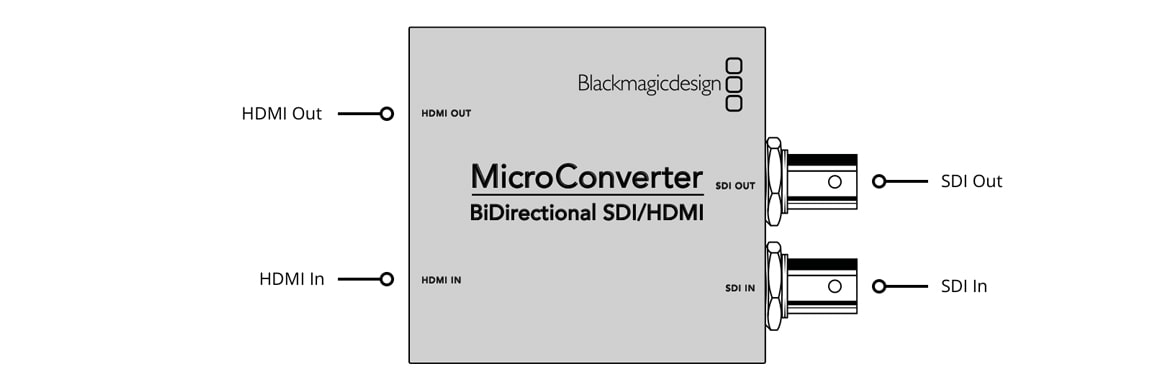

Connections
SDI Video Inputs 1 x SD, HD or 3G-SDI.
SDI Video Outputs 1 x SD, HD or 3G-SDI.
HDMI Video Inputs HDMI Type A in.
HDMI Video Output HDMI Type A in.
Multi Rate Support Auto detection of SD or HD.
Updates, Configurations and Power Micro USB.
Reclocking Yes
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
SDI Video Rates SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility.
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Auto Switching Automatically detects SD, HD and 3G-SDI
HDMI Video Standards 525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision 4:2:2
HDMI Color Space YUV
Copy Protection
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Software
Software Control Mac and Windows™ software via micro USB.
Internal Software Upgrade Via micro USB.
Power Requirements
Power Consumption 2.5Watts
Operational Voltage Range 4.4 to 5.25V DC
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
Physical Specifications
Width 3.18 in
Depth 2.32 in
Height 0.98 in
Weight 6.13 oz

Operating Systems
  • Mac 10.12 Sierra,
    Mac 10.13 High Sierra or later.
  • Windows 8.1 or Windows 10.

Power Requirements
  • Power Consumption
    2.5W
  • Operational Voltage Range
    4.4 to 5.25V DC
