HyperDeck Studio Pro 2
Professional broadcast deck with 6G-SDI, component, composite, XLR and HiFi audio, HDMI and more!
Product Highlights
- 1RU File-Based Video Recorder
- Records Uncompressed 10-bit 4:2:2
- Records Compressed in ProRes / DNxHD
- Records on Two 2.5" SSDs
- 1 x 6G-SDI & 3 x 3G-SDI Inputs / Outputs
- HDMI 4K In & Out, Analog Component

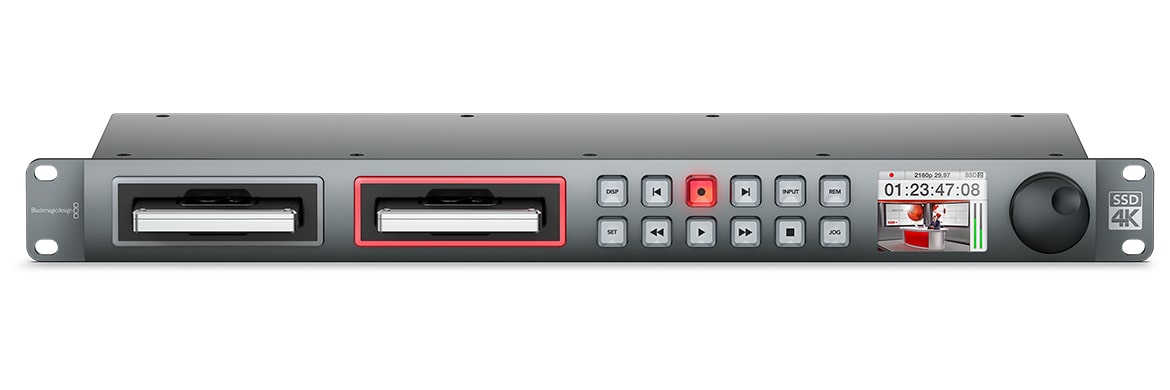

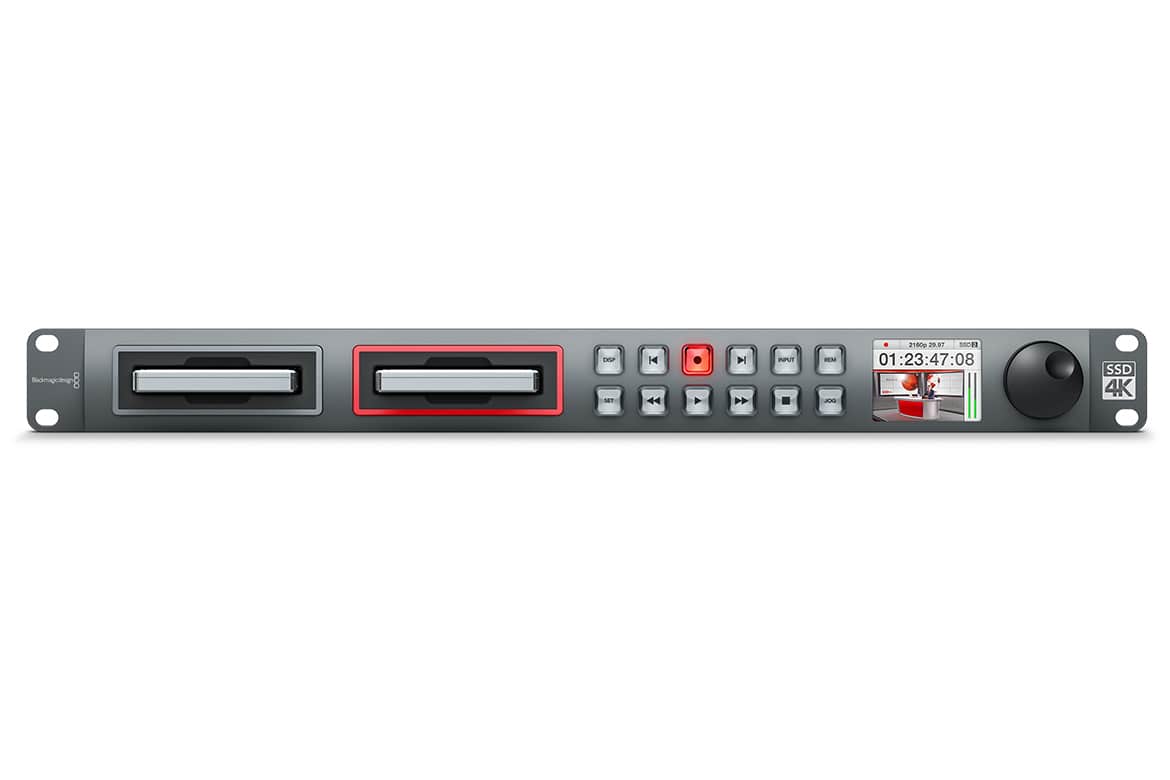

- Front Panel Button, Jog Wheel & RS-422
- Multi-Display Integrated LCD
- Thunderbolt
- Overview
- Tech Specs
HyperDeck Studio Pro is the ultimate in compatibility and technology, featuring a more advanced design that includes 6G-SDI so you get SD, HD and Ultra HD formats, plus HyperDeck Studio Pro includes a wide range of video and audio connections in both analog and digital so you get the widest compatibility with older and newer equipment. Get SD, HD up to 1080p60 and Ultra HD up to 2160p30 all in the one deck! Also includes 6G-SDI and Quad SDI, HDMI 4K, analog component, balanced analog audio and AES/EBU audio compatibility. You even get built in Thunderbolt for computer capture and UltraScope software for live scopes!

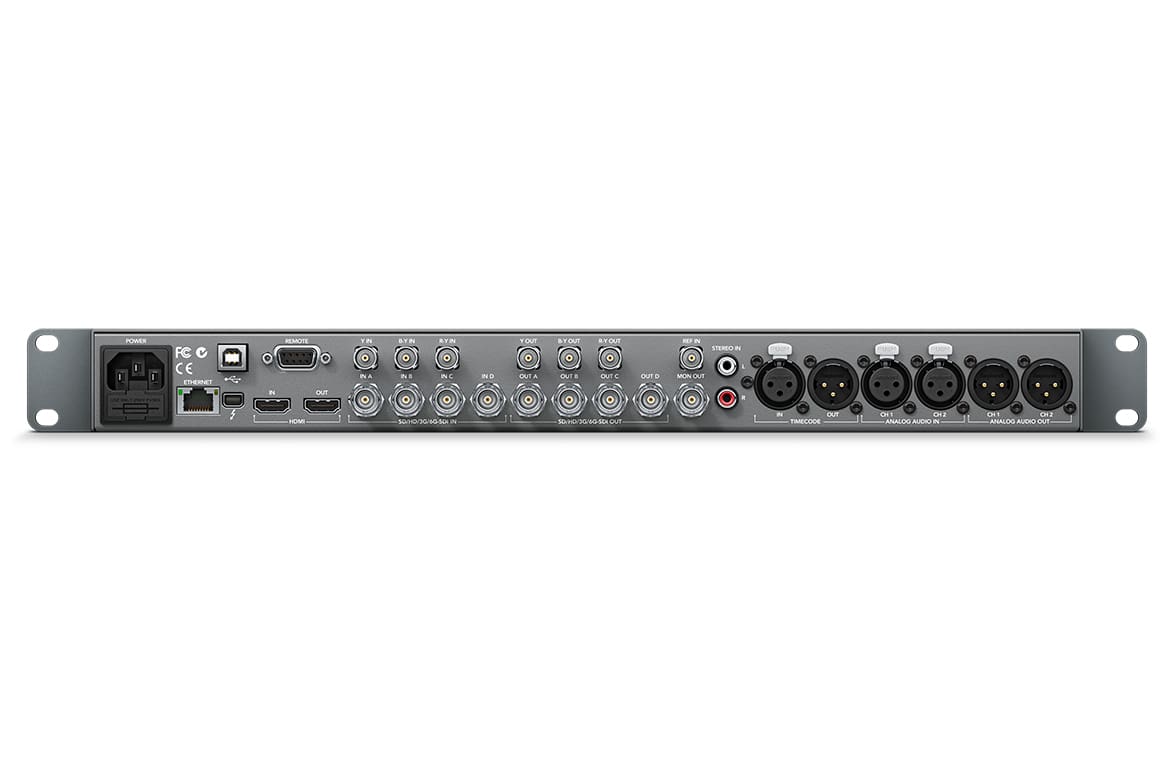

Connections | |
SDI Video Input | 3 x 10-bit SD/HD/3G switchable. 1 x 6G-SDI switchable. |
SDI Video Output | 4 x 10-bit SD/HD/3G/6G-SDI switchable. 1 x 10-bit SD/HD/3G-SDI switchable Monitor Output. |
Analog Video Input | 1 x Component YUV on 3 BNCs, supports HD and SD. |
Analog Video Output | 1 x Component YUV on 3 BNCs, supports HD and SD. |
HDMI Videos Input | 1 x HDMI type A connector including Ultra HD 4K support. |
HDMI Video Output | 1 x HDMI type A connector including Ultra HD 4K support. |
Analog Audio Input | 2 x XLR connectors for professional balanced analog audio. 2 x RCA connectors for unbalanced analog audio from consumer equipment. |
Analog Audio Output | 2 x XLR connectors for professional balanced analog audio. |
SDI Audio Input | 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files. |
SDI Audio Output | 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files. |
HDMI Audio Input | 8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files. |
HDMI Audio Output | 2 channels. |
Timecode Input | 1 x XLR connector for timecode input. |
Timecode Output | 1 x XLR connector for timecode output. |
SSD Interface | 2 x 2.5" SATA 3 Gb/s. |
Sync Input | Black burst or Tri-Sync. |
Device Control | Sony™ compatible RS422 deck control port. |
Recorder Control | 12 buttons and jog wheel for local control of HyperDeck Studio Pro or use either RJ45 Ethernet or USB 2.0 high speed interface. |
Recorder Configuration | Front panel configurable or USB 2.0 high speed interface. |
Computer Interface | 1 x Thunderbolt™ port for capture of video and audio. 1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control. |
Standards | |
SD Format Support | 625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only. |
HD Format Support | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
4K Format Support | 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30 |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M |
SDI Metadata Support | Time Code: HD RP188. Closed Captioning: CEA-708. |
Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
Video Sampling | 4:2:2 |
Color Precision | 10-bit |
Color Space | REC 601, REC 709 |
Multiple Rate Support | SDI and HDMI switchable between SD, HD and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD, 3G-SDI and 6G-SDI. Analog SD/HD. |
Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
Display | |
Display | Built-in LCD for video, audio and timecode monitoring and menu settings. |
Operating Systems | |
Mac | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later. |
Windows | Windows 8.1 64-bit or Windows 10 64-bit. |
Power Requirements | |
Power Supply | 1 x built-in international AC power supply with IEC C14 inlet. 110-240V, 50-60Hz. |
Physical Specifications | |
Width | 19 inch |
Height | 1.75 inch |
Depth | 6.18 inch |
Weight | 4.40 lb |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Display
- Built in LCD for video, audio and timecode monitoring and menu settings.
