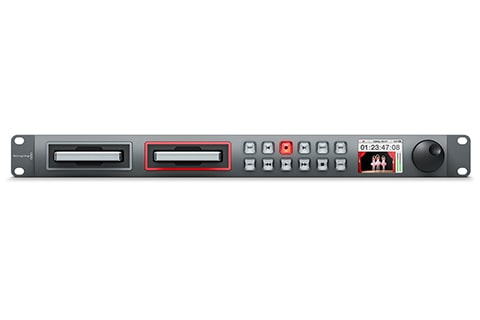

HyperDeck Studio 2
Rack mount dual slot SDI and HDMI for all SD and HD formats up to 1080p30!
Product Highlights
- 1RU File-Based Video Recorder
- Records Uncompressed 10-bit 4:2:2
- Records Compressed in ProRes / DNxHD
- Records on Two 2.5" SSDs
- 1 x 3G-SDI Input, 3 x Outputs
- 1 x HDMI Input, 1 HDMI Output
- Outputs are Always Active

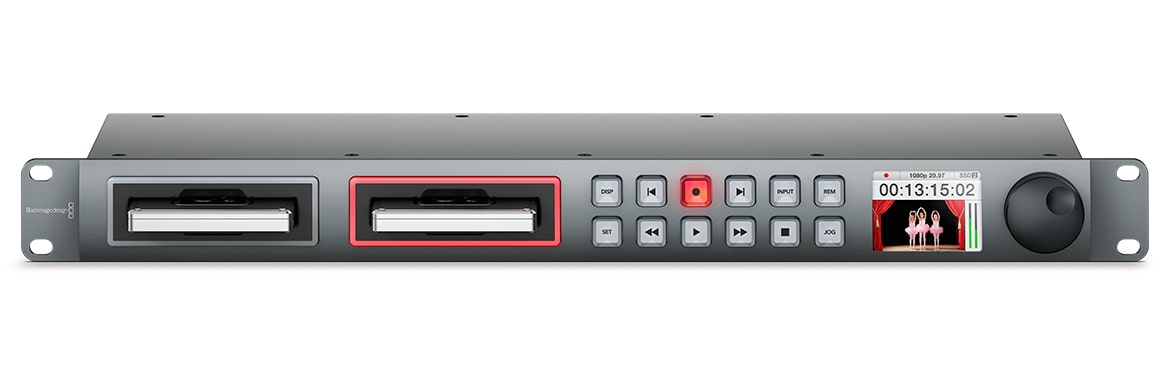

- Front Panel Button, Jog Wheel & RS-422
- Multi-Display Integrated LCD
- Overview
- Tech Specs
HyperDeck Studio is a broadcast HD based solid state deck that includes 3G-SDI and HDMI connections so you can work in all SD and HD formats up to 1080p30. You get familiar VTR style controls so it’s just like using a traditional broadcast deck, along with compressed or uncompressed 10-bit 4:2:2 broadcast quality recording. The low cost makes it easy to install multiple units when you need ISO recorders, or are doing long form logging or mastering for SD and HD.

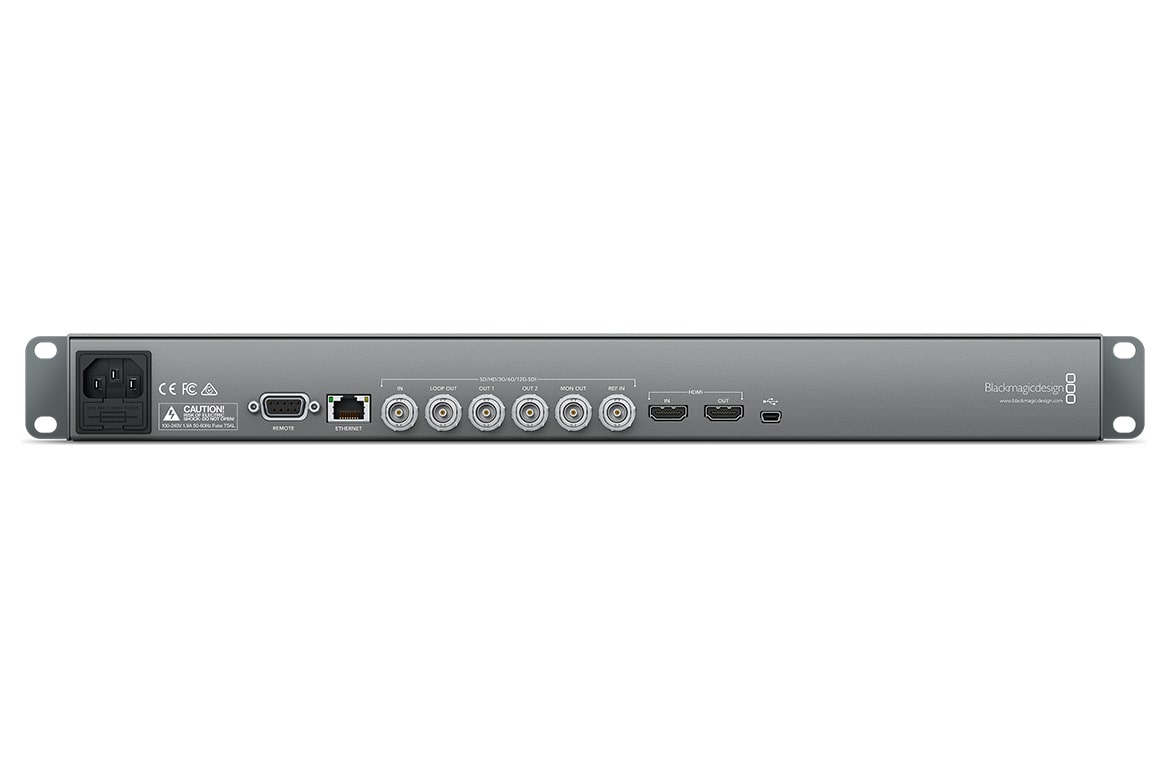

| Connections | |
| SDI Video Input | 1 x 10-bit SD/HD/3G-SDI switchable. |
| SDI Video Output | 2 x 10-bit SD/HD/3G-SDI switchable. 1 x 10-bit SD/HD/3G-SDI switchable Loop Output. 1 x 10-bit SD/HD/3G-SDI switchable Monitor Output. |
| HDMI Video Input | 1 x HDMI type A connector |
| HDMI Video Output | 1 x HDMI type A connector |
| SDI Audio Input | 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files. |
| SDI Audio Output | 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files. |
| HDMI Audio Input | 8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files. |
| HDMI Audio Output | 2 channels in Avid DNxHD MXF files. |
| SSD Interface | 2 x 2.5" SATA 3Gb/s. |
| Sync Input | Black burst or Tri-Sync. |
| Device Control | Sony™ compatible RS422 deck control port. |
| Recorder Control | 12 buttons and jog wheel for local control of HyperDeck Studio or use either RJ45 Ethernet or USB 2.0 high speed interface. |
| Recorder Configuration | Front panel configurable or USB 2.0 high speed interface. |
| Computer Interface | 1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control. |
| Standards | |
| SD Format Support | 625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only. |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 |
| SDI Compliance | SMPTE 259M, SMPTE 292M |
| SDI Metadata Support | HD RP188 and closed captioning. |
| Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| Multiple Rate Support | SDI and HDMI switches between 270 Mb/s standard definition SDI and 1.5 Gb/s HD-SDI. |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Display | |
| Display | Built-in LCD for video, audio and timecode monitoring and menu settings. |
| Operating Systems | |
| Mac | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later. |
| Windows | Windows 8.1 64-bit or Windows 10 64-bit. |
| Power Requirements | |
| Power Supply | 1 x built-in international AC power supply with IEC C14 inlet. 110-240V, 50-60Hz. |
| Physical Specifications | |
| Width | 19 inch |
| Height | 1.75 inch |
| Depth | 6.18 inch |
| Weight | 4.40 lb |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
1x Internal 100-240V AC.
