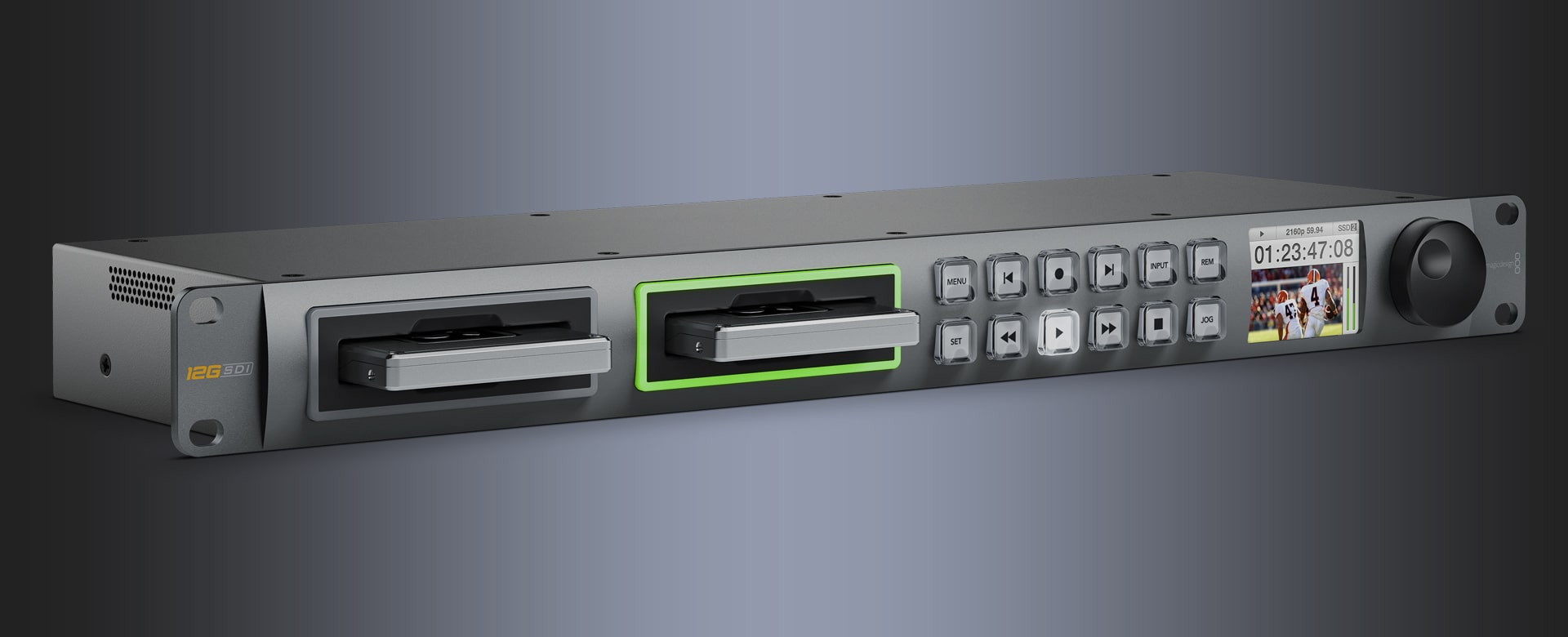

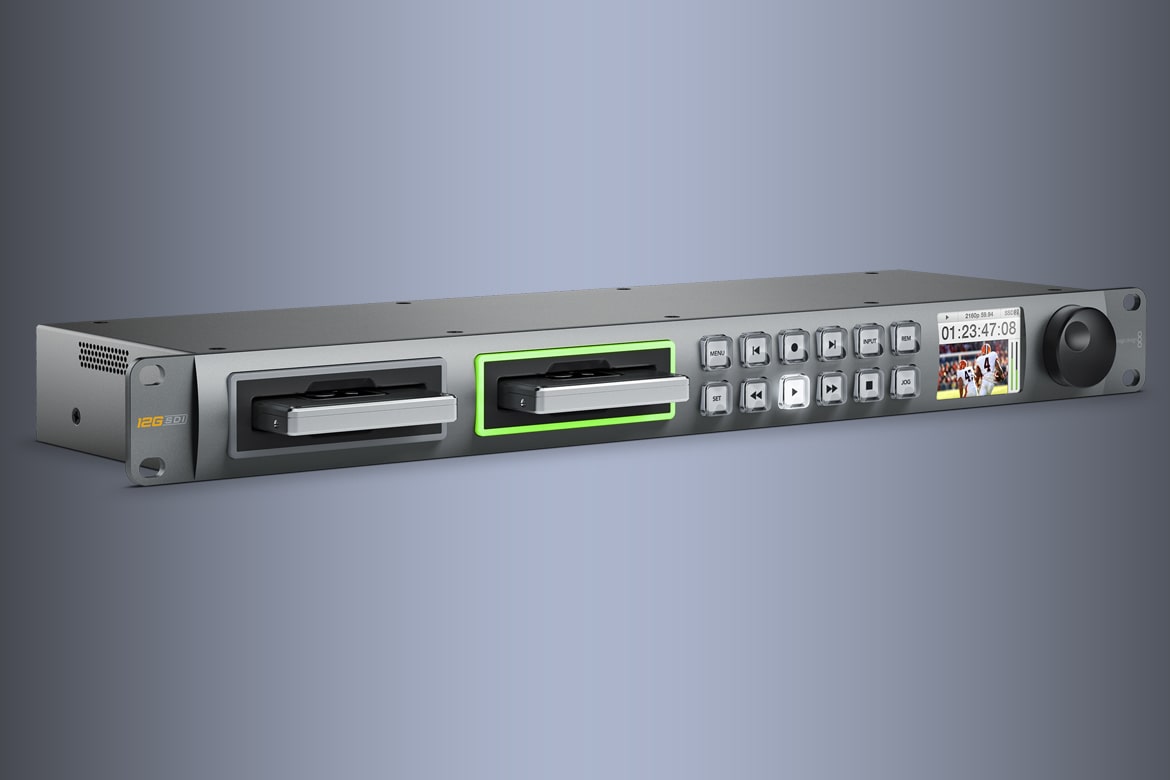

HyperDeck Studio 12G
Professional high performance solid state broadcast deck with advanced 12G-SDI and HDMI 2.0!
Product Highlights
- Records Up to 3840 x 2160 at 60 fps
- Plays Back Up to 3840 x 2160 at 60 fps
- 12G-SDI and HDMI 2.0 Inputs
- 1 HDMI and 4 12G-SDI Outputs
- Records Uncompressed / ProRes / DNxHD
- Records on Two 2.5" SSDs

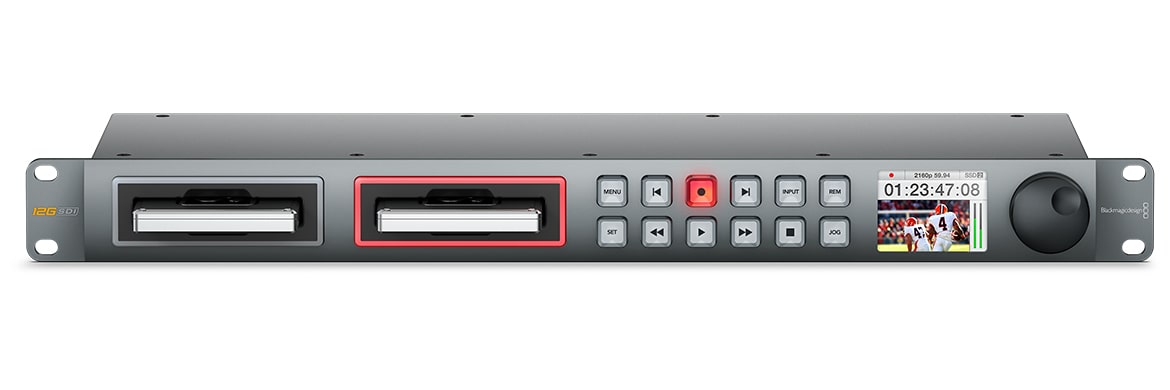

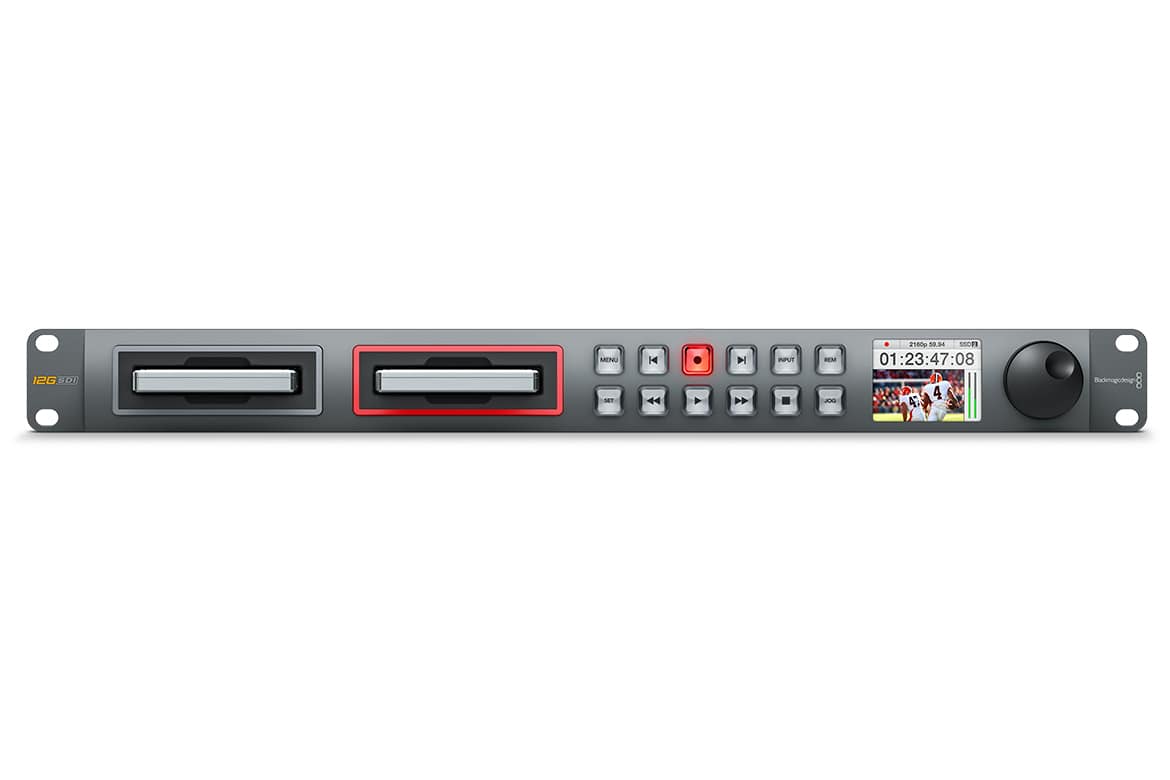

- Front Panel Buttons, Jog Wheel & RS-422
- Multi-Display Integrated LCD
- Blackburst / Tri-Level Sync Input
- 1RU Rackmountable Form Factor
- Overview
- Tech Specs
When you need to go beyond 1080p30, HyperDeck Studio 12G is a more advanced version of HyperDeck Studio. Featuring 12G-SDI connections and HDMI 2.0, HyperDeck Studio 12G works with all SD, HD and Ultra HD formats up to 2160p60 over a single cable. You still get all of the benefits of HyperDeck Studio, including its familiar VTR style deck controls and broadcast quality compressed and uncompressed 10-bit 4:2:2 recording.

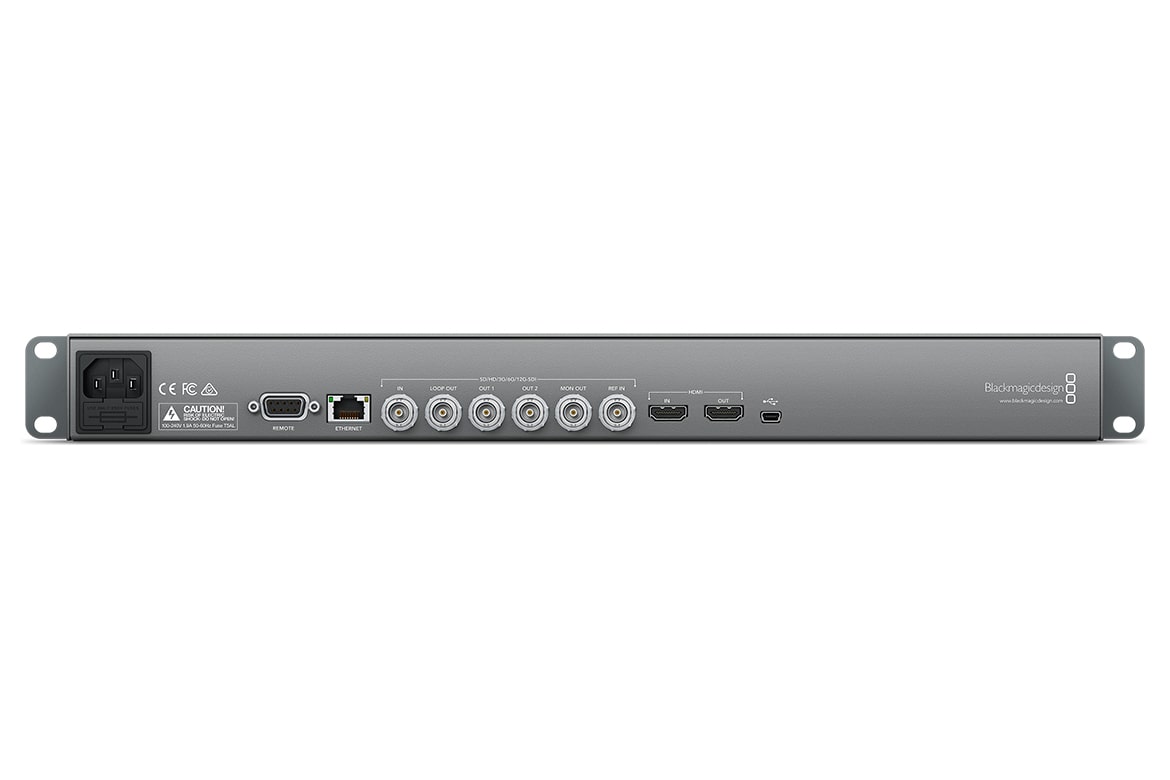

| Connections | |
| SDI Video Input | 1 x 10-bit SD/HD/3G/6G/12G-SDI switchable. Supports single link 4:2:2. |
SDI Video Output
|
2 x 10-bit SD/HD/3G/6G/12G-SDI switchable. 1 x 10-bit SD/HD/3G/6G/12G-SDI switchable Loop Output. 1 x 10-bit SD/HD/ switchable Monitor Output.. |
HDMI Video Input
|
HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2. |
HDMI Video Output
|
HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2. |
SDI Audio Input
|
16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files. |
SDI Audio Output
|
16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files. |
| HDMI Audio Input | 8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files. |
HDMI Audio Output
|
8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files. |
| Media | 2 x SSD for SD and HD recording. |
Media Type
|
SATA-II or SATA-III solid state disc. |
Media Format
|
Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
Reference Input
|
Tri-Sync or Black burst. |
External Control
|
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol. |
Built-in Control Panel
|
12 buttons for transport and menu control, 2.2" color display. |
Recorder Configuration
|
Front panel configurable or USB 2.0 high speed interface. |
Computer Interface
|
1 x USB 2.0 Mini-B port for software updates and HyperDeck Utility software control. |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M. |
| SDI Metadata Support | HD RP188 and closed captioning CEA-708. |
| Audio Sampling | Television standard 24-bit, 48 kHz sample rate. |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709. |
| SDI Rates | 270 Mb, 1.5G, 3G, 6G, 12G. |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Codec Support | |
| Supports: Uncompressed QuickTime, Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime and Avid DNxHD MXF up to 1080i60. | |
| Software | |
| Software Included | Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only). |
| Internal Software Upgrade | Loaded at system start, or via updater software using USB port. |
| Physical Installation | |
| Physical Installation | 1 rack unit size. Less than 7 inches deep. |
| Power Requirements | |
| Power Supply | 1x Internal 100-240V AC. |
| Physical Specifications | |
| Width | 482mm |
| height | 44mm |
| Depth | 170mm |
| Weight | 1.63 kg |
| Environmental Specifications | |
| Operating Temperature | 5° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Display
- Built in LCD for video, audio and timecode monitoring and menu settings.
