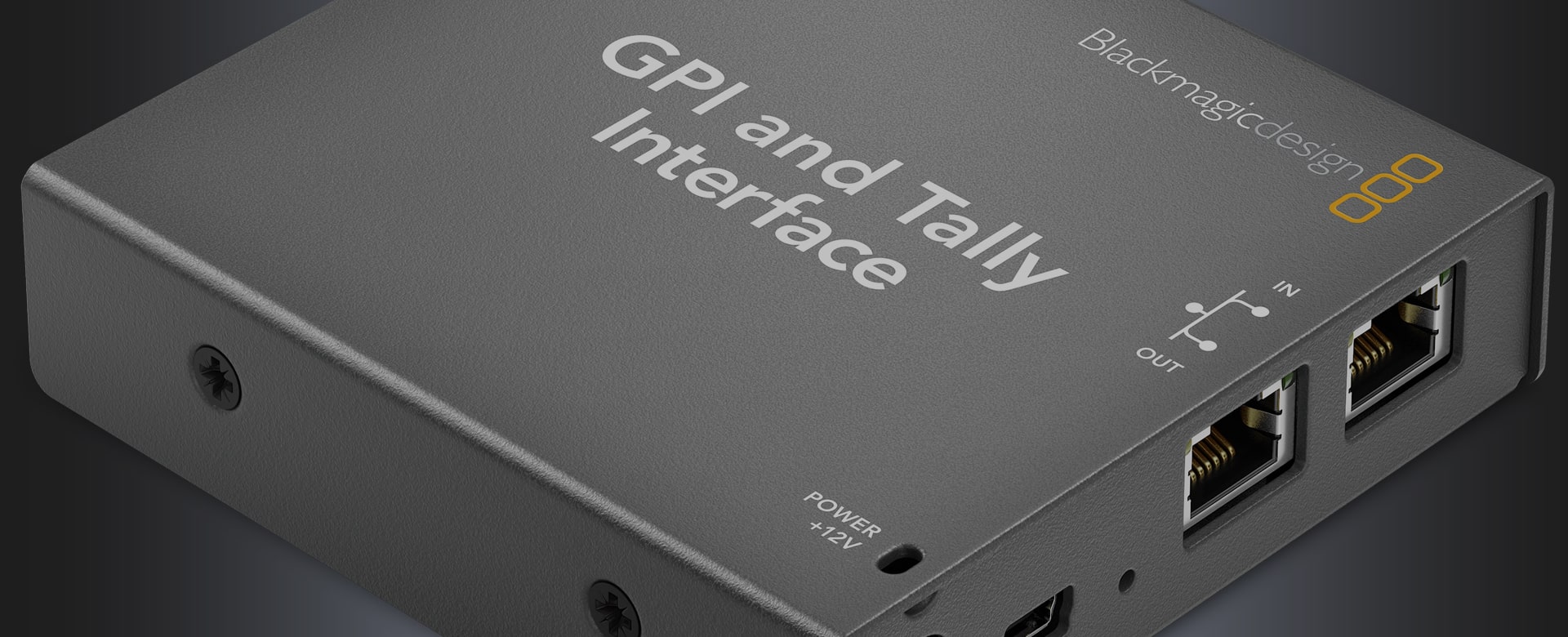

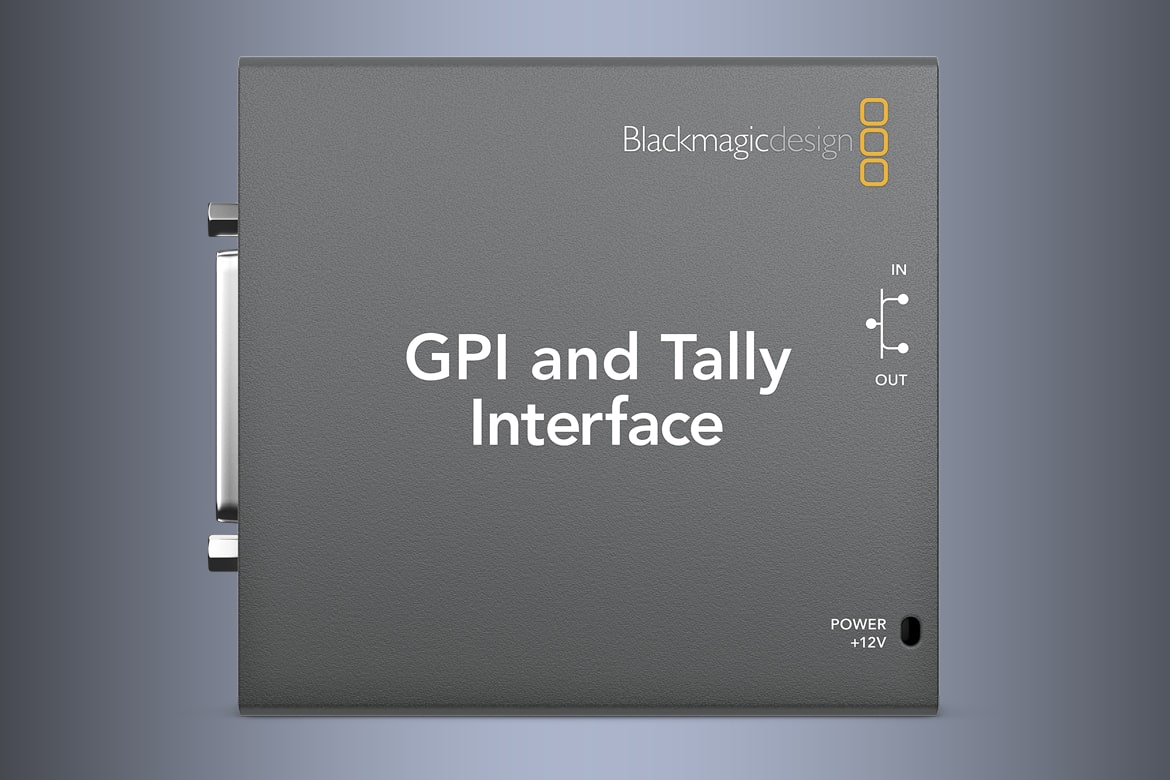

GPI and Tally Interface

GPI and Tally Interface

Blackmagic Design
Product Highlights
  • Displays Tallies for Video Signals
  • Indicates On-air Status
  • For ATEM Switchers / Videohub Routers
  • 8 Contact Closure Inputs & Outputs
  • Connects with Multiple Interfaces

  • Overview
  • Tech Specs

Adds 8 Tally relay contacts to any ATEM switcher.

Add tally to your ATEM switcher with Blackmagic Design's GPI and Tally Interface! With 8 contact closure tally outputs, you can send a tally signal to your cameras, replay machines and monitors so everyone knows which camera is 'on-air'! If you need more tally outputs, simply connect multiple GPI and Tally Interfaces together because it connects via Ethernet to your ATEM production switcher.

Connections

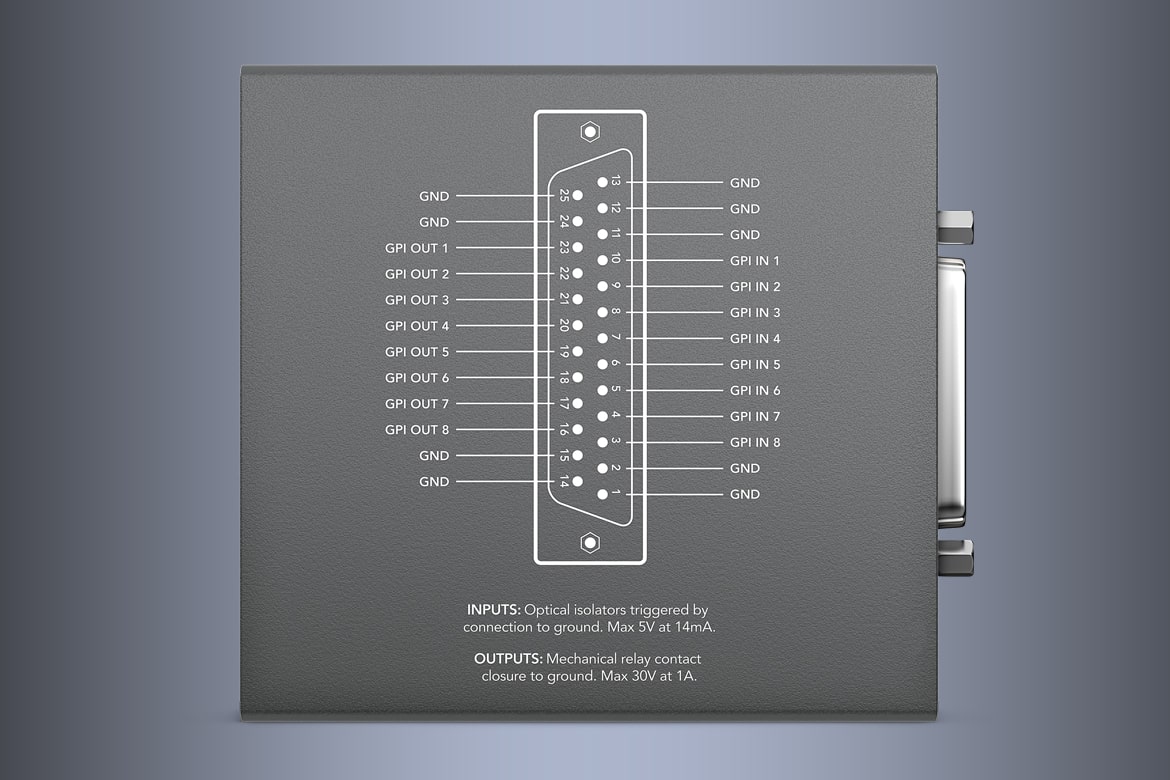

Contact Closure 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs.
Computer Interface 1 x USB 2.0 high speed interface for configuration and firmware updates.
Inputs Optical isolators triggered by connection to ground.
Max 5V at 14mA.
Outputs Mechanical relay contact closure to ground. Max 30V at 1A.
Ethernet 10/100 BaseT with loop through for connecting to other ethernet enabled equipment.
Software
Software Included Configured via ATEM Switcher Utility.
Internal Software Upgrade Firmware built into software driver. Loaded at system startup or via updater software.
Physical Specifications
Width 3.78 in
Height 3.54 in
Depth 0.91 in
Weight 1.23 lb
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20 - 60 degrees celsius
Relative Humidity Up to 95%

Operating Systems
  • Mac
    Mac 10.10 Yosemite,
    Mac 10.11 El Capitan or later.
  • Windows
    Windows 8.1 or Windows 10.

Power Requirements
  • Power Supply
    12V power supply included with international socket adaptors for all countries.
