DeckLink SDI Micro

Miniature 1 lane mini PCIe card with HD‑SDI and HDMI for single channel capture in all formats up to 1080p30!
Product Highlights
  • Video capture card for all SD and HD formats up to 1080p30
  • 1-lane Gen 1 Mini PCIe slot
  • Can be added SDI or HDMI video inputs

  • Overview
  • Tech Specs

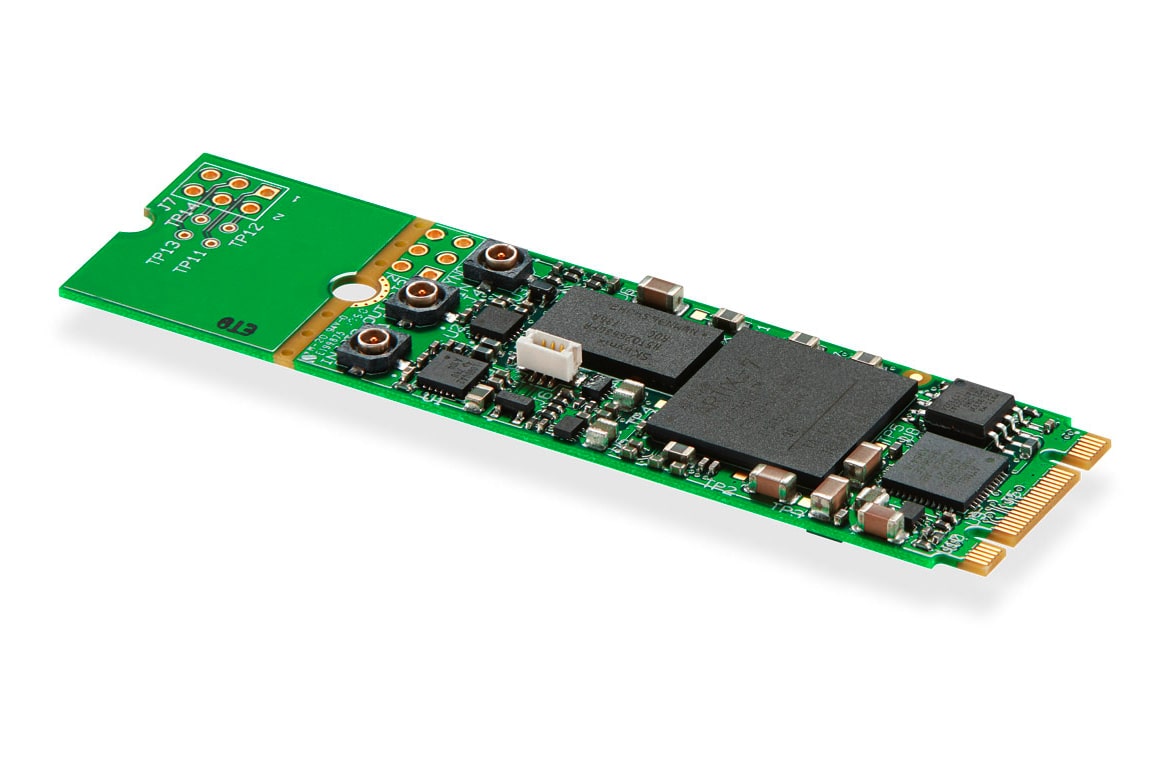

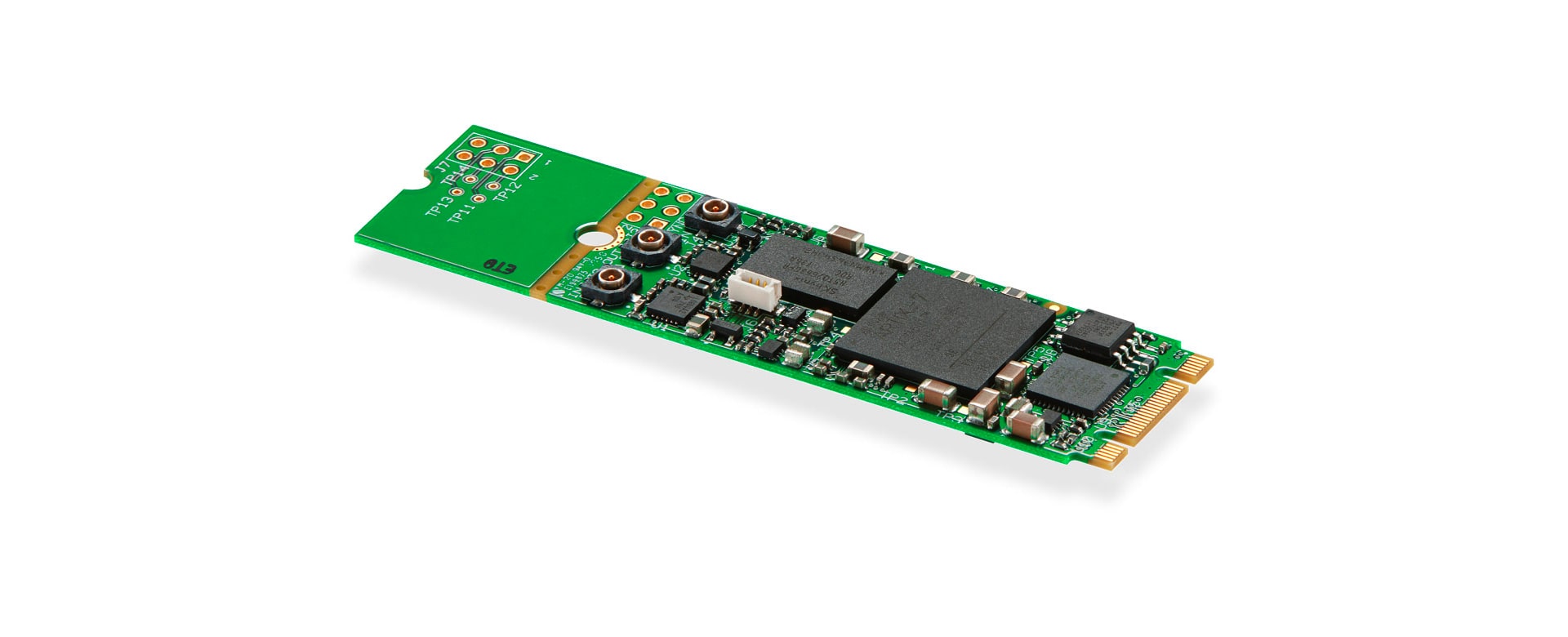

Miniature M.2 card with 3G‑SDI connections for simultaneous capture and playback in all SD and HD formats up to 1080p60. DeckLink SDI Micro also includes Black Burst and Tri‑Sync reference input and its miniature size makes it great for use on portable solutions which are based on compact computers!

Price: AED 497*
*Prices are excluding VAT

Connections
M.2 M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280.
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
SDI Video Sampling 4:2:2, 4:4:4
SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601.
Available Accessories
SDI Cable: 5.94 in


Price: AED 497*
*Prices are excluding VAT

Operating Systems
  • Windows 8.1 and 10, both 64-bit.
  • Linux

Power Requirements
  • Power Consumption
    4.03W (max)
