DeckLink Micro Recorder
Miniature 1 lane mini PCIe card with HD‑SDI and HDMI for single channel capture in all formats up to 1080p30!
Product Highlights
- Video capture card for all SD and HD formats up to 1080p30
- 1-lane Gen 1 Mini PCIe slot
- Can be added SDI or HDMI video inputs
- Overview
- Tech Specs

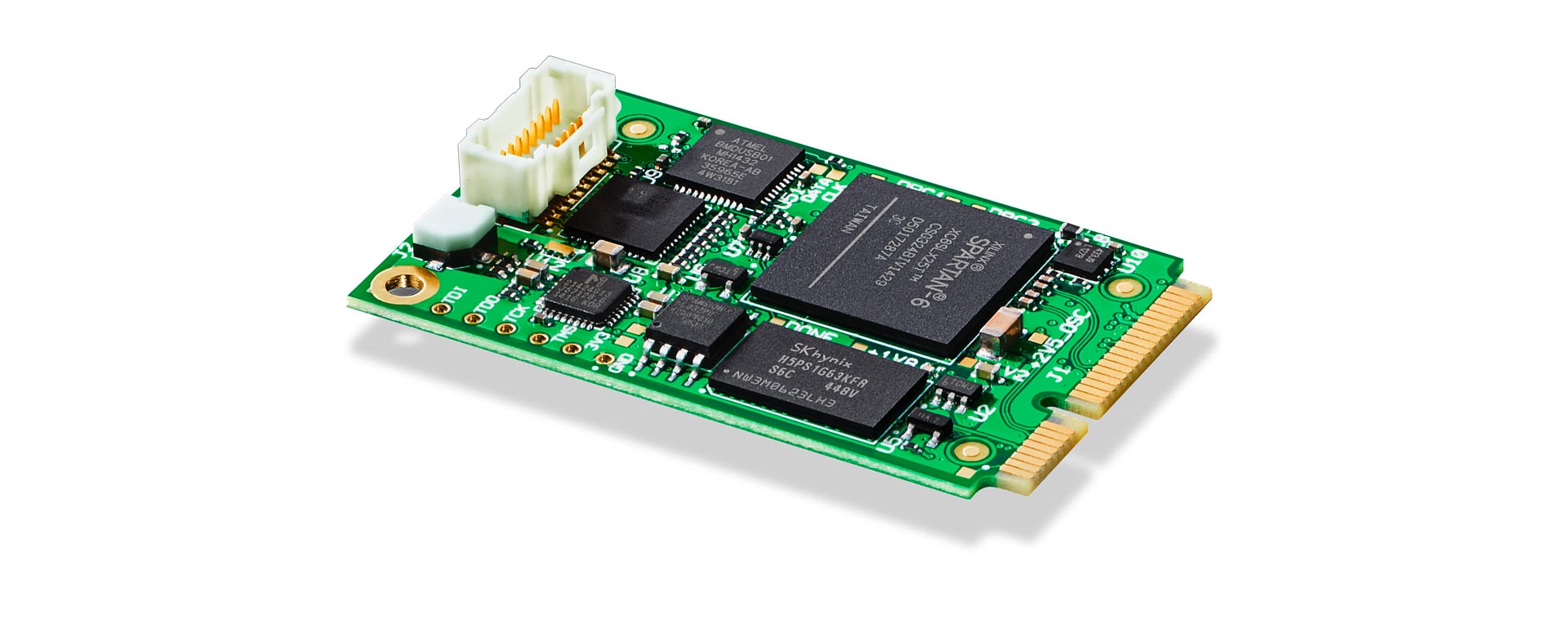

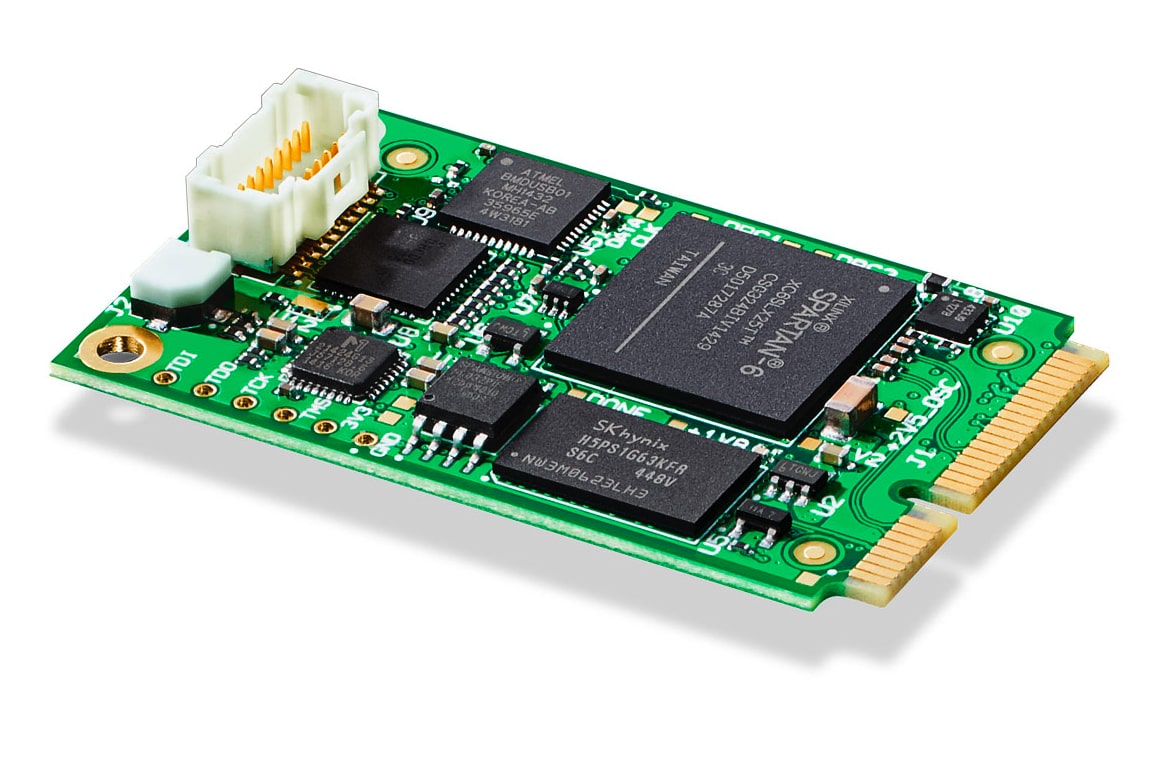

The DeckLink Micro Recorder is a low-latency miniature video capture card for all SD and HD formats up to 1080p30. Compatible with computers that have a 1-lane Gen 1 Mini PCIe slot, SDI or HDMI video inputs can be added using the built in Hirose® and Molex® connectors.
| Connections | |
| PCIx1 Gen 1 | PCI Express® Mini Card Electromechanical Specification. Note, however, that the HDMI connector height (8.0mm) exceeds the 3.0mm height specification. |
| Standards | |
| SD Format Support | 525i/59.94 NTSC, 625i/50 PAL. |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30. |
| Video Sampling | 4:2:2. |
| 8, 10-bit YUV 4:2:2. | |
| Compliance | SMPTE 259M, 292M, 296M, and HDMI. |
| Available Accessories | |
| HDMI Cable: 7.55 in SDI Cable: 5.94 in |
|
Operating Systems
- Windows 8.1 and 10, both 64-bit.
- Linux
Power Requirements
- Power Consumption
3 Watts max
