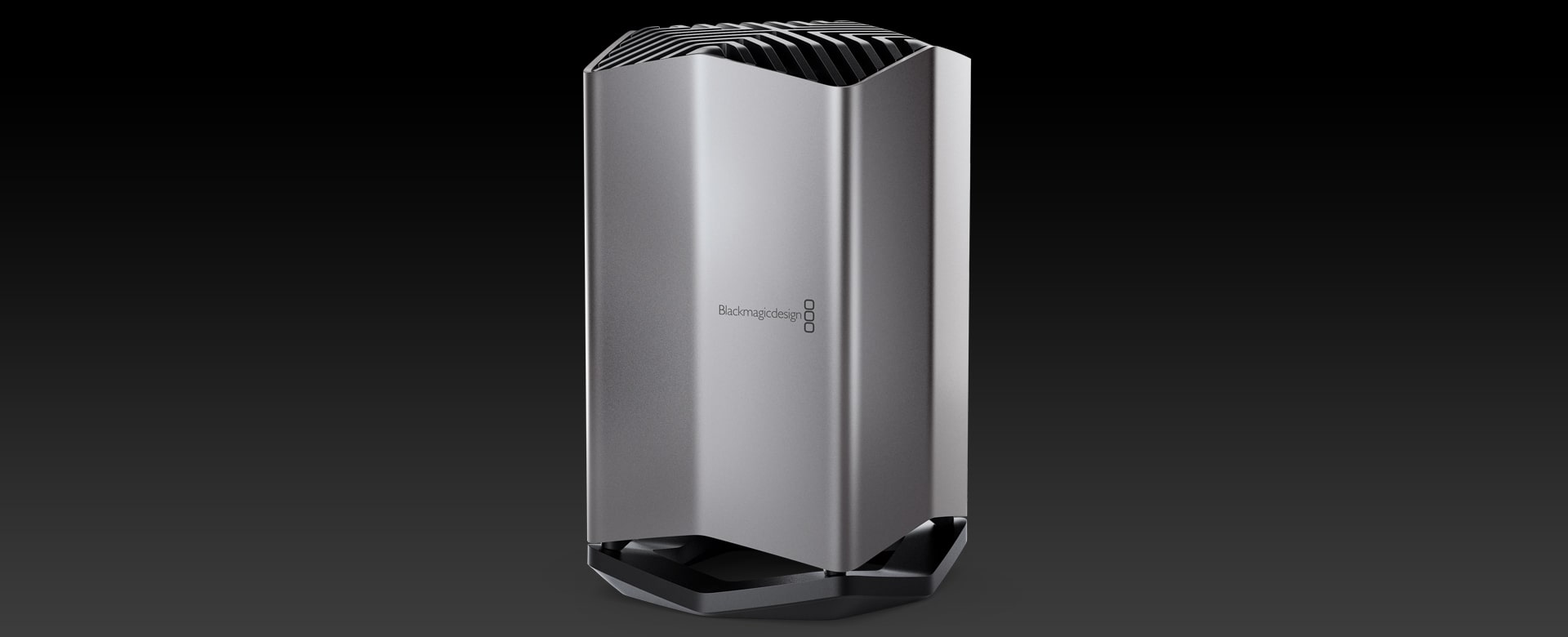

Blackmagic Cloud Store
Blackmagic Design

Blackmagic Cloud Store

High Performance Network Storage with Global Sync!
Product Highlights
  • Designed for Film and Television
  • Available in 20 TB, 80 TB and massive 320 TB models
  • 4 separate very high speed 10G Ethernet connections
  • Setup a local cache of your Dropbox files
  • With support for Dropbox sync, you can use multiple units to share files globally
  • HDMI monitoring output - connect a TV or monitor to see live status
  • Saves files in a RAID 5 array of M.2 flash memory cards, ensuring protection of your data
  • High Performance 10G Ethernet Switch
  • Connect via USB-C for Quick File Access
  • Supports Local Backup and Ingest via USB-C Disks
  • Overview
  • Tech Specs

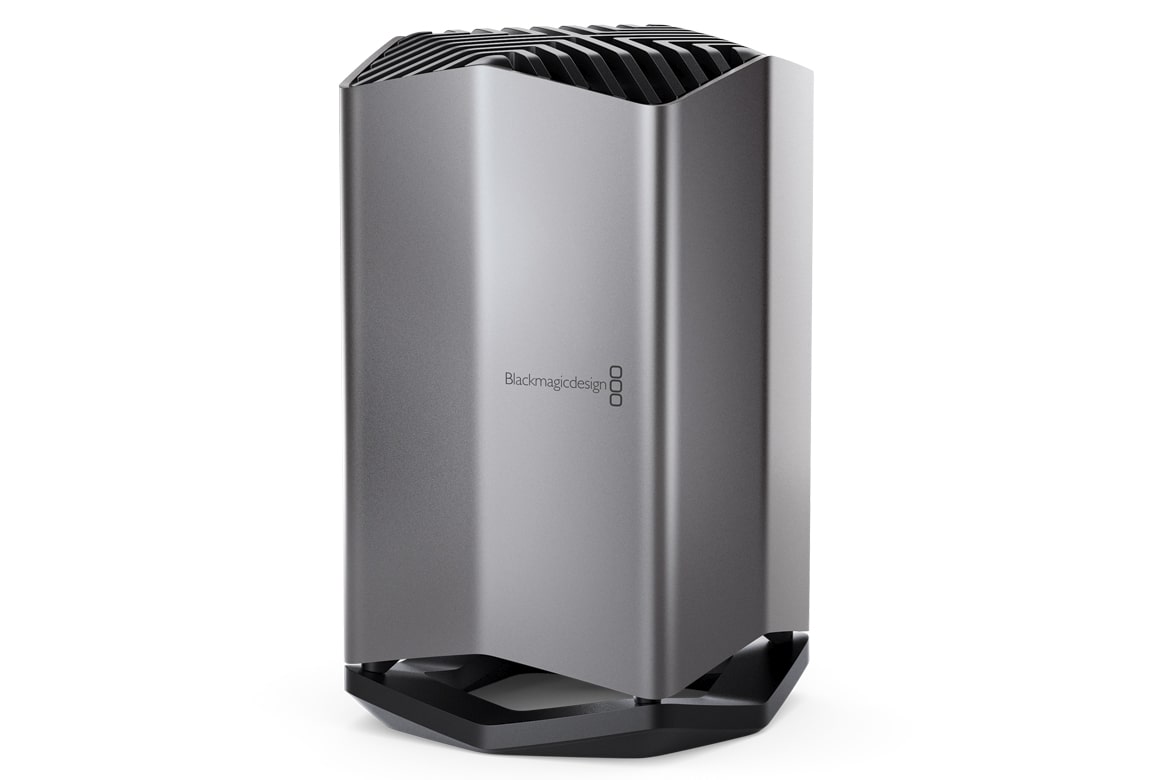

The Blackmagic Cloud Store is a very fast high capacity network disk that's designed to handle large media files used on Hollywood feature films. The design uses advanced flash memory so it easily handles lots of simultaneous users. Plus it's extremely easy to set up! With Dropbox live sync, files can be distributed between multiple units globally for very fast local file access, even on lower cost internet connections. Unlike SAN systems, you don't need IT consultants and there are no subscription fees. There's even an HDMI monitor output with real time storage status! All this means you get much better features than discount storage products sold at office supply stores.


Price: Upon Request

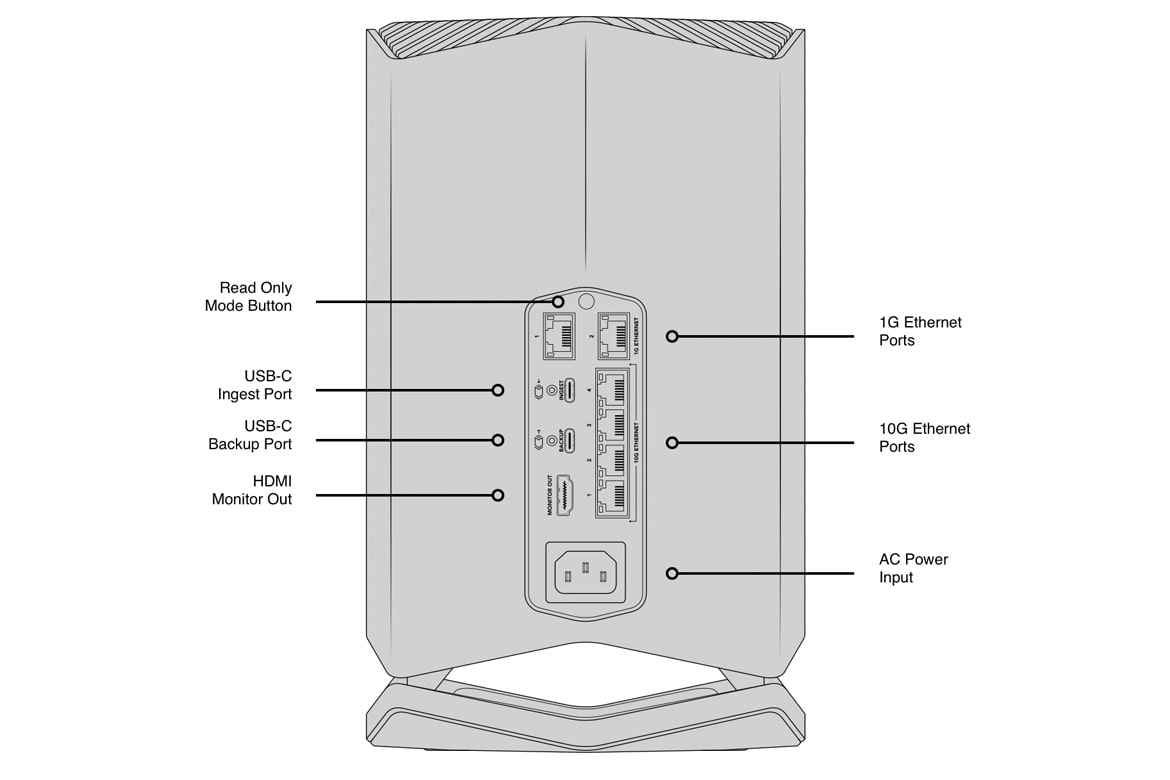

Connections
10G Ethernet Ports 4 x 100/1000/10G BASE-T
1G Ethernet Ports 2 x 100/1000 BASE-T
Ingest USB-C Port 1 x USB 3.0 (up to 5Gb/s). Automatically transfers files from USB drive to Cloud Store.
Backup USB-C Port 1 x USB 3.0 (up to 5Gb/s). Automatically backs up files from Cloud Store to USB drive.
HDMI Monitor Outputs 1
Computer Interface Ethernet for shared file access, configuration and software updates. USB-C for configuration and software updates.
File Sharing Protocol
Protocol SMB
Computer Connections 50 max.
Cloud Synchronization
Compatible Services Dropbox
Storage
Storage Type M.2 NVMe SSD
Total Capacity 20TB, 80TB or 320TB
Redundancy RAID 5 distributed parity
External Storage USB Disks
External Storage Format ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Displays
HDMI Monitor Out Standards 1080p50, 1080p59.94, 1080p60.
Monitor Out Displays Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graphs.
Status Indicator Underside white glow indicating normal operation or red glow indicating disk or power supply fault.
Device Control
External Control USB-C or Ethernet for configuration and software updates.
Software
Software Included Blackmagic Cloud Setup Utility
Blackmagic Proxy Generator Lite
Internal software upgrade via Blackmagic Cloud Setup using USB-C port.
Operating Systems
Mac Mac 11.1 Big Sur,
Mac 12.0 Monterey or later.
Windows Windows 10 and 11.
Power Requirements
Power Supply 2 x internal 100 - 240V AC 50/60Hz.
Power Inputs 1 x IEC C14 mains input.
Power Usage 400W max.
Physical Specifications
Width 176.8 mm
Height 294.4 mm
Depth 176.3 mm
Weight 6 KG Estimated
Physical Installation
Physical Installation 2 Rack Unit Size.
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non-condensing



Price: Upon Request

What's Included
  • Blackmagic Cloud Store
  • Welcome wallet with QR code for software download
