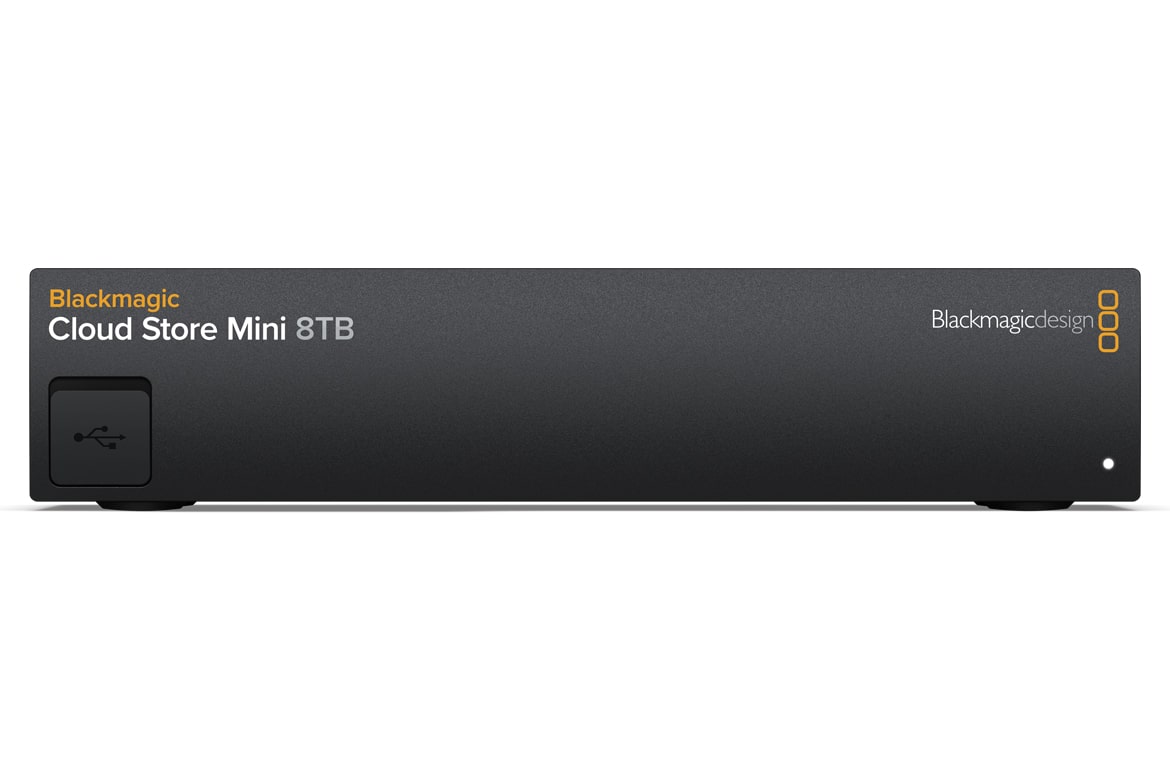

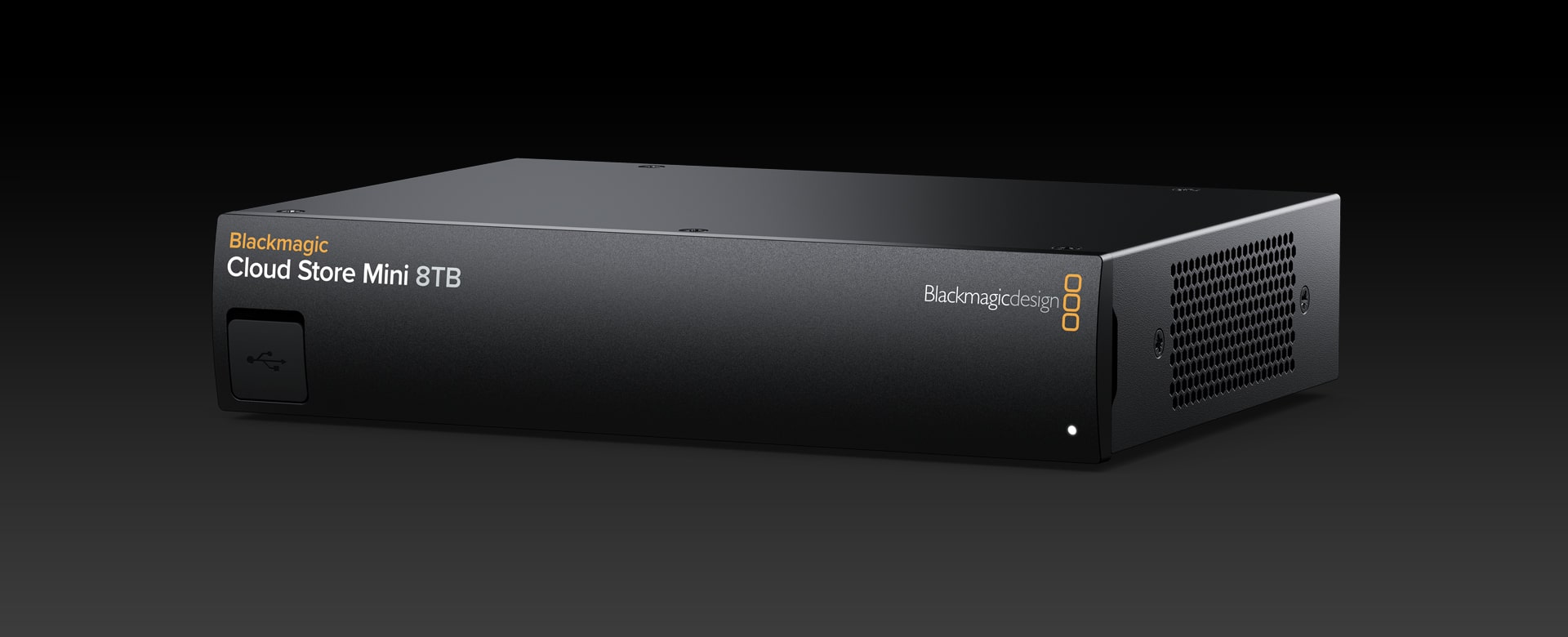

Blackmagic Cloud Store Mini
High Performance Network Storage with Global Sync!
Product Highlights
- Designed for Film and Television
- Available with 8 TB of flash memory, so you have lots of space for your files
- 10G Ethernet connection - High Performance for Digital Film Files
- Setup a local cache of your Dropbox files
- With support for Dropbox sync, you can use multiple units to share files globally
- HDMI monitoring output - connect a TV or monitor to see live status
- High Performance 10G Ethernet Switch
- Connect via USB-C for Quick File Access
- Overview
- Tech Specs
The Blackmagic Cloud Store Mini is a fast network storage solution in a compact rack mount design. It features a high speed 10G Ethernet connection and four internal M.2 flash memory cards operating in parallel RAID 0 for extremely fast file access. It’s fast, even with lots of simultaneous users all accessing files at the same time! With Dropbox live sync, files can be distributed between multiple units globally, for very fast local file access, even on lower cost internet connections. Plus you don't need IT consultants as it's easy to use. There's even an HDMI monitor output! Blackmagic Cloud Store Mini is the perfect solution for storing and sharing files on your network!

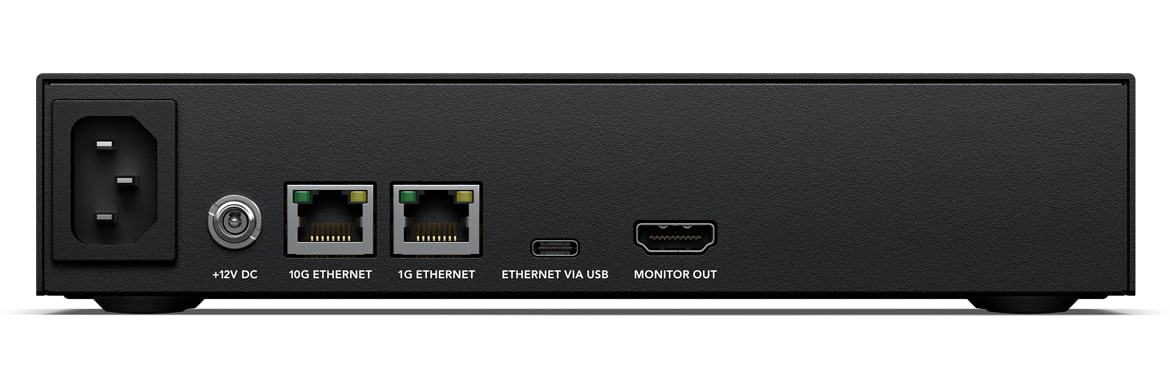

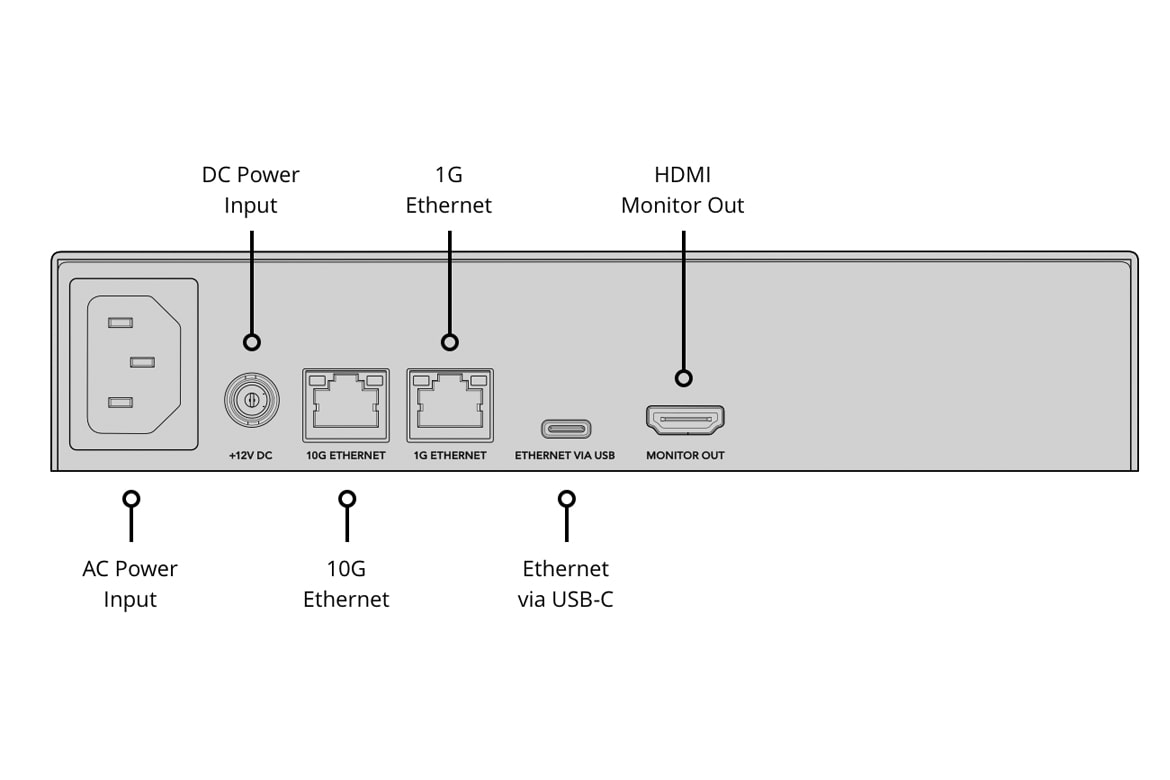

| Connections | |
| 10G Ethernet Ports | 1 x Ethernet 100/1000/10G BASE-T |
| 1G Ethernet Ports | 1 x 100/1000 BASE-T |

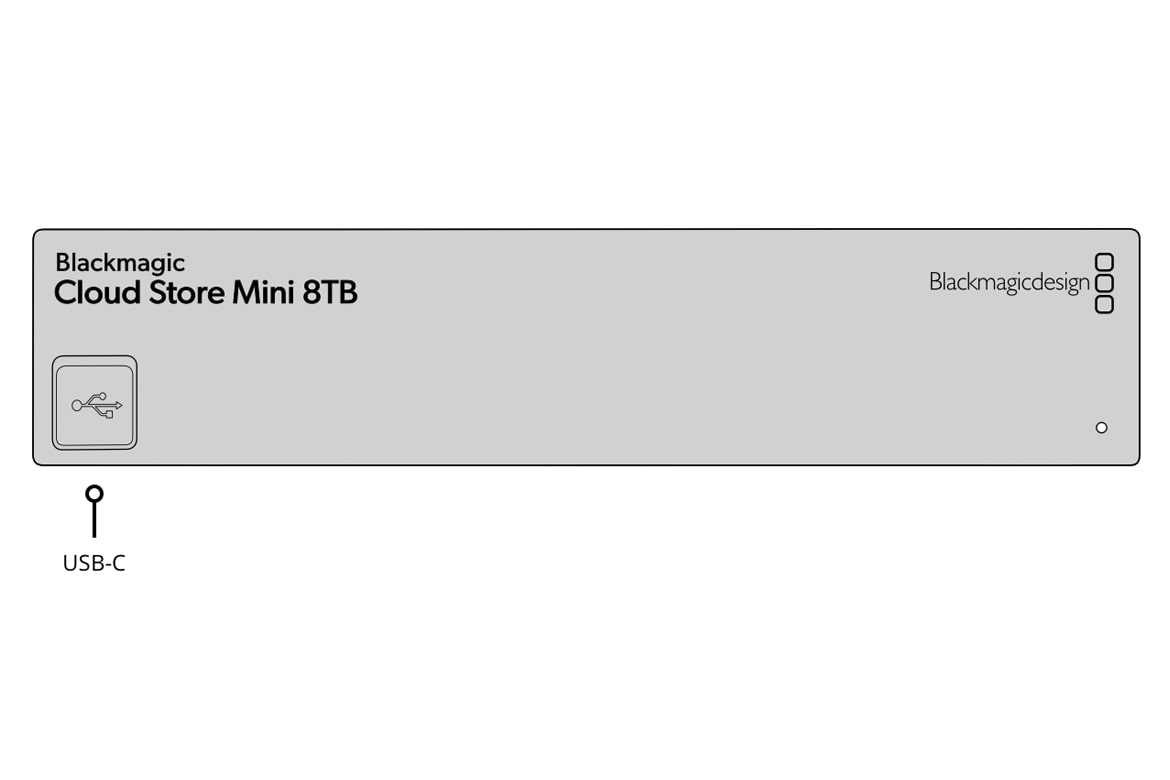

| USB-C Port | 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB |
| HDMI Monitor Outputs | 1 |
| Computer Interface | Ethernet for shared file access, configuration and software updates. USB-C for configuration and software updates. |
| File Sharing Protocol | |
| Protocol | SMB |
| Computer Connections | 50 max. |
| Cloud Synchronization | |
| Compatible Services | Dropbox |
| Storage | |
| Storage Type | M.2 NVMe SSD |
| Total Capacity | 8TB |
| Displays | |
| HDMI Monitor Out Standards | 1080p50, 1080p59.94, 1080p60 |
| Monitor Out Displays | Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph. |
| Status Indicator | Front panel LED illuminates white indicating normal operation or red indicating disk fault. |
| Device Control | |
| External Control | USB-C or Ethernet for configuration and software updates. |
| Software | |
| Software Included | Blackmagic Cloud Setup Utility Blackmagic Proxy Generator Lite Internal software upgrade via Blackmagic Cloud Setup using USB-C port. |
| Operating Systems | |
| Mac | Mac 11.1 Big Sur, Mac 12.0 Monterey or later. |
| Windows | Windows 10 and 11. |
| Power Requirements | |
| Power Supply | Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. |
| Power Inputs | 1 x IEC C14 mains input. 1 x 12V DC locking 5.5 mm barrel connector. |
| Power Usage | 35W |
| Physical Specifications | |
| Width | 210.5 mm |
| Height | 44.2 mm |
| Depth | 155 mm |
| Weight | 1.17 KG |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
What's Included
- Blackmagic Cloud Store Mini
- Welcome wallet with QR code for software download
