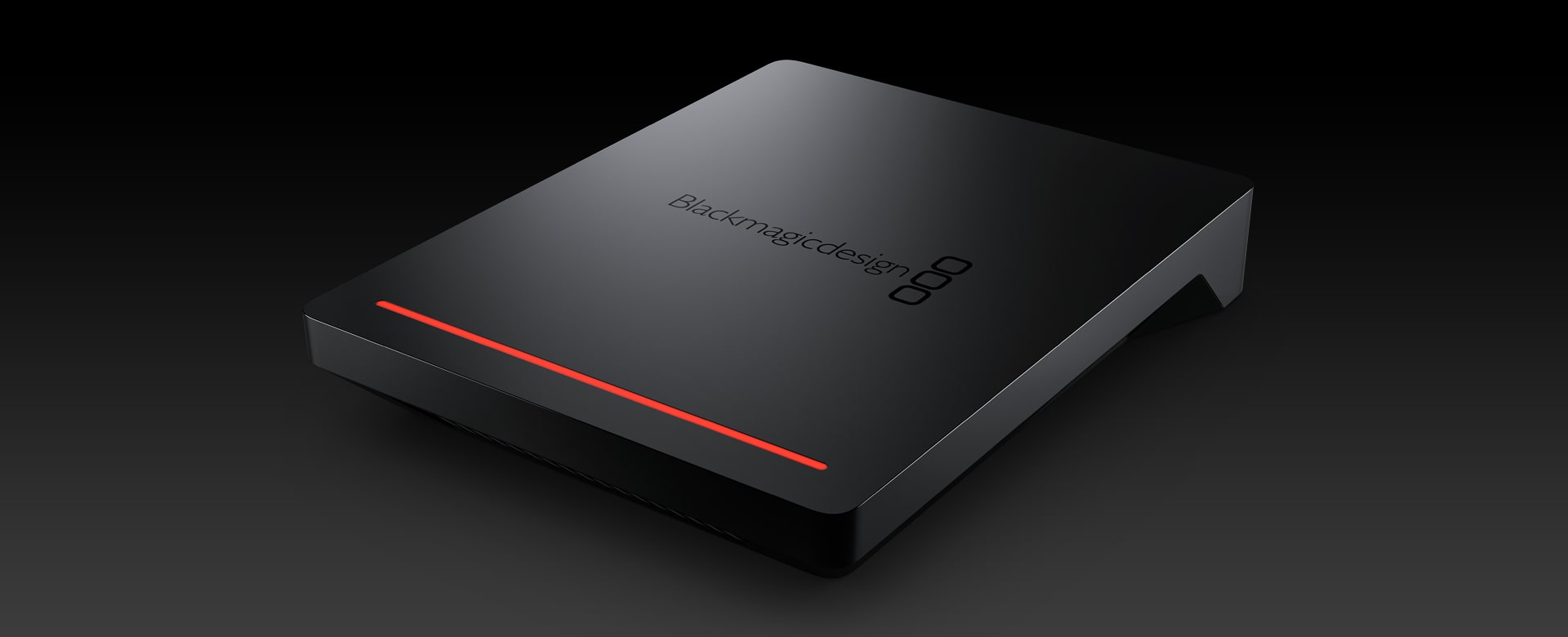

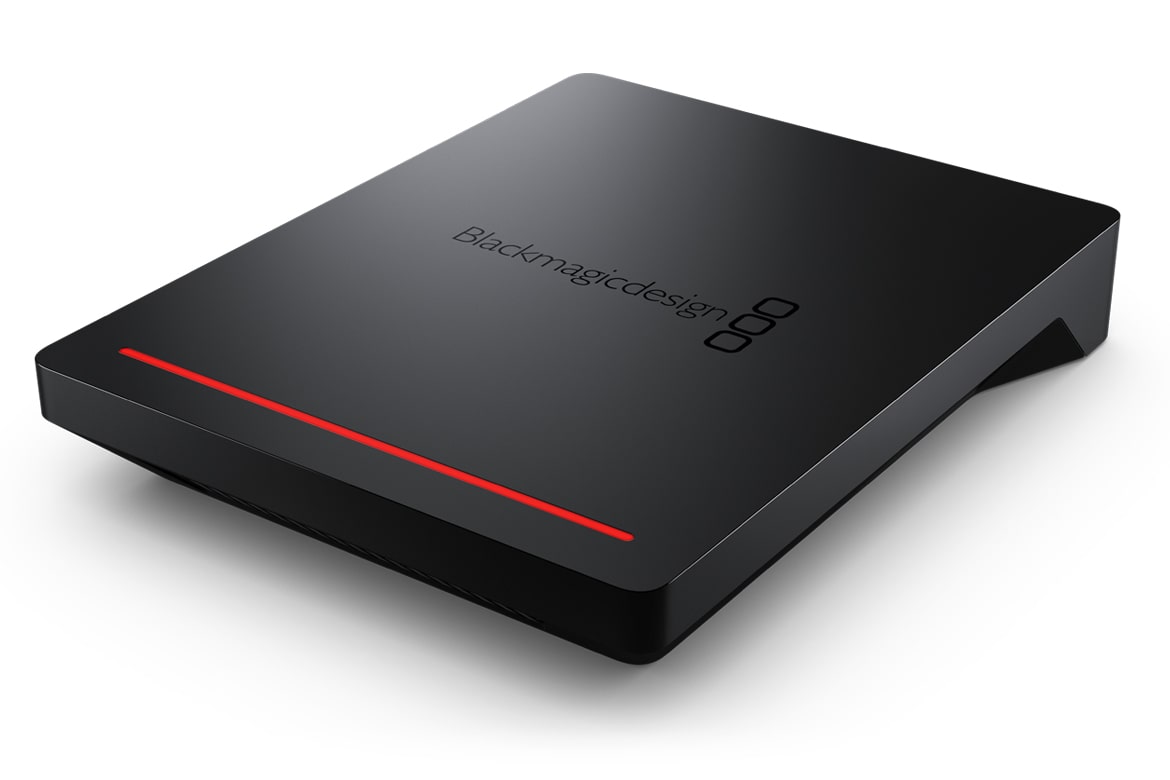

Blackmagic Cloud Pod
Blackmagic Design

Blackmagic Cloud Pod

Turn any USB disk into network storage!
Product Highlights
  • Designed for Film and Television
  • 12V DC power supply
  • 10G Ethernet allows high speed computers to be connected
  • Two USB-C ports so you can host two disks on each Blackmagic Cloud Pod
  • HDMI monitor output lets you see the status of your cloud pod in real time
  • Live Sync to Dropbox
  • Distribute Files Globally
  • Overview
  • Tech Specs

The Blackmagic Cloud Pod lets you turn any USB-C disk into network storage. That’s perfect when you want to share a media disk recorded on a camera with multiple users on your network. It features a high speed 10G Ethernet connection for extremely fast file access. It’s fast, even with lots of simultaneous users all accessing files at the same time! With Dropbox live sync, files can be distributed between multiple units globally, for very fast local file access, even on lower cost internet connections. Plus you don't need IT consultants as it's easy to use. There's even an HDMI monitor output! Blackmagic Cloud Pod is the perfect solution for sharing files on your network!


Price: Upon Request

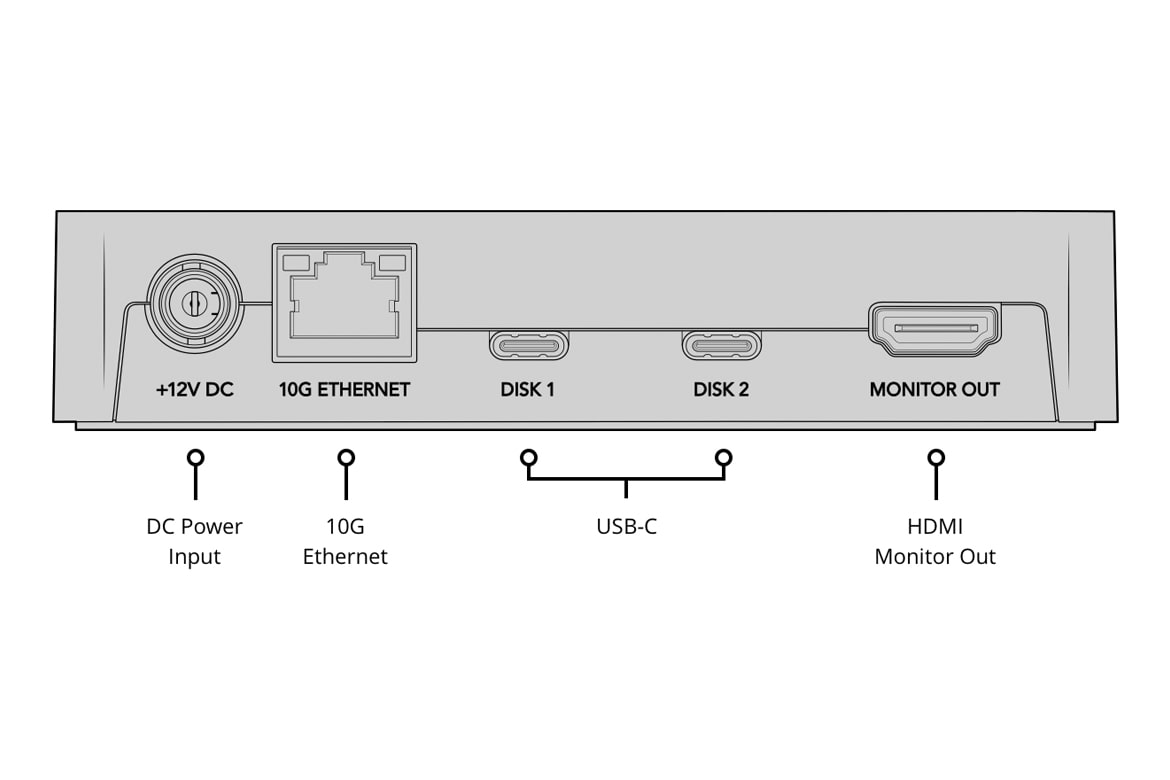

Connections
10G Ethernet Ports 1 x Ethernet supports 100/1000/10G BASE-T
USB-C Port 2 x USB 3.0 (up to 5Gb/s) for external storage.
HDMI Monitor Outputs 1
Computer Interface Ethernet for shared file access, configuration and software updates. USB-C for configuration and software updates.
File Sharing Protocol
Protocol SMB
Computer Connections 50 max.
Cloud Synchronization
Compatible Services Dropbox
Storage
Storage Type Bring your own drive
External Storage USB Disks
External Storage Format ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Displays
HDMI Monitor Out Standards 1080p50, 1080p59.94, 1080p60
Monitor Out Displays Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graphs.
Status Indicator Glow strip illuminates red during read or write operations.
Device Control
External Control USB-C or Ethernet for configuration and software updates.
Software
Software Included Blackmagic Cloud Setup Utility
Blackmagic Proxy Generator Lite
Internal software upgrade via Blackmagic Cloud Setup using USB-C port.
Operating Systems
Mac Mac 11.1 Big Sur,
Mac 12.0 Monterey or later.
Windows Windows 10 and 11.
Power Requirements
Power Supply 1 x External 12V DC 60W power supply.
Power Inputs 1 x 12V DC locking 5.5 mm barrel connector.
Power Usage 25W without external USB disks.
Physical Specifications
Width 161.2 mm
Height 26 mm
Depth 126.5 mm
Weight 480 g
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non-condensing



Price: Upon Request

What's Included
  • Blackmagic Cloud Pod
  • Welcome wallet with QR code for software download
