Blackmagic PYXIS 12K
The World’s Most Riggable Full Frame Digital Film Camera!
Product Highlights
- Large-Format Full-Frame 12K Sensor
- 16 Stops of Dynamic Range
- Blackmagic RAW up to 12K 3:2 Open Gate
- Built-In Optical Low-Pass Filter
- Two CFexpress Card Slots, USB-C Port
- Compact Form with Switchable Side Plates
- 4" HDR LCD Touchscreen
- 10GbE Ethernet Port, 10GBASE-T Support
- HFR Button & Three Assignable Shortcuts
- Mini-XLR & 3.5mm Audio Inputs
- Overview

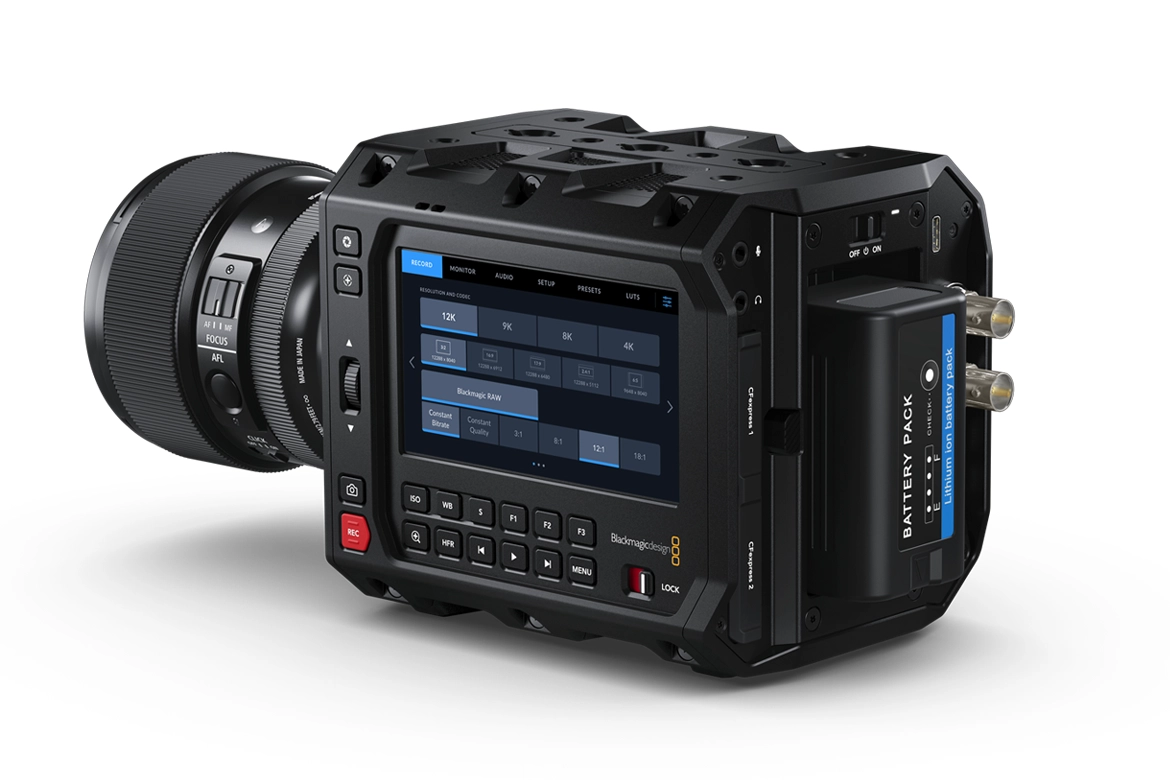

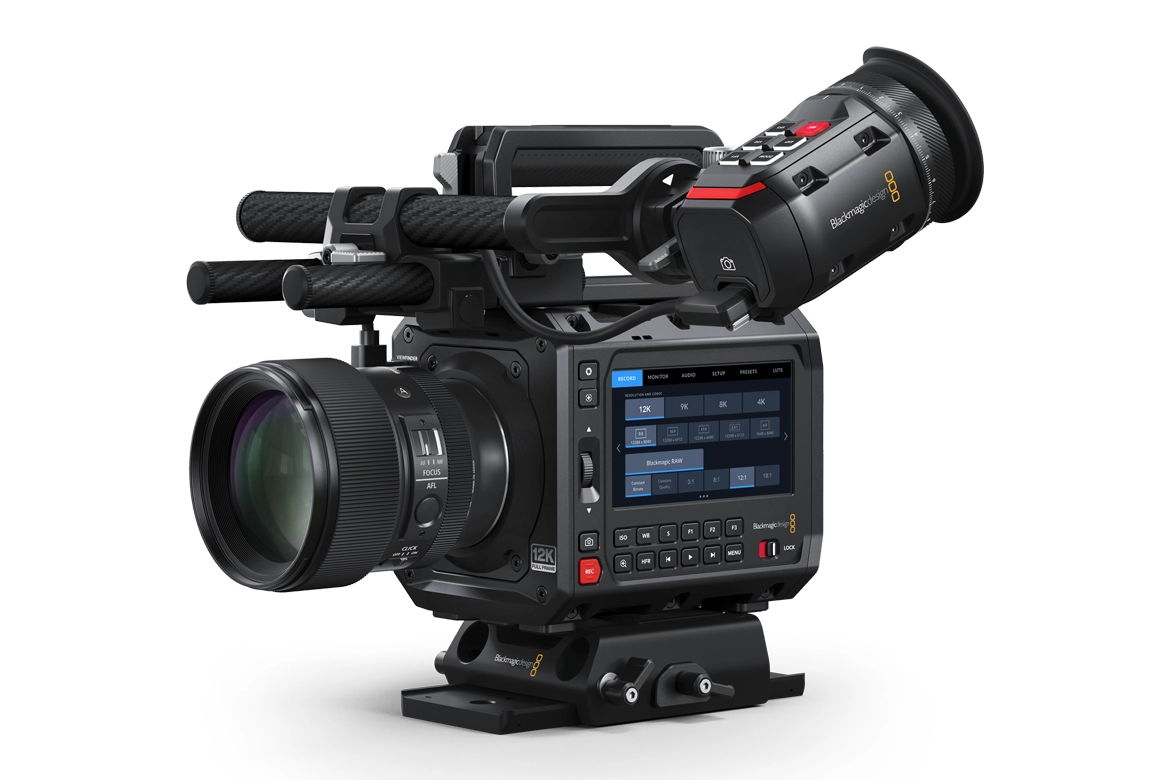

Blackmagic PYXIS 12K L-Mount is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 12,288 x 8040 full frame RGBW sensor with built in optical low pass filter, 16 stops of dynamic range, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 12K L-Mount features a fixed L-Mount that works with the latest full frame lenses and a wide range of lens adapters.
Operating Systems
- Mac
Mac 12.0 Monterey,
Mac 13.0 Ventura or later. - Windows
Windows 10 and 11.
Power Requirements
- Power Supply
1 x External 12V power supply. - External Power Input
1 x 2‑pin locking connector. - Battery Type
NP-F570 - Battery Life
Approximately 60 minutes
(recording 6K RAW at 24 fps to CFexpress with screen brightness at 50%) - Power
12V-20V.
