ATEM Camera Converter

ATEM Camera Converter

Blackmagic Design
Product Highlights
  • Enables Extension of SDI/HDMI Cameras
  • Transmission Distance - 28 miles (45km)
  • Internal Battery
  • Talkback Function
  • 12V Power Connection
  • 2 Tally LEDs
  • Integrated Belt Clip / Camera Mount
  • Microphone Inputs
  • Aircraft-grade Aluminum Construction

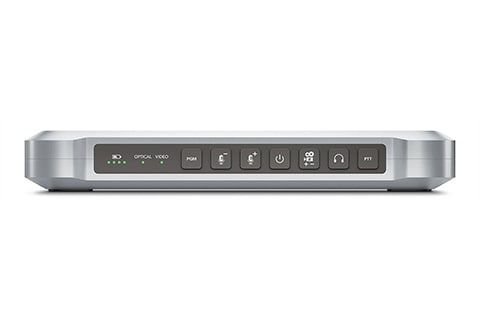

  • Built-in Button Pad

  • Overview
  • Tech Specs

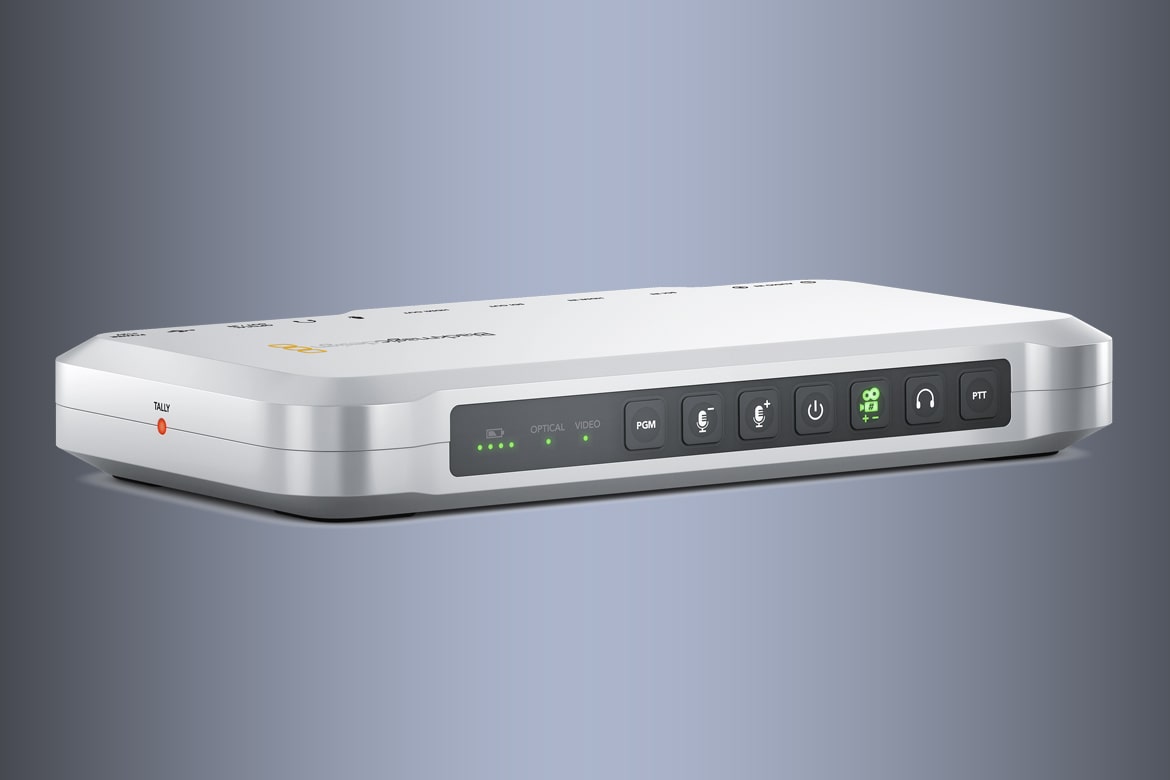

Battery powered optical fiber converter with talkback, tally and mic inputs.

Get everything you need for cameras in live production with a single converter! Connect your camera’s SDI or HDMI outputs for conversion to optical fiber, while your switcher program feed can be fed back via optical fiber for camera monitoring. ATEM Camera Converter includes an internal battery, talkback, tally, and microphone inputs!

Price: AED 2,374*
*Prices are excluding VAT

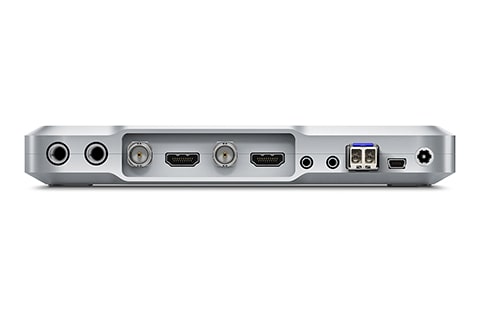

Connections
SDI Video Input 1 x 10 bit SD/HD switchable.
SDI Video Output 1 x 10 bit SD/HD switchable.
HDMI Video Input 1 x HDMI type A connector.
HDMI Video Output 1 x HDMI type A connector.
Talkback Audio 1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones, compatible with iPhone headsets.
Analog Audio 2 x balanced 1/4" TRS connectors (stereo) microphone level in. When connected, replaces audio from SDI In or HDMI In.
Optical Fiber Video Input 1 x single mode SD/HD switchable with LC connector.
Optical Fiber Video Output 1 x single mode SD/HD switchable with LC connector.
Optical Fiber Audio Input 1 x single mode camera audio inputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio.
Optical Fiber Audio Output 1 x single mode camera audio outputs with LC connector. Channels 1 & 2 are camera audio. Channels 15 & 16 are intercom audio.
Computer Interface 1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control.
Standards
SD Format Support 525i59.94 NTSC, 625i50 PAL
720p50, 59.94, 60
1080p23.98, 24, 25, 29.97,30, 50, 59.94, 60
1080PsF23.98, 24, 25, 29.97, 30
1080i50, 59.94, 60
2K Format Support 1080p23.98, 24, 25
1080PsF23.98, 24, 25
2K 23.98PsF, 24PsF, 25PsF
HDMI Format Support 525i59.94 NTSC, 625i50 PAL
720p50, 59.94, 60
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF23.98, 24, 25, 29.97, 30
1080i50, 59.94, 60
SDI Compliance SMPTE 259M, SMPTE 292M.
Audio Sampling Television standard sample rate of 48Khz, 24 bit A/D conversion.
Video Sampling 4:2:2.
Color Precision 10-bit
Color Space REC 601, REC 709
Multiple Rate support SDI and HDMI are switchable between between standard definitlon and high definition
Software
Software Included Converter Utility.
Physical Specifications
Width 7.99 in
Height 1.73 in
Depth 4.76 in
Weight 1.64 lb
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non-condensing


Price: AED 2,374*
*Prices are excluding VAT

Operating Systems
  • Mac
    Mac 10.11 El Capitan,
    Mac 10.12 Sierra or later
  • Windows
    Windows 8.1 or Windows 10

Power Requirements
  • Power Supply
    12V power supply included with international socket adaptors for all countries
