ATEM 2 M/E Advanced Panel
Product Highlights
- Control Panel for ATEM Switchers
- 2 M/E rows with 20 input buttons and 2 independent system control LCDs for each row
- each row can control up to 4 M/Es in larger switchers
- Programmable Color-Backlit Buttons
- Both rows and all input buttons include LCDs for custom labeling
- Each row also includes an independent select bus
- Overview
- Tech Specs

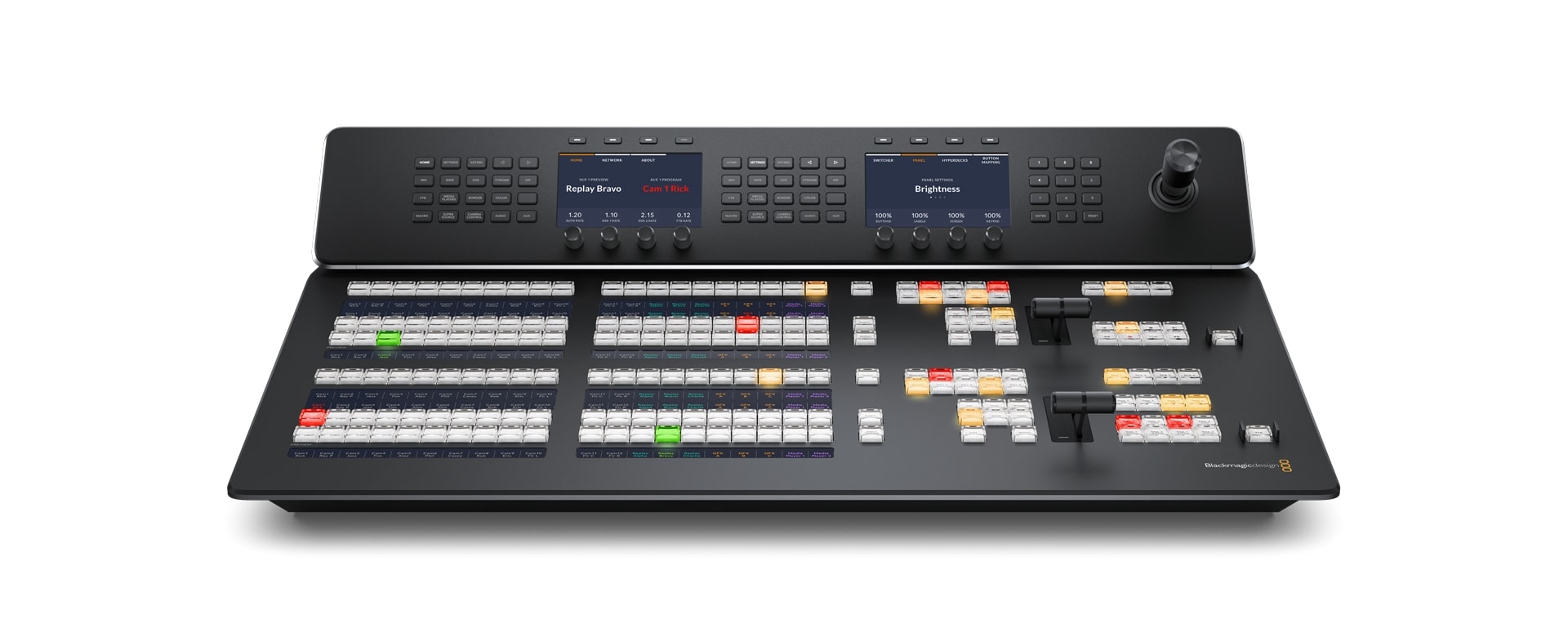

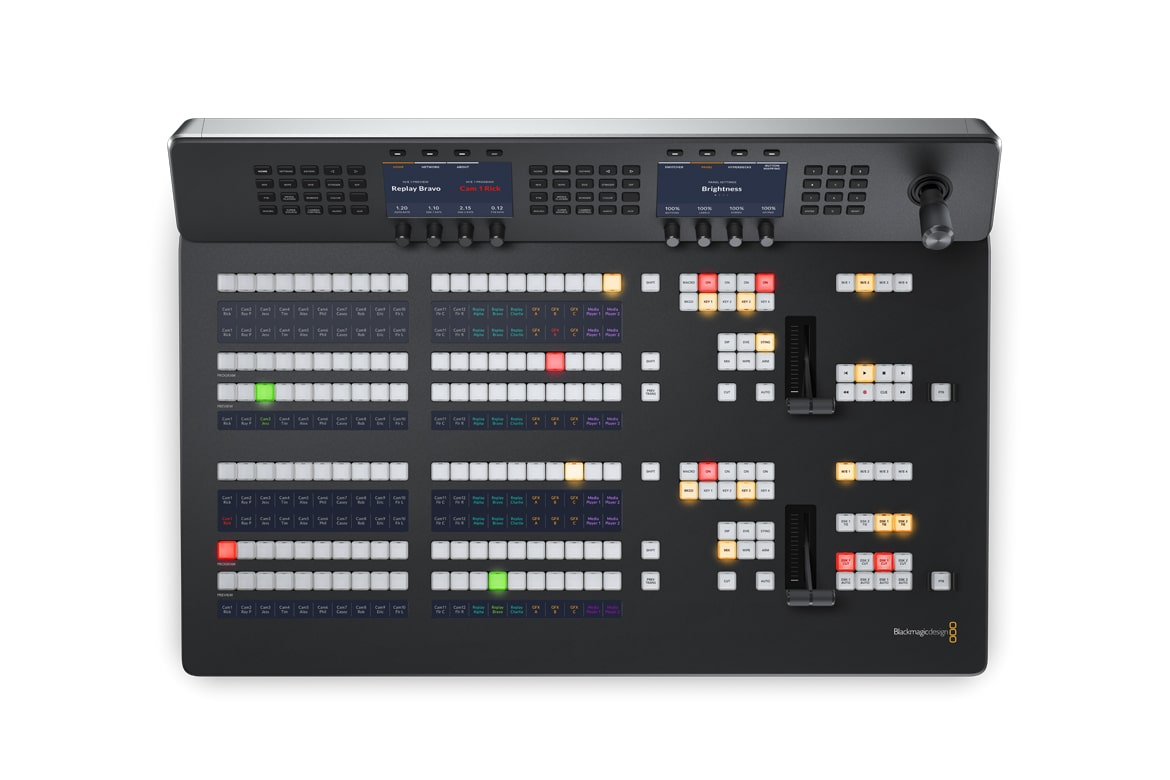

The 2 M/E model features 2 M/E rows with 20 input buttons and 2 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!

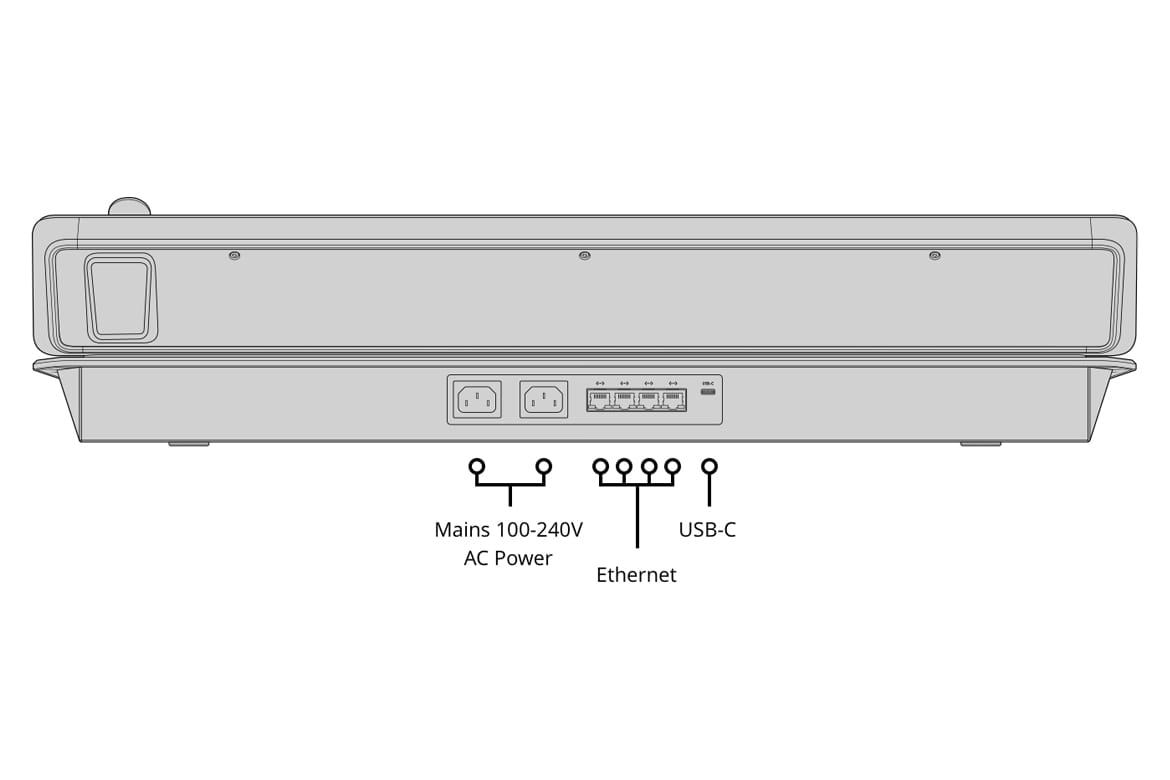

| Connections | |
| Ethernet | 4 x 10/100/1000 BaseT with loop output for additional control panels or computers. |
| Software Updates | 1 x USB-C for firmware updates. |
| Product Specifics | |
| Number of Mix Effects Rows | 2 |
| Direct Cross Points | 20 |
| Shifted Cross Points | 40 |
| Crosspoint Button Type | Tri-Color LED. |
| Crosspoint Label | 6 rows 24 character LCD |
| Next Transition Selectors | 2 x BKG, Key 1 - Key 4. |
| On-Air indicator | 8 |
| Power Status Indicators | None |
| DSK Transition Selectors | Auto, Cut, Tie/Preview x 2 |
| Preview Transition | 2 |
| Transition Rate Displays | Via main menu |
| LCD Menu Displays | 2 |
| Menu Control | 20 buttons x 2 |
| Dedicated Macro Buttons | 2 x 20 |
| Transport Control Buttons | 8 |
| Destination Bus | 2 |
| Source Select Bus | 2 |
| Fader Bar | 2 |
| 3 Axis Joystick | 1 |
| Numeric Keypad | 1 |
| Software | |
| Software | ATEM Software Control Panel. |
| Physical Specifications | |
| Width | 725 mm |
| Depth | 485 mm |
| Height | 150 mm |
| Weight | 11 kg |
| Environmental Specifications | |
| Operating Temperature | 0-40 degrees celsius |
| Storage Temperature | -20 - 60 degrees celsius |
| Relative Humidity | Up to 95% |
Product Highlights
- Mac
Mac 10.14 Mojave,
Mac 10.15 Catalina or later - Windows
Windows 10, 64-bit.
Power Requirements
- Input Voltage
2 x Internal 100 - 240V AC. - Redundant Power
Yes - Power Usage
150W
