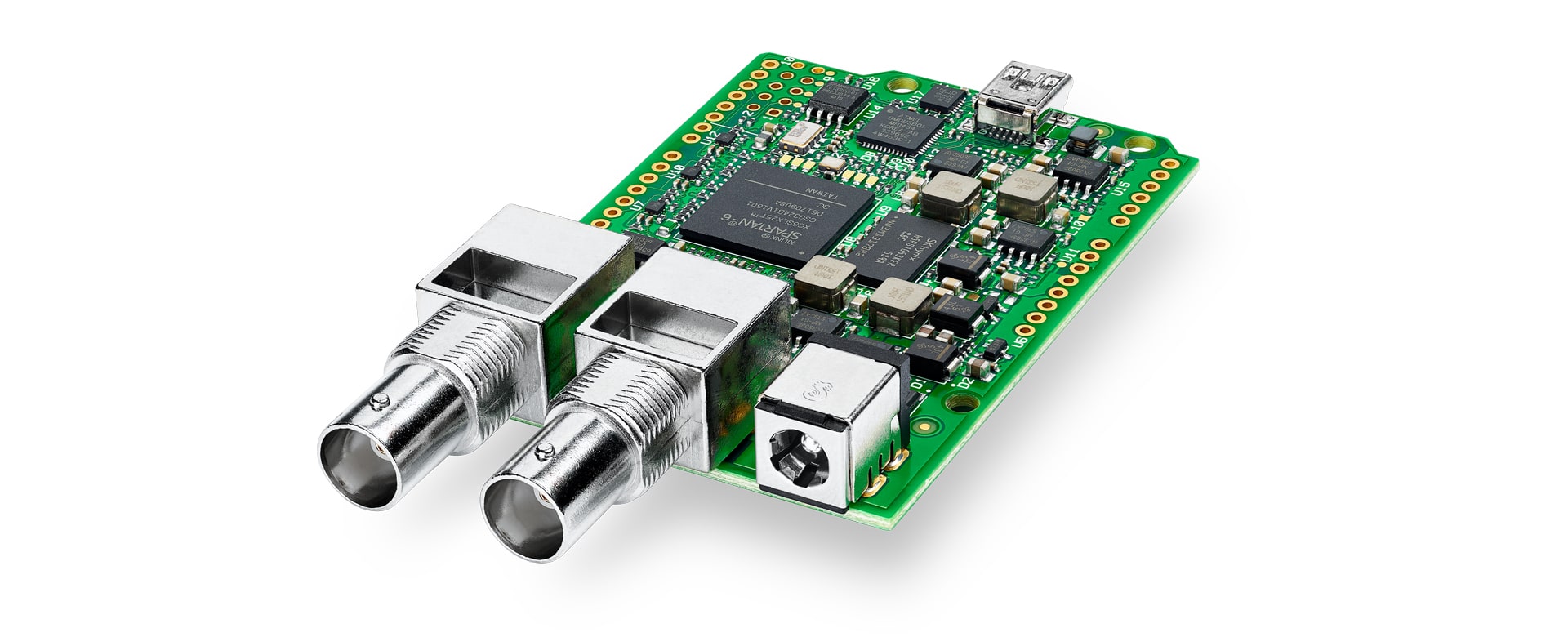

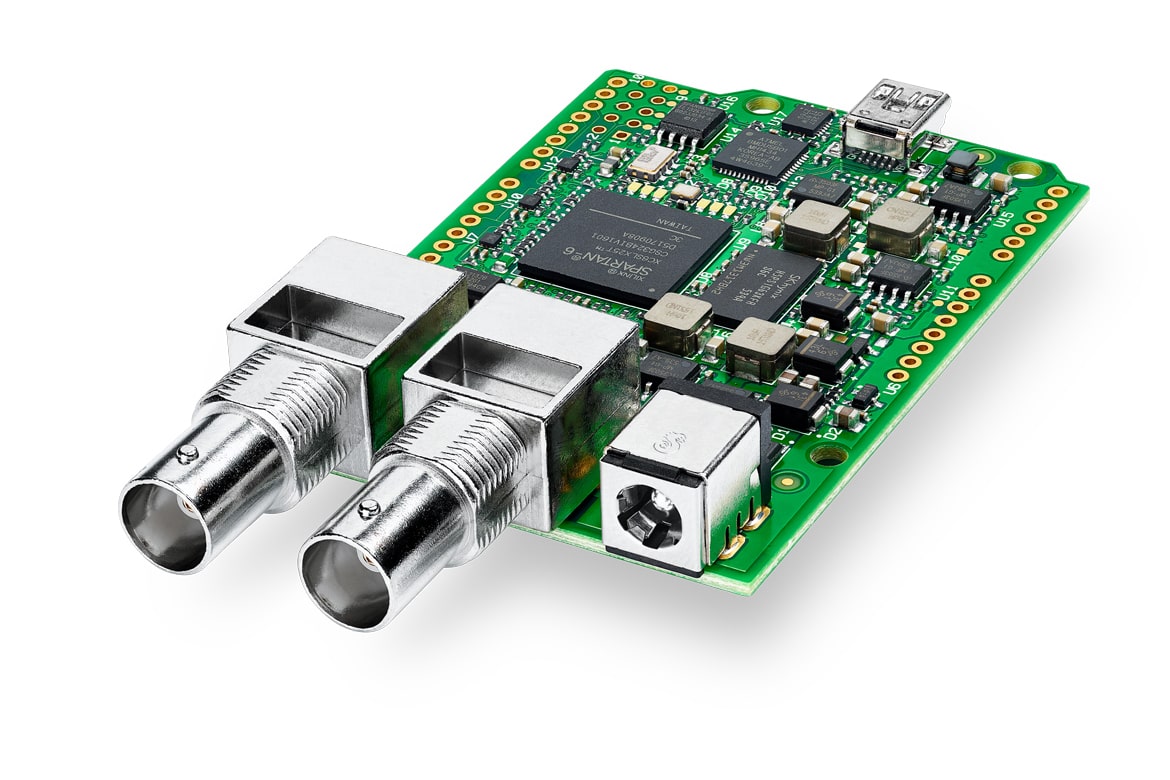

Blackmagic 3G-SDI Shield for Arduino

Now you can control Blackmagic Design cameras by inserting control commands into the SDI feed from an Arduino!
Product Highlights
  • Programmable Camera Controller
  • Open-Source Arduino Platform
  • Control Camera Over SDI Program Return
  • Compatible with BMD Studio Cameras
  • Adjust Gain, Detail, Shutter, Zoom
  • Adjust Focus, Iris, Pedestal
  • Color Corrector
  • Program Using Arduino IDE
  • Requires Arduino Controller
  • Works with Other I2C BUS Controllers

  • Overview

The Blackmagic 3G-SDI Shield for Arduino is an Arduino expansion board or “shield” that makes it possible for anyone to develop their own custom control solutions for Blackmagic Design cameras. UNO boards made by Arduino, Adafruit, Sparkfun, Freetronics and Seeedstudio are popular low cost open source micro controller platforms used by developers and enthusiasts. The Blackmagic 3G-SDI Shield for Arduino attaches to these platforms and then supports inserting camera control commands into the 3G-SDI link to the camera. This means all Blackmagic Studio Cameras and URSA Mini can now be controlled remotely via Arduino code and you can design and build your own custom CCU or broadcast automation solutions!

Price: AED 401*
*Prices are excluding VAT

Product Highlights
  • Programmable Camera Controller
  • Open-Source Arduino Platform
  • Control Camera Over SDI Program Return
  • Compatible with BMD Studio Cameras
  • Adjust Gain, Detail, Shutter, Zoom
  • Adjust Focus, Iris, Pedestal
  • Color Corrector
  • Program Using Arduino IDE
  • Requires Arduino Controller
  • Works with Other I2C BUS Controllersc
