BirdDog 4K QUAD

BirdDog 4K QUAD

BirdDog
Product Highlights
  • Up to UHD 4K/60 Input
  • Full-Bandwidth I-Frame Compression
  • 4 x 12G-SDI Selectable Inputs/Outputs
  • HDMI 2.0 Output
  • 3.5mm Audio Input/Output
  • Built-In Cross Converter
  • SFP+ Expansion Slot
  • Tally Light; Select Tally on Loop Out
  • PoE+ Support
  • Comms Lite Intercom Software (Windows)

  • Overview
  • Tech Specs

Four channels of 12G SDI to 4Kp60 NDI Encoding and Decoding

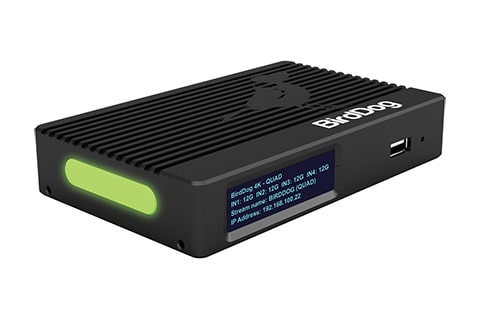

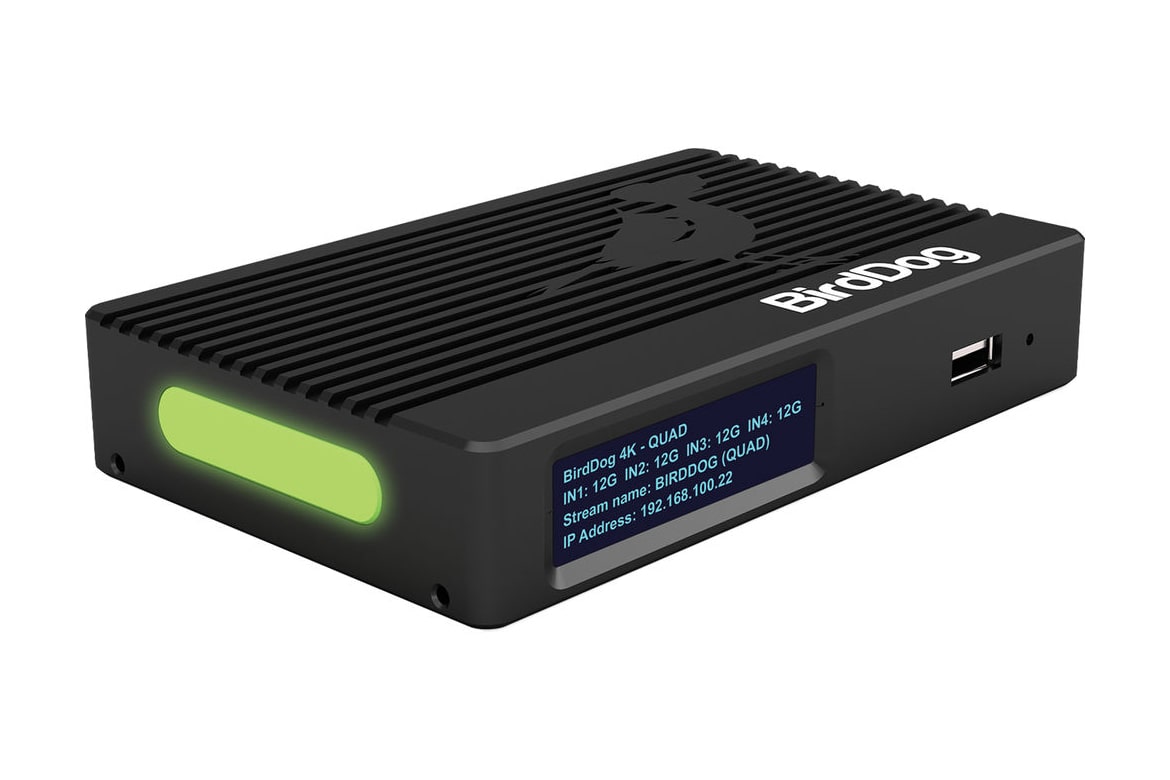

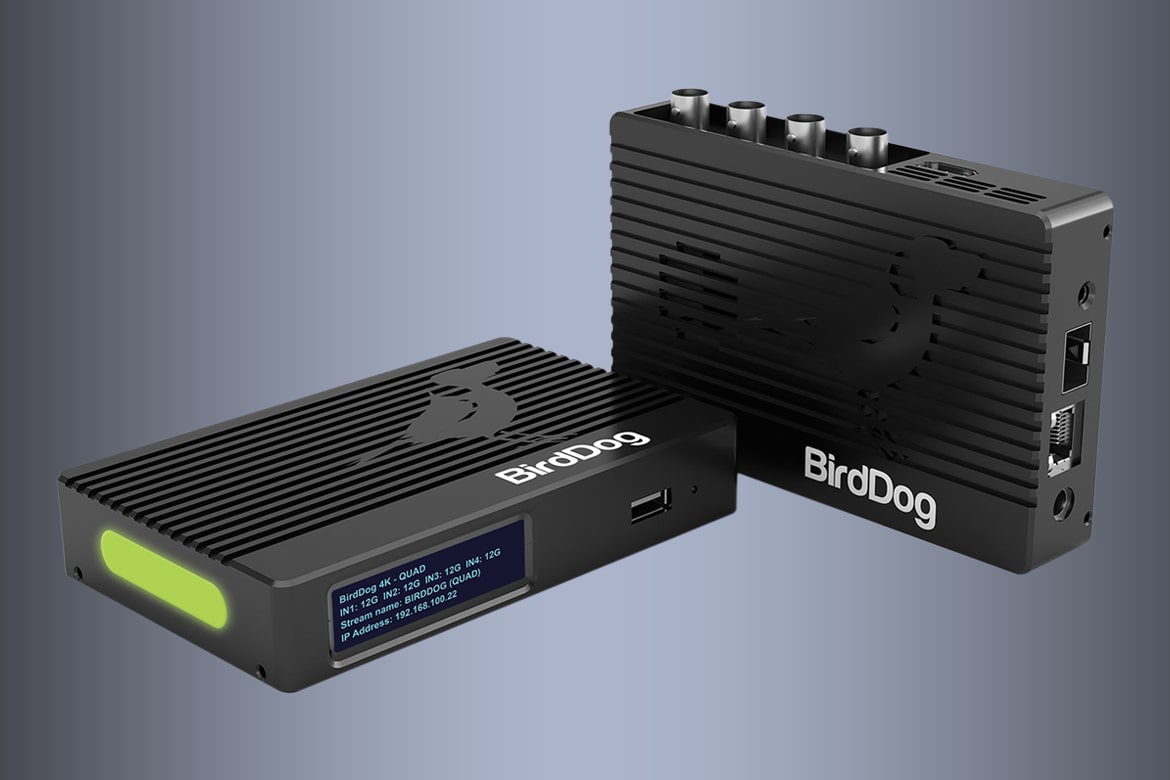

The BirdDog 4K Quad NDI Encoder/Decoder supports up to UHD 4K/60 video input for distribution on NDI networks in full-bandwidth I-frame compression. This compact device is housed in an aircraft-grade aluminum case and features four 12G-SDI selectable inputs/outputs and an HDMI 2.0 output. It also has a built-in cross converter that allows an SDI input to be looped out via the HDMI output.

Another major feature is an SFP+ expansion slot that supports SFP+ modules for fiber connectivity and Ethernet protocols from 1-10GbE. A Tally system with a large bi-color Tally light is also built for indicating which camera is live to on-air talent. The Tally system also allows user-selectable Tally borders on loop out. The device is complete with 3.5mm audio input/output, a 4-line OLED display, and USB 3.0 interface. It can be powered by a standard power supply or over PoE+.

The 4K Quad NDI Encoder/Decoder comes with the BirdDog Comms Lite audio intercom software, which supports up to four BirdDog devices. Comms Lite is Windows compatible and offers features such as Director Push-to-Talk, Mute Camera Operator, Auto Detect NDI Sources, Monitor Camera Audio, and Shortcut to Web Console. For a more complete version of the application, an optional upgrade is available to Comms Pro. The Encoder/Decoder is also compatible with the optional BirdDog Central software, which helps you decode NDI back to SDI or HDMI.


Price: AED 8,078*
*Prices are excluding VAT

Input
Input Video Format SDI
UHD 4K: 23.98/25/29.97/30/50/59.94/60 fps
1080p: 23.98/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94 fps
720p: 50/59.94/60 fps
Audio Input Connectors 1 x 1/8" / 3.5 mm TRS
Embedded Audio Input SDI: 2-Channel
Output
Video Output Connectors 1 x HDMI (HDMI 2.0)
Output Video Format SDI
UHD 4K: 23.98/25/29.97/30/50/59.94/60 fp
1080p: 23.98/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94 fps
720p: 50/59.94/60 fps

HDMI
UHD 4K: 23.98/25/29.97/30/50/59.94/60 fpss
1080p: 23.98/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94 fps
720p: 50/59.94/60 fps
Audio Output Connectors 1 x 1/8" / 3.5 mm TRS Stereo
Embedded Audio Output SDI: 2-Channel
HDMI: 2-Channel
Connectivity
Shared Video Input/Output Connectors 4 x BNC (12G-SDI) (Switchable)
Other I/O 1 x USB Type-A PoE
Expansion Slots 1 x SFP+ Slot
Hardware
Tally Light Yes
Power
Power Connector 1 x Barrel (12 VDC) Input
1 x RJ45 Input
PoE Support PoE+ 802.3at
Power Consumption Device: 16 W


Price: AED 8,078*
*Prices are excluding VAT

Dimensions
  • 5.31 x 3.35 x 0.98" / 13.5 x 8.5 x 2.5 cm

Weight
  • 0.7 lb / 320 g
