Apogee Symphony I/O Mk II Thunderbolt (8X8+8MP)
- Overview
- Tech Specs

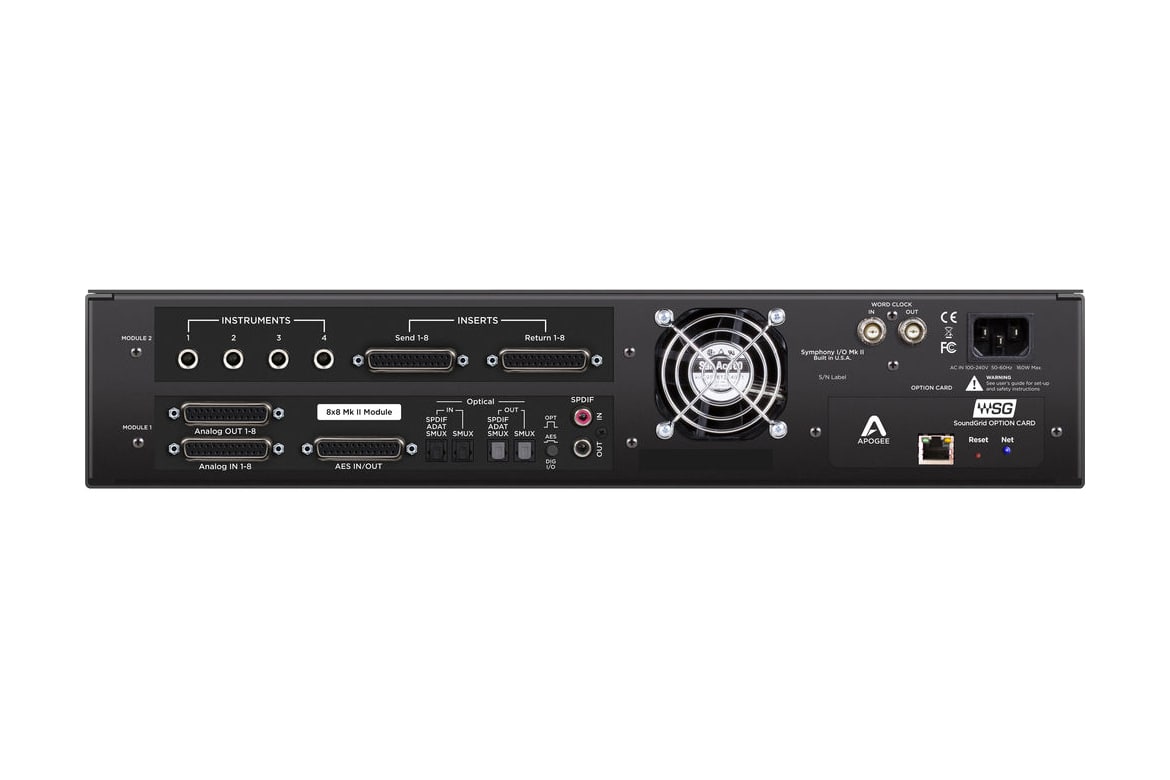

The Apogee Electronics Symphony I/O Mk II SoundGrid Chassis with 8x8 Analog I/O, 8x8 Digital I/O, and 8 Microphone Preamps is a SoundGrid-compatible audio interface designed to deliver flexible inputs and outputs and Ethernet connectivity to computers and SoundGrid devices for recording and mixing engineers in broadcast, post-production, studio, and live stage applications. The included I/O card provide eight channels of analog inputs and outputs via DB25 connectors, eight channels of AES/EBU and optical digital I/O, and stereo S/PDIF. Additionally, the A8MP card grants you eight high-gain microphone preamplifiers, four 1/4" Hi-Z inputs, and eight insert sends and returns.

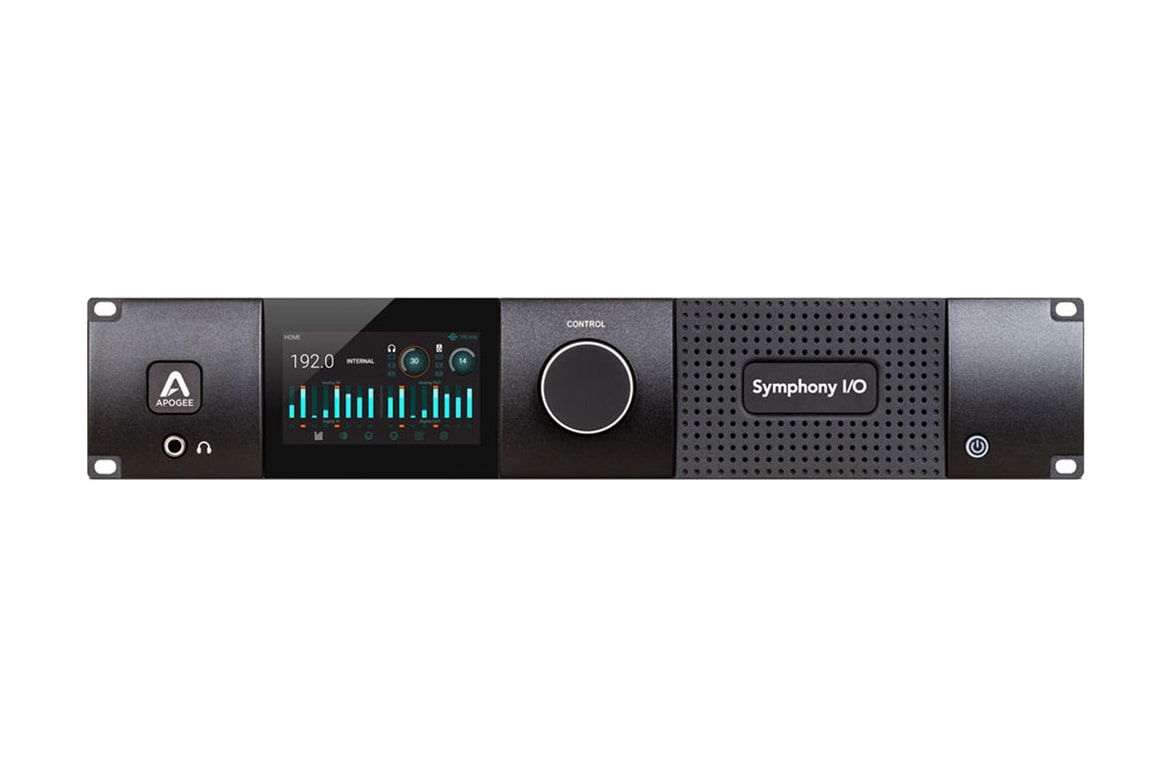

Its RJ45 port and BNC word clock I/O ensure simple hook-up of SoundGrid compatible devices, and the stereo 1/4" headphone jack enables efficient and consistent monitoring with headphones of varied impedances. Ultra-low latency operation allows for A/D and D/A conversion without distracting delay. Connect a SoundGrid server (available separately) to record and mix with your SoundGrid-compatible plug-ins without taxing your computer's CPU. Configure and control the Symphony via the free SoundGrid Studio app or utilize the color touchscreen display and large rotary control on the front panel.
Analog to Digital
ADC | THD+N: -114 dB @ 22 dBu (0.00020%) Dynamic Range: 122 dB (A weighted) Maximum Input Levels: +4 dB Setting: +24 dBu -10dB Setting: +6 dBV Frequency Response at 44.1 kHz: 1 Hz to 20 kHz (±0.05 dB) Input impedance: 10 kOhms |
Digital to Analog
DAC | THD+N: -117 dB @ 21 dBu (0.00014%) Dynamic Range: 129 dB (A weighted) Max Output Levels: -∞ to +24 dBu Frequency Response at 44.1 kHz: DC to 20 kHz (±0.05 dB) Output Impedance: 25 Ohms Outputs are balanced through Apogee's proprietary Perfect Symmetry Circuitry (PSC) |
Headphone Output
Headphone | Stereo Headphone Output (Front Panel): 1/4" / 6.35 mm THD+N: -110 dB @ 19 dBu into 600 Ohm (=80 mW) -101 dB @ 14 dBu into 32 Ohm (=470 mW) Dynamic Range: 121 dB (A weighted) Output: Apogee's proprietary Constant Current Drive provides smooth frequency response with any headphones |
System Requirements
System Requirements | Computer: Thunderbolt-equipped Mac Memory: 4 GB RAM minimum, 8 GB RAM recommended OS X 10.9.5 or greater Thunderbolt cable (sold separately) |
General Specifications
Power | 90 to 240 VAC, 50/60 Hz, 150 W |
Dimensions (W x D x H) | Without Rack Ears: 17.8 x 11.5 x 3.5" / 450.9 x 292.1 x 88.9 mm With Rack Ears: 19.0 x 11.5 x 3.5" / 482.6 x 292.1 x 88.9 mm |
Weight | Not specified by manufacturer |
Product Highlights
- Ethernet Interface Connectivity
- Ultra-Low Latency
- DB25 Analog I/O and 1/4" Hi-Z Inputs
- 8 x Mic Pres, Multi-Format Digital I/O
- Compatible with SoundGrid Servers
- Control via SoundGrid Studio App
- Stereo 1/4" Headphone Jack
- Color Touchscreen Display
- Large Front-Panel Control
