Apogee ONE
Apogee

ONE

The Swiss Army Knife for Personal Recording and Audio Production
Product Highlights
  • 2 Inputs and 2 Outputs
  • Built-In Omni-Condenser Microphone
  • Preamp for External Microphone
  • 48V Phantom Power
  • Maestro Software
  • 24-Bit / 96 kHz AD/DA Conversion
  • USB 2.0
  • Mac OS X

  • Overview
  • Tech Specs

Apogee ONE is an all-in-one portable, USB audio interface that gives you everything you need to make professional recordings on the go. Connect a microphone, guitar or use ONE’s exceptional built-in omnidirectional microphone to easily capture your music without compromise. ONE even lets you record with a microphone (built-in or external) and guitar simultaneously. Using Apogee’s industry-leading AD/DA conversion and mic preamp technology, ONE produces pristine music, podcast, and voice-over recordings while also delivering studio quality sound to your headphones for precision mixing or hi-fi listening. With an intuitive controller knob and seamless compatibility with macOS and Windows, ONE is easy for anyone to use.

Compatibility Mac OS X
AD/DA Conversion 24-bit

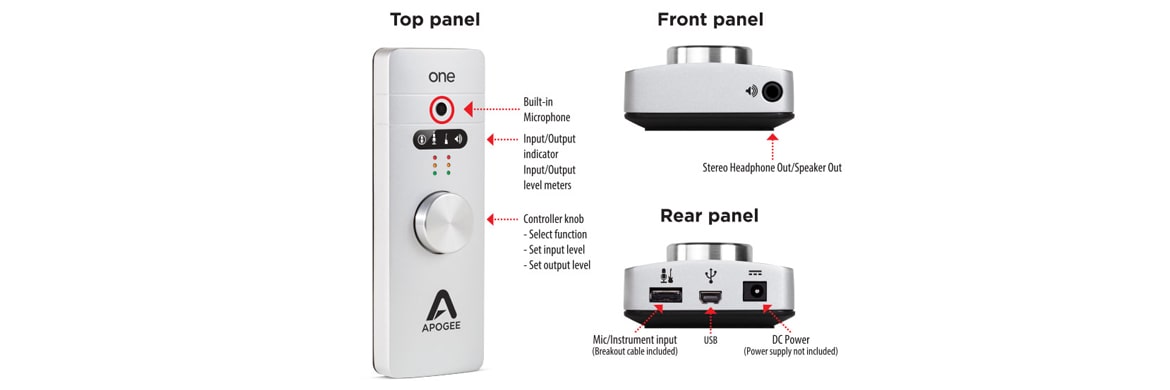

Connectors 1 x breakout cable connector
1 x mini-USB port (USB 2.0)
1 x 3.5 mm (1/8") audio output
1 x barrel-type power port (for optional DC power supply)
Built-In Microphone Omnidirectional condenser microphone in specially tuned enclosure
Analog Input 1 x built-in microphone
1 x XLR microphone input (on breakout cable)
1 x 1/4" hi-Z instrument input (on breakout cable)
Analog Output 1 x 3.5 mm (1/8") stereo output for headphones or powered speakers
Mic Input Gain: 0 to 62 dB
Maximum Input Level: 14 dBu
Hi-Z Input Gain: 0 to 45 dB
Maximum Input Level: 14 dBu
Headphone Out Maximum Output: 14 dBu (3.9 VRms)
Power Requirements Bus powered; optional DC power supply (available separately)
Mac System Requirements Intel Mac 1.5 GHz or faster
OS X 10.6.8, 10.7.5, or greater
2 GB RAM minimum, 4 GB recommended
Available USB port for data and power
Compatible Software Any Mac Core Audio-compatible application
Recommended Apps: Logic Pro, GarageBand, MainStage, Final Cut, Pro Tools, Ableton Live, Digital Performer, Studio One, Cubase, and Nuendo
Construction Die-cast aluminum body
Molded rubber base

Compatible Software
    Mac
  • Any Mac Core Audio compatible application or DAW
  • Recommended apps: Logic, GarageBand, MainStage, Final Cut, Pro Tools, Ableton Live, Digital Performer, Studio One, Cubase, and Nuendo

  • Windows
  • Any ASIO compatible application or DAW
  • Recommended apps: Ableton Live, Pro Tools, Studio One, Cubase
