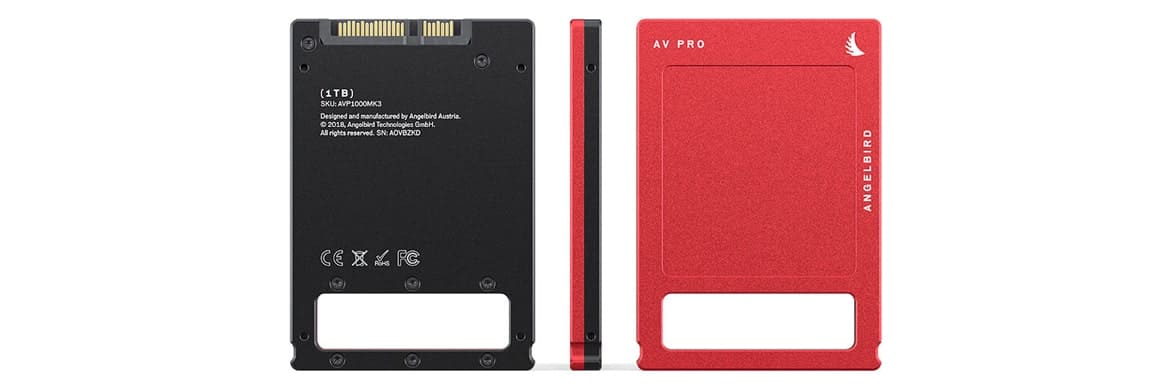

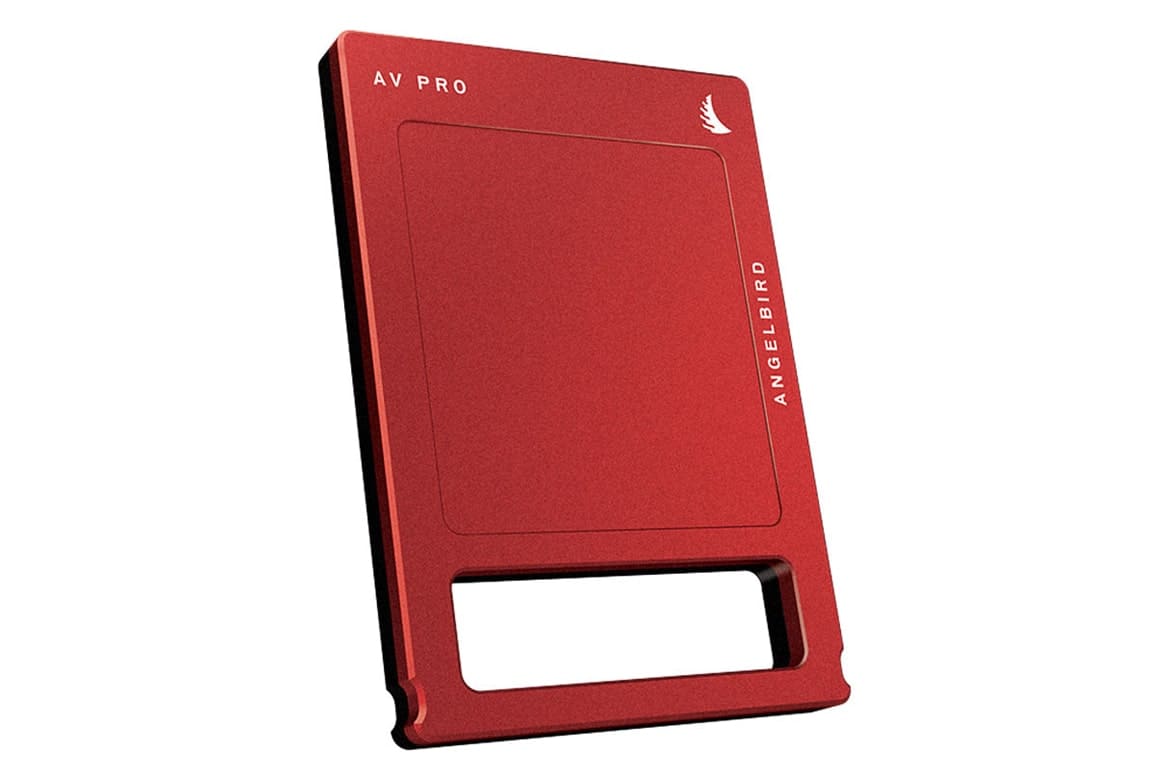

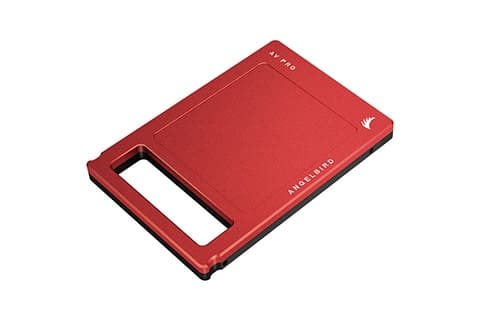

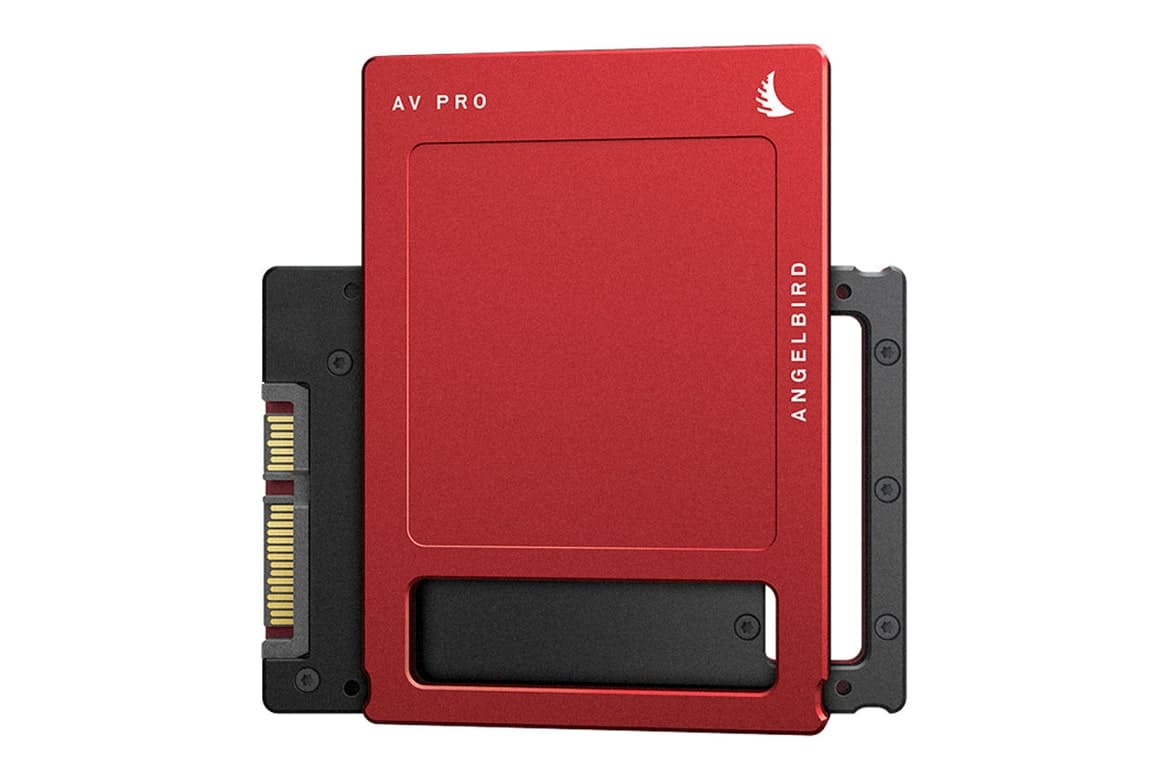

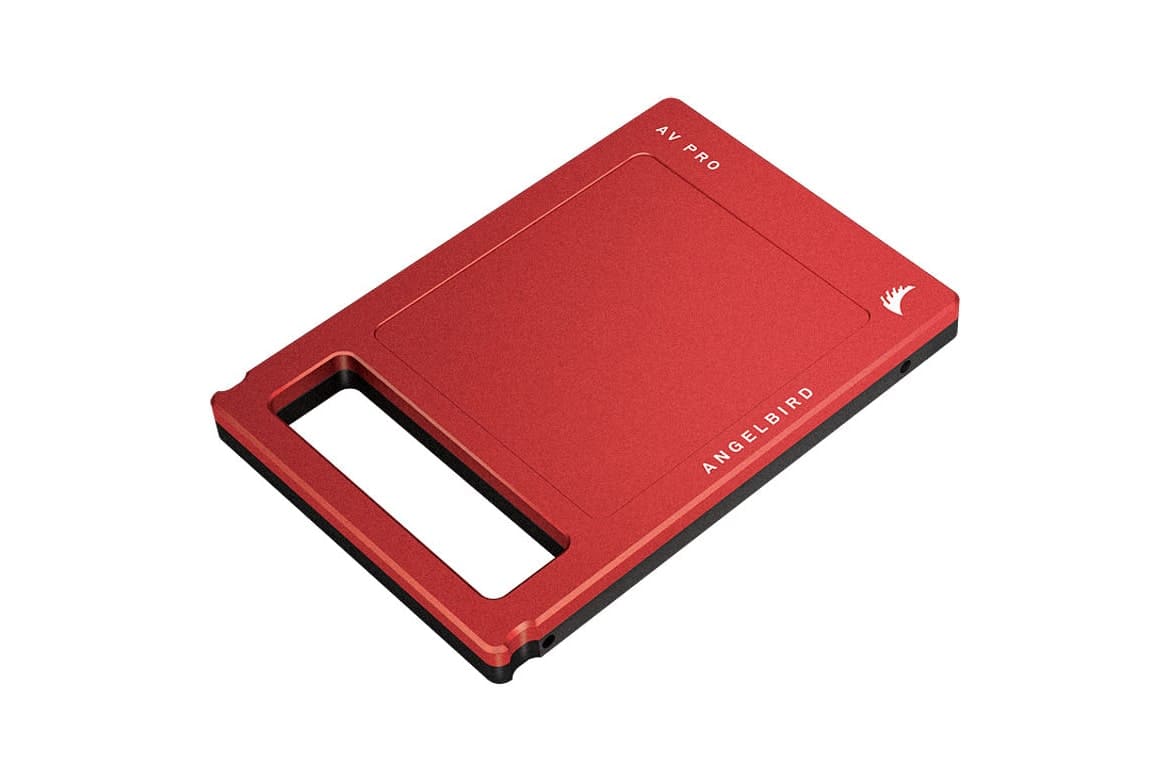

Angelbird AV PRO MK3 1TB
Professional SSD designed for your demanding Audio and Video tasks!
Product Highlights
- Read Speed up to 560 MB/s
Write Speed up to 520 MB/s - 500 GB
- Solid Grip™
- ESD & Overload Protection
- Stable Stream™
- X-Ray & Magnetic Proof
- Shock & Temperature Proof
- Rock-Solid Build
- Overview
- Tech Specs
Designed for photo, audio, and video professionals who require reliable, high-performance storage for their cameras, recorders, and players, this AVpro MK3 SATA III SSD from Angelbird is a 2.5" internal solid-state drive that has a capacity of 1TB and fits into the 9mm drive bay of your compatible system. It is certified for use with Blackmagic Design products and provides sustained read speeds of up to 560 MB/s, sustained write speeds of up to 500 MB/s, and access times of approximately 0.1 ms. In addition to its audio/video use, this SSD may be used to store and quickly access files such as music, movies, photos, documents, and more.
With solid-state drive technology, you benefit from load and access times for your files and programs that are faster than those of a conventional 7200 rpm hard drive. As SSDs have no moving parts, they are also more durable than traditional hard drives and are better protected against damage from drops and bumps. Having no moving parts also means that SSDs receive less wear and tear, as there are no read or write heads for the drive media to come into contact with.
The 1TB AVpro MK3 2.5" Internal SSD features a SATA III 6 Gb/s interface that also works when connected to SATA II 3 Gb/s and SATA 1.5 Gb/s interfaces. It is designed to yield an MTBF of 2 million hours, ECC/EMS data reliability, 10 years of data retention at 77®F, and an endurance of up to 1200 TBW. Other features of the AVpro MK3 include an x-ray & magnetic proof design, TRIM support, S.M.A.R.T. monitoring, ESD & overload protection, and a temperature sensor.
General |
|
Capacity | 500 GB |
Form Factor | 2.5 in, 9 mm |
Performance |
|
Interface | SDXC™, SD 5.0, UHS-II |
Features | Write protection by mechanical switch, wear leveling, power management for low power usage, ECC, water resistant |
Performance |
|
SEQUENTIAL READ SPEED | 560 MB/s |
SUSTAINED READ SPEED | SPEED1540 MB/s |
SEQUENTIAL WRITE SPEED | 520 MB/s |
SUSTAINED WRITE SPEED | 480 MB/s |
ACCESS TIME (R/W) | ~ 0.1 ms |
Reliability |
|
MTBF | 2,000,000 hours |
DATA RELIABILITY | Built-in EDC / ECC function |
DATA RETENTION | 10 years at 25° |
ENDURANCE | up to 1,200 TBW |
CERTIFICATIONS | RoHS, FCC and CE compliant, REACH |
Electrical |
|
DC input voltage | 5 V ± 10% |
Power usage | 0.35 W | 3.0 W |
Technical |
|
INTERFACE | SATA 6 Gb/s, 3 Gb/s and 1.5 Gb/s supported SATA 3.1 compliant |
OVER PROVISIONING | ~ 9 % |
FEATURES | Temperature sensor, overload protection, TRIM, ECC, EMS protection, built-in cache, SMART |
Environmental |
|
SHOCK RESITANCE (OPERATING) | 150 G |
VIBRATION RESISTANCE (OPERATING) | 3.1 G |
Operating Temperature | 0 °C | 70 °C |
STORAGE TEMPERATURE | –55 °C | 85 °C |
OPERATING HUMIDITY | 5 % to 95 % non-condensing |
DIMENSIONS
- 100.2 × 69.9 × 9.2 mm (3.94 × 2.75 x 0.36 inch)
WEIGHT
- ~ 72.0 g / ~ 2.6 oz
