Angelbird AV PRO CF 512GB
Angelbird

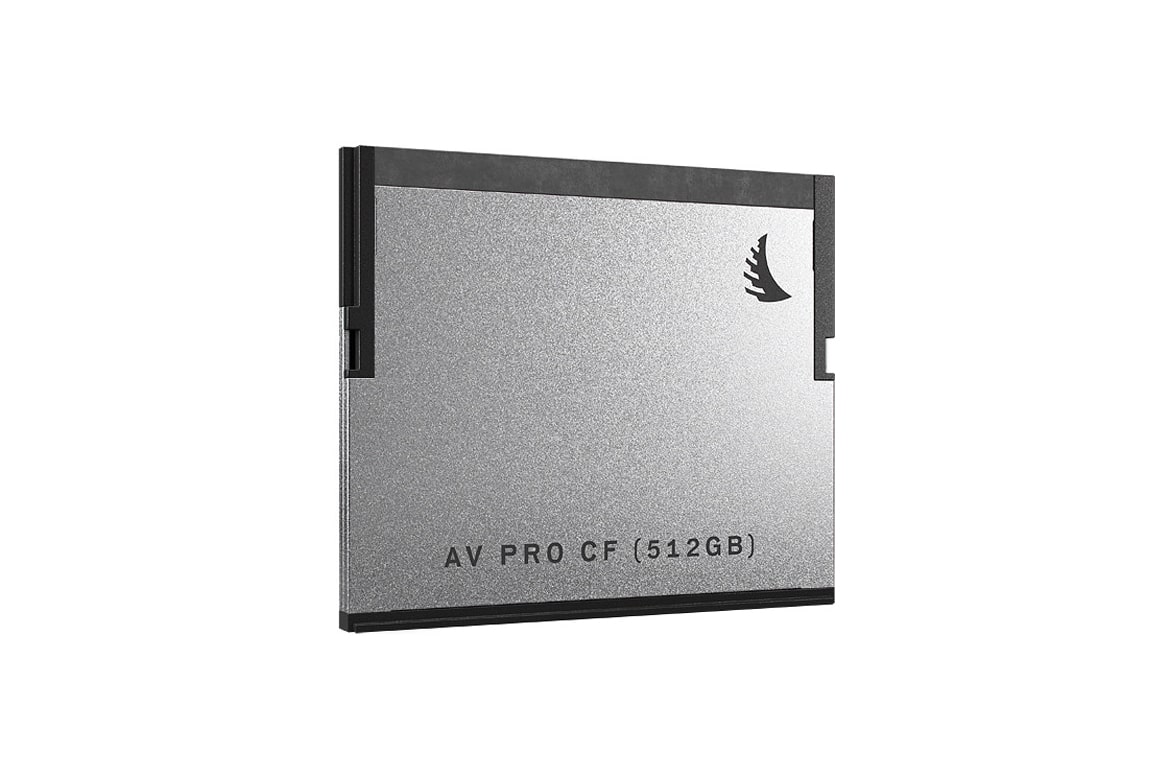

Angelbird AV PRO CF 512GB

CFast cards built for continuous shooting and 4k RAW video recording
Product Highlights
  • Read Speed up to 560 MB/s
    Write Speed up to 498 MB/s
  • 256 GB
  • CFast 2.0 Compliant
  • Stable Stream
  • X-Ray & Magnetic Proof
  • ESD & Overload Protection
  • Rock-Solid Build

  • Overview
  • Tech Specs

The 512GB AV Pro CF CFast 2.0 Memory Card from Angelbird is designed for use with Atomos, Blackmagic Design, Phantom, Canon, Hasselblad, and other devices that are compatible with the CFast 2.0 standard, which utilizes the SATA III 6 Gb/s interface. It features sustained read speeds of up to 540 MB/s, sustained write speeds of up to 450 MB/s, Stable Stream technology, over provisioning of ~7.6%, TRIM, EDC/ECC for data reliability, EMS protection, a built-in cache, SMART technology, an MTBF of 2.4 million hours.

This CFast 2.0 card has been built with protection against ESD overloads, x-rays, and magnets, as well as a shock resistance of 50 g, a vibration resistance of 3.1 g, and is able to withstand temperatures ranging from 32 to 158°F while operational, or -40 to 185°F while being stored. While being stored, it can also retain data for up to 10 years at 77°F. Included is a a media pouch that can hold six SD cards, four CFast or CompactFlash cards, and two XQD cards.

General
Capacity 512 GB
Form Factor CFast 2.0
Performance
SEQUENTIAL READ SPEED 560 MB/s
SUSTAINED READ SPEED 550 MB/s
SEQUENTIAL WRITE SPEED 498 MB/s
SUSTAINED WRITE SPEED 490 MB/s
Reliability
MTBF 2,400,000 hours
DATA RELIABILITY Built-in EDC | ECC function
DATA RETENTION 10 years at 25°
CERTIFICATIONS RoHS, FCC and CE compliant, REACH
Electrical
DC input voltage 3.3 V ± 5 %
Power usage 0.37 W | 2.55 W
Technical
INTERFACE CFast 2.0 compliant
OVER PROVISIONING ~ 7.6 %
FEATURES Temperature sensor, TRIM, ECC, EMS protection, Built-in chache, SMART
Environmental
SHOCK RESITANCE (OPERATING) 50 G
VIBRATION RESISTANCE (OPERATING) 3.1 G
Operating Temperature 0 °C | 70 °C
STORAGE TEMPERATURE –55 °C | 85 °C
OPERATING HUMIDITY 5 % to 95 % non-condensing

Dimensions
  • 42.8 × 36.4 × 3.3 mm (1.69 × 1.43 x 0.13 inch)

Weight
  • ~ 10.0 g | ~ 0.35 oz
