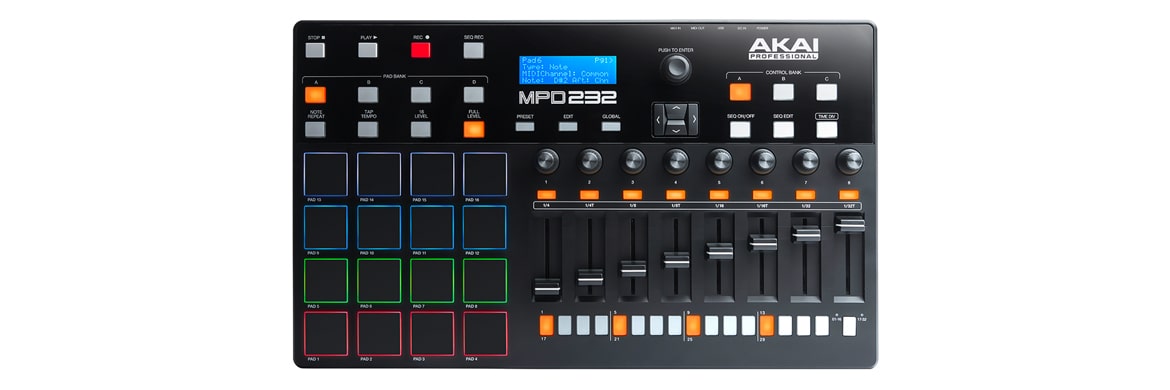

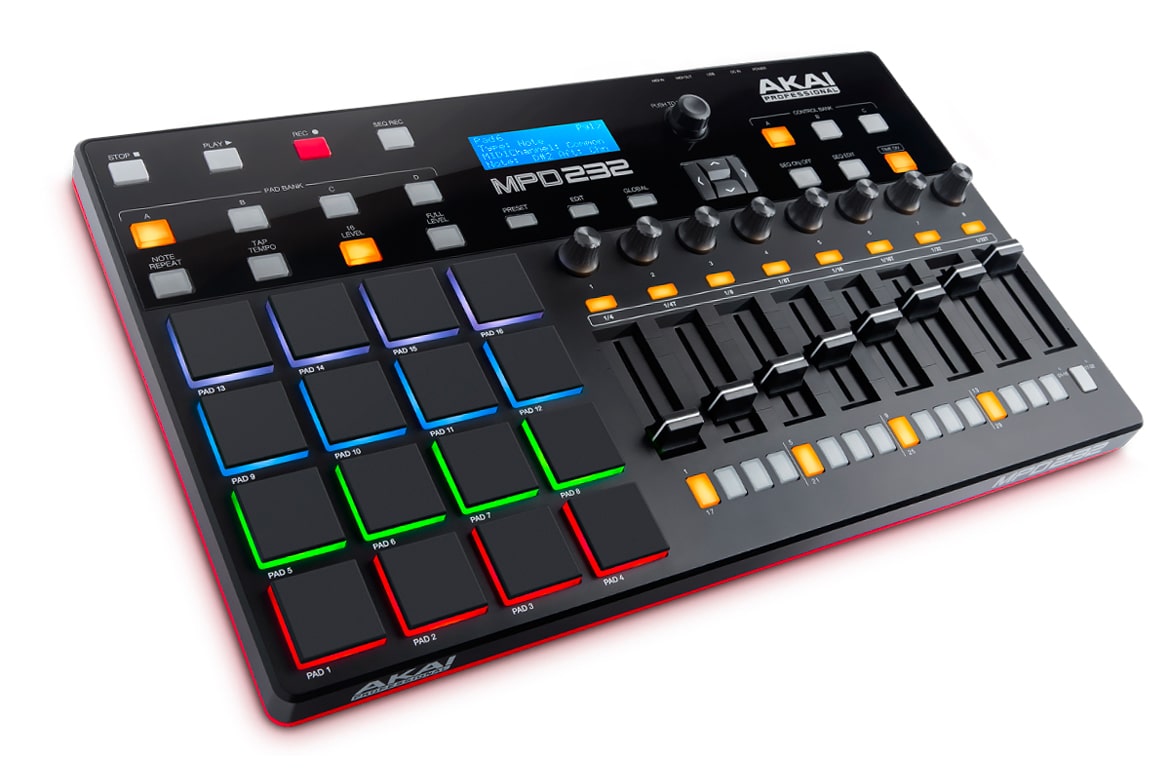

MPD232
Feature-Packed, Highly Playable Pad Controller
Product Highlights
- 64 Channels, 32-Step Sequencer

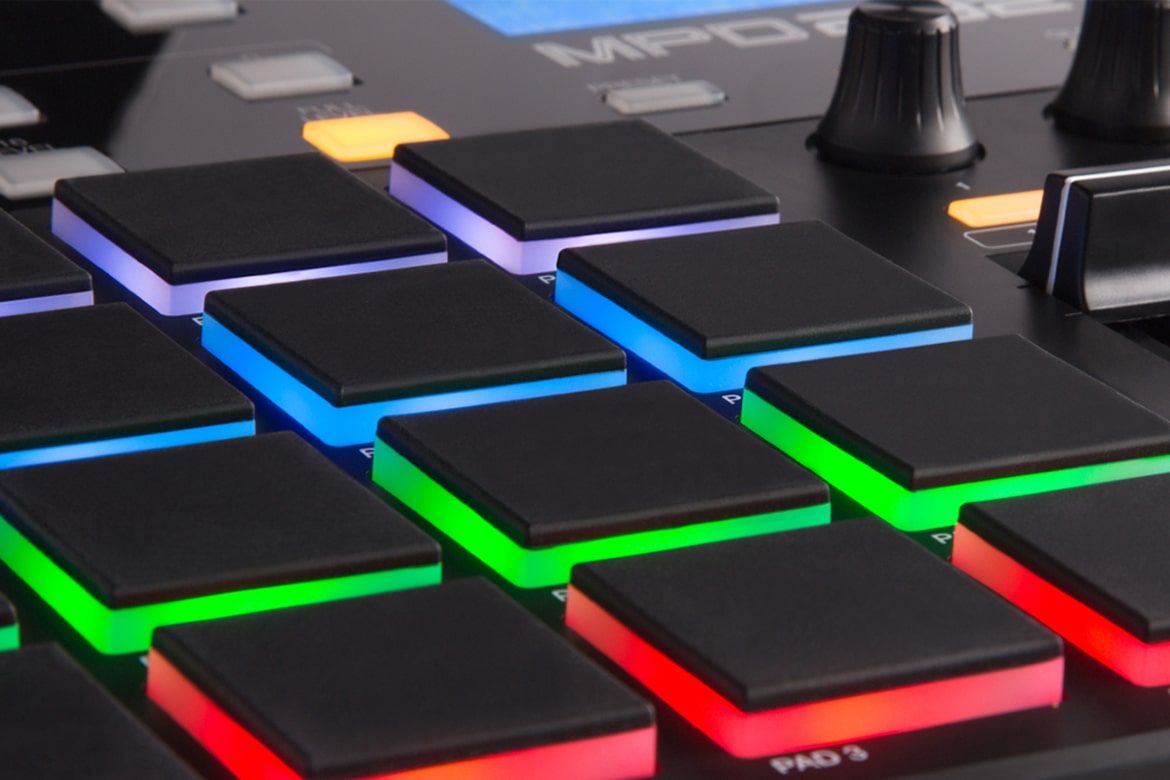

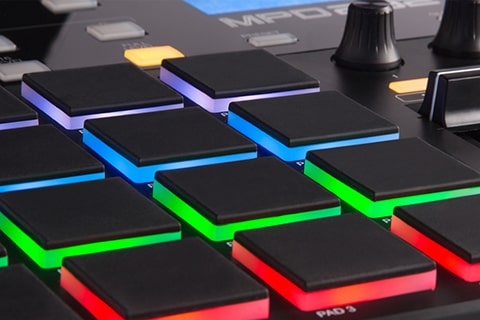

- 16 x Thick Fat RGB-Backlit MPC Pads
- 8 x Assignable Q-Link Knobs
- 8 x Assignable Q-Link Switches
- 8 x Assignable Faders
- 72 x Assignable Controls via Three Banks
- Classic MPC Note Repeat, MPC Swing
- Dedicated Transport Controls
- MIDI In & Out Jacks
- Software Package Included
- Overview
- Tech Specs
The MPD232 is a MIDI-over-USB pad controller perfect for producers, programmers, musicians and DJs alike. Its intuitive blend of MPC controls and technologies mesh with easy USB connectivity to bring the feel of classic beat making into the world of computer music production.
Experience the Difference
First, we stepped up our game by adding new, ultra sensitive Thick Fat MPC pads, creating an amazingly responsive user experience. The MPD232 has an expanded control set featuring eight knobs, eight faders, eight buttons arranged in three banks for 72 total controls. This will enable you to maximize your sound and give you increased control over effects.
The MPD232 also boasts an all-new 64-channel, 32-step performance sequencer, which the MPD32 did not have. MIDI information is sent over its plug-and-play USB interface for use on Mac or PC, eliminating the need to install any drivers.
| Pads | 16 x velocity- and pressure-sensitive pads, RGB-backlit 4 x banks accessible via Pad Bank buttons |
| Controls | 8 x 360° assignable knobs 3 x banks accessible via Control Bank buttons 1 x 360° encoder for display navigation and selection via push 8 x assignable switches, amber-backlit 17 x dedicated function buttons, amber-backlit 3 x transport buttons 4 x directional cursor buttons for display navigation 16 x step buttons, red-green-backlit 1 x step-sequencer Bank button with 2 red LEDs 1 x step-sequencer Record button, red-backlit |
| Faders | 8 x 45 mm assignable faders 3 x banks accessible via Control Bank buttons |
| Display | 20 x 4 characters, monochrome backlit with adjustable contrast |

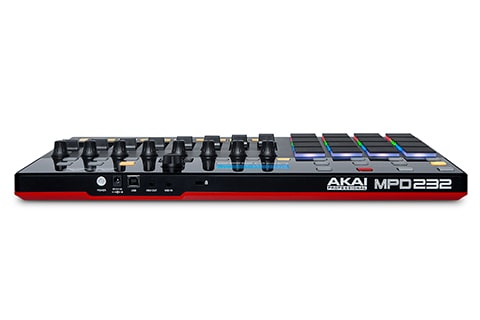

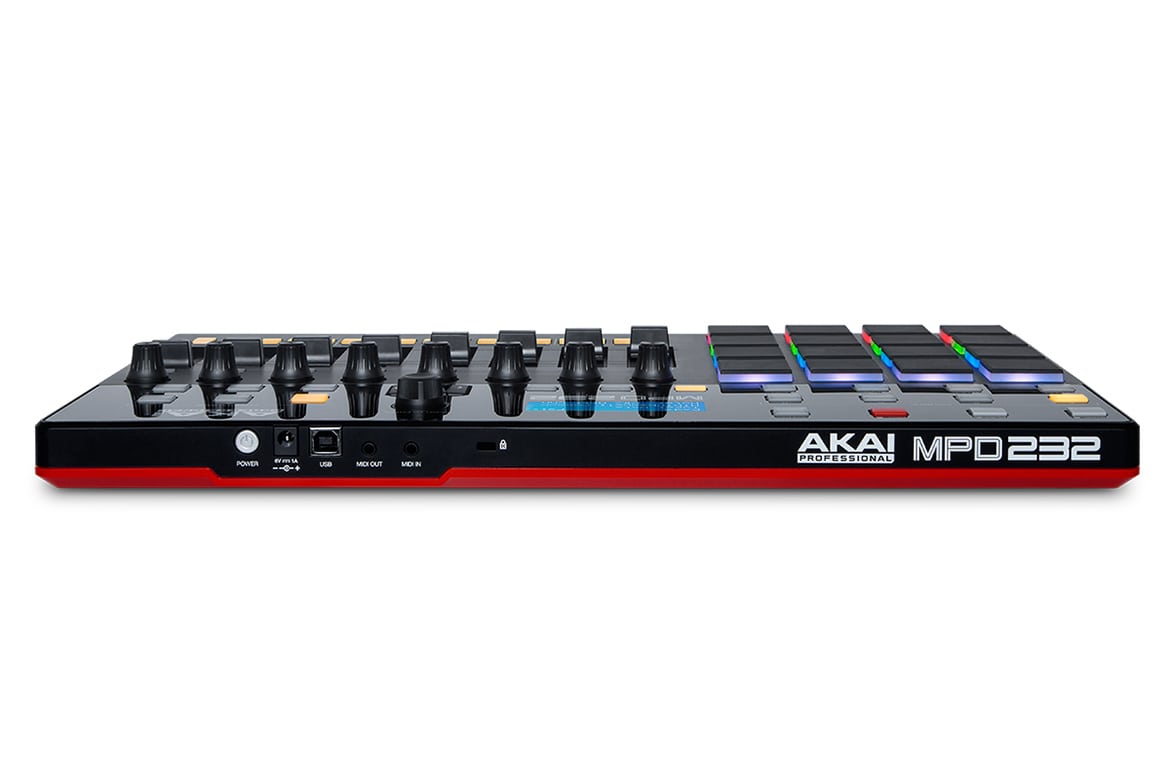

| Connections | 1 x USB port 1 x power input (power adapter available separately) 1 x 1/8" MIDI input (1/8" to MIDI adapter included) 1 x 1/8" MIDI output (1/8" to MIDI adapter included) 1 x Kensington lock slot |
| Power Source | USB charger (available separately) or USB bus Via power adapter, 6 VDC, 1 A, center-positive (available separately) |
| System Compatibility | Mac: 1.25 GHz G4/G5 or faster (Intel Mac recommended) 1 GB RAM (2 GB recommended) Mac OS X 10.4.11 (10.5 or later recommended) Windows: 1.5 GHz Pentium 4 Celeron-compatible CPU or faster (multicore CPU recommended) 1 GB RAM (2 GB recommended) Windows 8, 7, Vista, or XP Windows-compatible sound card (ASIO driver support recommended, QuickTime recommended) |
Dimensions (W x D x H)
- 16.6 x 10.0 x 1.9" / 42.2 x 25.4 x 4.8 cm
Weight
- 4.2 lb / 1.9 kg
