MPC X
The Studio Centerpiece
Product Highlights
- New graphical interface
- Audio track recording
- Real-time time-stretching and pitch-shifting
- Clip Program mode for clip launching workflow
- Reimagined mixer layout – resizable faders, an adaptive channel strip, a dedicated audio track
- Editing window, resizable waveform view
- Advanced signal routing capability - submixes, FX returns, multi-output plugin support
- More efficient and streamlined MPC workflow
- Audio and MIDI drag and drop
- Enhanced QLink Control
- Overview
- Tech Specs
Standalone Music Production Center with Sampler and Sequencer

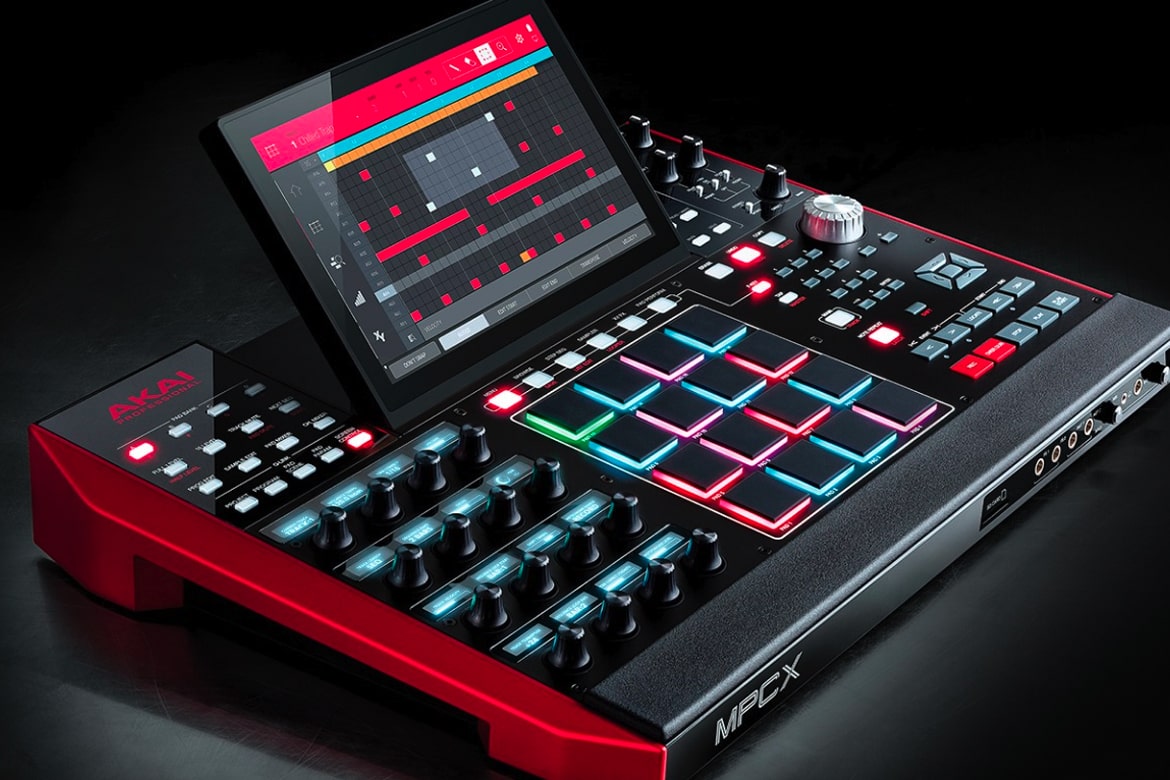

The MPC X is a powerful standalone music production workstation, complete with an integrated sampler, sequencer, 10" touch screen, 16 velocity-sensitive RGB-backlit pads and 16 endless encoder "Q-Link" controls, each with an OLED display.
IN THE MOOD FOR MODULAR
Control external analogue synth gear using the 8 built-in CV ports. These ports can be configured to send pitch, velocity, and gate CV to analogue synths, drum machines, etc. Automate knob movements, notes, gates and play it all back in time with the MPC. This makes the X one of the best modular sequencers available.
TOUCH IT, PLAY IT
Control every parameter using the 16 fully assignable, touch-capactive Q-Link knobs. With a dedicated OLED display above each 360° knob, you can easily see what parameter you’re tweaking and the current assigned value. The Q-Links are great for adding expressiveness to your tracks thru recording automation.
SOUNDS FOR DAYS
The MPC has a well-earned reputation for sounds that hit hard and sound great, right out of the box. The MPC X comes pre-installed with The Vault 2.0, 10GB of radio-ready sounds from the world’s top sound design companies as well as our own signature samples.
| Pads | 16 x Velocity- and pressure-sensitive pads, RGB-backlit 8 x Banks accessible via Pad Bank buttons |
| Knobs | 16 x 360° Touch-sensitive Q-Link knobs for parameter adjustment 1 x 360° Encoder for display navigation and selection via push 7 x 270° Knobs for gain, mix & level adjustment |
| Buttons | 63 x Dedicated-function buttons |
| Display | Diagonal: 10.1" (257 mm) W x H: 8.5 x 5.5" (216 x 139 mm) Full-color LED-backlit display with touch interface |
| CPU | Processor: 1.8 GHz quad-core ARM Cortex A17 processor RAM: 2 GB Storage: 16 GB (user storage, 10 GB pre-installed content), 4 GB (MPC operating system) |
| Connections | 2 x XLR+1/4” (6.35 mm) TRS inputs (Input 1/2) 2 x 1/4” (6.35 mm) TRS inputs (Input 3/4: 1 stereo pair) 2 x 1/4” (6.35 mm) TS instrument inputs (Inst 1/2) 2 x RCA inputs (Input 3/4: 1 stereo pair, phono- or line-level) 2 x 1/4” (6.35 mm) TS footswitch inputs (FS 1/2) 2 x 5-pin MIDI inputs 8 x 1/4” (6.35 mm) TRS outputs (Main L/R, Outputs 3/4–7/8: 4 stereo pairs) 4 x 5-pin MIDI outputs 8 x 1/8” (3.5 mm) CV/Gate outputs 1 x 1/4” (6.35 mm) stereo headphone output 1 x 1/8” (3.5 mm) stereo headphone output 2 x USB Type-A ports 1 x USB Type-B port 1 x SD card slot 1 x power adapter input |
| System Requirements | Controller Mode Windows 8.1 or newer Mac OS X 10.10.5 or newer MPC 2.0: Minimum 2GB free disk space (20GB for all content), Minimum 4GB RAM (8GB recommended), Minimum Dual-core 2.5GHz CPU |
| Power | Power adapter (19 V, 3.42 A, center-positive, included) |
Dimensions (width x depth x height)
- 19.9” x 16.7” x 3.4” / 50.5 x 42.4 x 8.7 cm (display flat)
- 19.9” x 15.3” x 8.4” / 50.5 x 38.8 x 21.4 cm (display upright)
Weight
- 12.57 lbs.
- 5.66 kg
