Blackmagic Videohub 80x80 12G
Largest 40x40 zero latency 12G-SDI video router which supports any combination of SD, HD and Ultra HD on the router at the same time. Features built in control panel with large LCD and machined spin knob, SDI re-clocking and external control!
Product Highlights
- Zero-Latency Routing Switcher
- 80 x 12G-SDI Inputs/80 x 12G-SDI Outputs
- Supports up to DCI 4K60 Video
- Combines SD, HD, UHD 4K & DCI 4K Video
- 4:2:2 & 4:4:4 Video Sampling Supported
- Push-Button, Knob & Ethernet Control
- 32 Channels of Embedded Audio
- SDI Reclocking
- Includes Videohub Mac/Windows Software
- Overview
- Tech Specs

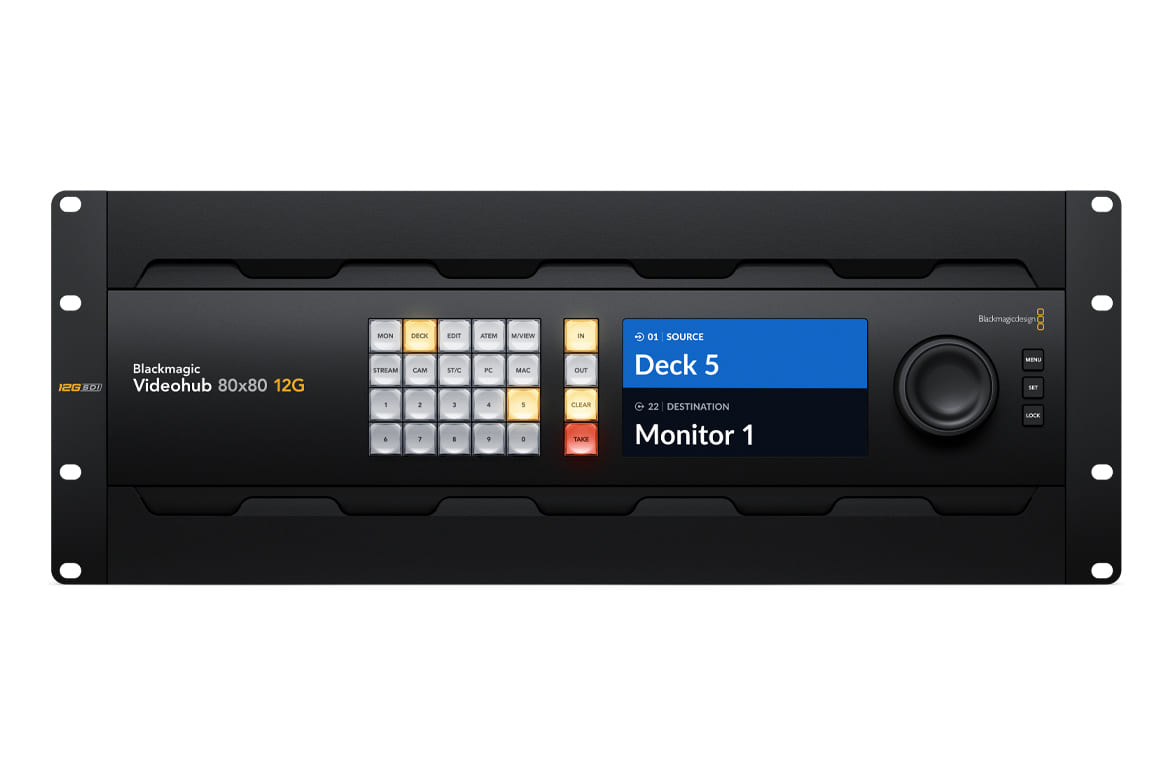

Blackmagic Videohub 80x80 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. The 80 12G-SDI inputs feature LEDs on each BNC that indicate an SDI signal, plus there are 80 12G-SDI outputs, redundant power and reference connections in a stylish four rack unit design. The large full HD LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.

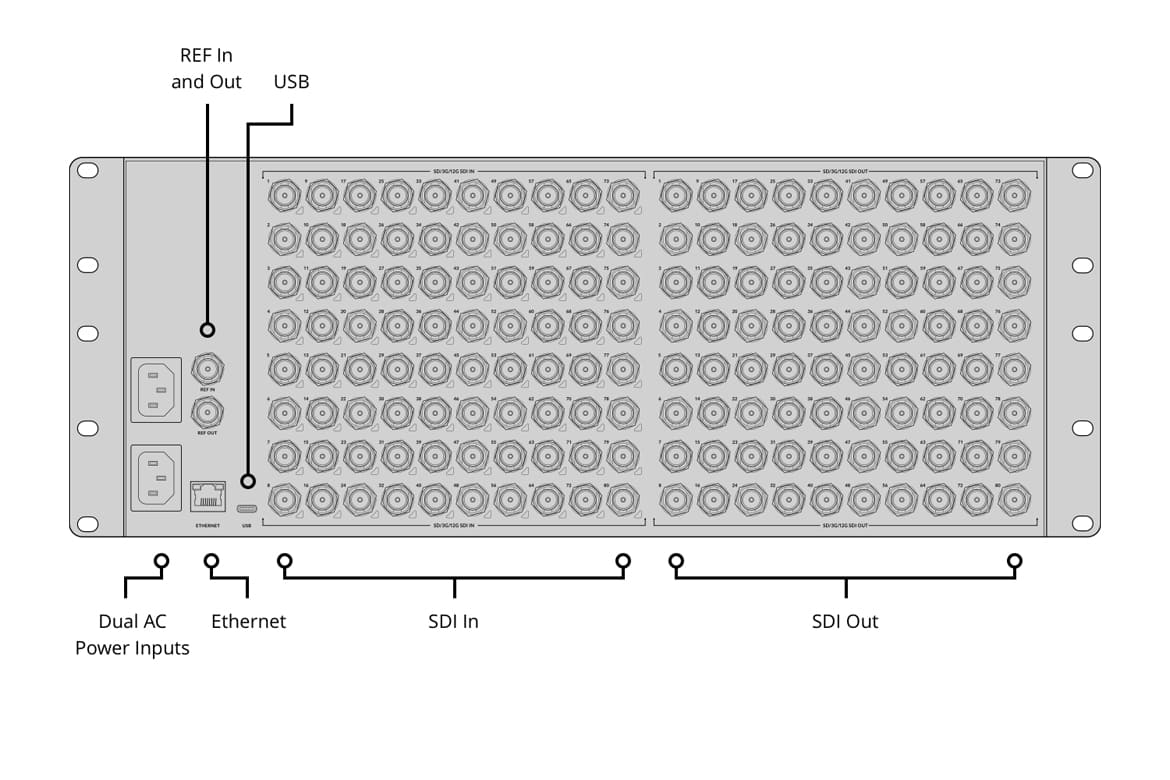

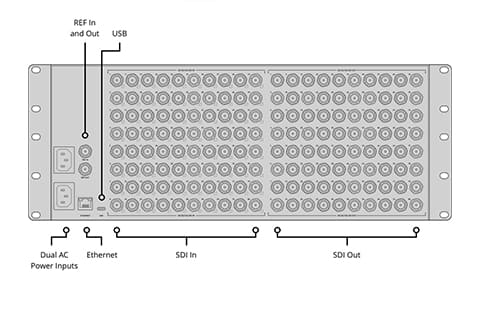

| Connections | |
| SDI Video Input | 80 |
| SDI Video Output | 80 |
| SDI Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G. |
| Video Input Re-Sync | None. |
| SDI Reclocking | On all SDI outputs. |
| Reference Inputs | Tri-Sync or Black Burst. |
| Reference Outputs | Reference terminating loop output. |
| Ethernet | Supports 10/100/1000 BASE‑T. |
| Computer Interface | USB‑C |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI Video Sampling | YUV 4:2:2 and RGB 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48kHz and 24-bit. |
| SDI Color Precision | 10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes. |
| SDI Color Space | REC 601, REC 709, REC 2020 |
| SDI Auto Switching | Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard. |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M. |
| Control | |

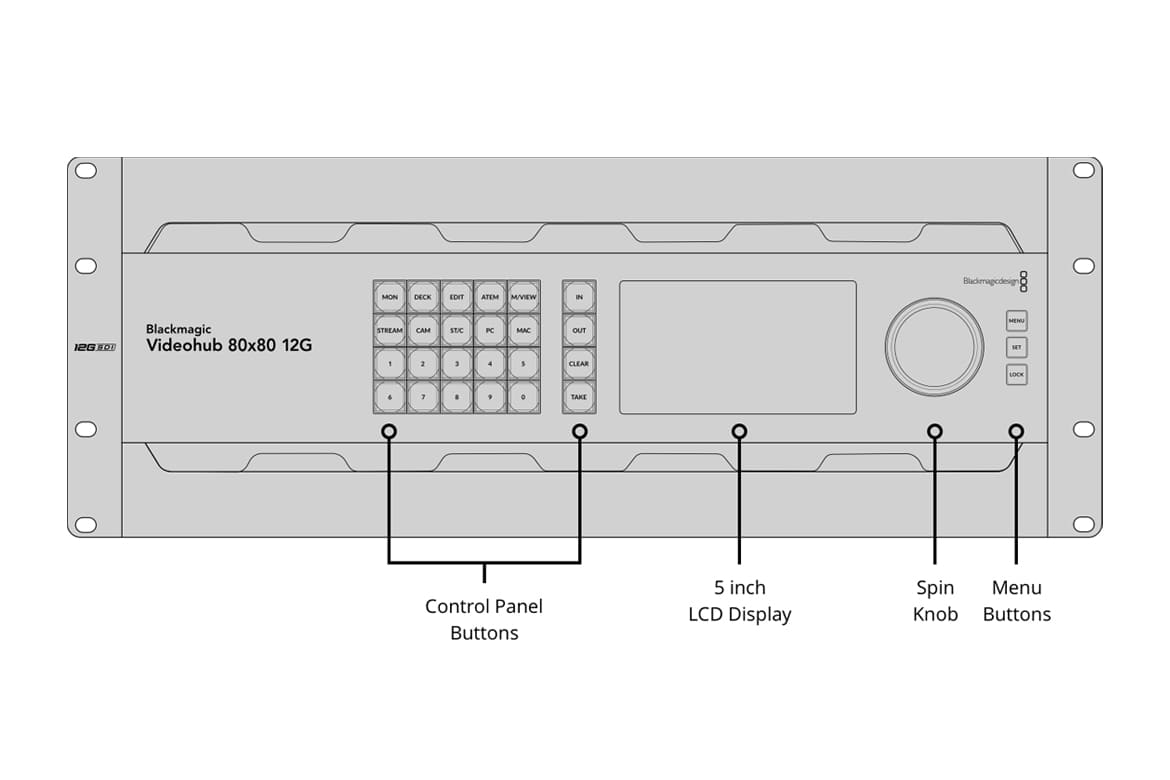

| Built in Control Panel | 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display. |
| External Control Panel | Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol. |
| Control Panel Connection | Ethernet |
| Software | |
| Software Control | Router control included free for Windows™ and Mac™. |
| Internal Software Upgrade | Via included updater application. |
| Physical Installation | |
| Physical Installation | 4 rack units height. |
| Physical Specifications | |
| Width | 19in |
| Height | 6.96in |
| Depth | 9.37in |
| Weight | 24 lb |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 12.0 Monterey,
Mac 13.0 Ventura or later. - Windows 10, 64-bit.
Windows 11.
Display
- Built in 5 inch LCD for video and menu settings.
Power Requirements
- Power Supply
2 x Internal 100 - 240V AC 50/60Hz.
IEC power cables required. - Power Fail Protection
Crosspoint connections preserved and restored instantly at power on. - Power Usage
92 W max.
